Technical Characteristics of Electric Motorcycle Wheel Cover Molds

1. Introduction

With the rapid growth of the electric motorcycle market, wheel covers (also known as fenders or wheel housings) have become key components that affect both the appearance and performance of electric motorcycles. As the core tooling for injection molding these parts, the mold's technical level directly determines product quality, production efficiency, and manufacturing cost. This article provides a systematic analysis of the technical characteristics of electric motorcycle wheel cover molds.

2. Product Characteristics and Their Impact on Mold Design

2.1 Structural Features of Wheel Covers

Electric motorcycle wheel covers typically have the following characteristics:

• Large curved surfaces: Aerodynamic and stylistic requirements demand smooth, complex 3D contours
• Thin-walled structure: Wall thickness generally ranges from 1.5–2.5 mm to reduce weight
• Asymmetric geometry: Front and rear wheel covers differ significantly in shape and mounting structure
• High appearance requirements: Visible surfaces require Class A finish with no flow marks, weld lines, or sink marks
• Integration of functions: Often incorporate mounting bosses, ribs, and snap-fit features

2.2 Material Considerations

Common materials include:

• ABS: Good overall performance and appearance
• PC/ABS blend: Higher impact resistance and heat resistance
• PP + EPDM: For flexible, impact-resistant applications
• PA + GF: For structural reinforcement in high-load areas

Material selection directly affects shrinkage rate, flow behavior, and mold steel selection.

3. Key Technical Characteristics of the Mold

3.1 Complex Parting Surface Design

Due to the asymmetric and curved geometry of wheel covers:

• Parting lines must follow the natural contour of the product to minimize visible marks
• Multiple parting directions may be required for sliders and lifters
• 3D-based parting surface construction using CAD software (UG, CATIA, SolidWorks) is essential

3.2 Gating System

• Hot runner systems are commonly used to eliminate runner waste and improve surface quality
• Valve gate technology enables sequential filling, reducing weld lines on visible surfaces
• Gate location must be optimized through Moldflow analysis to balance flow and avoid warpage

3.3 Cooling System

Efficient cooling is critical for thin-walled, large-surface parts:

• Conformal cooling channels produced by metal 3D printing (SLM) can follow the curved surface, improving cooling efficiency by 30%–50%
• Baffle and bubbler systems are used in deep, narrow core areas
• Cooling time typically accounts for 60%–70% of the total cycle time; optimization directly boosts productivity

3.4 Ejection System

Thin-walled wheel covers are prone to deformation during ejection:

• Multi-point ejection with densely arranged ejector pins is required
• Air-assisted ejection or stripper plates may be used for large, thin areas
• Ejection balance must be verified through simulation to prevent warping

3.5 Slider and Lifter Mechanisms

Wheel covers often have undercuts for mounting and assembly:

• Hydraulic or mechanical sliders handle side undercuts
• Angled lifters are used for internal undercuts
• Movement must be precisely calculated to avoid interference during mold closing

4. Mold Manufacturing Technical Points

4.1 Material Selection

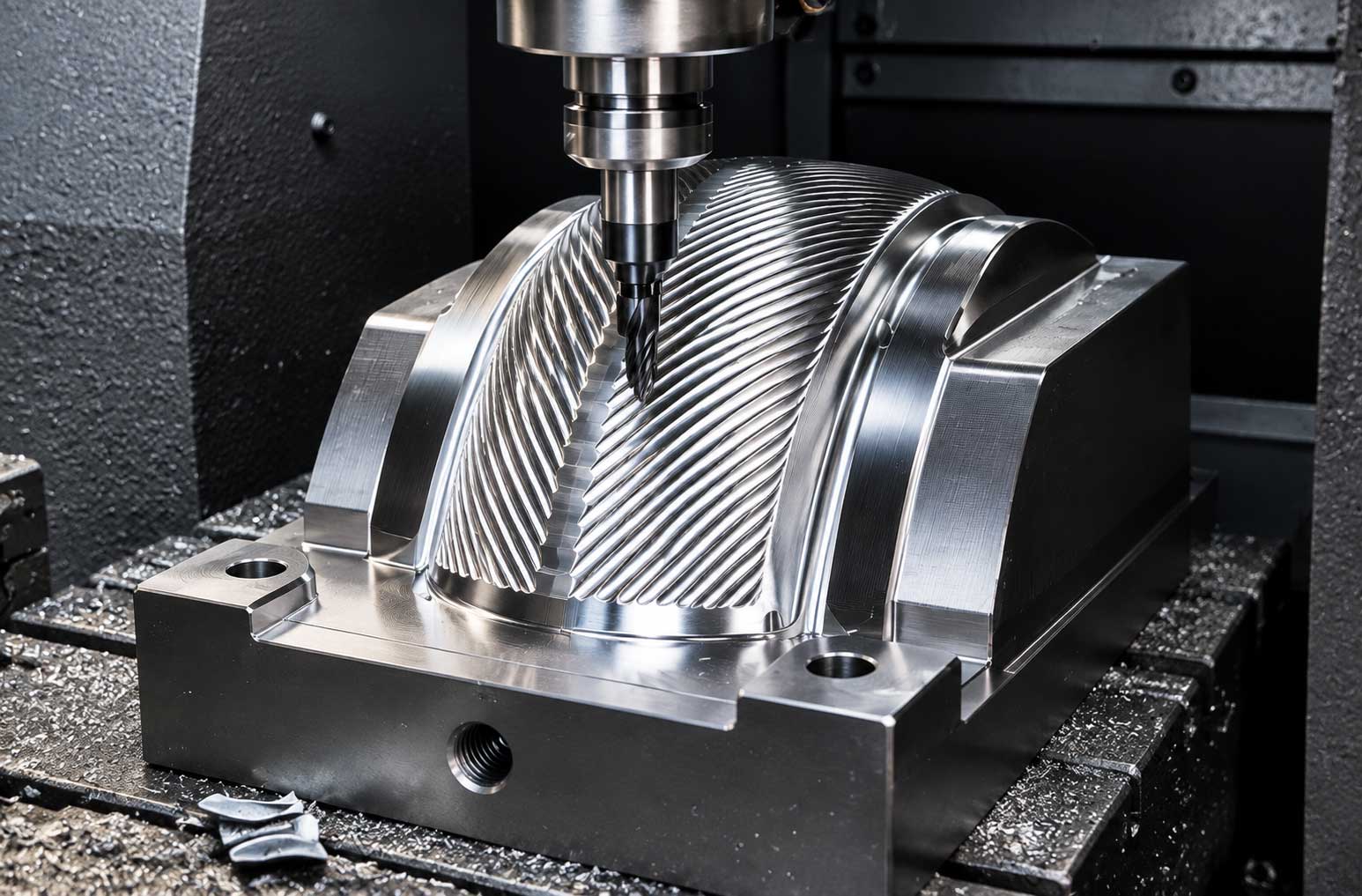

4.2 Machining Process

• Rough machining: CNC milling with φ16–φ32 carbide tools
• Semi-finishing: High-speed milling with φ8–φ12 tools
• Finishing: 3+2 axis or 5-axis high-speed machining with ball-nose cutters (φ6–φ10), step-over 0.1–0.2 mm
• EDM: For deep ribs, narrow slots, and sharp corners
• Polishing: Visible surfaces polished to Ra 0.2–0.4 μm; textured surfaces achieved by chemical etching

4.3 Deformation Control

• Stress-relief annealing after rough machining
• Symmetrical machining sequences to balance residual stresses
• Small depth-of-cut, high-feed finishing strategies

5. Moldflow Simulation and Optimization

Modern mold development for wheel covers relies heavily on CAE simulation:

• Fill analysis: Ensures complete filling without short shots
• Packing analysis: Minimizes shrinkage and sink marks
• Cooling analysis: Optimizes channel layout and cycle time
• Warpage analysis: Predicts and compensates for deformation
• Weld line and air trap prediction: Improves appearance quality

6. Testing and Validation

6.1 Trial Molding

• Conducted on injection molding machines with matching tonnage
• Parameters (injection speed, pressure, holding time, cooling time) optimized iteratively
• Dimensional inspection using CMM (Coordinate Measuring Machine)
• Surface quality evaluated under standard lighting conditions

6.2 Acceptance Criteria

• Dimensional tolerance: ±0.2 mm for critical features
• Surface: No visible defects on Class A surfaces
• Mold action: Smooth operation of sliders, lifters, and ejection
• Cycle time: Meets target productivity requirements
• Mold life: Typically 300,000–500,000 shots for production molds

7. Technical Development Trends

7.1 Additive Manufacturing

• Conformal cooling inserts via SLM (Selective Laser Melting)
• Reduces cycle time by 20%–40%
• Extends mold life by eliminating hot spots

7.2 Intelligent Mold Technology

• In-mold sensors for real-time pressure and temperature monitoring
• AI-based process optimization for adaptive parameter control
• Digital twin technology for virtual mold testing

7.3 High-Performance Materials

• New mold steels with improved thermal conductivity
• Coatings (PVD, CVD) to enhance wear resistance and release properties

7.4 Green Manufacturing

• Energy-efficient hot runner systems
• Recyclable materials compatibility
• Reduced scrap through precision process control

8. Conclusion

Electric motorcycle wheel cover molds present unique technical challenges due to their large curved surfaces, thin walls, high appearance requirements, and complex undercut features. Successful mold development requires integrated expertise in product design, mold structure design, CAE simulation, precision machining, and process optimization. As the electric motorcycle industry continues to evolve toward lighter, more aesthetically demanding designs, mold technology must advance in parallel—leveraging conformal cooling, intelligent monitoring, and advanced materials to meet increasingly stringent requirements for quality, efficiency, and sustainability.
