European Major Home Furnishing Chain

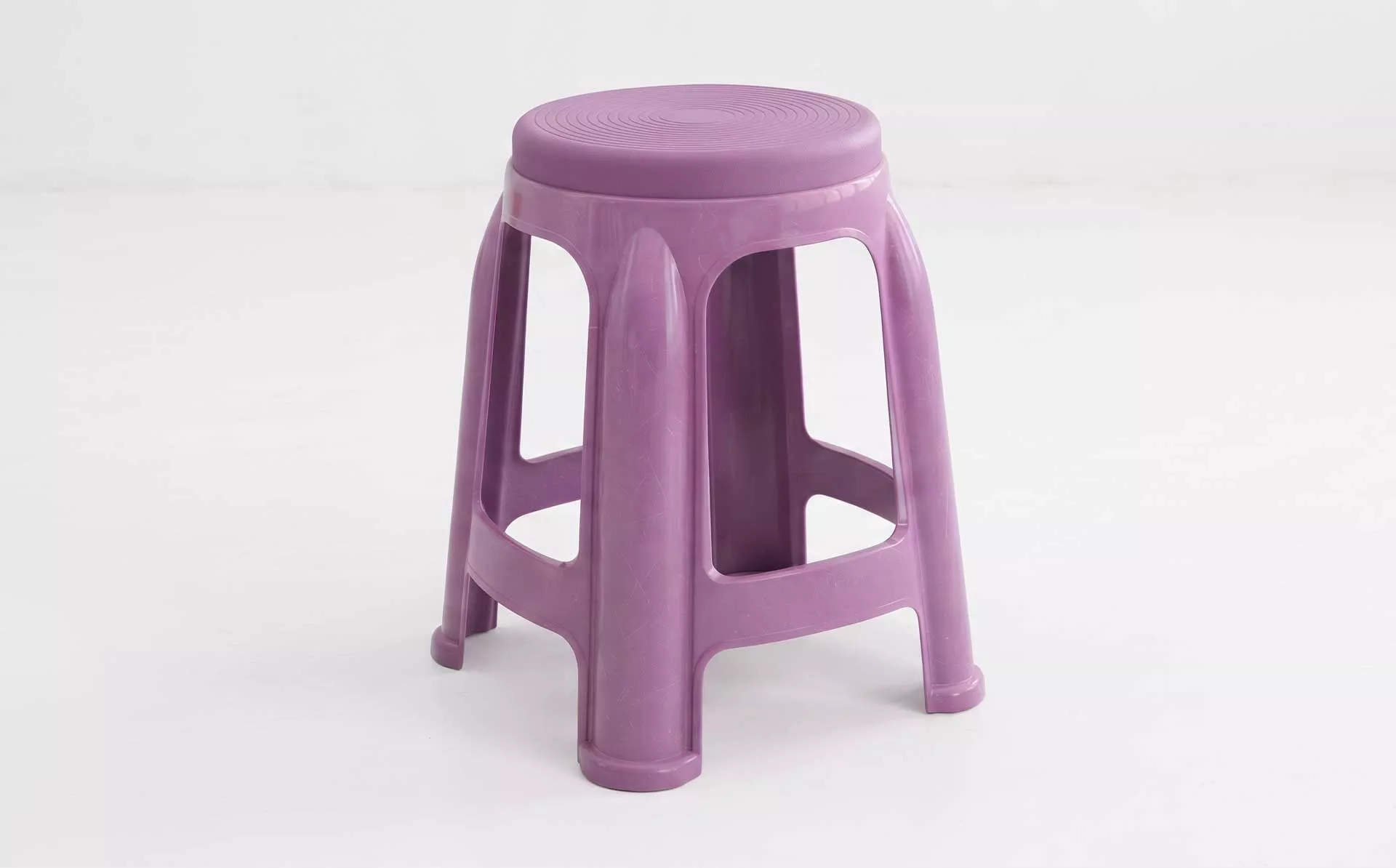

Stackable round stool mold project (seat + legs one-piece molding)

PAIN POINTS

The old mold produced visible sink marks at the seat center due to uneven cooling, causing high cosmetic defect rates. The leg-to-seat joint had insufficient strength, cracking under 150kg static load. Stacking was unstable due to leg angle deviation, wasting transport space.

MOTEK SOLUTION

• Designed conformal cooling channels at seat center, eliminating sink marks and achieving SPI A2 surface.
• Used FEA to optimize wall thickness gradient at leg-seat transition, increasing static load to 200kg without cracking.
• Used high-precision slider core-pulling system to control leg angle accuracy ±0.05°, reducing stack height by 30%.

"motek's stool mold helped our product pass EN 12520 on the first try, significantly reducing stacking and transport costs."

Southeast Asian Outdoor Leisure Products Manufacturer

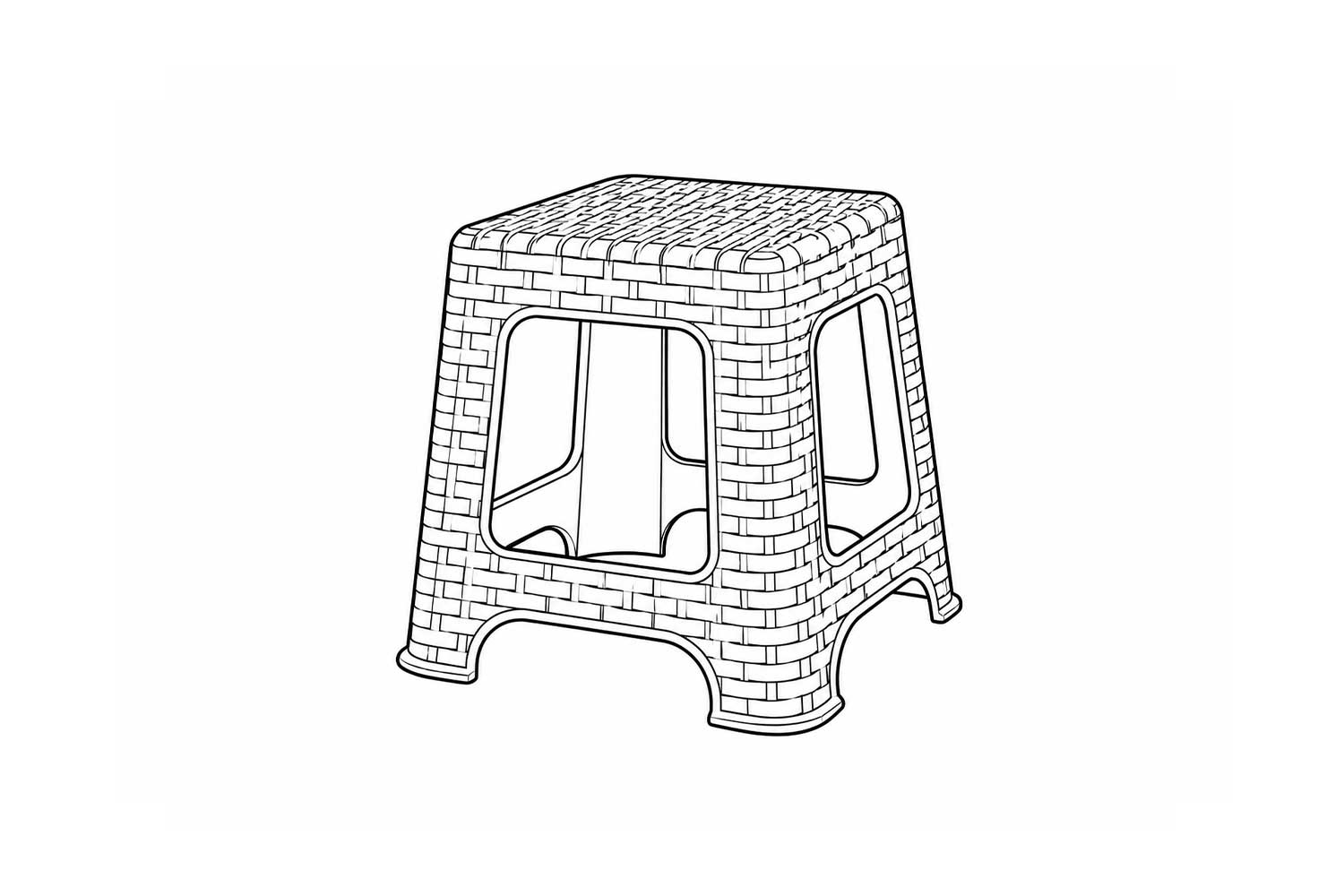

Thickened outdoor square stool mold project (with anti-slip foot pad slots)

PAIN POINTS

The outdoor square stool uses thickened UV-resistant PP. The old mold had low cooling efficiency with a 60-second cycle. Anti-slip foot pad slots showed scuffing due to insufficient draft angle. Sink marks at seat rib roots affected appearance and load capacity.

MOTEK SOLUTION

• Combined beryllium copper inserts with high-thermal-conductivity steel, reducing cooling time from 25s to 15s.
• Optimized foot pad slot draft angles and ejection system to eliminate scuffing and whitening defects.
• Used inserts at rib roots for accelerated cooling, eliminating sink marks and meeting outdoor-grade appearance requirements.

"motek's mold increased our outdoor stool capacity by 30% and passed UV testing on the first try. Our client is very satisfied."
