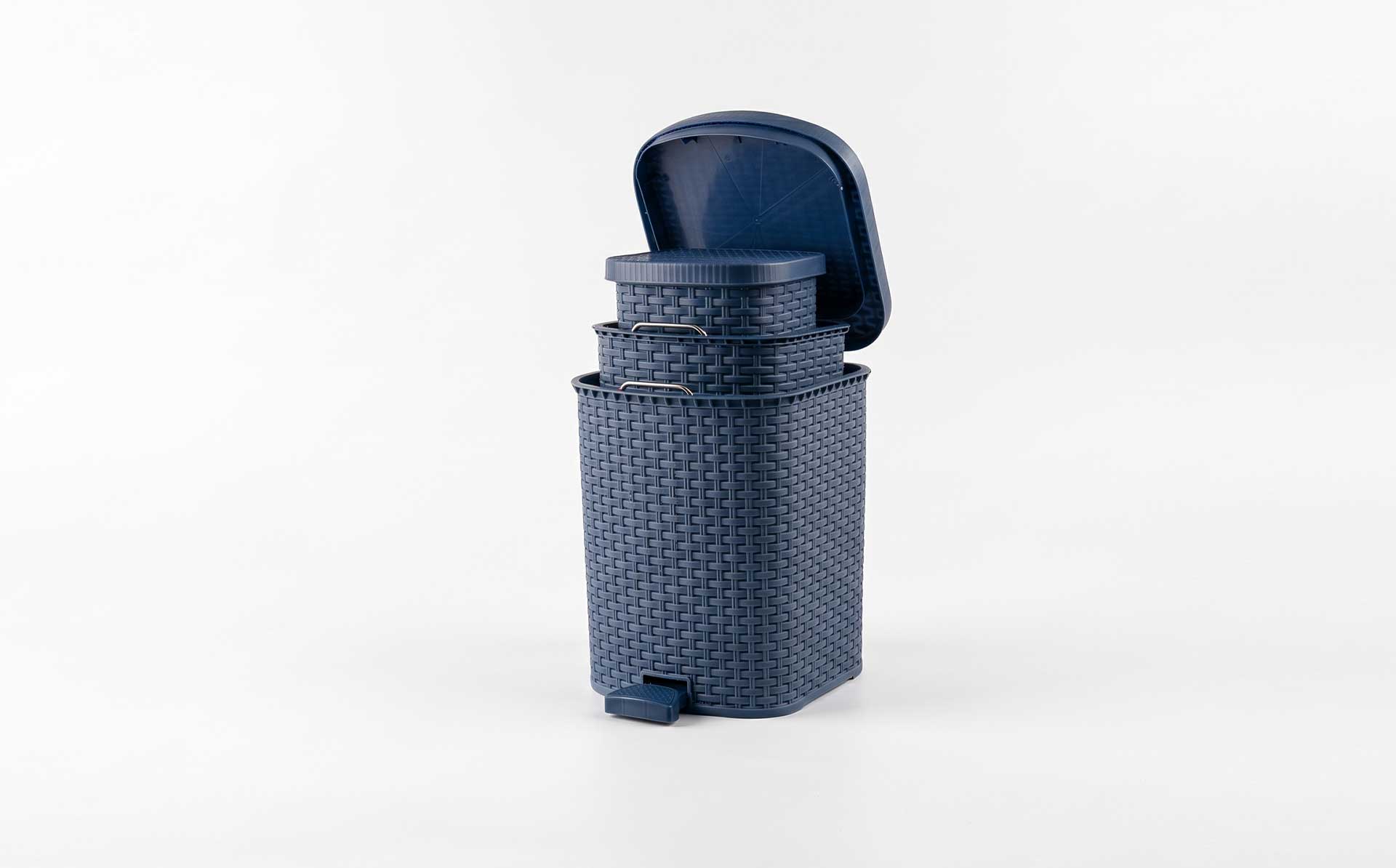

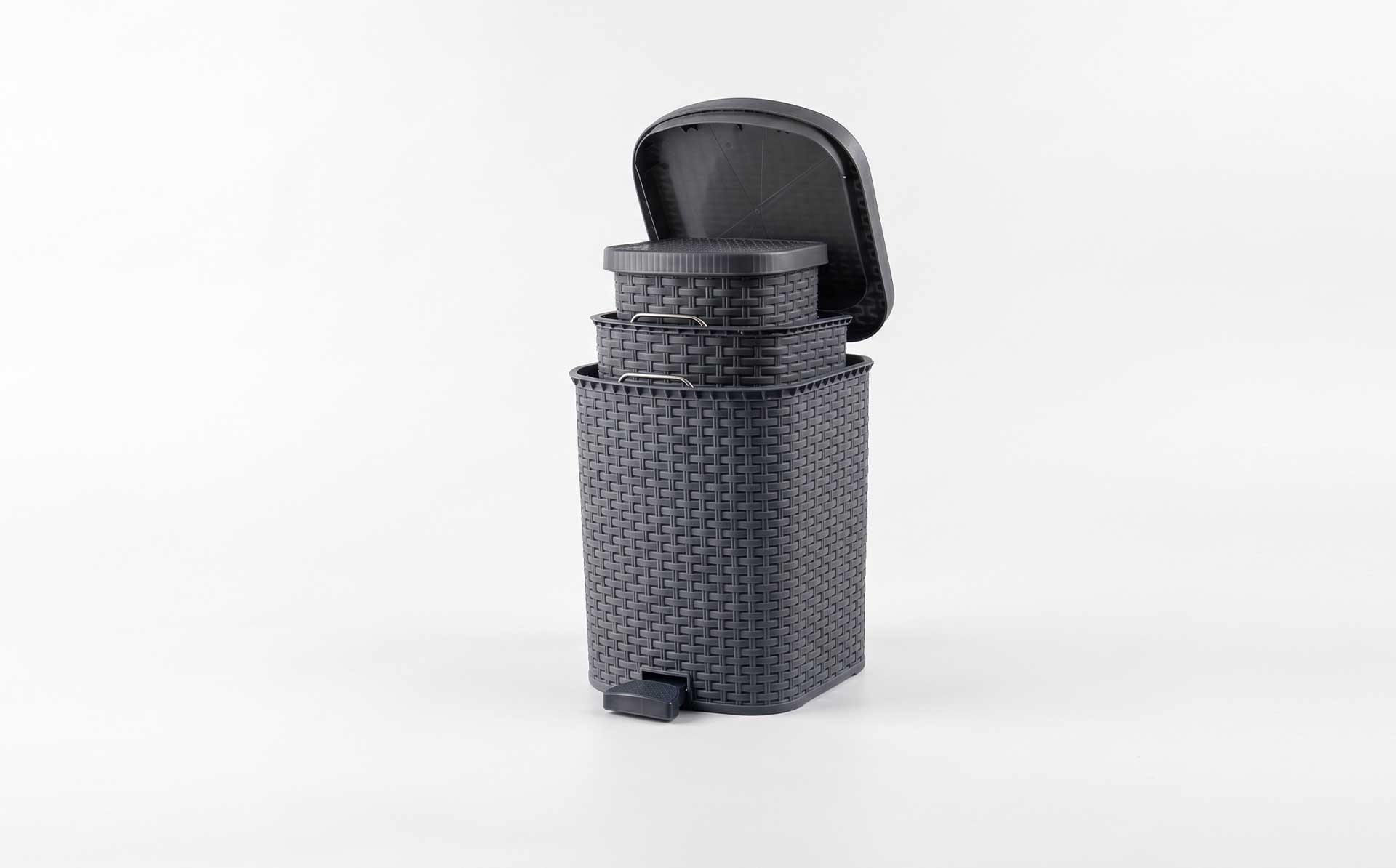

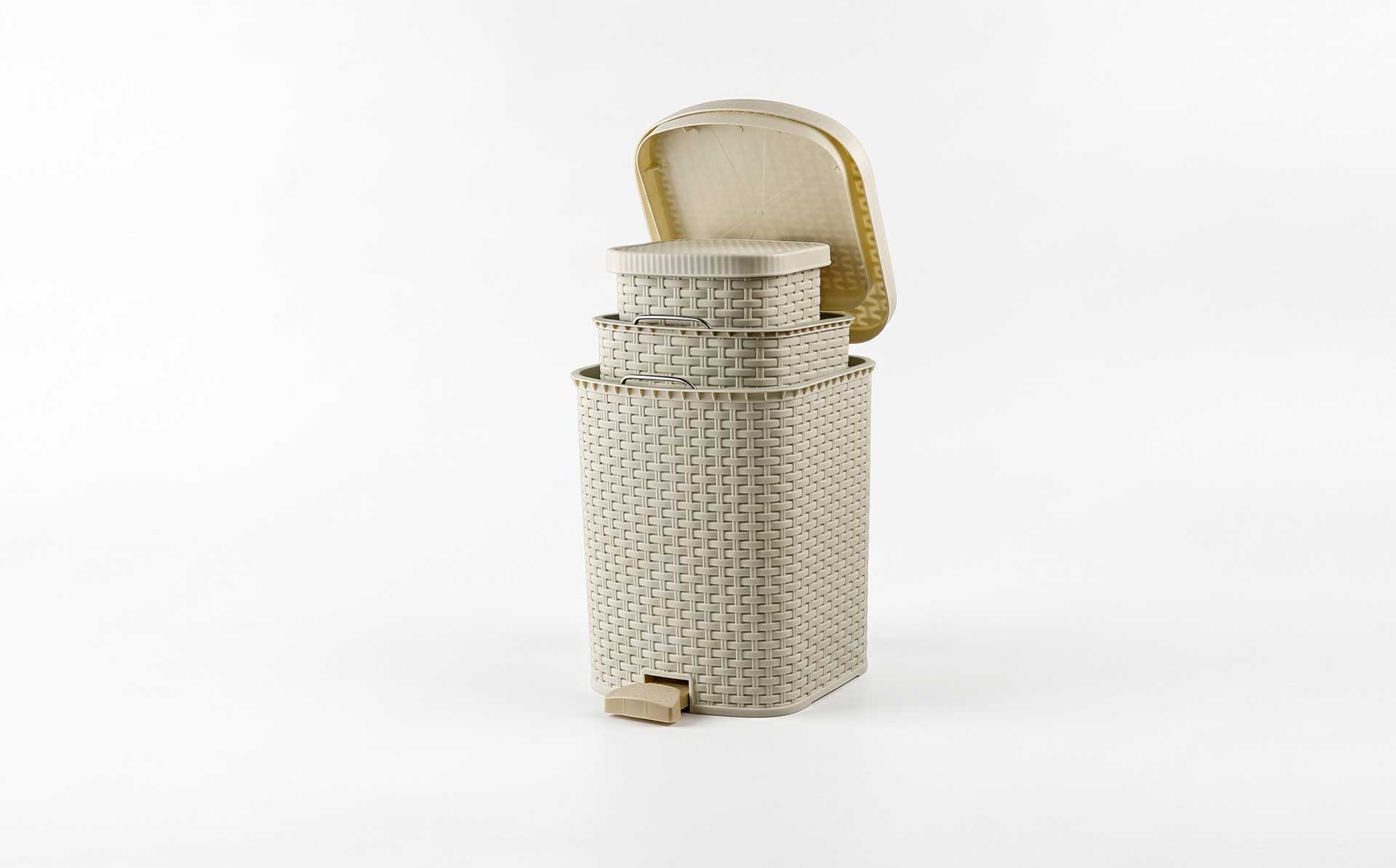

5L–20L Living & Dining Room Household Pedal Rattan-Weave Trash Can Mold — Product Introduction (Motek Daily Necessities Mold Series)
5L–20L Living & Dining Room Household Pedal Rattan-Weave Trash Can Mold — Product Introduction (Motek Daily Necessities Mold Series)
Product Positioning
Motek introduces dedicated injection molds for 5L–20L household pedal rattan-weave trash cans designed for living and dining room use. This product category combines three requirements: rattan-weave aesthetics for visible placement in living spaces, pedal operation for hands-free hygiene, and compact capacity suitable for living/dining room waste. Unlike kitchen or outdoor bins, living/dining room pedal bins prioritize visual integration with home decor while maintaining practical pedal functionality. The core challenges in mold development lie in rattan-weave texture replication on curved surfaces with demolding scratch protection, precision forming of the pedal linkage and lid hinge, and round-body warpage control for reliable lid fit. Motek addresses these through texture etching, pedal mechanism forming, and cavity layout design, helping customers achieve stable mass production of rattan-weave pedal bins.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / HDPE (food-contact grade optional; PP commonly used for household applications) |
| Mold Material | S136 / 1.2316 corrosion-resistant steel for textured areas; P20/718H/NAK80 for cavity and core |
| Number of Cavities | 1×1 primarily; 1×2 evaluable for 5L compact sizes |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 25–45 seconds (depending on body size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Texture Treatment | Imitation rattan weave texture etching (depth customized per customer samples) |
| Pedal Mechanism | Pedal pivot, linkage mounting, and lid hinge features integrally formed |
| Demolding Method | Sliders/lifters first out + balanced ejector pin/stripper plate ejection |
Product Features
Rattan-Weave Texture Replication with Demolding Protection.
The visual appeal of rattan-weave trash cans depends on the continuity and three-dimensionality of the texture around the round body. Motek performs etching on cavity surfaces based on customer-provided rattan samples or texture drawings, reproducing the warp-and-weft interweaving and relief layers of the weave. The curved cylindrical surface requires uniform texture depth and consistent pattern alignment around the circumference. S136 or 1.2316 corrosion-resistant steels are selected for textured areas. Ample draft angles and anti-scratch treatment on moving components prevent texture damage during demolding.
Precision Forming of Pedal Linkage and Lid Hinge.
The pedal mechanism transmits force through a linkage to open the lid. Motek forms pedal pivot points, linkage mounting features, and lid hinge positions with tight dimensional tolerance, ensuring smooth pedal actuation and reliable lid opening/closing over repeated use. For metal-reinforced pedal mechanisms, insert seating features are designed with proper clearances. Given the compact 5L–20L capacity, the pedal mechanism is scaled accordingly, with pivot and linkage dimensions matched to the smaller body size.
Round-Body Warpage Control for Reliable Lid Fit.
Round trash can bodies are axisymmetric structures where shrinkage differences can cause ovality, compromising lid fit. Motek evaluates shrinkage distribution through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts annular balanced cooling channels to equalize cooling rates around the circumference, ensuring the body mouth remains circular for consistent lid contact.
Living/Dining Room Aesthetic and Surface Finish.
Living and dining room placement demands visual integration with home decor. Motek positions parting lines along the base edge or concealed areas, with gates located on the bin bottom to avoid visible marks on the textured exterior. Non-textured areas (such as the interior and base) can receive fine-texture or matte treatment for coordinated appearance. The rattan-weave exterior is designed to complement modern, rustic, and natural interior styles.
Household Durability and Cleanability.
Living/dining room environments involve occasional moisture and frequent cleaning. Motek ensures cavity surfaces are smooth and non-porous for easy wiping, with all corners and rib roots rounded to eliminate crevices where dust or contaminants could accumulate. The textured exterior is designed to resist staining while maintaining the rattan aesthetic.
Compact Body Handling and Foot Pedal Stability.
5L–20L bodies are relatively lightweight and may shift during pedal operation. Motek forms anti-slip foot pad mounting positions or integrally formed anti-slip structures on the bin bottom, ensuring stable placement on floors and preventing sliding during pedal actuation. The pedal mechanism mounting area is reinforced to withstand repeated actuation on the compact body.
Applications
Motek 5L–20L living & dining room household pedal rattan-weave trash can molds are suitable for:
- Living room decorative pedal rattan-weave bins (5–20L)
- Dining room pedal-operated rattan-weave trash cans
- Bedroom pedal rattan-weave waste bins
- Study/den decorative pedal bins
- Compact household pedal bins with rattan aesthetic
Service Process
After the customer provides 3D product drawings, rattan texture samples or reference images, pedal mechanism plans, and capacity specifications, Motek completes texture etching plan confirmation, mold flow analysis (including textured area filling evaluation, round-body warpage compensation, and pedal mounting verification), and mold structure design; cavity steel is selected per texture requirements, with texture samples provided for customer confirmation before etching; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying texture appearance continuity, pedal actuation smoothness, lid fit, and round-body dimensional accuracy, with samples provided for final sign-off. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and texture maintenance notes provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From standard household bins to rattan-weave pedal trash cans, providing reliable mold solutions for aesthetic and functional daily necessities.
