Plastic Rectangular Outdoor Dining Table Mold for In-Mold Labeling (IML) — Product Introduction (Motek Furniture Mold Series)

Product Positioning

Motek introduces in-mold labeling (IML) dedicated injection molds for rectangular plastic tables used in outdoor dining settings. Outdoor dining tables are typically long, large-panel structures that must withstand simultaneous use by multiple people, sun and rain exposure, and frequent handling—placing high demands on tabletop flatness, UV aging resistance, and surface wear resistance. Under the IML process, wood-grain, stone-grain, or brand pattern labels are formed integrally with the tabletop, eliminating subsequent printing and film-application processes. The core challenges lie in flat adsorption and edge-lifting prevention of long strip-shaped large labels, shrinkage and warpage control along the long-edge direction, and assurance of label adhesion under outdoor use conditions. Motek addresses these three aspects through gate layout, vacuum adsorption, and cooling system design, helping customers achieve simultaneous decoration and forming of outdoor dining tables.

Core Specifications

Product Features

Zoned Vacuum Adsorption and Edge-Lifting Prevention for Long Strip Labels.

Rectangular panel labels are elongated sheets prone to waviness or edge lifting along the long-edge direction due to uneven adsorption. Motek adopts zoned vacuum adsorption circuits on the cavity surface, with multiple adsorption units arranged along the long-edge direction, combined with label positioning pins or positioning steps, ensuring the label conforms flatly without displacement during mold closing and injection. Adsorption density is appropriately increased at the four corners and long-edge end areas, with emphasis on preventing corner lifting and end curling.

Multi-Point Gate Layout Balancing Filling Uniformity and Ink Protection.

Long panels have long flow paths, making uniform filling difficult with a single gate. Motek uses multi-point submarine or banana gates arranged along the long edges or diagonally, shortening flow distance and balancing filling pressure; all gates are positioned outside the label coverage area or at sufficient distance to prevent melt from directly scouring the printed label surface (gate wash). Gate quantity and position are determined through mold flow analysis, balancing weld line location with appearance requirements.

Warpage Pre-Compensation Along the Long-Edge Direction.

Large rectangular flat surfaces deform more along the long edge than the short edge during shrinkage, prone to longitudinal bending or "saddle-shaped" warpage. Motek evaluates long-edge versus short-edge shrinkage differences through mold flow analysis, applies pre-deformation compensation to the cavity, and uses cooling channels zoned along the long-edge direction to equalize cooling rates between long and short edges, controlling tabletop flatness from the source.

Label Adhesion Assurance Under Outdoor Use Conditions.

Outdoor dining tables are exposed long-term to UV, temperature fluctuations, and rain, making label-to-plastic-substrate adhesion critical. Motek confirms label material (weather-resistant PET, etc.) and substrate compatibility with customers during the mold design phase, ensuring firm label-to-panel bonding through cavity surface treatment and injection process window coordination; uniform wall thickness is maintained in labeled areas to reduce the risk of label-area sinking or peeling caused by uneven cooling.

Integral Forming of Folding/Plug-In Leg Structures.

Outdoor dining tables often use folding or plug-in legs for easy storage and transport. The mold forms leg mounting positions, snap-fits, and reinforcement ribs through a slider system, with slider guidance and locking designs ensuring long-term running accuracy. Motek optimizes wall thickness transitions and venting at leg mounting areas to avoid weak points caused by trapped gas.

Draft Angles Adapted for Label Protection, Balanced Ejection.

IML molds require larger draft angles than standard molds to prevent the hardened label surface layer from being scraped by the mold wall during ejection. Motek provides ample draft angles at panel edges and label coverage areas, with a multi-point balanced ejection system layout along both long and short edges, ensuring labels are not damaged and panel surfaces do not deform during demolding of long rectangular panels.

Applications

Motek IML plastic rectangular outdoor dining table molds are suitable for:

• Outdoor courtyard/patio long dining tables

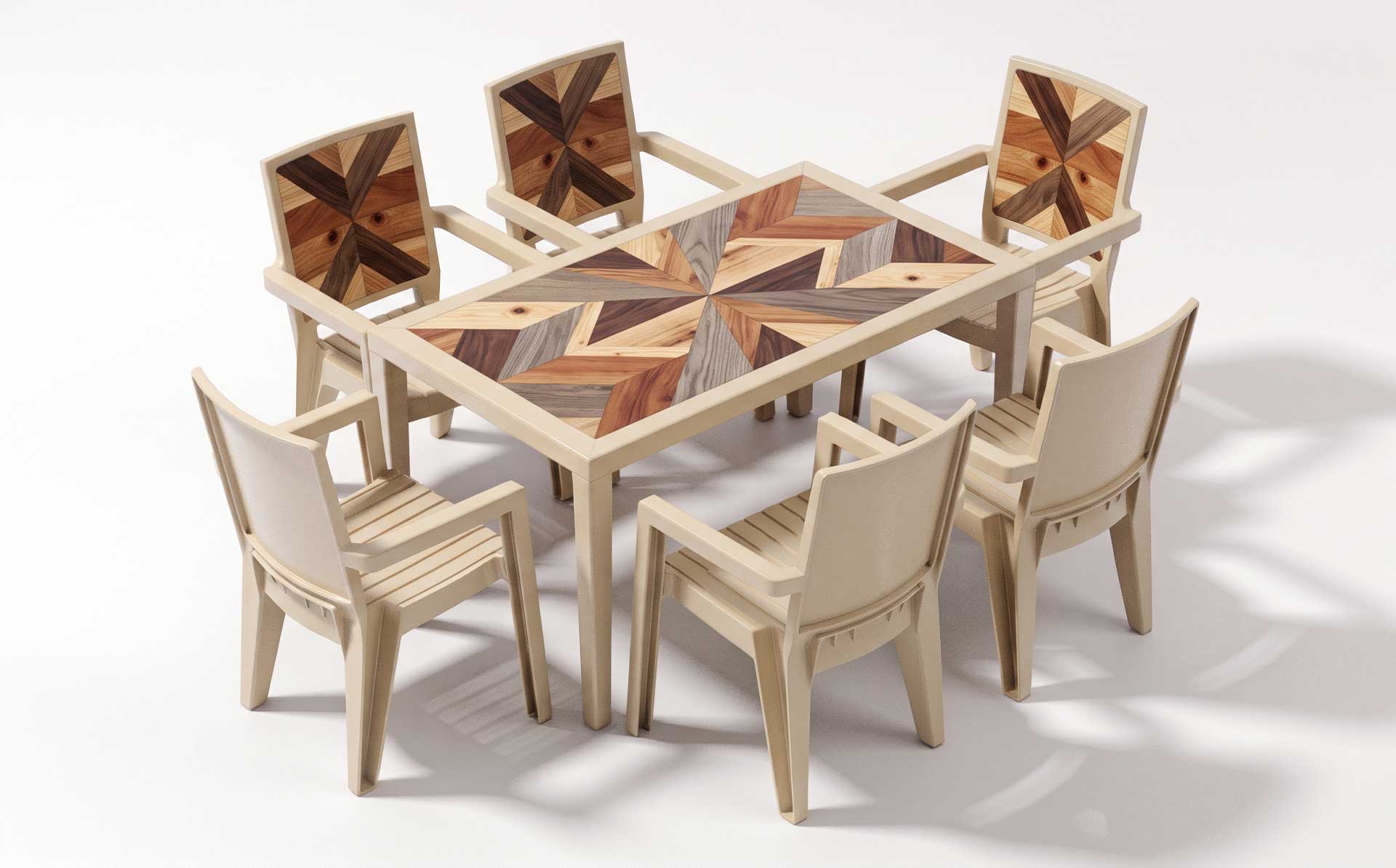

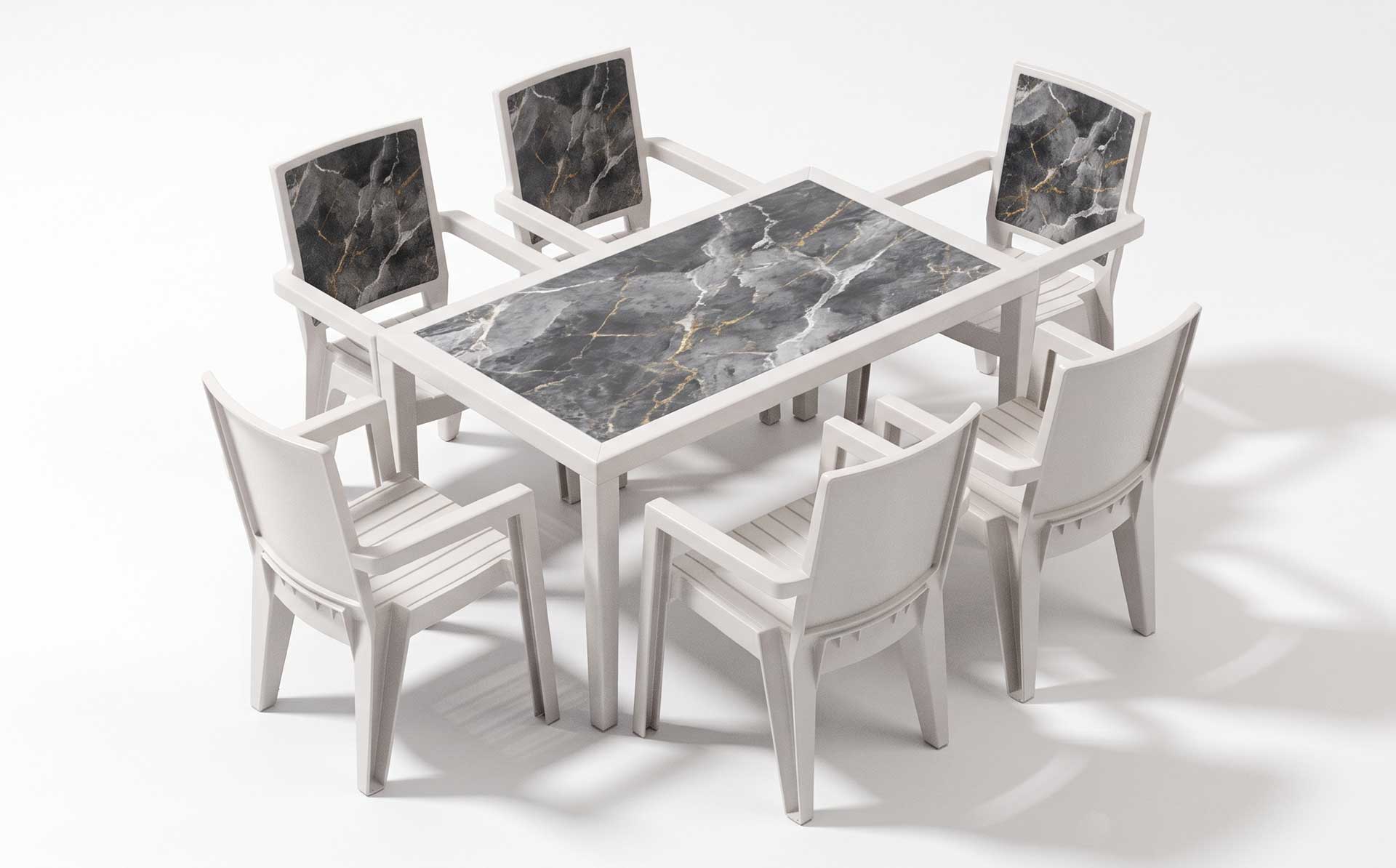

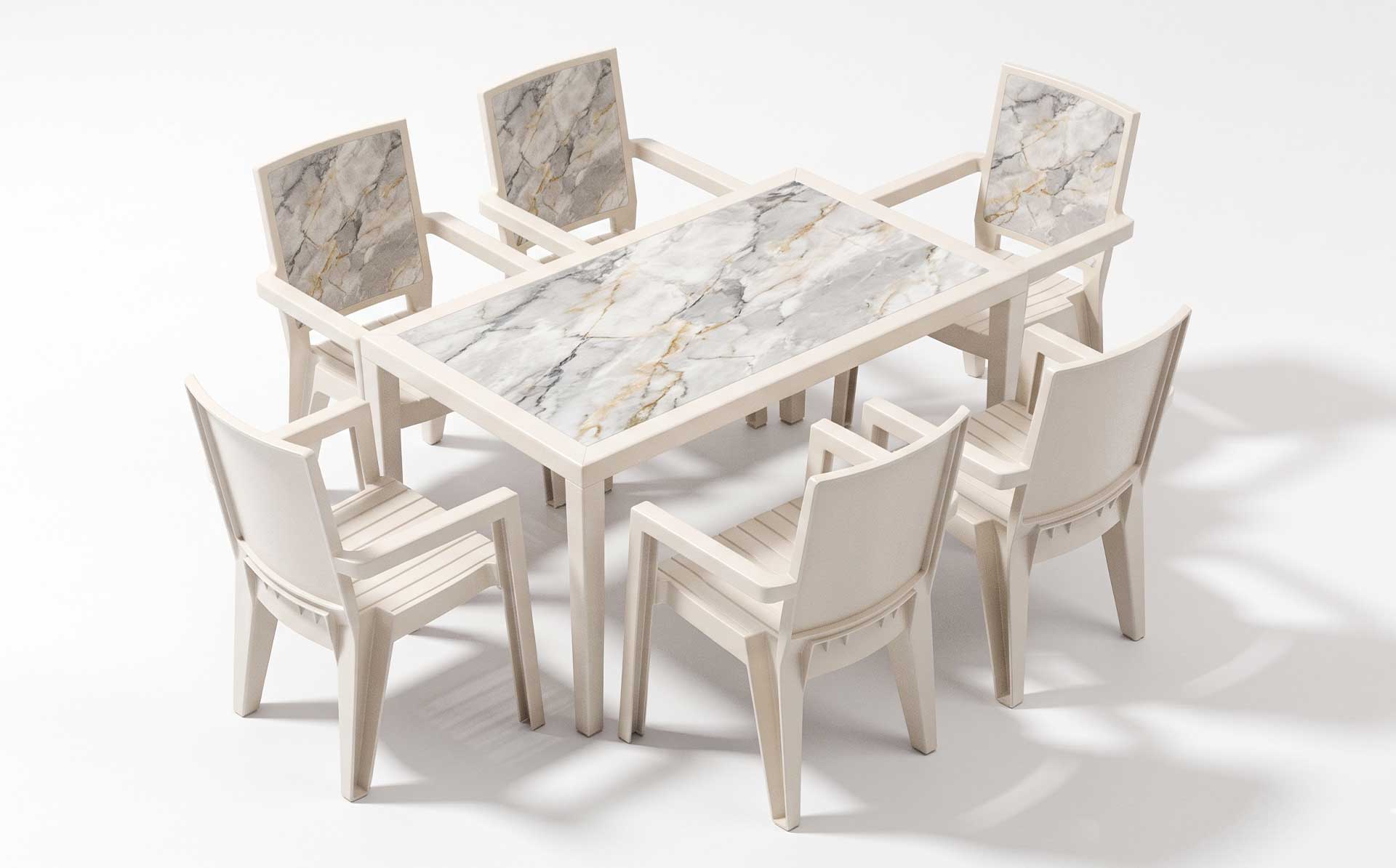

• Outdoor dining tables with wood-grain/stone-grain decorative labels
• Commercial dining tables with integrally formed brand logos
• Folding portable outdoor long tables
• Rectangular dining tables for BBQ/picnic use
• Outdoor tabletops requiring wear-resistant, scratch-resistant, UV-resistant surfaces

Service Process

Motek — From indoor round tables to outdoor long tables, providing integrated mold solutions for in-mold labeling decoration and outdoor-durable forming of plastic furniture.
