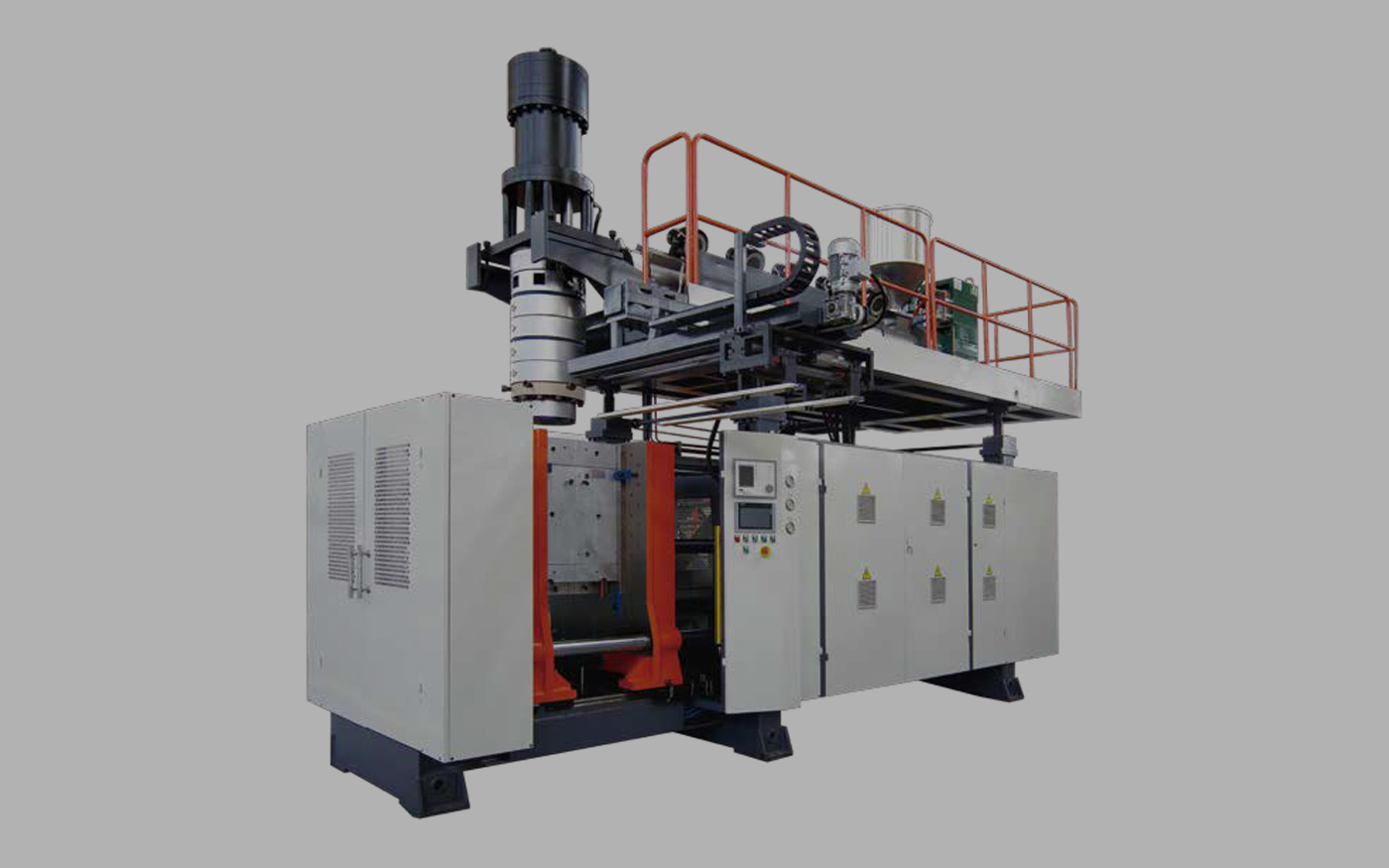

15-100L Jerrycan & Open-Top Drum Blow Molding Machine

Product Detail Page:

15-100L Jerrycan & Open-Top Drum Blow Molding Machine

Section 1: Headline / Core Selling Point

【High Output · Dual Station · Large Capacity】
Industrial Accumulating Head Blow Molding System——Engineered for 15-100L Chemical Jerrycans, Open-Top Drums & Industrial Packaging

Section 2: Product Overview

This machine series is a high-performance solution designed specifically for the large-volume production of industrial chemical packaging. Covering a wide capacity range from 15 to 100 liters, it is capable of manufacturing both standard jerrycans and open-top drums. Featuring a high-output extrusion system paired with a dual-station accumulating die head, this machine maximizes productivity by molding two parts simultaneously. Optional features such as view strips, multi-layer co-extrusion, and hydraulic servo control allow you to customize the machine for premium packaging applications, ensuring your investment meets both current and future market demands.

Section 3: Performance & Advantages (Detailed)

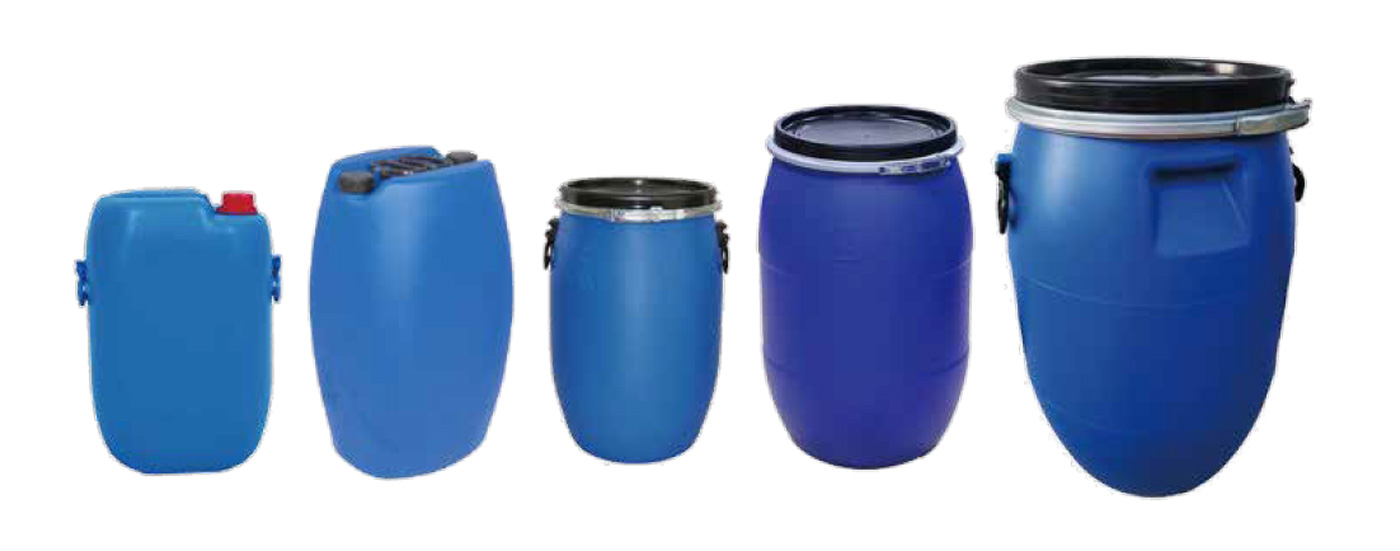

1. Wide Capacity Range for Industrial Packaging

• Comprehensive Coverage: Perfectly suited for manufacturing 15L to 100L chemical packaging products, including:

  • Standard Jerrycans: For agrochemicals, industrial liquids, and specialty chemicals.

  • Open-Top Drums: For products requiring easy filling and emptying, such as powders, pastes, or solid materials.

• Versatile Material Compatibility: Designed to process HDPE, PP, and multilayer structures for barrier protection.

2. Dual-Station High-Output Extrusion

• High Output Extrusion System: Equipped with a powerful, high-torque extruder capable of plasticizing large quantities of material continuously, ensuring consistent parison delivery for big parts.

• Dual Station Accumulating Die Head: Features two independent accumulating die heads operating simultaneously. This double-station design effectively doubles your production output compared to single-station machines, significantly reducing cost per part.

• Large Shot Capacity: The accumulator heads are engineered to gather and inject the large material volumes required for 100L drums rapidly, ensuring uniform wall thickness and preventing material sagging.

3. Customizable Packaging Features

• View Strip Line System (Optional) : Integrate a transparent sight strip directly into the container wall during molding. This creates a visible liquid level window, essential for chemical containers where content level monitoring is required, eliminating secondary labeling or printing processes.

• Double Layer Co-Extrusion System (Optional) : Upgrade to a double-layer co-extrusion system to produce containers with:

  • Barrier Properties: An inner layer for chemical resistance and an outer layer for UV protection or aesthetics.

  • Cost Efficiency: Use virgin material only for the inner layer in contact with the product, and use regrind or lower-cost material for the outer layer.

  • Color Integration: Produce containers with a virgin white inner layer and a colored outer layer in a single process.

4. Precision & Energy Efficiency

• Hydraulic Servo Control System (Optional) : Upgrade to a hydraulic servo control system for:

  • Energy Savings: Reduce energy consumption by up to 50-70% compared to traditional hydraulic systems.

  • Precision Control: Achieve ultra-precise control over mold movement speeds, ensuring smooth, repeatable operation essential for consistent large-part quality.

  • Reduced Noise: Operate at significantly lower noise levels, improving the factory working environment.

  • Faster Response: Benefit from quicker acceleration and deceleration of hydraulic movements, reducing cycle times.
