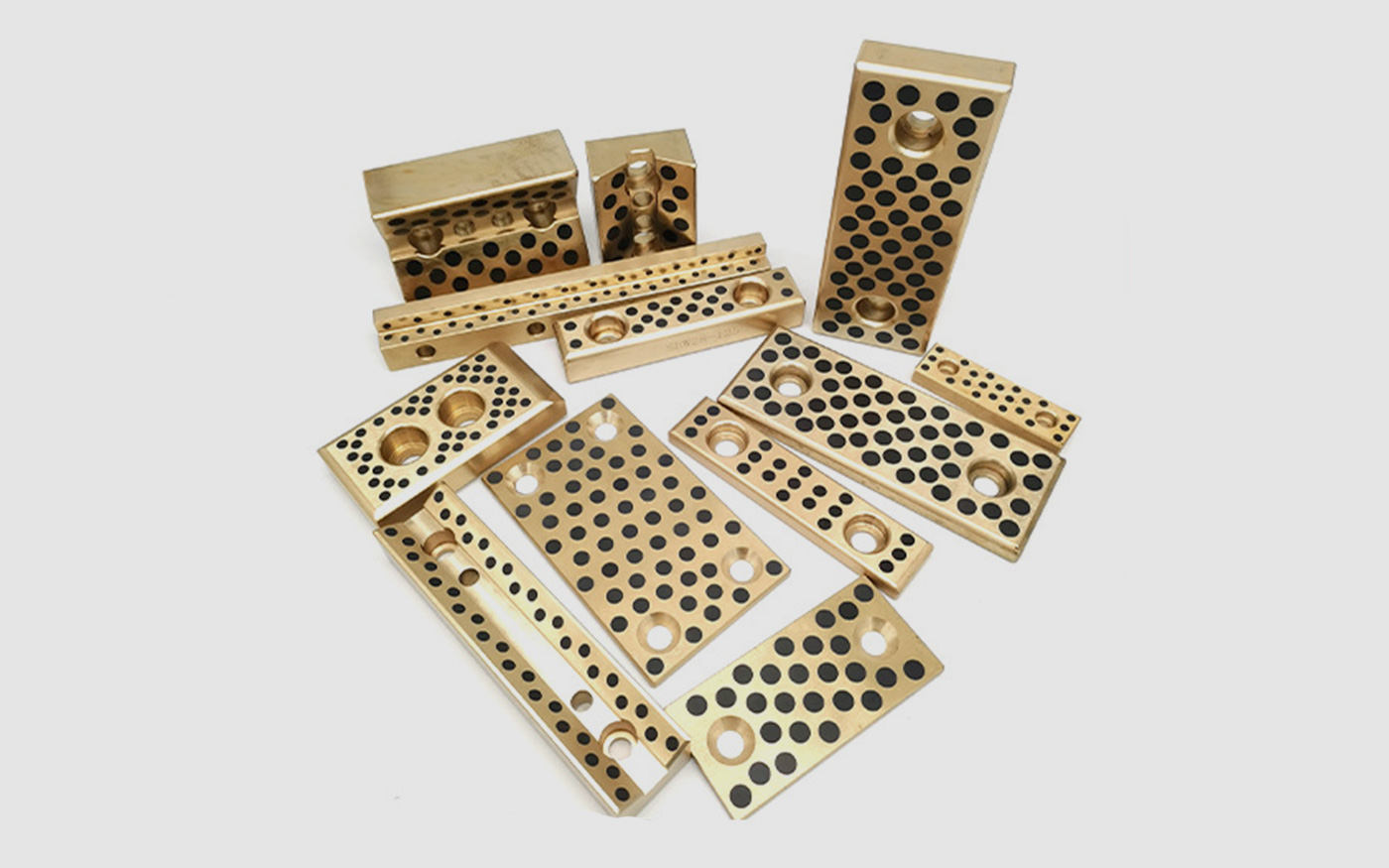

Wear Plates
Product Introduction: High-Quality Mold Slide Plates / Wear Plates
In the guide system of plastic molds and stamping molds, the Slide Plate (also known as Wear Plate or Slide Block) is a critical component that bears friction and guides lateral movement. As a mold manufacturer that produces for our own use, we maintain extremely stringent standards for the wear resistance, load-bearing capacity, and surface lubricity of slide plates. Every slide plate undergoes precision screening to ensure smooth, stable, and long-lasting operation during high-frequency sliding movements.
✅ Self-Produced and Self-Used, Rigorously Selected
We are not only a supplier of mold components but also a mold producer ourselves. Through extensive practical experience in our own molds, we have repeatedly validated the material, hardness, wear resistance, and surface treatment of slide plates -1-3. Only those with stable performance and exceptional durability are approved for our supply system.
✅ Premium Materials, Precision Machining
Our slide plates are manufactured from high-quality materials such as SKD61, SKD11, and high-strength copper alloys -3-10. Depending on the application, we offer nitrided steel plates for high-load requirements or copper alloy plates with solid lubricants for self-lubricating applications. The surface hardness can reach HV900 or higher, ensuring excellent wear resistance under high-pressure sliding conditions -10.
✅ Self-Lubricating Design, Maintenance-Free Operation
For applications requiring reduced maintenance, we offer self-lubricating slide plates featuring graphite inserts embedded in a copper alloy matrix -3-4-7. During sliding motion, graphite particles transfer to the friction surface, forming a stable solid lubricating film that prevents direct metal-to-metal contact and adhesive wear -4-7. This design is ideal for applications with limited lubrication access or high-temperature environments.
✅ Complete Specifications, Customized Solutions
For standard specifications, we maintain regular inventory of common sizes and thicknesses to support quick dispatch. For non-standard customization, based on your mold structure requirements, we offer custom slide plates with:
Various material combinations (steel, copper alloy, self-lubricating types)
Custom dimensions and thicknesses
Oil grooves, graphite hole patterns, and mounting hole configurations
We Can Also Source for You
If you have requirements for slide plates or other mold components, whether standard or non-standard, we can leverage our production experience and supply chain resources to select and procure the most suitable parts for you. We know molds, and we know components.
Contact us today for samples or a quotation.
