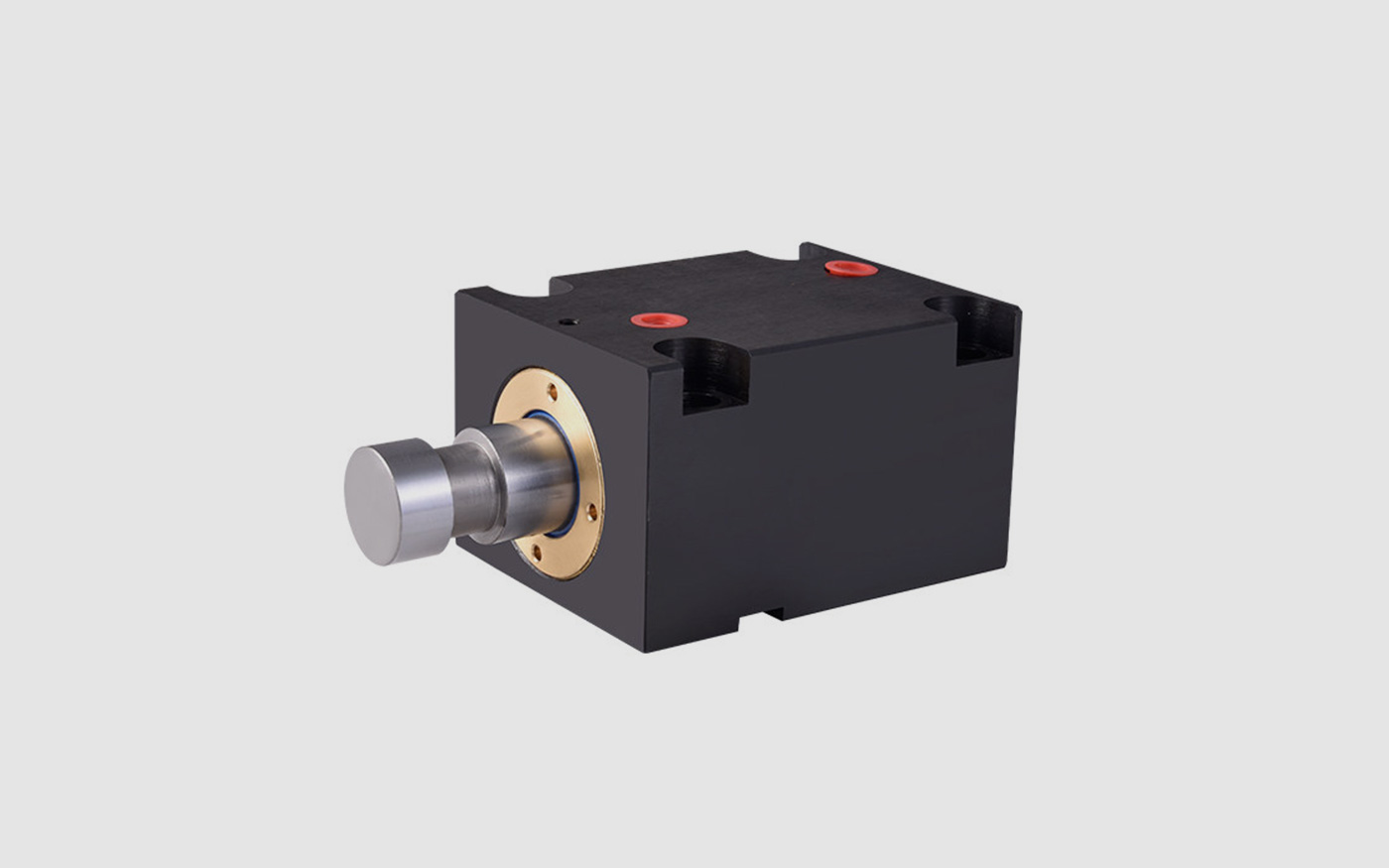

Square Thin Cylinder

Product Introduction: High-Quality Vertical/Horizontal Square Thin Cylinders

In injection molds, die-casting molds, and various automated mold systems, Vertical/Horizontal Square Thin Cylinders are compact hydraulic actuators specifically designed for space-constrained applications requiring reliable linear motion. Their square-shaped thin body design significantly reduces installation space while providing sufficient thrust for mold actions such as slider core-pulling, ejection assistance, and sequential mold opening. As a mold manufacturer that produces for our own use, we maintain extremely stringent standards for compactness, sealing performance, and durability of thin cylinders. Every cylinder undergoes precision machining and rigorous testing to ensure no leakage, no sticking, and stable performance during long-term high-frequency operation.

✅ Self-Produced and Self-Used, Rigorously Selected
We are not only a supplier of mold components but also a mold producer ourselves. Through extensive practical experience in our own molds, we have repeatedly validated the material selection, sealing structure, installation flexibility, and durability of vertical/horizontal square thin cylinders. Only those with compact design, reliable sealing, and exceptional durability are approved for our supply system.

✅ Ultra-Thin Design, Space-Saving Solution
Our square thin cylinders feature an ultra-compact design, with overall length measuring only 1/2 to 1/3 of standard cylinders. The square body shape allows for flush mounting installation directly into mold plates, maximizing space utilization in complex mold structures. This thin profile is particularly valuable in applications where conventional cylinders cannot fit due to space limitations.

✅ Dual Installation Orientation, Vertical and Horizontal
These cylinders support both vertical and horizontal installation orientations, providing maximum flexibility for diverse mold layouts. Whether you need vertical mounting for upward/downward actions or horizontal mounting for lateral movements, our cylinders adapt seamlessly to your design requirements without compromising performance.

✅ Premium Materials, Robust Construction
Cylinder bodies are manufactured from high-strength alloy steel with special blackening or electrophoretic coating for enhanced durability and corrosion resistance. The front cover utilizes high-quality copper alloy materials. Piston rods feature hard chrome plating to ensure stable sealing performance during long-term high-frequency operation. Imported seals provide excellent leak prevention and extended service life.

✅ Multiple Bore Sizes and Strokes, Wide Application Range
We offer a comprehensive range of specifications to meet various force requirements:

• Bore Sizes: Available from 16mm to 200mm, with common sizes including 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm

• Stroke Range: Customizable from 10mm to 2500mm, with standard strokes readily available for quick dispatch

• Working Pressure: 0.3-14MPa standard operating pressure, with pressure resistance up to 17MPa

✅ Versatile Mounting Options, Strong Adaptability
Our square thin cylinders support multiple mounting configurations to accommodate different mold structures:

• Standard Type: Basic flush-mount square body for direct plate installation

• With Magnetic Switch: Built-in magnet for stroke feedback to injection molding machines, enabling precise position control

• Adjustable Type: Double rod adjustable versions for applications requiring fine-tuning

• High-Temperature Version: Available with high-temperature seal materials for applications up to 180°C

✅ Multiple Rod End Connections, Flexible Integration
Piston rod ends can be customized with various connection types to suit your mechanism requirements:

• Internal Thread Connection

• External Thread Connection

• T-Shaped Groove Connection

• Custom Configurations Based on Application

✅ Excellent Sealing, Leak-Proof Performance
Multi-layer sealing protection effectively prevents external contaminants from entering the hydraulic system. High-quality seals made from fluororubber or nitrile rubber withstand high temperatures, oil resistance, and corrosion, ensuring long-term leak-free operation under high-pressure conditions. Built-in cushion adjustment devices reduce end impact and extend cylinder service life.

✅ Complete Specifications, Customized Solutions
For standard specifications, we maintain regular inventory of common bore sizes, strokes, and mounting types for quick dispatch. For non-standard customization, based on your mold structure and application requirements, we offer custom thin cylinders with special bore sizes, special strokes, special rod end connections, magnetic switch configurations, and high-temperature versions.

We Can Also Source for You
If you have requirements for square thin cylinders or other mold components, whether standard or non-standard, we can leverage our production experience and supply chain resources to select and procure the most suitable parts for you. We know molds, and we know components.

Contact us today for samples and a quotation.
