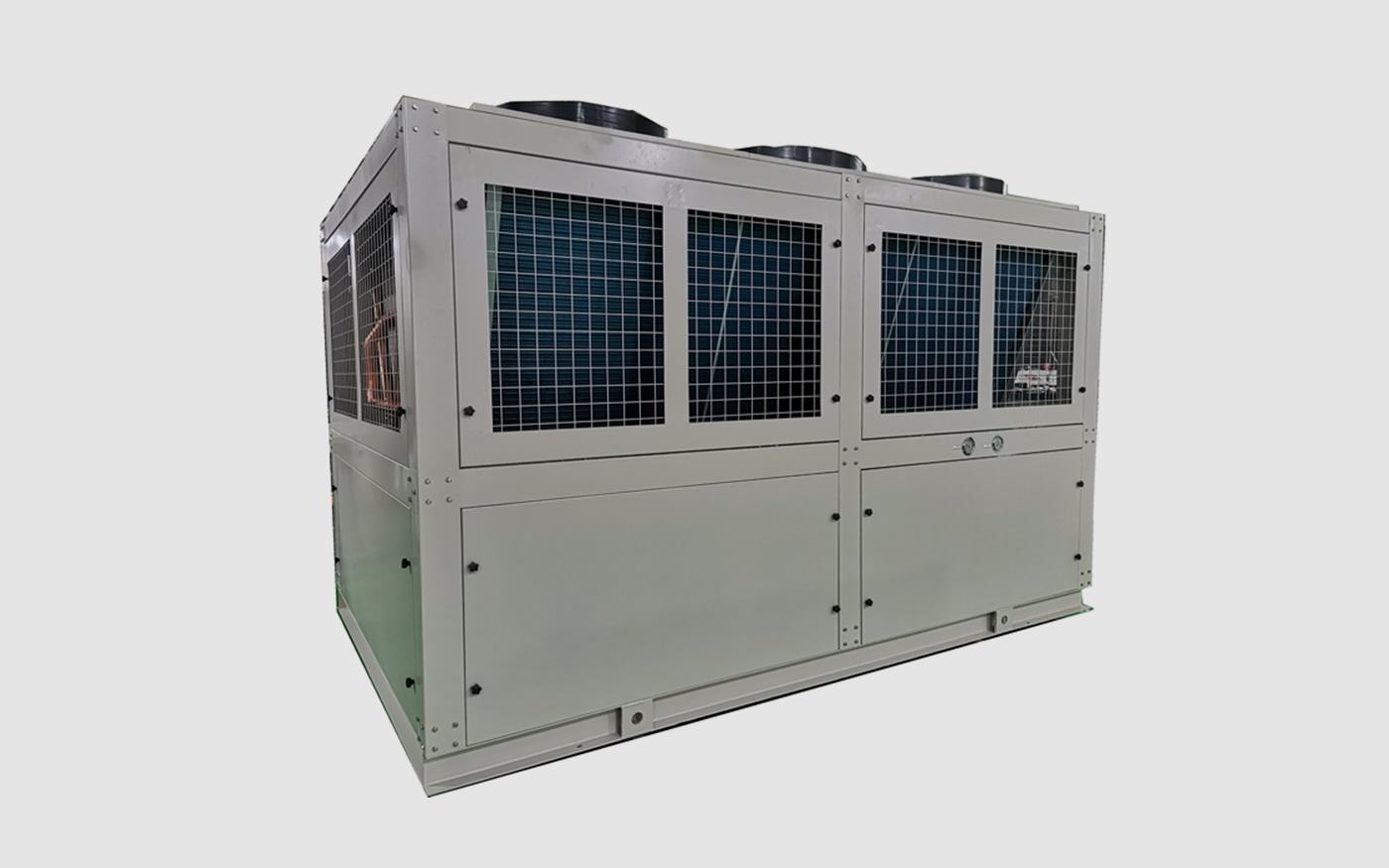

Plastic Processing Chiller Cooling capacities 100KW- 200KW
Product Introduction: High-Quality Industrial Chillers for Plastics Processing
In the plastics industry, Industrial Chillers are essential cooling systems that maintain precise temperature control across various manufacturing processes including injection molding, extrusion, blow molding, compression molding, film blowing, and calendering. As a manufacturer with extensive experience in plastics processing, we maintain extremely stringent standards for cooling capacity, temperature stability, and operational reliability of our industrial chillers. Every unit undergoes rigorous testing to ensure consistent performance, energy efficiency, and long service life under demanding production conditions.
Self-Produced and Self-Used, Rigorously Selected
We are not only a supplier of chillers but also a long-term user in our own plastics processing facilities. Through extensive practical experience, we have repeatedly validated the compressor performance, heat exchanger efficiency, temperature control accuracy, and safety features of our industrial chillers. Only those with reliable cooling capacity, stable temperature control, and exceptional durability are approved for our product line.
Application Areas
Injection Mold Cooling
In injection molding, plastic pellets are heated and melted before being injected into molds. After injection, the molten plastic must solidify before the mold opens to eject the finished part. During continuous production, mold cooling is essential to:
Shorten plastic solidification time
Improve dimensional accuracy of finished parts
Enhance surface quality
Increase production efficiency
Temperature Requirements: Chilled water temperature typically ranges from 6°C to 18°C, with temperature differential tolerance of ±2K or ±1K depending on application precision requirements.
Sizing Consideration: The cooling capacity required for injection molding is related to the injection shot size. Larger shot sizes demand greater cooling capacity. While injection molding machines are typically rated by clamping force in tons, there is no direct one-to-one correlation between clamping tons and required cooling capacity. Proper chiller sizing should be based on actual processing parameters.
Extrusion Applications
Extrusion processes produce pipes, cable conduits, cables, and various plastic profiles. After heated material is formed through the extrusion die, it passes through a chilled water bath for cooling and solidification. The water temperature in the cooling bath must remain constant throughout production.
Key Requirements:
High cooling capacity due to continuous high-speed production
Stable water temperature maintenance
For existing cooling water baths with large volume, the chiller system may not require a separate cooling tower
Blow Molding Applications
Blow molding is primarily used for producing water bottles, beverage bottles, and various containers. The process requires both mold cooling and compressed air drying.
Compressed Air Drying: Clean, dry compressed air is essential for blow molding. Using chilled water from the industrial chiller as a cooling source effectively removes moisture from compressed air, ensuring product quality and preventing defects.
Thermoforming Applications
Common thermoformed products include small containers such as yogurt cups. In this process, plastic sheets are heated and formed using molds under controlled conditions.
Critical Requirements:
Constant temperature maintenance is essential for product quality
Very tight temperature differential tolerance is required
Proportional chilled water valves are recommended for precise temperature regulation
Stable thermal environment ensures consistent part quality and dimensional accuracy
Hydraulic System Cooling
Injection molding machines rely on hydraulic systems for mold opening, closing, and material injection. During operation, hydraulic fluid absorbs energy from the hydraulic pump, causing temperature rise.
Cooling Requirements:
Hydraulic oil temperature should not exceed 60°C to maintain optimal performance and prevent degradation
Recommended cooling water temperature is approximately 27°C
Since cooling water temperature requirements differ from mold cooling requirements, separate cooling circuits with electric water valves are recommended
Independent cooling systems can be configured for hydraulic circuits when temperature requirements differ significantly
Performance Characteristics
Precise Temperature Control
Our industrial chillers feature advanced microprocessor controllers that maintain precise temperature settings with high accuracy. Digital displays provide real-time temperature monitoring, and adjustable parameters allow optimization for specific process requirements.
Energy-Efficient Operation
High-performance compressors and optimized heat exchanger designs ensure maximum cooling capacity with minimal energy consumption. Energy-saving features reduce operating costs while maintaining consistent performance.
Robust Construction
Heavy-duty components and corrosion-resistant materials ensure long-term reliability in demanding industrial environments. All wetted parts are selected for compatibility with various water qualities and cooling applications.
Multiple Safety Protections
Each chiller is equipped with comprehensive safety features including:
Compressor overload protection
High/low pressure switches
Freeze protection thermostat
Flow switch for pump protection
Phase reversal protection
Automatic reset after power failure
Easy Installation and Maintenance
Compact design minimizes floor space requirements. Access panels provide easy access to all major components for routine maintenance. User-friendly controls simplify operation and troubleshooting.
Complete Specifications, Customized Solutions
We offer a comprehensive range of industrial chillers to meet various cooling requirements:
Air-cooled and water-cooled configurations
Cooling capacities from 3kW to over 600kW
Temperature ranges from -20°C to +30°C
Standard and custom configurations available
Integrated pump and tank options
Remote monitoring and control capabilities
We Can Also Supply for You
If you have requirements for industrial chillers or other plastics processing equipment, whether standard or customized, we can leverage our manufacturing experience and industry resources to provide the most suitable solutions for your application. We understand plastics processing, and we understand cooling systems.
Contact us today for more information and a quotation.
