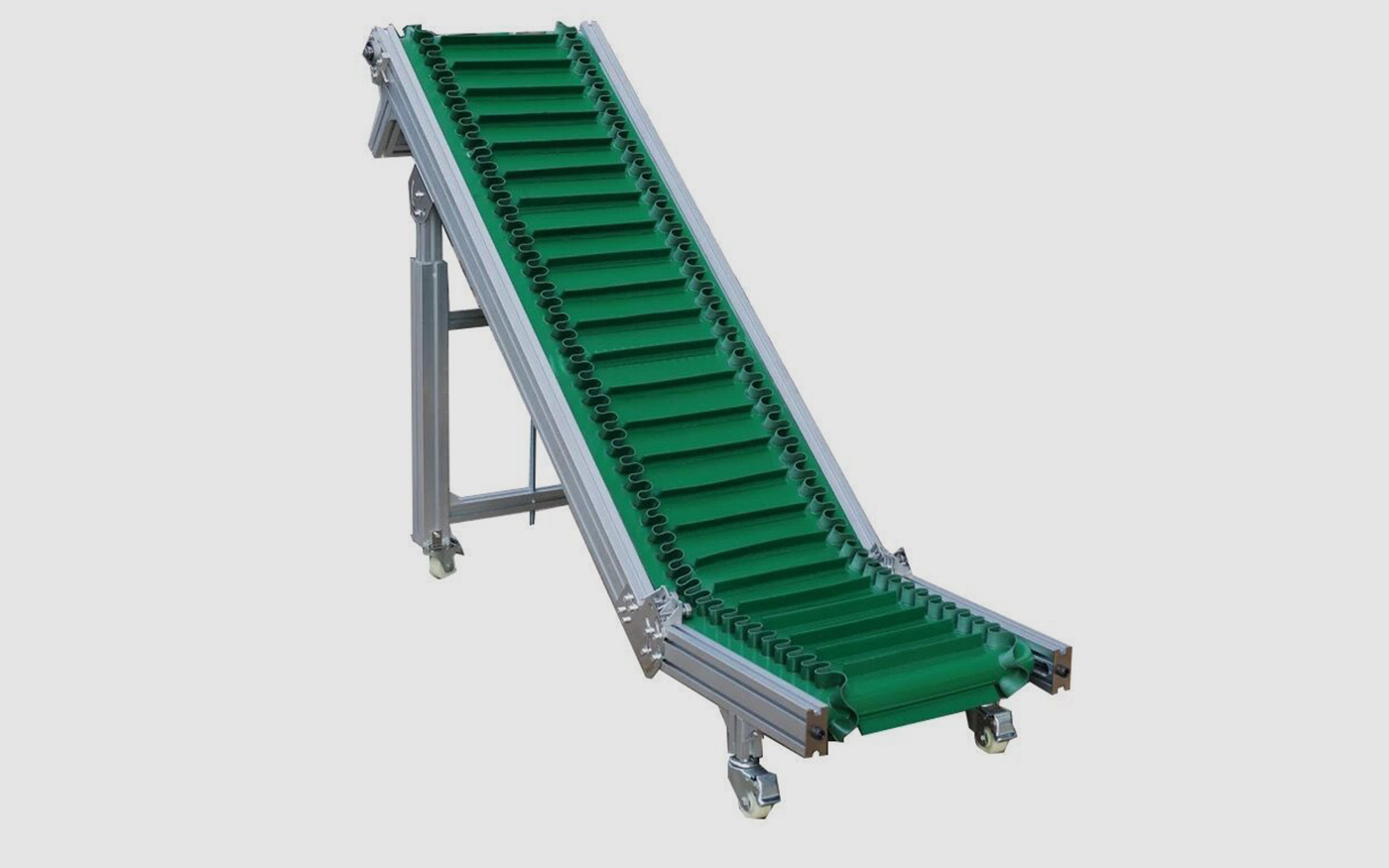

Machine-Side Inclined Conveyor
Product Introduction: Machine-Side Inclined Conveyor – Smooth Elevation, Efficient Transition
In the injection molding production process, when products drop or slide directly from the injection molding machine, the Machine-Side Inclined Conveyor is essential equipment for achieving smooth product elevation and connecting downstream operations. As a manufacturer with extensive experience in injection molding auxiliary equipment development, our machine-side inclined conveyors are specifically designed for injection molding machine integration, effectively solving the conveying challenge of moving products from low to high positions for continuous automated production.
Designed for Machine-Side Use, Solving Elevation Challenges
When injection molding machines are not equipped with robots, products fall directly from the mold and need to be conveyed from low positions to higher collection or processing areas. Our inclined conveyor is specifically designed for this scenario, smoothly elevating products and preventing accumulation that affects production rhythm.
Platform Transition Design, Preventing Product Tumbling
Addressing the issue of products tumbling when sliding from drop point to inclined surface, our inclined conveyor features an optional platform transition design at the low end. Products first slide onto a horizontal platform, then are smoothly elevated by the inclined surface, effectively preventing sliding or tumbling and protecting product appearance.
Aluminum Alloy Frame, Lightweight and Durable
The frame is constructed with high-strength aluminum alloy profile structure, durable and deformation-resistant. Both sides feature adjustable height with handwheel adjustment for easy operation, accommodating different tonnage injection molding machine discharge height requirements.
Anti-Slip Conveyor Belt, Multiple Material Options
Conveyor belts can be selected based on product characteristics: green PVC anti-slip belt for general products, rubber material for oily environments, effectively preventing product slippage during inclined conveying. Optional skirt boards available for enhanced conveying stability.
Easy Mobility, Flexible Layout
The unit is equipped with four casters for easy mobility. Four support legs can be folded when not in use, saving space. Equipment position can be adjusted at any time based on production requirements, achieving flexible production layout.
Stepless Speed Adjustment, Adjustable Speed
Equipped with a speed-adjustable motor, conveying speed can be freely adjusted based on production rhythm, adapting to different product discharge speed requirements and achieving perfect synchronization with the injection molding machine.
Optional Accessories, Functional Expansion
Various functional components can be added based on actual needs: side rails to prevent part falling, photoelectric sensors for automatic start-stop, collection hoppers for temporary storage, meeting diverse production management requirements.
Customizable Dimensions, Perfect Match
Non-standard customization services available based on injection molding machine model and workshop layout: different belt widths (200-600mm optional), different conveying lengths, special discharge heights, ensuring perfect matching with your production site.
Performance Characteristics
Specifically designed for injection molding machine-side use, solving product elevation challenges from low to high positions
Optional platform transition design prevents product tumbling at inclined starting point
High-strength aluminum alloy frame, sturdy and durable, freely adjustable height
Anti-slip conveyor belt with optional skirt boards for stable and reliable conveying
Equipped with casters for easy mobility, support legs foldable for space saving
Stepless speed adjustment, adaptable to different production rhythms
Optional side rails, sensors, collection hoppers and other expansion functions
Customizable dimensions for perfect matching with your injection molding machines
Application Scenarios
Machine-side inclined conveyors are widely used for:
Automatic part output from injection molding machines without robots
Conveying scenarios requiring product elevation from low to high positions
Connection with downstream assembly, inspection, and packaging processes
Production lines requiring inclined layout in space-constrained areas
Centralized conveying systems for multiple injection molding machines
We Can Also Provide for You
If you have requirements for machine-side inclined conveyors or other injection molding auxiliary equipment, whether standard models or customized solutions based on your machine dimensions and product characteristics, we can leverage our extensive industry experience to provide the most suitable solutions for your application. We understand injection molding processes, and we understand automated conveying.
Contact us today for selection assistance, quotations, and technical solutions.
