IBC Drum Blow Mold
Product Introduction: High-Performance Blow Mold for Intermediate Bulk Container (IBC) Drums

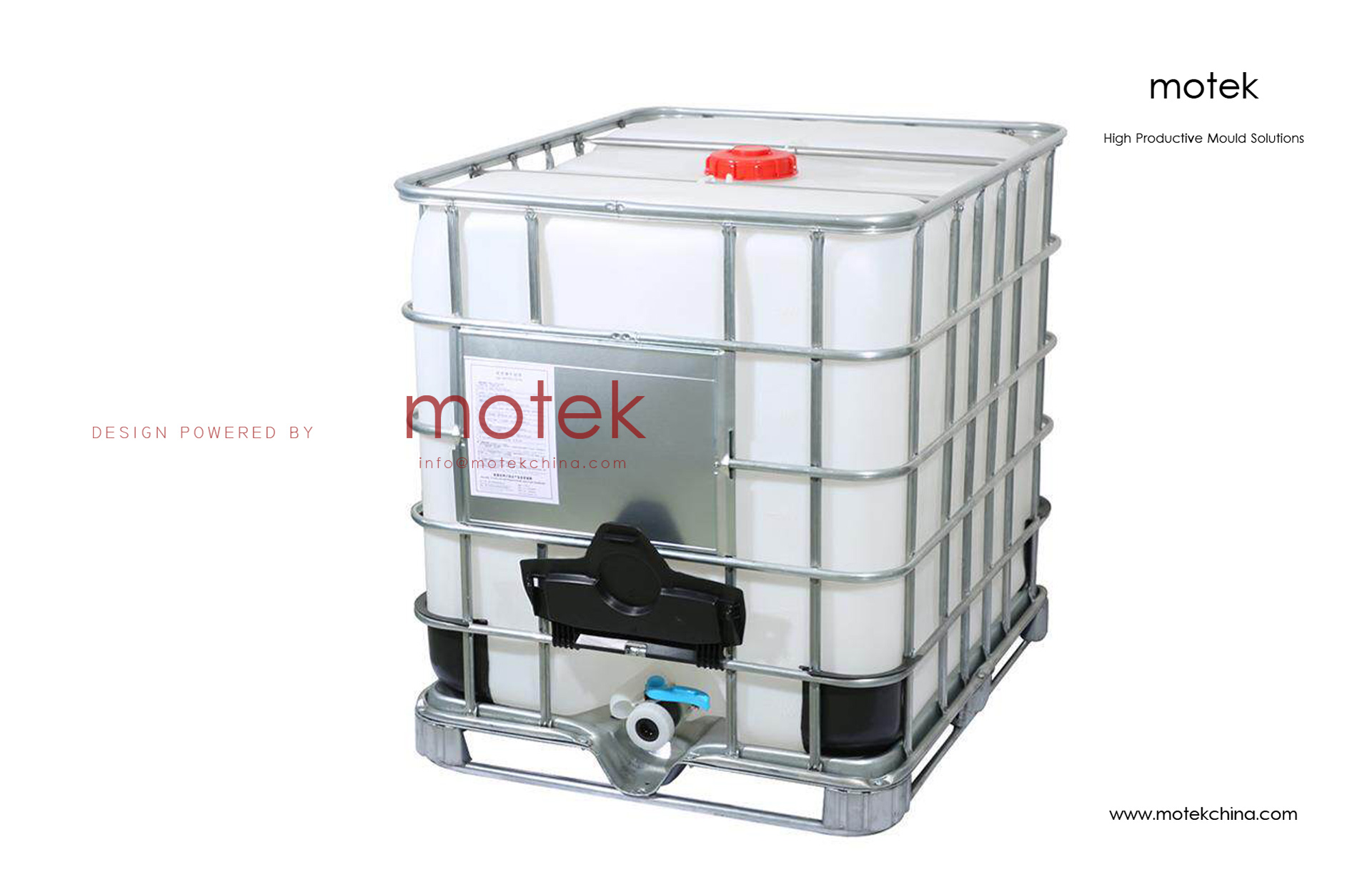

This high-performance blow mold is engineered for the production of the high-density polyethylene (HDPE) inner container used in Intermediate Bulk Containers (IBCs). Designed for manufacturers targeting the global market in chemicals, pharmaceuticals, food ingredients, and liquid logistics, this mold is the cornerstone for producing robust, safe, and compliant IBC totes. It ensures the seamless, one-piece inner bottle—ranging from 600L to 1250L standard capacities—meets the highest standards for structural integrity, chemical resistance, and compatibility with outer steel cages and discharge valves.
Core Advantage: Precision Engineered for System Integration and Performance
The value of this mold lies in its precise engineering for system-critical performance. The IBC is a complete system (HDPE bottle + steel cage + pallet), and our mold ensures the produced bottle perfectly integrates with all other components, delivering leak-proof safety, superior stacking strength, and reliable discharge under demanding industrial conditions.
Technical Features & Design Excellence:
Optimized for Structural Load & Stackability: The mold cavity is designed to form bottles with a specific geometric profile and wall thickness distribution that maximizes top-load strength. This ensures full IBCs can be safely stacked 2-3 tiers high in storage and transport, a critical requirement for logistics efficiency.
Precision-Formed Discharge Valve Boss: The mold creates a perfectly positioned, dimensionally accurate, and reinforced outlet boss (typically 2" or 3" NPT) designed to form a leak-proof seal with the metal discharge valve assembly. This is the most critical functional interface of the IBC.
Advanced Neck & Fill Port Design: Accurately molds the large top opening (fill port) with a reinforced flange and standardized thread pattern for secure, sealed closure with the cap. The design facilitates easy filling and cleaning.
Material & Process Optimized: Engineered for processing high-performance, stress-crack-resistant HDPE grades, often with UV stabilizers. The cooling system is meticulously designed to manage the significant thermal mass, ensuring uniform cooling and preventing warpage or weak spots, which is vital for long-term chemical compatibility and durability.
Certification-Ready Design: The mold is built to produce bottles that form the basis for achieving major industry certifications, such as UN approval for hazardous goods transport, FDA/EC compliance for food-grade applications, and adherence to standards like ASTM D-1998.
Value Delivered to Your Business:
Investing in our IBC drum mold provides a foundation for leadership in the bulk packaging market:
Reliable System Integration: Produce bottles that guarantee perfect fit and function with standardized cages and valves, minimizing assembly issues and field failures.
Superior Product Safety & Compliance: Deliver IBCs trusted for handling sensitive and hazardous contents, opening doors to regulated and high-value industries.
High Production Efficiency & Consistency: Achieve optimal cycle times and material usage for large-part production, ensuring cost-effectiveness and uniform quality in high-volume runs.
Strong Market Credibility: Become a supplier known for the core quality of the IBC's most critical component—the inner container.
Your Partner for Bulk Packaging Solutions:
We provide comprehensive support from bottle design validation and material selection guidance to mold optimization for your specific press. Our expertise ensures your mold delivers not just a part, but the key to a high-performance IBC system.
Equip your production for the bulk liquid handling industry. Contact us to discuss your IBC bottle mold specifications.
