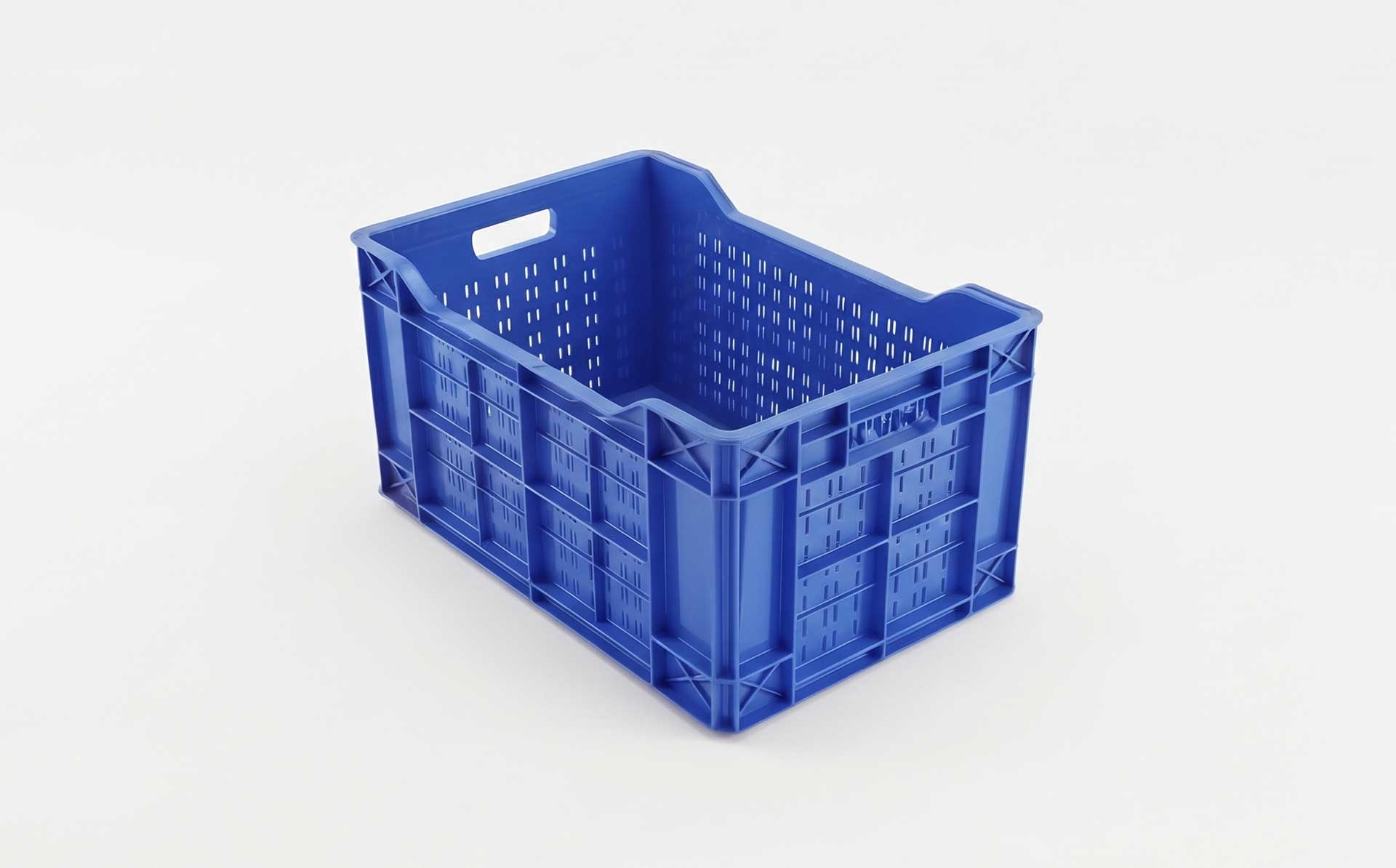

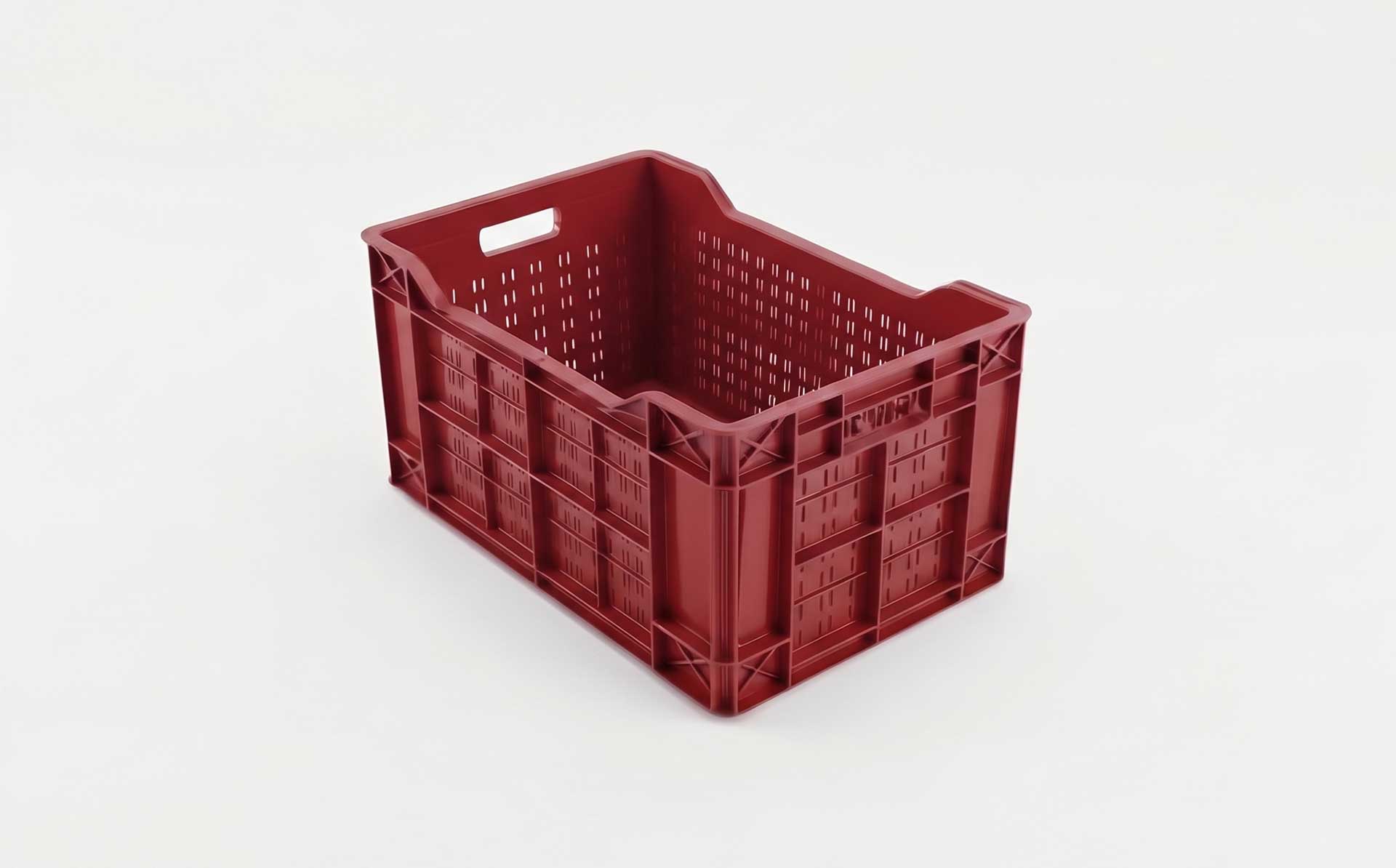

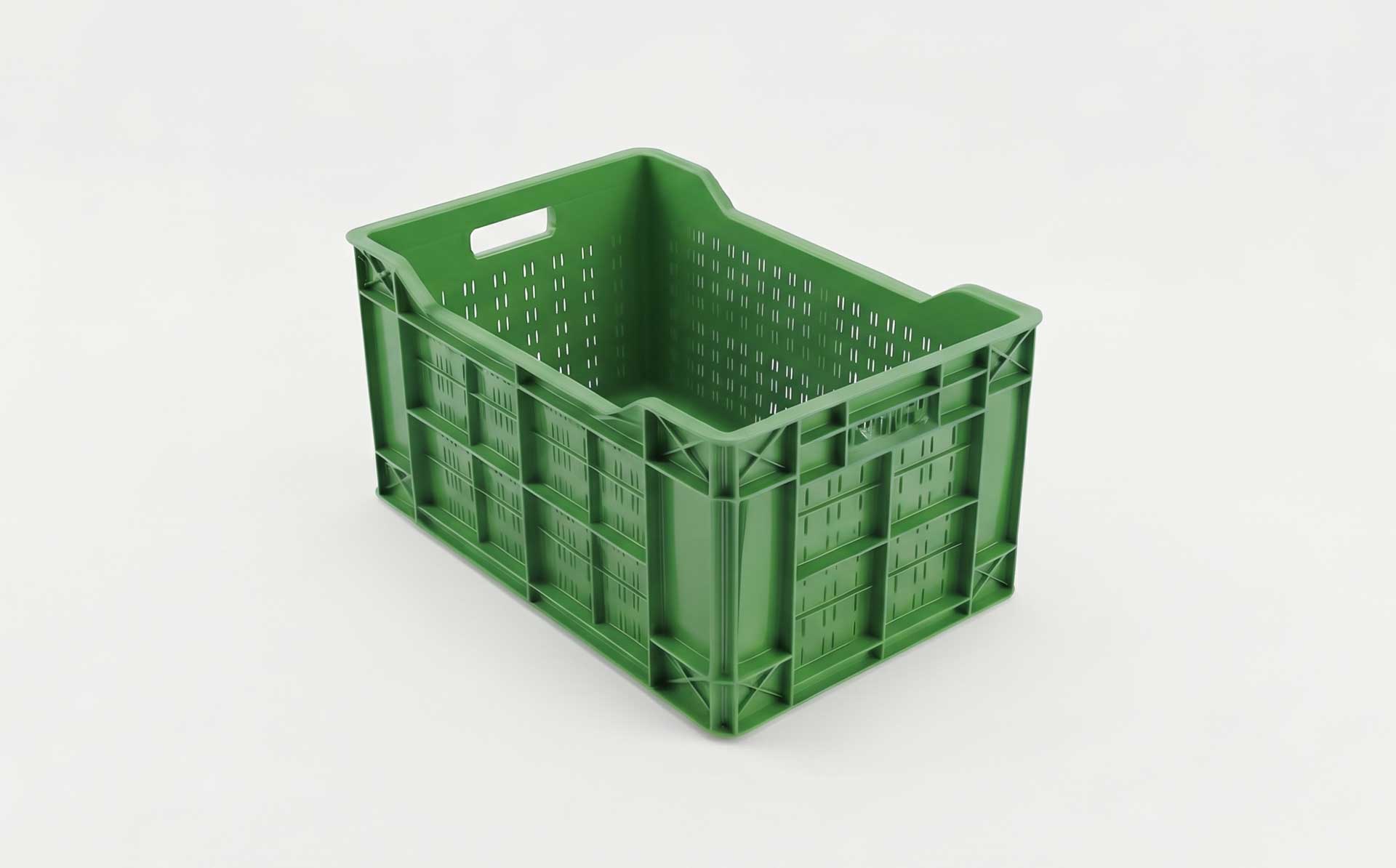

Automotive Industry Universal Logistics Box Mold — Product Introduction (Motek Turnover Box Mold Series)
Automotive Industry Universal Logistics Box Mold — Product Introduction (Motek Turnover Box Mold Series)
Product Positioning
Motek introduces dedicated injection molds for universal logistics boxes used throughout the automotive industry. Automotive logistics containers differ from general-purpose crates in several key respects: heavy-duty load-bearing for dense metal components, precision compartment layouts for part protection, compatibility with automated handling and AS/RS systems, and resistance to oils, greases, and industrial chemicals. These boxes are used across the entire automotive supply chain—from tier-one suppliers to assembly lines—for transporting fasteners, stamped parts, electrical components, and sub-assemblies. The core challenges in mold development lie in structural reinforcement for heavy metal part loads, precision forming of compartment dividers and locating features, and chemical resistance and cleanability for industrial environments. Motek addresses these through cavity layout, material selection coordination, and demolding mechanisms, helping customers achieve stable mass production of automotive logistics boxes.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / HDPE (chemical-resistant, impact-resistant grades; antistatic and ESD grades optional) |
| Mold Material | P20 / 718H / 2738 (cavity and core), H13 optional for slider inserts |
| Number of Cavities | 1×1 / 1×2 (multi-cavity evaluable based on output requirements) |
| Mold Life | 500,000–1,000,000 shots |
| Cycle Time | 40–60 seconds (depending on box size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and cycle time) / Cold runner optional |
| Compartment Design | Dividers, locating features, and dunnage mounting points integrally formed |
Product Features
Structural Reinforcement for Heavy Metal Part Loads.
Automotive components—fasteners, stampings, castings—are dense and heavy. Motek reinforces corner posts, base runners, and side wall ribs through optimized wall thickness and rib layout, ensuring the box maintains rigidity under stacked loads of metal parts. Mold flow analysis verifies filling completeness at corner nodes and divider intersections where wall sections converge.
Precision Compartment Layouts for Part Protection.
Automotive parts require organized separation to prevent damage during transport. Motek forms compartment dividers, locating features, and dunnage mounting points directly in the cavity with tight dimensional tolerance, ensuring each part sits securely without movement. Divider wall thickness is optimized to provide adequate cushioning while maintaining structural rigidity.
Compatibility with Automated Handling and AS/RS Systems.
Automotive logistics increasingly relies on automated storage and retrieval systems, conveyors, and robotic handling. Motek verifies base dimensions, stacking shoulder geometry, and locating features for compatibility with standard automation interfaces during the design phase. Dimensional consistency across production batches is critical for reliable automation performance.
Chemical Resistance and Cleanability.
Automotive logistics boxes contact oils, greases, and industrial chemicals. Motek coordinates with customers on chemical-resistant PP/HDPE grades and ensures cavity surfaces are smooth and non-porous for easy cleaning. All corners and rib roots are rounded to eliminate crevices where contaminants could accumulate.
Ventilation and Drainage Design.
Depending on the application, ventilation slots or drainage holes may be required for moisture dissipation or fluid drainage. Motek forms these features directly in the cavity with clean edges, balancing airflow with structural rigidity.
Stacking Stability and Load-Bearing Capacity.
Automotive logistics boxes are stacked several layers high in warehouses and during transport. Motek forms stacking shoulders and interlocking features with tight tolerance control, ensuring secure vertical stacking and resistance to lateral movement during vibration and handling. Stacking shoulder dimensions are verified for compatibility with standard pallets and automotive logistics systems.
Antistatic and ESD Options.
For electronic component applications, antistatic or ESD-safe material grades may be required. Motek coordinates with customers on material selection and ensures mold surfaces are compatible with these specialty grades.
Applications
Motek automotive industry universal logistics box molds are suitable for:
- Fastener and small component transport boxes
- Stamped part logistics containers
- Electrical and electronic component handling boxes
- Sub-assembly transport crates
- Automotive supply chain returnable containers
Service Process
After the customer provides 3D product drawings, load-bearing requirements, compartment layout specifications, and automation compatibility requirements, Motek completes mold flow analysis (including compartment forming evaluation, warpage compensation, and corner strength verification) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying compartment dimensional accuracy, structural strength, stacking stability, and automation compatibility, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From standard turnover boxes to automotive logistics containers, providing reliable mold solutions for industrial supply chain packaging.
