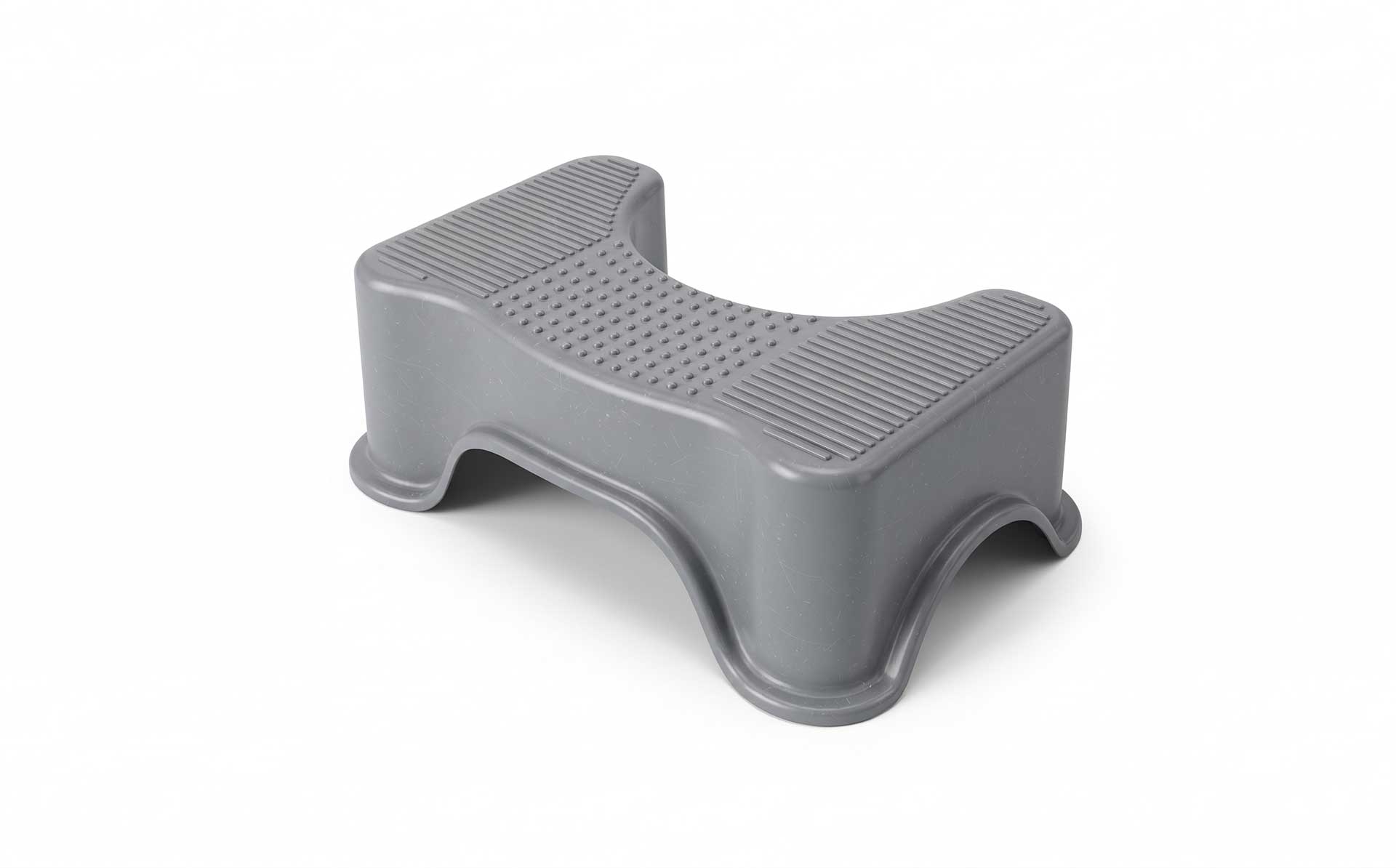

Footstool / Step Stool / Children's Stool Mold — Product Introduction (Motek Furniture Mold Series)
Footstool / Step Stool / Children's Stool Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for footstools, step stools, and children's stools. This product family covers a range of compact seating and stepping products—from low footstools for resting feet, to sturdy step stools for reaching higher surfaces, to child-sized stools for learning and play. The common thread across these products is compact size, lightweight portability, and safety for everyday household use. The core challenges in mold development lie in structural integrity under load for different product types, anti-slip and stability features, and safety-oriented edge design for children's models. Motek addresses these through cavity layout, reinforcement rib design, and surface treatment, helping customers achieve stable mass production across this versatile product family.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / HDPE (food-grade or toy-safety grade optional for children's models) |
| Mold Material | P20 / 718H / NAK80 (cavity and core), H13 optional for slider inserts |
| Number of Cavities | 1×1 primarily; 1×2 or 1×4 evaluable for compact footstools and children's stools |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 20–45 seconds (depending on product size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Load-Bearing Structure | Reinforcement ribs and thickened load paths integrally formed |
| Anti-Slip Design | Textured surfaces and foot pad mounting positions integrally formed |
| Safety Features | Rounded edges, anti-pinch clearances, and tip-resistant base for children's models |
Product Features
Structural Integrity Across Product Types.
Footstools, step stools, and children's stools each have distinct load requirements—footstools bear resting feet, step stools bear full body weight during stepping, and children's stools bear dynamic loads from active use. Motek reinforces load paths through optimized wall thickness and rib layout tailored to each product type. Mold flow analysis verifies filling completeness at leg roots, seat edges, and step transitions.
Anti-Slip and Stability Features.
All products in this family require stable placement and slip resistance. Motek forms textured seat surfaces (rib, grid, or protrusion patterns) for grip, and foot pad mounting positions at leg bottoms to accommodate rubber or TPE anti-slip pads. For step stools, the stepping platform receives a deeper anti-slip texture for secure footing.
Child-Safe Edge and Corner Design.
Children's stools require generous rounded corners and smooth edges to prevent injury. Motek forms fully radiused edges directly in the cavity, with radii set according to child-product safety standards. All surfaces are deburred, and ventilation holes (if present) are chamfered for safety.
Tip-Resistant Base Design.
Step stools and children's stools require a wide, stable base to prevent tipping during use. Motek designs outward-splayed legs or a widened base footprint, with anti-slip foot pads at contact points. For children's models, the base is proportioned to the seat height for optimal stability.
Stackable and Compact Design.
Many products in this family are designed to stack or nest for compact storage. Motek forms stacking features with tight tolerance control, ensuring stable stacking without wobbling and compact nesting when not in use.
Easy-Clean Surface and Appearance.
Footstools and children's stools are used in living areas and require easy-clean surfaces. Motek polishes cavity surfaces to a smooth finish where appropriate, with all corners and rib roots rounded to eliminate crevices. Cartoon patterns or geometric textures can be added for children's models.
Applications
Motek footstool / step stool / children's stool molds are suitable for:
- Household footstools for resting feet
- Step stools for reaching higher surfaces
- Children's stools for learning and play
- Bathroom step stools for sink access
- Compact stackable stools for small spaces
Service Process
After the customer provides 3D product drawings, product type specifications, load-bearing requirements, and safety requirements (for children's models), Motek completes mold flow analysis (including structural reinforcement verification, anti-slip feature evaluation, and stability assessment) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying structural integrity, anti-slip performance, stability, and edge safety, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From footstools to children's step stools, providing reliable mold solutions for safe and practical compact seating.
