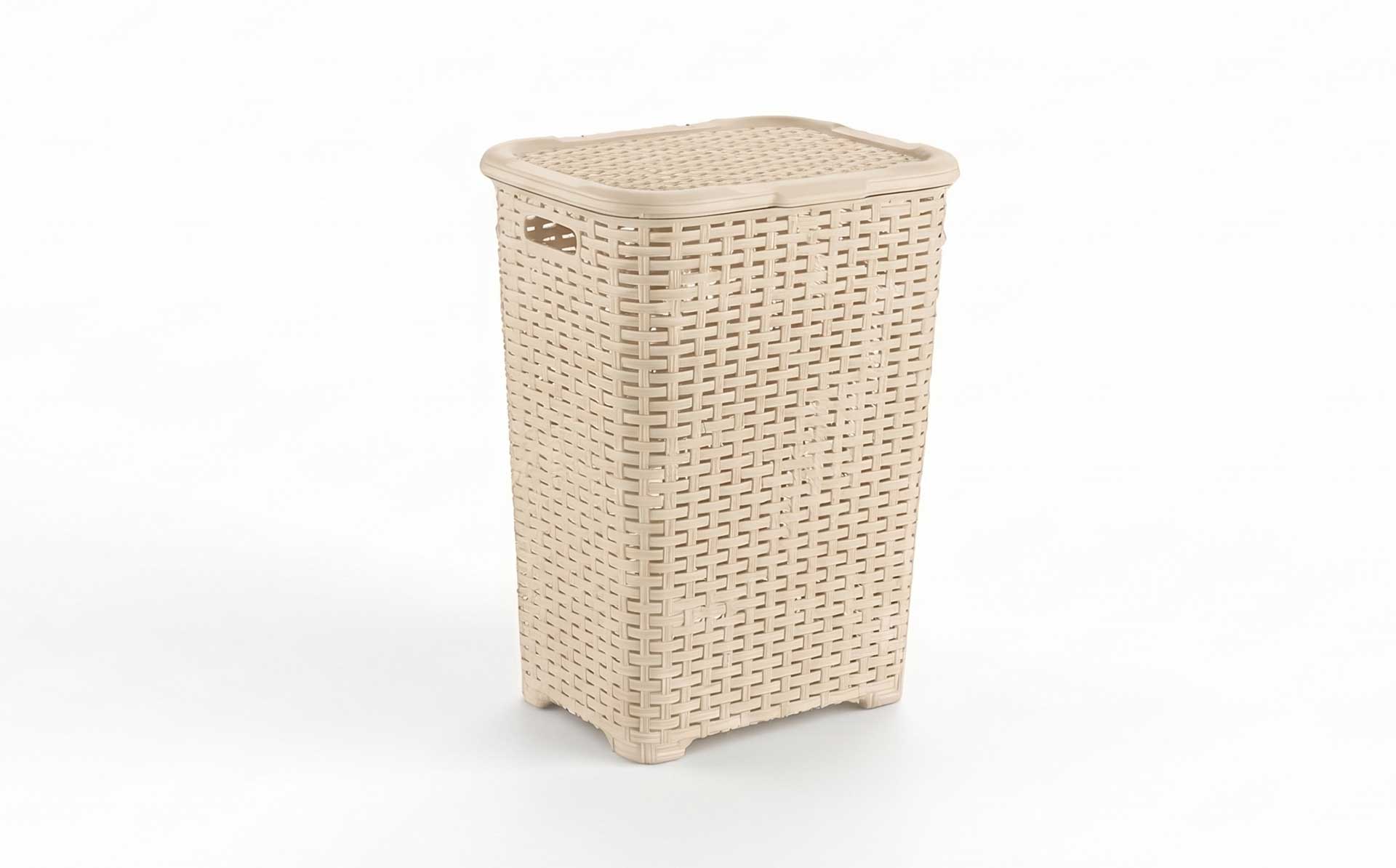

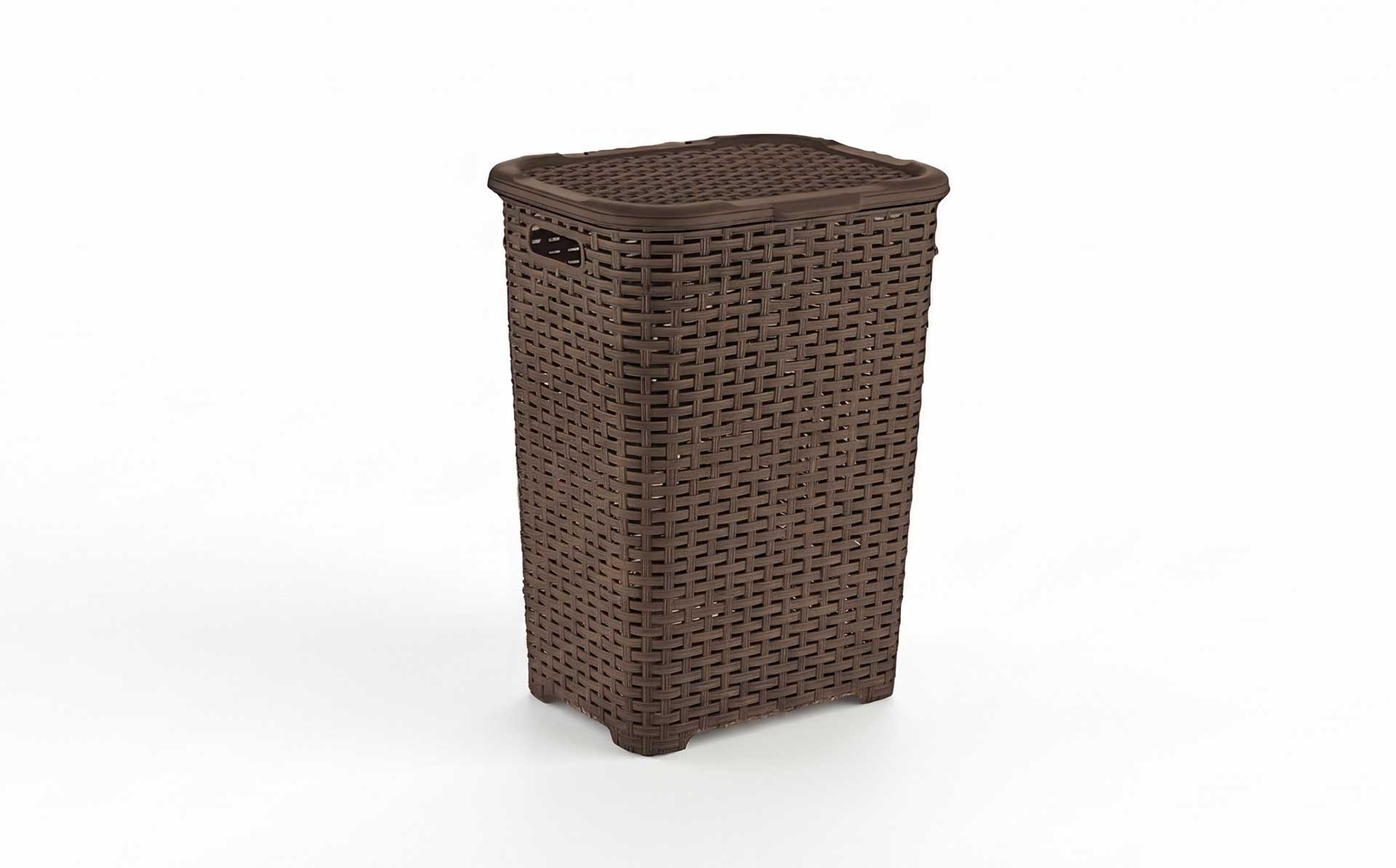

Square Imitation Rattan-Weave Tall Lidded Laundry Basket Mold — Product Introduction (Motek Daily Necessities Mold Series)

Product Positioning

Motek introduces dedicated injection mold solutions for square tall lidded laundry baskets with imitation rattan-weave texture. These products feature a square tall body, imitation rattan woven texture, and lidded closure—combining large-capacity clothing storage, dust and moisture protection, and home decor aesthetics, widely used in bedrooms, bathrooms, laundry rooms, and balconies. Compared with round laundry hampers, the core challenges of square tall basket molds lie in warpage control and corner forming precision of the square tall body, continuous replication of rattan-weave texture across flat walls and corners, and lid-to-rim fit and sealing. Motek configures dedicated solutions around square cavity layout, rattan texture etching processes, and lid fit structures, helping customers achieve stable mass production of square imitation rattan tall baskets.

Core Specifications

Product Features

Warpage Control and Corner Forming Precision of the Square Tall Body.

The four side walls and corners of a square tall basket are structural weak points, prone to side wall concavity or diagonal deviation from uneven cooling. Motek evaluates shrinkage distribution of the square tall body through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts cooling channels symmetrically arranged along all four sides to equalize cooling rates across side walls. Corner areas use thickened R-angle transitions to enhance corner rigidity, preventing corner expansion or cracking under full load. Basket rim edges receive thickening or flanging treatment to enhance squareness retention, ensuring lid fit is not affected by body deformation.

Continuous Replication of Rattan-Weave Texture Across Flat Walls and Corners.

The texture of a square basket must maintain weave direction continuity across four flat side walls and corners, with corner texture transition being a process challenge. Referencing industry imitation rattan texture etching solutions, Motek adopts 0.2mm-class depth etching to reproduce the warp-and-weft interweaving and relief layers of the weave. S136 or 1.2316 corrosion-resistant steels are selected for textured areas to ensure clear details. Corner texture layout is design-adjusted to avoid texture stretching or discontinuity caused by curvature changes. Textured areas receive ample draft angles, with anti-scratch treatment applied to moving components such as sliders and inserts that contact textured surfaces, preventing texture damage during demolding.

Lid-to-Rim Fit and Sealing for Tall Baskets.

The lid of a tall laundry basket must fit precisely with the basket rim, balancing dust/moisture protection with opening convenience. Motek applies dedicated tolerance control to lid snap-fits, inset mating surfaces, and rim flatness. All four sides and corners of the square rim must maintain uniform clearance with the lid, preventing lid wobbling or poor sealing caused by excessive single-side clearance. Lid edges are rounded to enhance grip comfort. For models requiring sealing, lid mating surfaces can form sealing grooves or labyrinth structures.

Cooling and Demolding Optimization for Tall Deep-Cavity Bodies.

The deep-cavity structure of square tall baskets makes cooling efficiency critical to cycle time and deformation control. Motek adopts zoned cooling channels covering side walls, basket base, and corner areas separately, with beryllium copper inserts embedded in deep cavity corners where necessary to accelerate heat dissipation. The demolding system uses a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located at non-appearance areas of the basket base. For tall deep-cavity bodies, air-blow assistance can be coordinated to release vacuum adhesion, preventing side walls from being scratched during demolding.

Coordinated Design of Textured Areas and Ventilation Holes.

Laundry baskets require ventilation to prevent musty clothing. Motek integrally forms texture and ventilation holes in the mold, with ventilation holes formed by precision inserts and hole edges chamfered to eliminate injection burrs. Ventilation hole positions are coordinated with rattan texture layout, avoiding key texture nodes to prevent disrupting weave pattern continuity. Ventilation hole dimensions and spacing are design-verified to balance ventilation efficiency with basket structural strength.

Stacking and Storage Convenience.

Square laundry baskets often require stacking for space-saving storage. Motek designs stacking positioning structures on the basket body, ensuring stable stacking without tipping. Square structures offer better stacking alignment than round ones, but dimensional consistency of four sides and corners must be controlled; Motek ensures smooth stacking across all cavity outputs through multi-cavity molds or shared mold base solutions.

Applications

Motek square imitation rattan-weave tall lidded laundry basket molds are suitable for:

• Bedroom tall lidded imitation rattan laundry baskets
• Bathroom large-capacity imitation rattan laundry hampers
• Laundry room square tall baskets
• Home decorative imitation rattan storage baskets
• Hotel guest room imitation rattan laundry baskets

Service Process

Motek — From round rattan laundry hampers to square tall lidded laundry baskets, providing reliable mold solutions for imitation rattan texture injection molding and square deep-cavity structures.
