Imitation 3D Carved Pattern Bathroom/Toilet Laundry Basket Mold — Product Introduction (Motek Daily Necessities Mold Series)
Imitation 3D Carved Pattern Bathroom/Toilet Laundry Basket Mold — Product Introduction (Motek Daily Necessities Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for bathroom laundry baskets with imitation 3D carved patterns. Unlike flat printed or applied decorations, the carved pattern is etched directly into the cavity surface with controlled depth—creating a tactile, sculpted appearance that enhances perceived value and complements bathroom decor. The products are designed for damp bathroom environments, requiring moisture resistance, ventilation, and easy cleaning. The core challenges in mold development lie in carved pattern depth control with demolding scratch protection, fill completeness in deep pattern recesses, and demolding of the textured deep-cavity body. Motek addresses these through advanced etching/laser engraving processes, pattern zoning, and optimized draft angles, helping customers achieve stable mass production of 3D-carved laundry baskets.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / HDPE / ABS (moisture-resistant, impact-resistant grades) |
| Mold Material | S136 / 1.2316 corrosion-resistant steel for carved pattern areas; P20/718H/NAK80 for cavity and core |
| Number of Cavities | 1×1 primarily; 1×2 evaluable for compact sizes |
| Mold Life | 300,000–800,000 shots (carved areas sensitive to cavity surface wear) |
| Cycle Time | 30–55 seconds (depending on basket size and pattern depth) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Pattern Process | 3D etching / laser engraving (0.1–0.5mm depth, customized per customer samples) |
| Pattern Depth Zoning | Primary visual areas deeper (0.3–0.5mm); transition areas shallower (0.1–0.2mm) |
Product Features
Carved Pattern Depth Control with Demolding Protection.
The visual impact of 3D carved patterns depends on relief depth and edge definition. Motek performs 3D etching or laser engraving on cavity surfaces based on customer-provided pattern samples or design drawings, reproducing petal layering, woven relief, or geometric facet definition. Industry experience shows etch depths typically controlled between 0.1–0.5mm: primary visual areas can use deeper etching (0.3–0.5mm) for enhanced dimensionality, while transition areas use shallower etching (0.1–0.2mm) for easier demolding. S136 or 1.2316 corrosion-resistant steels are selected for pattern areas to ensure clear details and long-term rust-free service. Carved patterns are highly susceptible to scraping by mold walls during demolding. Motek provides ample draft angles (conventional textured products typically require 5–8° draft) and applies anti-scratch treatment to moving components such as sliders and inserts.
Fill Completeness in Deep Pattern Recesses.
Deep recesses of 3D carved patterns are prone to incomplete filling or trapped gas during injection. Motek evaluates melt flow paths in deep pattern recesses through mold flow analysis, optimizing gate positions and venting inserts. Micro vent grooves or venting inserts are provided at mold positions corresponding to pattern recesses, preventing incomplete pattern formation or burning caused by trapped gas. For high-density pattern areas, mold temperature and injection speed are appropriately increased to ensure complete filling of pattern details.
Continuous Pattern Transition on Curved Basket Surfaces.
Laundry baskets typically have round or oval curved bodies, requiring carved patterns to maintain continuity and proportional consistency across the curved surface. Referencing industry curved texture machining solutions, Motek adopts 3D mapping and laser engraving technology to map flat pattern designs onto curved cavities, ensuring patterns do not stretch or break at curved transitions. For round baskets, patterns are arranged circumferentially with concealed seams to avoid pattern misalignment.
Hydrolysis Resistance and Mold Resistance in Bathroom Environments.
Bathroom environments are persistently humid, requiring laundry baskets with hydrolysis resistance and mold resistance. Motek confirms hydrolysis-resistant PP grades (or HDPE) with customers during material selection, and considers shrinkage rate differences of modified materials in cavity dimension calculations. Basket structures avoid water accumulation dead corners, with pattern recess bottoms rounded for drainage and cleaning. Cavity surfaces receive polishing or nitriding rust prevention treatment, ensuring the mold does not rust in long-term humid workshop environments.
Basket Load-Bearing and Handle Structure Reinforcement.
Laundry baskets must bear the weight of damp clothing, with handle-to-basket connections being critical load-bearing areas. Motek forms reinforcement ribs and gradual wall thickness structures at handle roots to prevent handle breakage or basket deformation during carrying. Pattern areas and structural reinforcement ribs are designed in coordination, with patterns not weakening wall thickness at critical load-bearing locations. Mold flow analysis evaluates filling completeness at handle areas, preventing weak points caused by trapped gas.
Appearance Surface Quality and Surface Treatment.
As visible bathroom items, laundry baskets require clean, mark-free appearance surfaces. Motek positions gates at the basket base or non-appearance areas, using hot runners or submarine gates to conceal gate marks. Non-pattern areas can receive mirror polishing (high-gloss models) or fine-texture etching (matte/scratch-resistant models) according to product positioning, coordinating with 3D carved pattern area textures. Pattern edges are chamfered or rounded to prevent sharp edges from scratching clothing or hands.
Demolding Mechanism Optimized for Deep Patterns and Deep-Cavity Baskets.
Deep recesses of 3D patterns and deep-cavity basket structures are prone to pattern scratching or basket deformation from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located at non-appearance areas of the basket base. For deep-cavity baskets, air-blow assistance can be coordinated to release vacuum adhesion, preventing pattern areas from being scratched during demolding. Sliders and inserts in pattern areas release constraints before ejection.
Applications
Motek imitation 3D carved pattern bathroom/toilet laundry basket molds are suitable for:

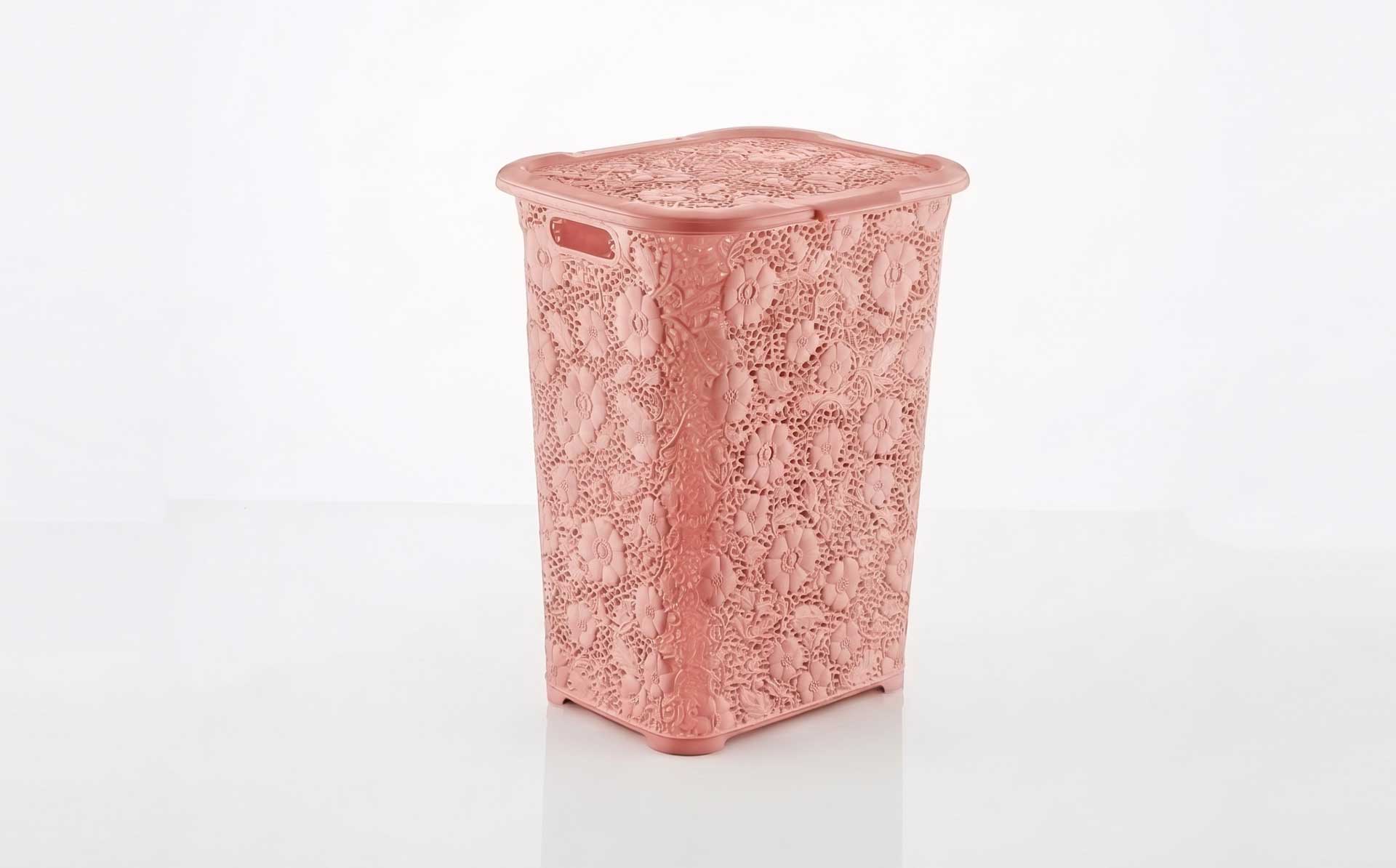

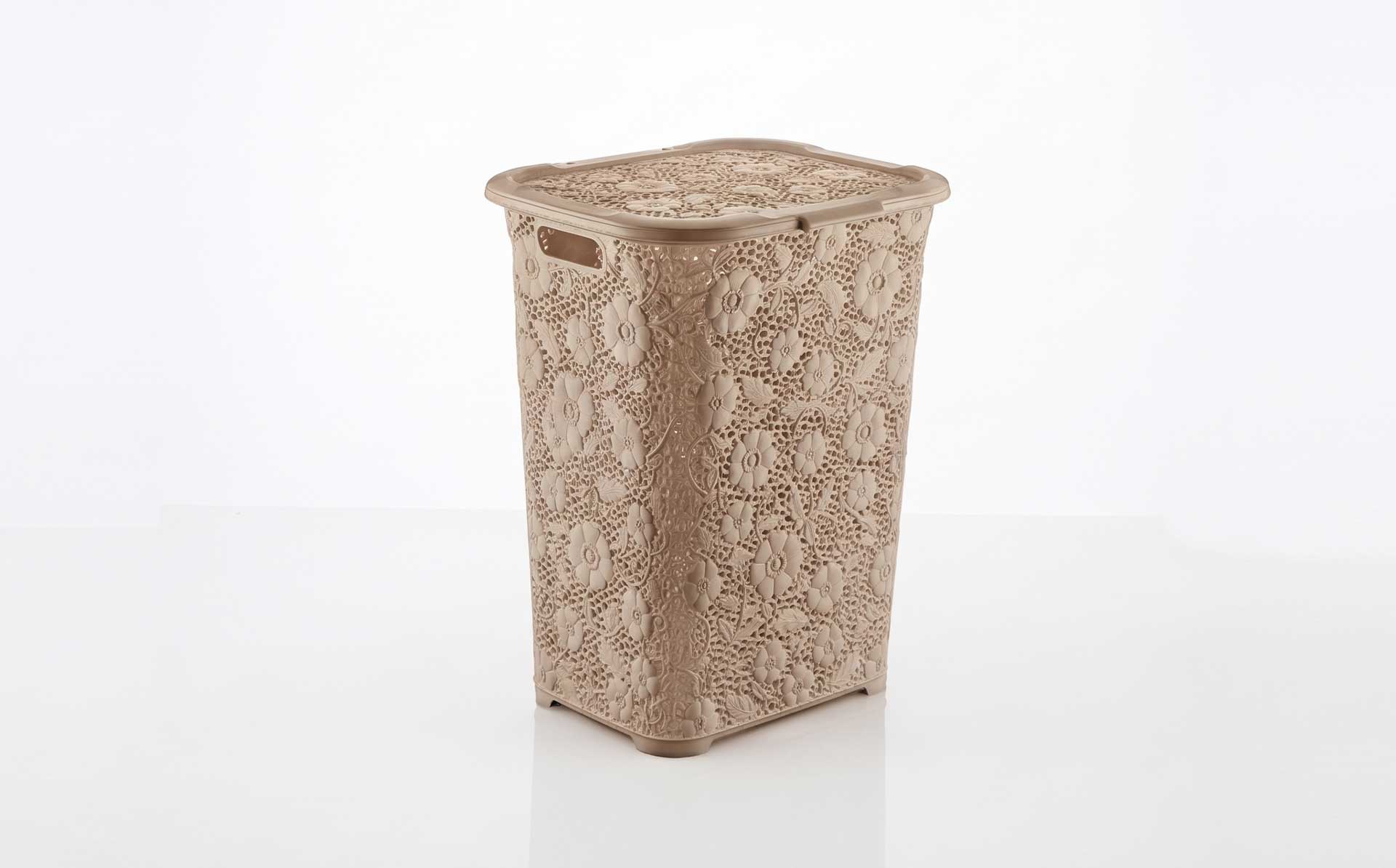

- Bathroom imitation 3D floral carved laundry baskets
- Toilet imitation rattan 3D textured laundry hampers
- Home decorative 3D pattern storage baskets
- Hotel bathroom imitation carved pattern laundry baskets
- Lidded or unlidded 3D pattern laundry baskets
Service Process
After the customer provides 3D product drawings, 3D pattern samples or design drawings, basket dimensions and capacity, and lid fit plans (if applicable), Motek completes 3D pattern etching plan confirmation, mold flow analysis (including deep pattern area filling evaluation, pattern curved surface mapping verification, and draft angle validation), and mold structure design; cavity steel is selected per pattern and weathering requirements, with pattern samples provided for customer confirmation before etching; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying pattern dimensionality, deep recess fill completeness, pattern edge finish, and demolding smoothness, with samples provided for final sign-off. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and pattern maintenance notes provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From flat rattan textures to 3D carved patterns, providing reliable mold solutions for decorative texture forming and deep-cavity demolding of bathroom laundry baskets.
