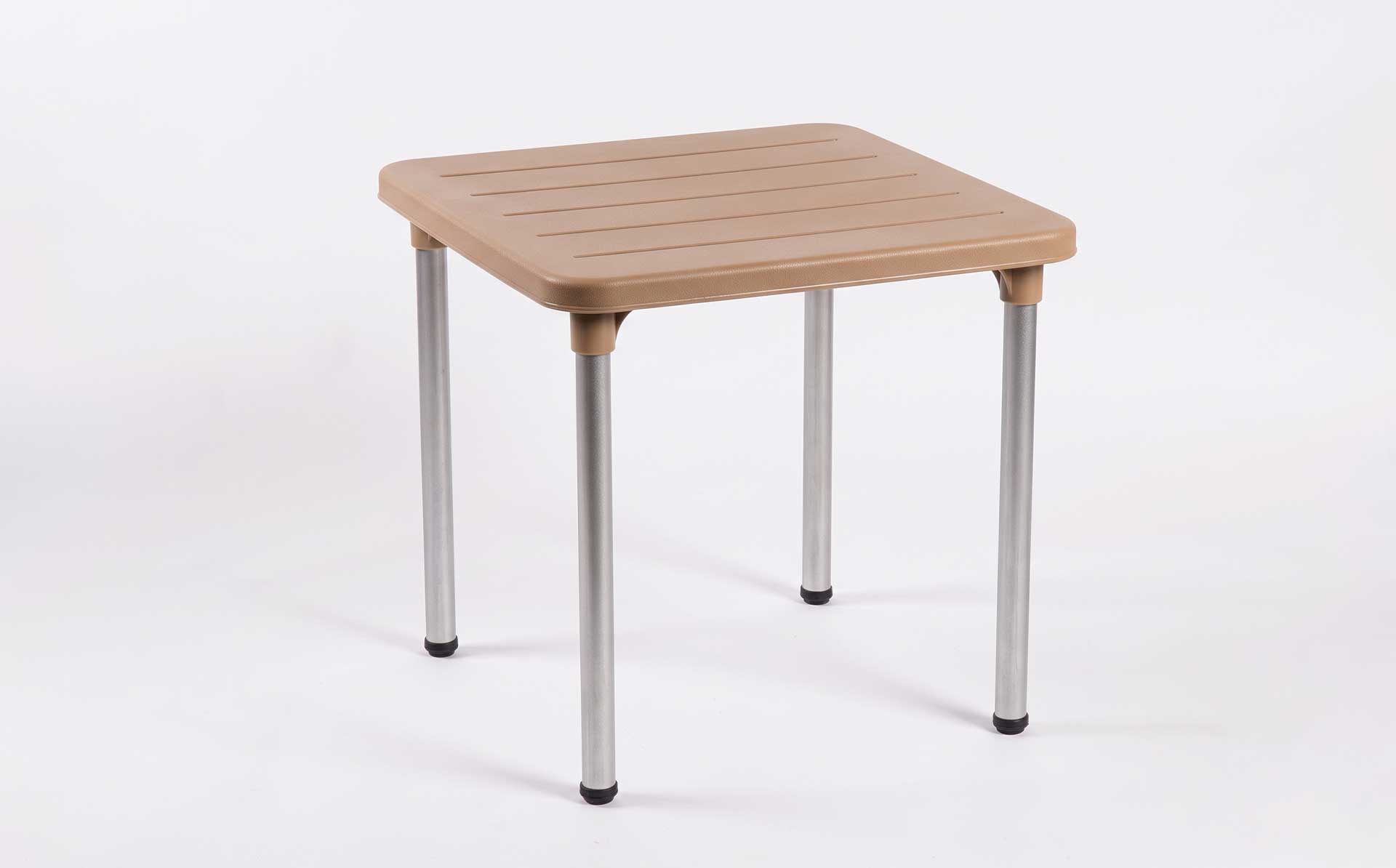

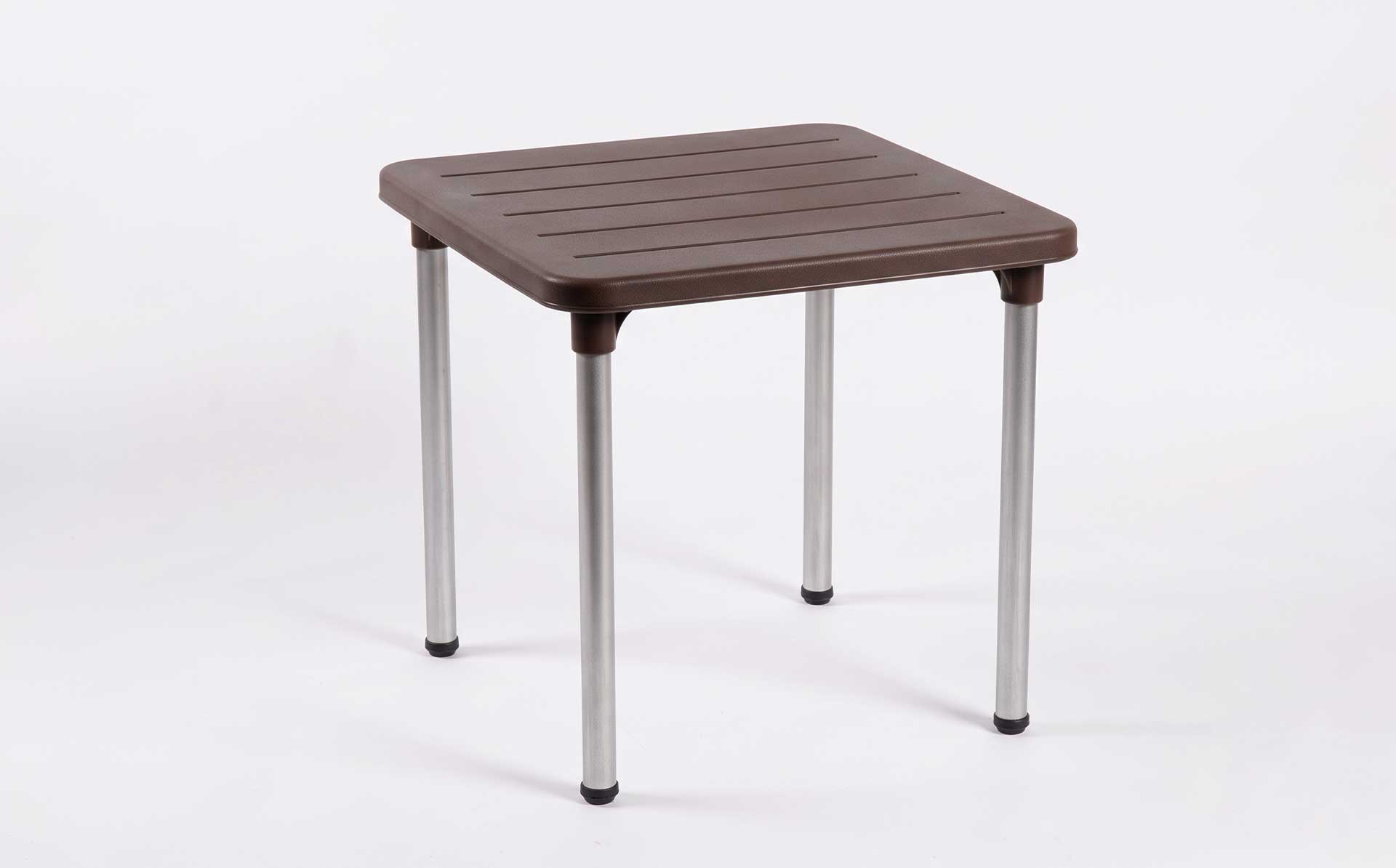

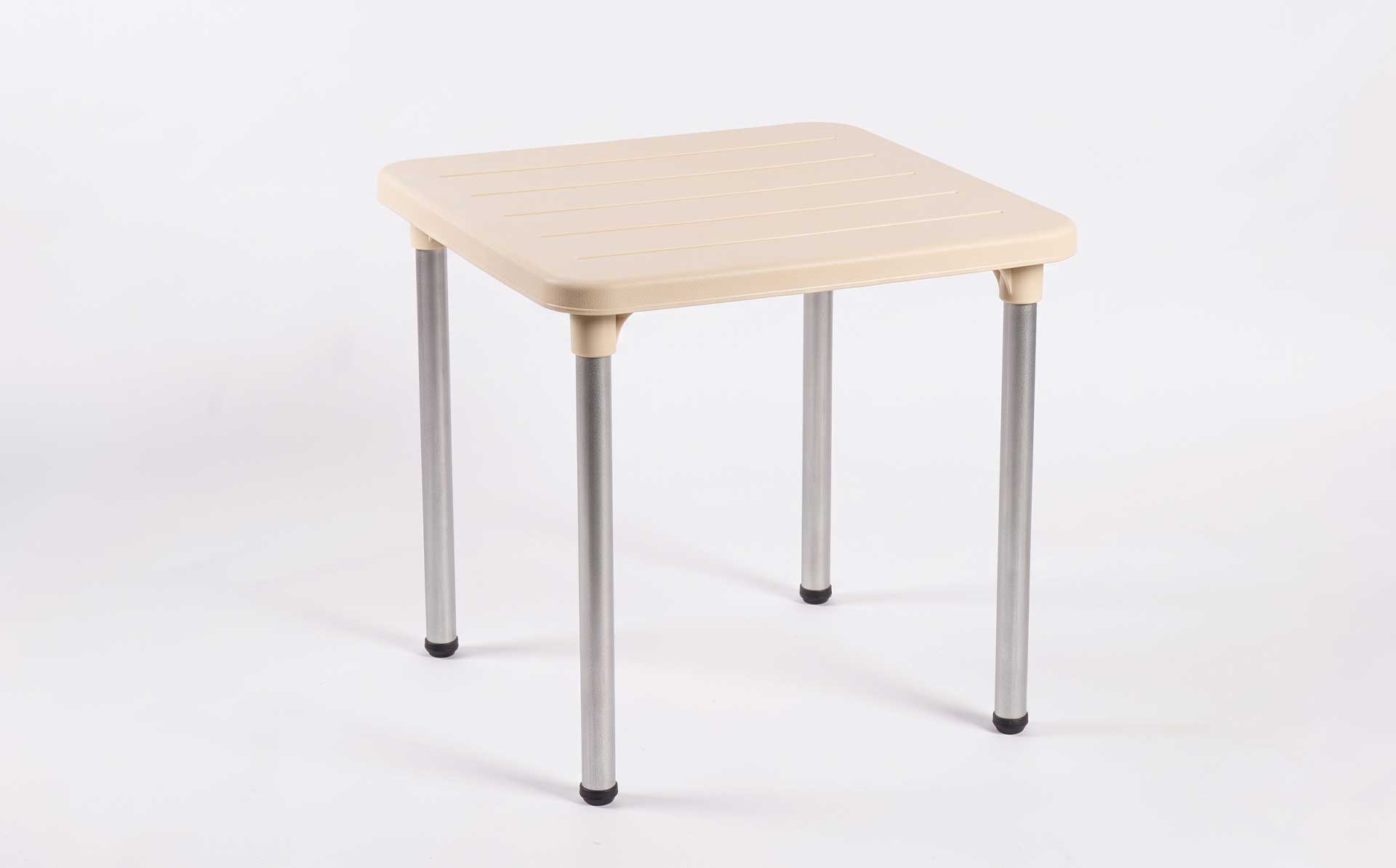

Minimalist Plastic Tabletop Mold for Aluminum Bases | Sleek, Lightweight & Scratch-Resistant Surface Design
Minimalist Plastic Tabletop Mold for Aluminum Bases — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek offers dedicated injection molds for minimalist plastic tabletops designed to mate with aluminum bases. This product category combines a molded plastic top with a separate aluminum support structure, requiring the mold to deliver a visually clean tabletop with precise interface features for secure base attachment. The core challenges lie in interface tolerance control between the plastic top and aluminum base, warpage control of the thin minimalist panel, and concealed fastening feature formation. Motek addresses these through precision cavity machining, balanced cooling, and insert/slider design, helping customers achieve stable mass production of tabletop components that assemble reliably with aluminum bases.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / ABS / PC (ABS/PC recommended for premium surface finish) |
| Mold Material | P20 / 718H / 2738 (cavity and core), polished grade steel for visible surfaces |
| Number of Cavities | Single cavity primarily (large tabletop), 1×2 evaluable for compact models |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 40–70 seconds (depending on tabletop size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (gate mark minimization) / Cold runner optional |
| Interface Features | Base mounting bosses, screw seats, locating ribs integrally formed |
Product Features
Interface Tolerance Control for Plastic-to-Aluminum Assembly.
The tabletop must mate precisely with the aluminum base structure. Motek forms mounting bosses, screw seats, and locating ribs on the tabletop underside with tight dimensional tolerance, ensuring consistent alignment across production batches. Where metal inserts are required for threaded connections, Motek designs insert seating features with proper clearances to accommodate insert placement and prevent resin flash into threads.
Warpage Control for Thin Minimalist Panels.
Minimalist tabletops are typically thin and flat with clean visible surfaces. Motek evaluates shrinkage distribution through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts symmetrically balanced cooling channels to equalize cooling rates across the panel. Structural reinforcement is concealed on the underside with rib thickness controlled below panel wall thickness to prevent visible sink marks on the top surface.
Concealed Fastening Feature Formation.
Clean visual design requires fastening features to be hidden from view. Motek forms mounting bosses and screw seats on the underside of the tabletop through cavity/core configuration, with sliders or inserts used for undercut features where necessary. Fastening features are positioned to be fully concealed when the table is assembled, preserving the minimalist aesthetic.
Premium Surface Finish Consistency.
The visible tabletop surface requires uniform gloss and texture. Motek applies mirror polishing (SPI A-1/A-2) or fine matte texture to the cavity, with consistency control across all cavity positions. Parting lines are positioned along the tabletop edge or concealed underside wherever possible to minimize visible seams.
Balanced Ejection to Protect the Visible Surface.
Thin flat panels are prone to stress whitening or deformation from uneven ejection. Motek adopts a multi-point balanced ejector layout with ejection points located at concealed underside bosses or ribs, ensuring no visible ejector marks on the appearance surface.
Applications
Motek minimalist plastic tabletop molds for aluminum bases are suitable for:
- Minimalist coffee tables with aluminum leg frames
- Side tables with aluminum pedestal bases
- Dining tables with aluminum trestle bases
- Modular table systems with aluminum support structures
- Premium matte or high-gloss finish tabletops for metal base assembly
Service Process
After the customer provides 3D product drawings, aluminum base interface specifications, and surface finish requirements, Motek completes mold flow analysis (including warpage evaluation and interface feature simulation) and mold structure confirmation; cavity steel and hot runner system are procured according to agreed specifications; surface finish samples are provided for customer approval before final polishing. During trial molding, emphasis is placed on verifying flatness, interface dimensional accuracy, and surface gloss consistency, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From standalone tabletops to metal-base integrated assemblies, providing precision injection mold solutions for minimalist plastic furniture.
