Product Positioning
Motek introduces dedicated injection molds for modular, interlocking plastic coffee tables. Modular coffee tables are assembled from multiple panels or modules joined through snap-fits and interlocking structures, facilitating separate packaging, transport, and user self-assembly. Unlike one-piece molded tables, modular coffee table components are moderate in size, but dimensional accuracy and interchangeability of interlocking areas, panel warpage control, and module appearance consistency are the core challenges in mold development. Motek focuses on interlocking structure forming, demolding mechanism design, and balanced ejection, helping customers achieve stable mass production of modular coffee table components with smooth assembly.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / ABS / PE (selected according to product application) |
| Mold Material | P20 / 718H / 2738 (cavity and core), H13 optional for slider inserts |
| Number of Cavities | Single cavity primarily; 1×2 evaluable for small modules |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 35–65 seconds (depending on module size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Cold runner / Hot runner optional |
| Interlocking Structure | Snap-fits/interlocking slots/connector mounting positions integrally formed, with slider cooperation |
Product Features
Integral Forming and Interchangeability Control of Interlocking Structures.
The core of modular coffee tables lies in smooth assembly between multiple modules. Motek forms edge snap-fits, interlocking slots, or connector mounting positions through a slider system, with slider guidance and locking designs ensuring long-term positional accuracy. Cavity dimensions receive dedicated tolerance control at interlocking areas, ensuring uniform assembly gaps and stable interchangeability across different batches and cavity positions. Industry experience shows that coffee table products with complex structures are prone to deformation or damage if demolded directly, requiring proper demolding mechanism design to mitigate.
Demolding Mechanism Optimized for Complex Structures.
Modular coffee table modules often feature snap-fits, slots, and other undercut structures. During demolding, sliders or inserts must first separate from the product before ejection. Referencing mature industry practices, Motek adopts a slider and ejector rod linkage demolding solution: during mold opening, ejector rods, positioning blocks, and sliders are first moved away to release the product from constraints, then the ejection action is performed, preventing the product from being damaged or deformed during demolding and improving yield.
Panel Warpage Control and Reinforcement Rib Layout.
Although coffee table panels are smaller than dining tables, they face similar shrinkage warpage risks as flat structures. Motek evaluates shrinkage distribution across panel regions through mold flow analysis, applies pre-deformation compensation to the cavity, and uses balanced cooling channels to equalize cooling rates across the panel. Regular reinforcement ribs are arranged on the panel underside to enhance rigidity and reduce deformation, but rib thickness is controlled not to exceed panel wall thickness to avoid sink marks on the appearance surface.
Balanced Ejection to Protect Panel Appearance.
Coffee table panels have high appearance requirements, and uneven ejection force can cause stress whitening or localized deformation. Motek adopts a multi-point balanced ejector pin layout, with ejection points preferentially located at reinforcement ribs, mounting positions, and other non-appearance areas, ensuring no visible ejector marks on the panel appearance surface during demolding.
Module Appearance Consistency Control.
Modular coffee tables are assembled from multiple modules, and the surface texture and gloss consistency of each module directly affect the finished product's visual quality. Motek applies consistency control to surface treatment across all cavity positions during cavity machining. Non-appearance areas can receive fine-texture or matte treatment as required, ensuring coordinated overall appearance after assembly.
Applications
Motek modular plastic coffee table molds are suitable for:

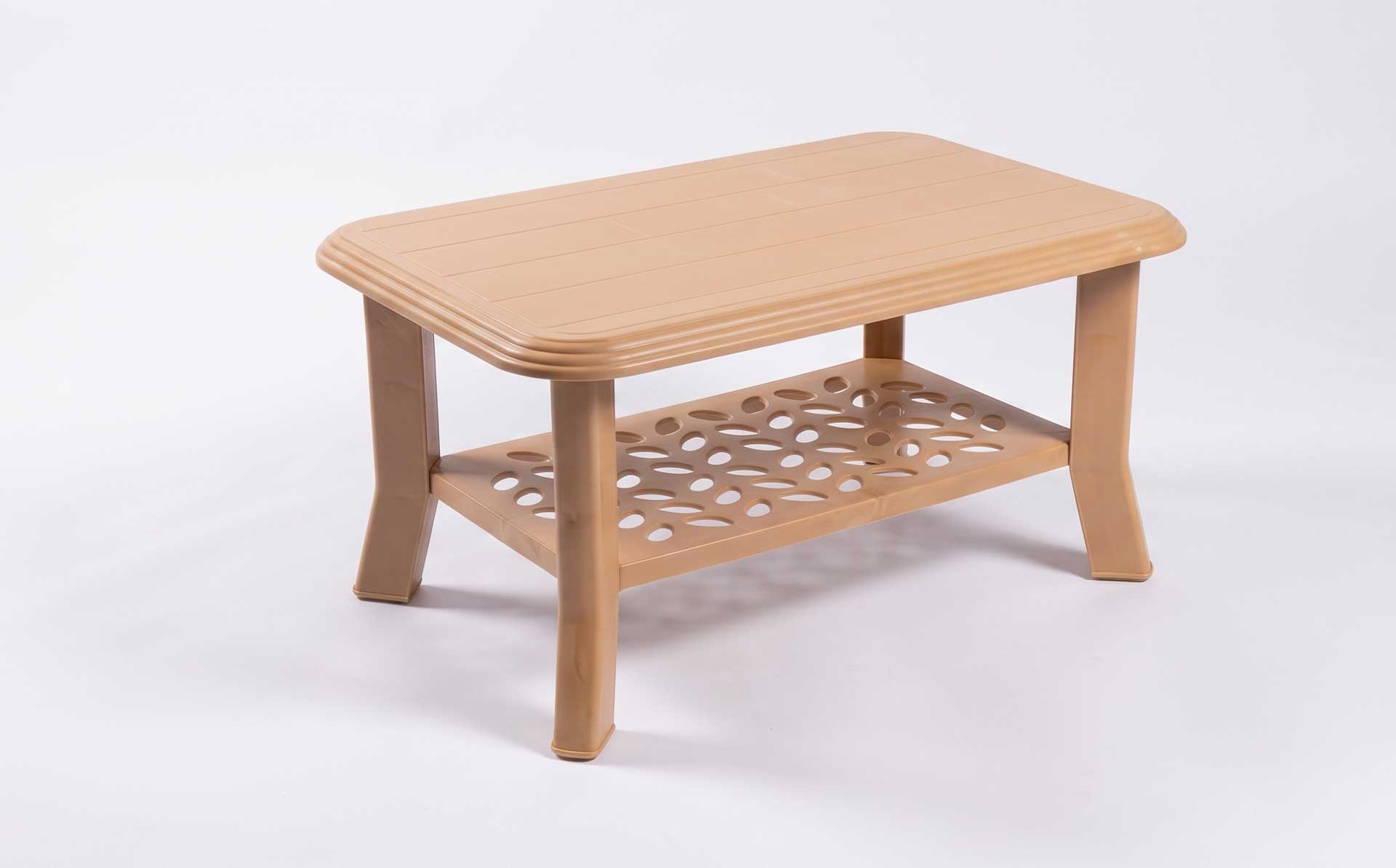

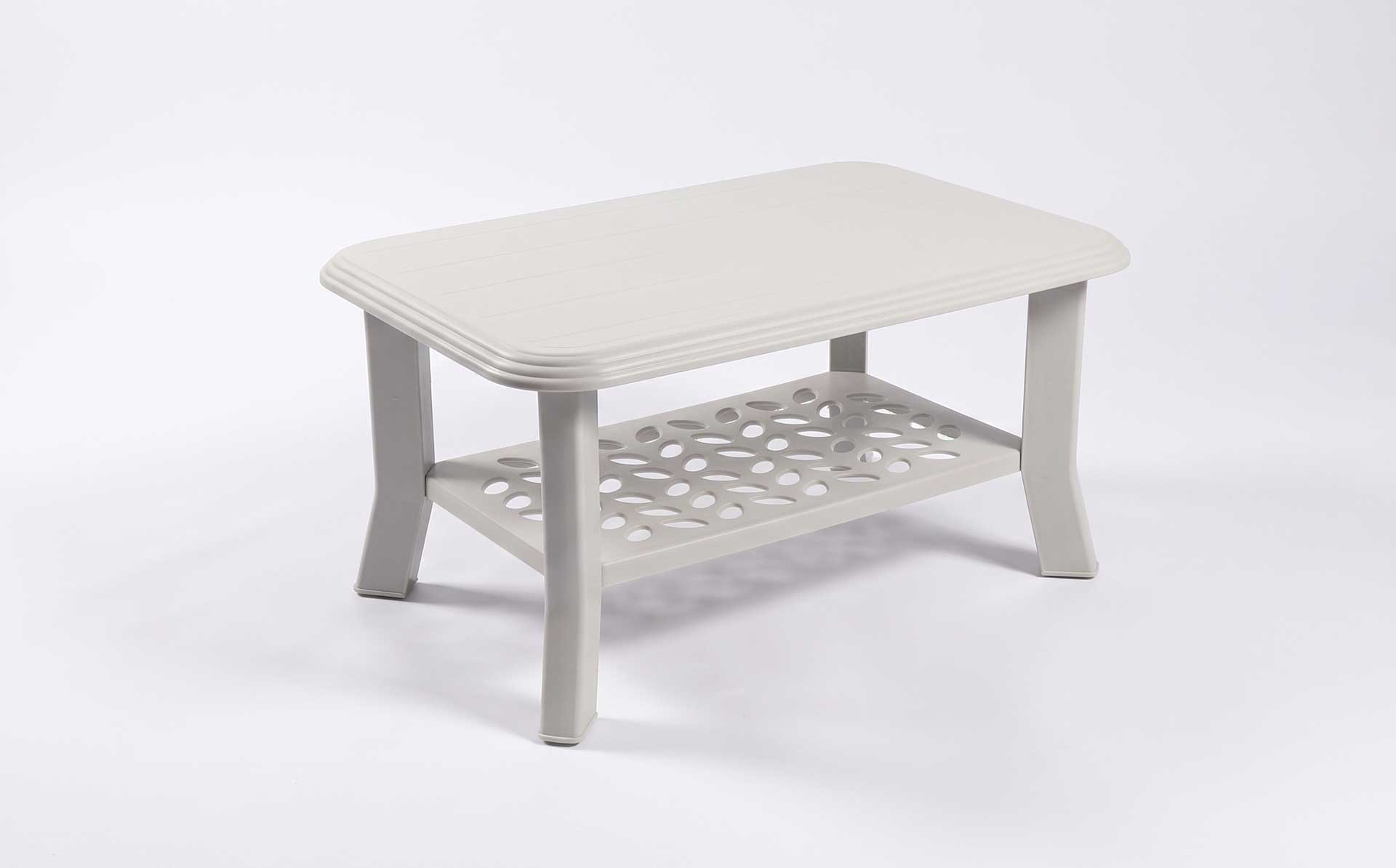

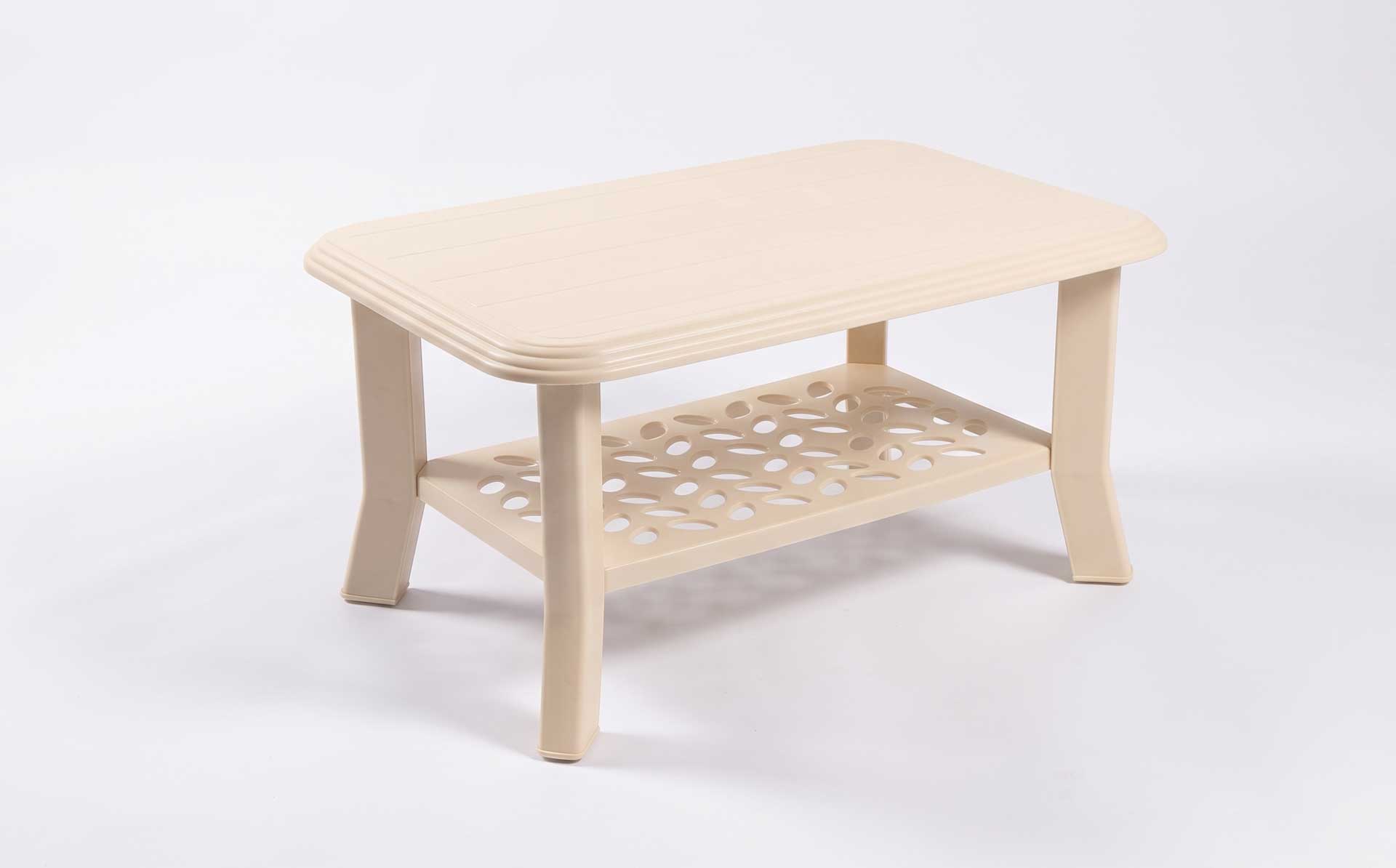

- Interlocking modular indoor coffee table panels/modules
- Modular coffee tables with snap-fit or interlocking structures
- Modular side table/corner table panels
- Children's modular small coffee tables
- Coffee table products requiring separate packaging and transport
Service Process
After the customer provides 3D product drawings and interlocking structure plans, Motek completes mold flow analysis (including interlocking dimension compensation and panel warpage evaluation) and mold structure confirmation; cavity steel and moving components such as sliders are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying module interlocking interchangeability, demolding mechanism smooth operation, and panel appearance, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From turnover boxes to modular furniture components, providing reliable injection mold solutions for interlocking forming and stable mass production of plastic products.
