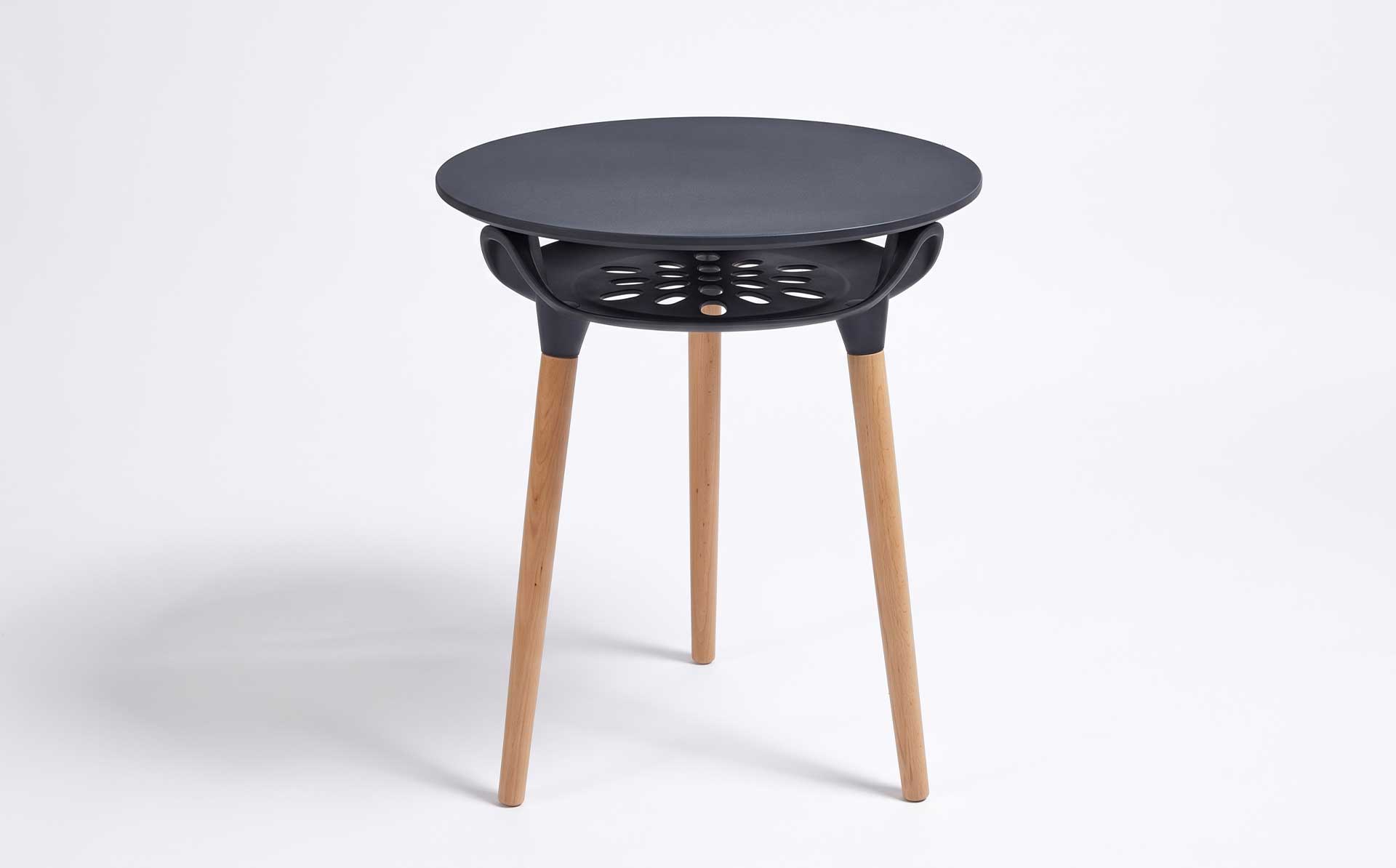

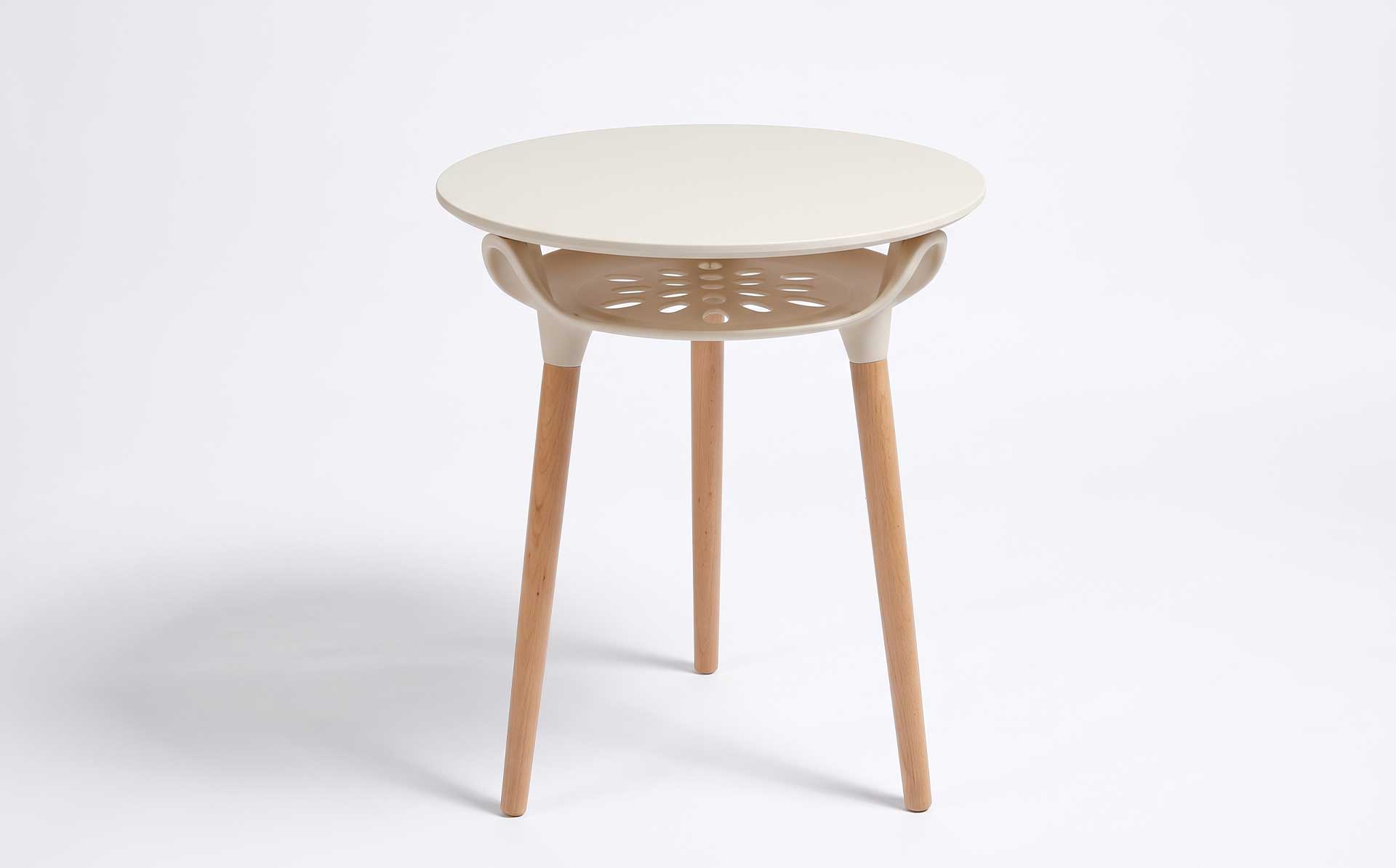

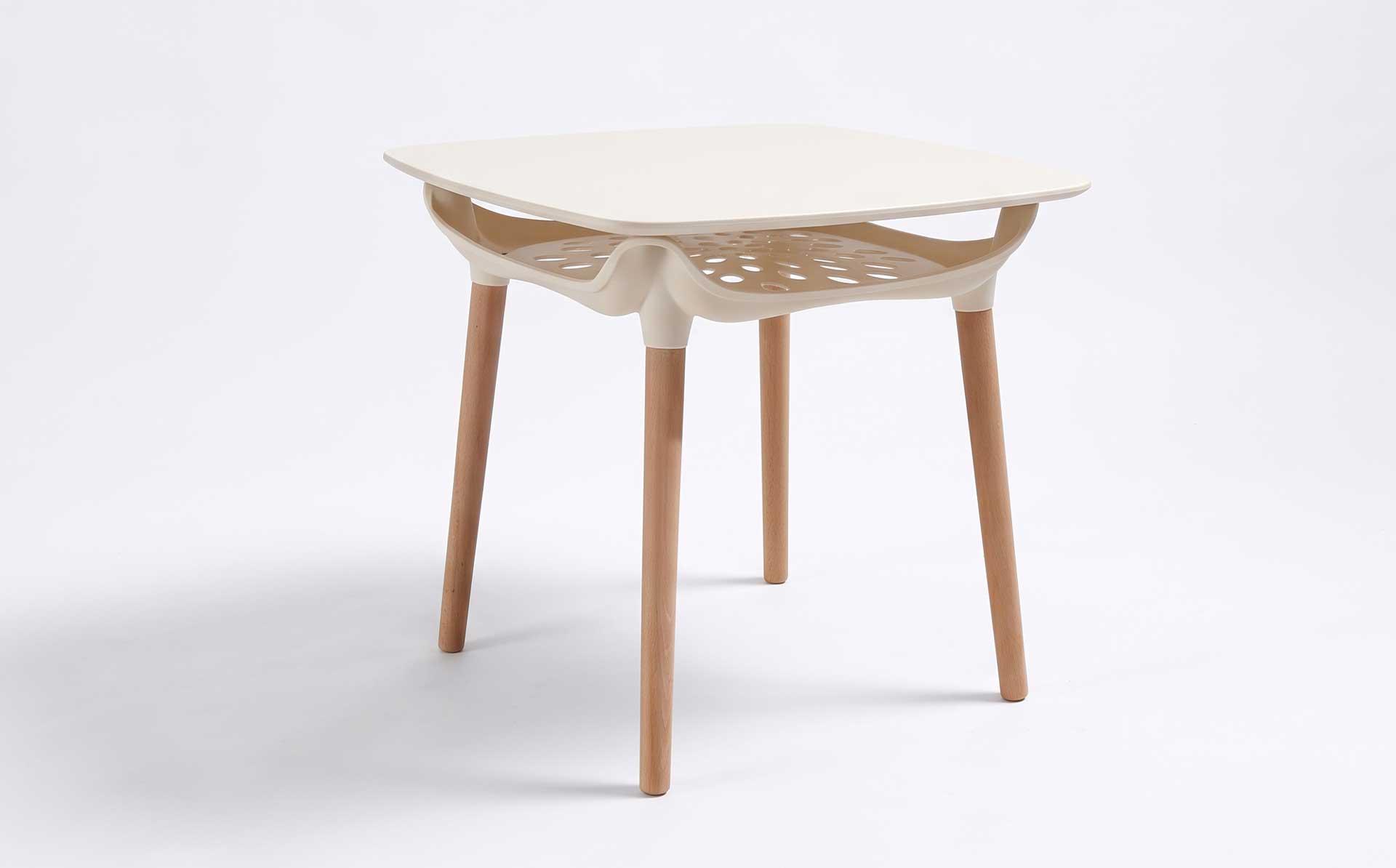

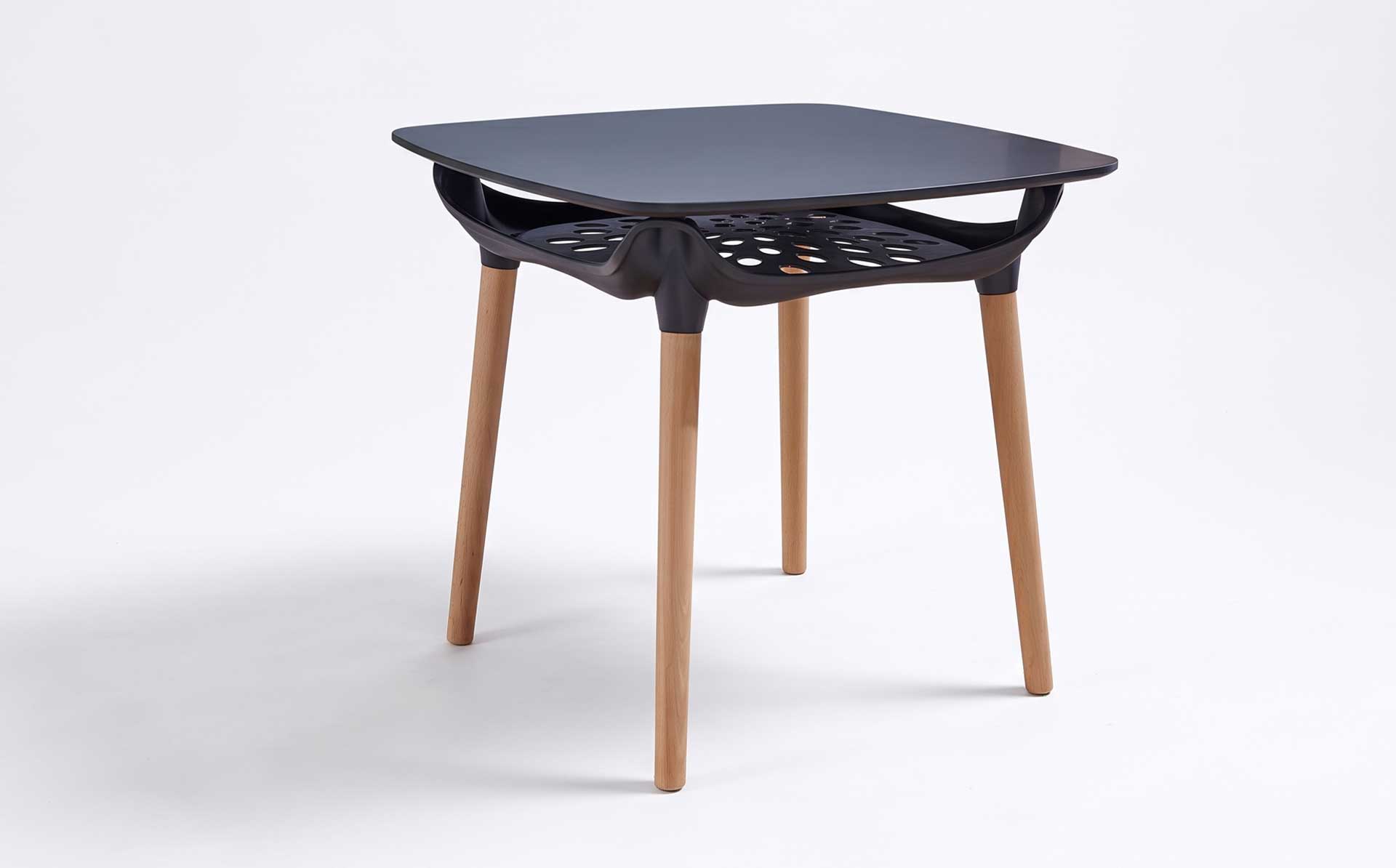

Modern Minimalist Coffee Table Mold | Plastic Top with Interchangeable Wooden Legs
Modern Minimalist Coffee Table Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek offers dedicated injection molds for modern minimalist coffee tables. This product category is defined by clean lines, large flat surfaces, minimal parting lines, and premium surface finish—typically featuring a slim tabletop with simple or concealed leg structures. The mold development challenges center on warpage control of large thin-wall flat panels, parting line and gate mark minimization for visual cleanliness, and surface finish consistency across the visible face. Motek addresses these through cavity layout optimization, balanced cooling, and precision surface treatment, helping customers achieve mass production of minimalist coffee tables with premium visual quality.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / ABS / PC (ABS/PC recommended for premium surface finish) |
| Mold Material | P20 / 718H / 2738 (cavity and core), polished grade steel for visible surfaces |
| Number of Cavities | Single cavity primarily (large tabletop), 1×2 evaluable for compact models |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 40–70 seconds (depending on tabletop size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (gate mark minimization) / Cold runner optional |
| Surface Finish | Mirror polish (SPI A-1/A-2) or fine matte texture |
Product Features
Warpage Control for Large Thin-Wall Flat Panels.
Minimalist tabletops are typically thin and flat with no reinforcement ribs on the visible side, making them highly susceptible to shrinkage warpage. Motek evaluates shrinkage distribution through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts symmetrically balanced cooling channels to equalize cooling rates across the panel. Where structural reinforcement is needed, ribs are concealed on the underside with thickness controlled below the panel wall thickness to prevent visible sink marks.
Parting Line and Gate Mark Minimization.
The visual cleanliness of minimalist design depends on minimal parting lines and invisible gate marks. Motek positions the parting line along the tabletop edge or concealed underside wherever possible, and recommends hot runner or submarine gate solutions to place gate marks on non-visible surfaces. Gate position is confirmed through mold flow analysis to balance filling while keeping weld lines away from the visible face.
Premium Surface Finish Consistency.
The visible tabletop surface requires uniform gloss and texture. Motek applies mirror polishing (SPI A-1/A-2) or fine matte texture to the cavity, with consistency control across all cavity positions. For matte finishes, texture depth and uniformity are verified against customer-approved samples before mass production.
Concealed Leg and Connection Structure Forming.
Minimalist coffee tables often feature slim or concealed leg structures. Motek forms leg mounting positions, connection interfaces, and concealed hardware seats through inserts or sliders, with tight tolerance control to ensure stable assembly and clean exterior appearance.
Balanced Ejection to Protect the Visible Surface.
Thin flat panels are prone to stress whitening or deformation from uneven ejection. Motek adopts a multi-point balanced ejector layout with ejection points located at concealed underside ribs or mounting bosses, ensuring no visible ejector marks on the appearance surface.
Applications
Motek modern minimalist coffee table molds are suitable for:
- Minimalist flat-panel coffee tables (living room)
- Slim-edge side tables / corner tables
- Concealed-leg or pedestal-base coffee tables
- Premium matte or high-gloss finish coffee tables
- Modular minimalist table systems
Service Process
After the customer provides 3D product drawings and surface finish requirements, Motek completes mold flow analysis (including warpage evaluation and gate/weld line simulation) and mold structure confirmation; cavity steel and hot runner system are procured according to agreed specifications; surface finish samples are provided for customer approval before final polishing. During trial molding, emphasis is placed on verifying flatness, parting line appearance, and surface gloss consistency, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From modular furniture to minimalist design tables, providing precision injection mold solutions for premium plastic furniture.
