In-Mold Label Multi-Cavity Packaging Bucket Mold Solution

1. Introduction

In-Mold Label (IML) technology is an advanced process that integrates pre-printed labels with plastic melt during the injection molding process. Packaging buckets using IML technology offer advantages such as exquisite appearance, wear-resistant labels, waterproof and moisture-proof properties, and recyclability. They are widely used in coatings, lubricants, food, chemicals, and other industries. Multi-cavity molds are a key means to improve production efficiency and reduce unit costs. This article systematically introduces a complete solution for in-mold label multi-cavity packaging bucket molds.

2. Overview of In-Mold Label Technology

2.1 IML Process Principle

The basic process flow of in-mold labeling:

1. Label printing: Use gravure printing or flexographic printing to print label patterns
2. Label cutting: Cut printed labels into shape
3. Label placement: A robot places labels into the mold cavity
4. Electrostatic adsorption: Labels are adsorbed onto the cavity wall by static electricity
5. Mold closing and injection: The mold closes and plastic melt is injected
6. Integrated molding: Labels bond with the plastic melt to form one piece
7. Mold opening and part removal: The product is removed after cooling

2.2 Advantages of IML Technology

2.3 Label Material Selection

3. Multi-Cavity Packaging Bucket Mold Structure Design

3.1 Overall Mold Structure

Multi-cavity packaging bucket molds typically use two-cavity or four-cavity designs:

3.2 Cavity Layout Design

(1) Layout Principles

• Each cavity symmetrically distributed to ensure balanced filling
• Cavity spacing meets cooling channel layout requirements
• Consider label placement robot operating space
• Mold center of gravity coincides with injection molding machine center

(2) Typical Layouts

3.3 Gating System Design

(1) Hot Runner System

• Use valve gate hot runners for sequential filling
• Number of hot nozzles matches cavity count, generally 1–2 per cavity
• Precise hot runner temperature control (±1°C) to prevent material degradation
• Use balanced runner design to ensure uniform filling of all cavities

(2) Gate Design

• Gate location at bucket bottom center or side
• Gate size determined by bucket size, generally φ3–φ6 mm
• Use tunnel gates or pin-point gates for automatic degating
• Gate locations avoid label areas to prevent label displacement

3.4 Cooling System Design

(1) Cooling Channel Layout

(2) Conformal Cooling Technology

• Use 3D-printed conformal cooling inserts, with cooling channels following the bucket wall contour
• Cooling efficiency improved by 30%–50%
• Molding cycle shortened by 20%–30%
• Effectively reduces product warpage deformation

3.5 Ejection System Design

(1) Multi-Point Ejection

• Number of ejector pins: 20–40, determined by bucket size
• Ejector pin diameter: φ6–φ12 mm
• Ejector pin distribution: Evenly distributed, denser at corners
• Ejection stroke: 50–100 mm

(2) Air-Assisted Ejection

• For large packaging buckets, use air-assisted ejection to assist demolding
• Compressed air pressure: 0.3–0.5 MPa
• Air-assisted ejection can reduce the number of ejector pins and reduce product deformation

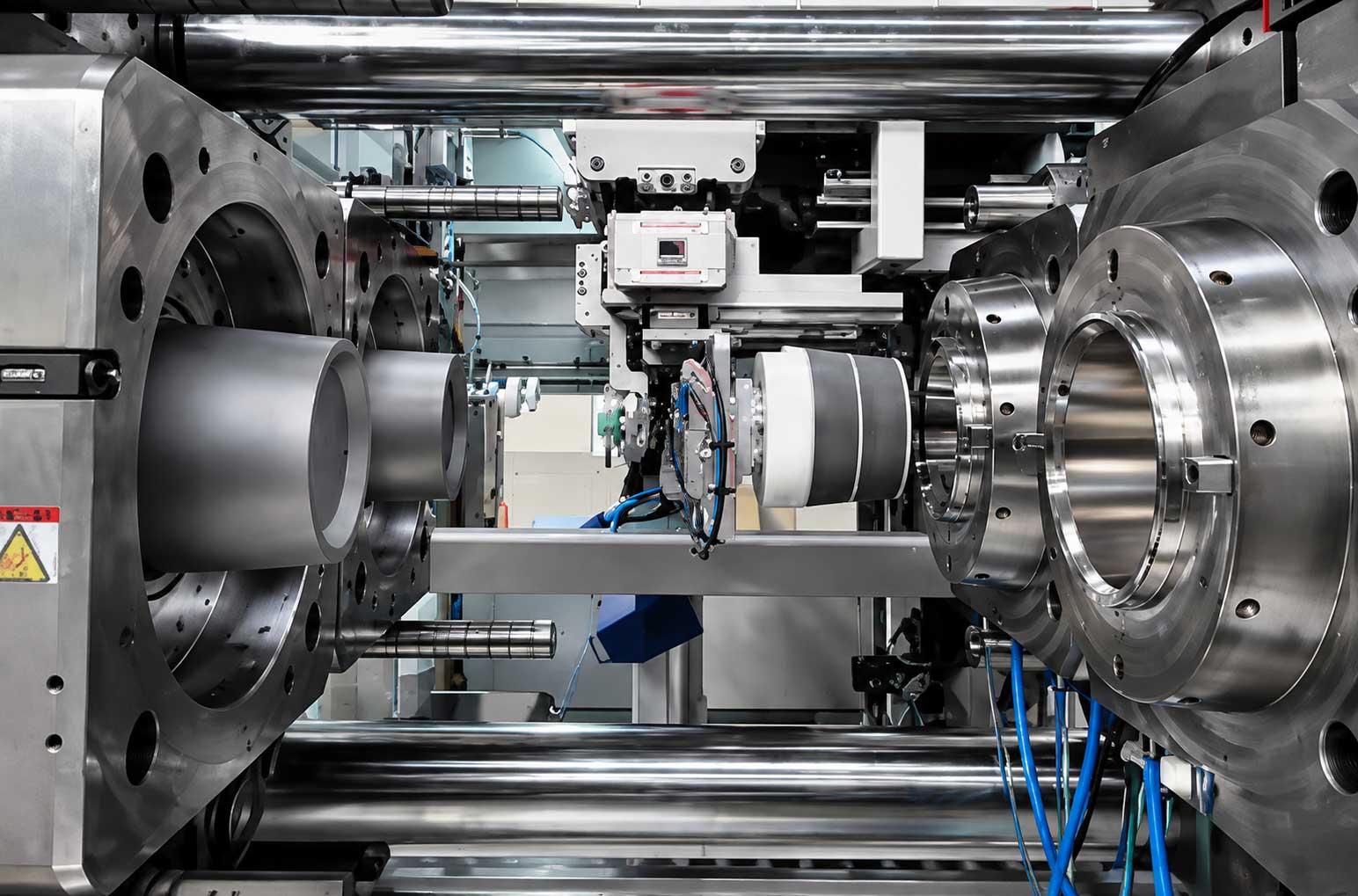

3.6 Label Placement System

(1) Robot Placement

• Use six-axis robots or Cartesian coordinate robots
• Robot picks labels from label magazine and places them into the cavity
• Placement precision ≤0.1 mm
• Placement takt matches injection molding cycle

(2) Electrostatic Adsorption System

• Static generators installed in the cavity to adsorb labels onto the cavity wall
• Static voltage: 5–15 kV
• Electrostatic adsorption force must be moderate to prevent label displacement or falling off
• Static electricity automatically eliminated after injection molding

(3) Label Detection System

• Use vision inspection systems to detect whether labels are properly placed
• Detection precision ≤0.05 mm
• Automatic alarm and shutdown when not properly placed

4. Key Technologies for Multi-Cavity Molds

4.1 Filling Balance Technology

(1) Runner Balance

• Use naturally balanced runners, with consistent flow ratios for all cavities
• Runner cross-section uses trapezoidal or circular shape to reduce pressure loss
• Runners require polishing to Ra0.8 μm to reduce flow resistance

(2) Mold Flow Analysis

• Use Moldflow software for filling analysis
• Optimize gate locations and runner dimensions
• Predict weld lines, air traps, warpage, and other defects

4.2 Uniform Cooling Technology

(1) Zoned Cooling

• Divide the mold into multiple cooling zones
• Each zone independently controls cooling water flow and temperature
• Ensure uniform cooling of all cavities

(2) Cooling Channel Optimization

• Use CAE analysis to optimize cooling channel layout
• Consistent distance from cooling channels to cavity surface
• Use baffles and bubblers to enhance deep cavity cooling

4.3 Label Positioning Technology

(1) Cavity Surface Treatment

• Label area cavity surfaces require mirror polishing (Ra ≤0.2 μm)
• Prevent label surface defects
• Cavity surfaces require anti-static treatment to prevent poor label adsorption

(2) Label Adsorption Methods

4.4 Automation Integration Technology

(1) Automated Production Line

(2) Control System

• Use PLC control systems for fully automated production
• Injection molding machine, robot, and vision system linked control
• Production data real-time monitoring and recording

5. Mold Material Selection

5.1 Mold Steel Selection
