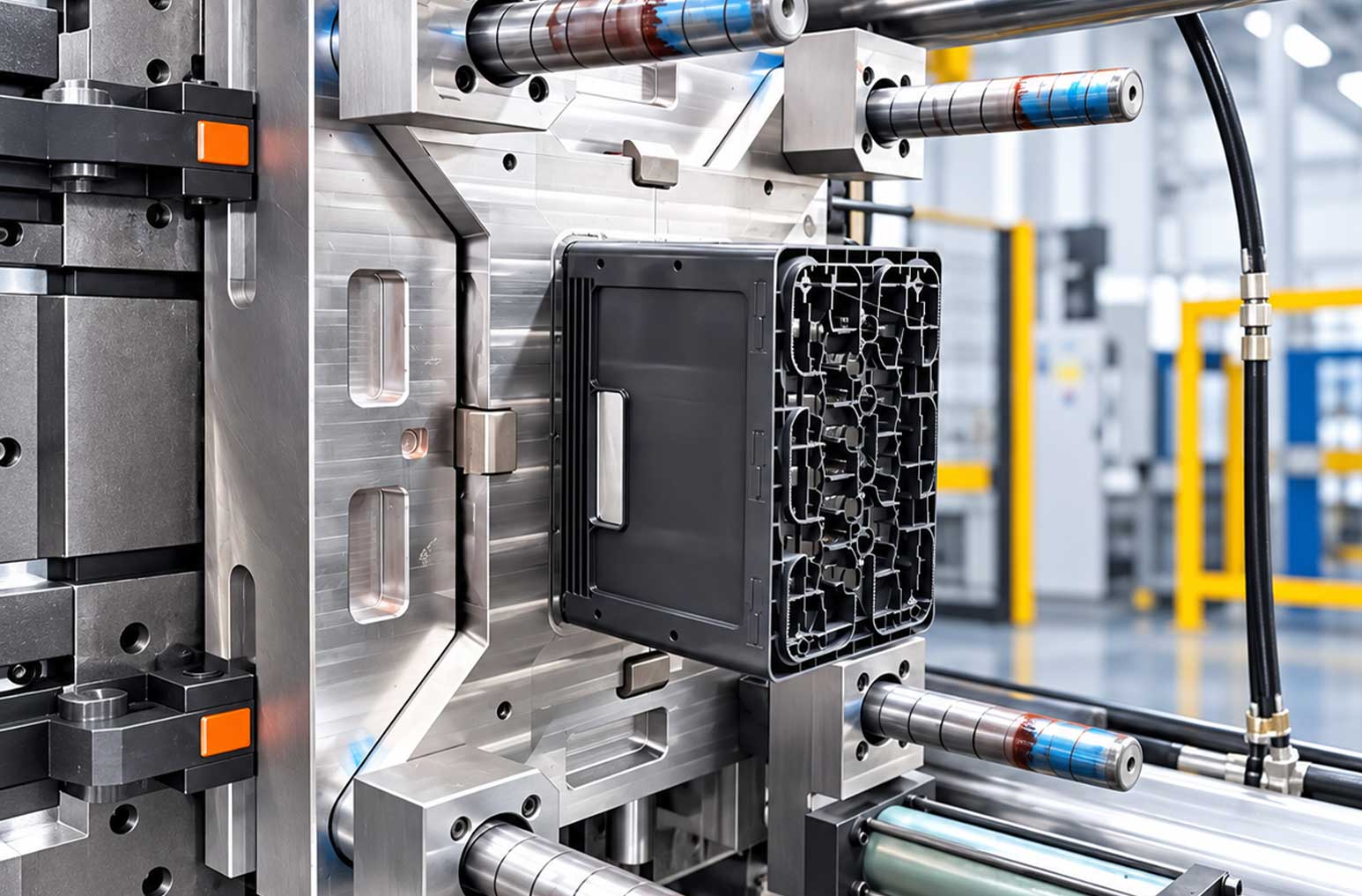

Technical Characteristics of Plastic Beer Crate Molds

1. Introduction

Plastic beer crates are reusable packaging containers widely used in the beer industry for transporting, storing, and displaying beer bottles. Compared with disposable packaging, plastic beer crates can be reused many times and offer advantages such as high strength, impact resistance, easy cleaning, and recyclability. Plastic beer crates are typically produced by injection molding, and their mold technology has distinctive industry characteristics. This article systematically analyzes the technical characteristics of plastic beer crate molds from the aspects of product features, mold structure, material selection, and machining processes.

2. Product Characteristics of Plastic Beer Crates

2.1 Structural Features

Plastic beer crates are typically rectangular open-top box structures, with the following product characteristics:

• Thin and uniform walls: Wall thickness generally 2.0–3.5 mm, classified as medium-thin-wall injection molded parts
• Dense reinforcing ribs: Internal and external walls usually have crisscrossing reinforcing ribs to ensure rigidity and stacking strength
• Complex bottom structure: The bottom has grid-like reinforcing ribs and support feet to ensure load-bearing capacity
• Side handles: Both sides have carrying handles for easy manual transport
• Stacking structure: Top and bottom have stacking mating structures to ensure stable multi-layer stacking
• Dividing compartments: Some beer crates have internal dividing compartments to secure beer bottles

2.2 Dimensional Characteristics

2.3 Performance Requirements

• Load capacity: Single crate load ≥15 kg, stacking load ≥100 kg
• Drop performance: No breakage when dropped from 1.2 m height
• Weather resistance: Normal use in -20°C to +60°C environments
• Service life: Can be reused 50–100 times or more
• Hygiene requirements: Comply with food-contact material standards

3. Core Technical Characteristics of Plastic Beer Crate Molds

3.1 Mold Structure Characteristics

(1) Multi-Cavity Design

Beer crates are mass-produced products, typically using one-cavity or two-cavity designs:

• One-cavity: Suitable for large beer crates, mold size approximately 800×600 mm
• Two-cavity: Suitable for small and medium beer crates, improving production efficiency
• Multi-cavity molds require balanced filling of all cavities

(2) Large Gate Feeding System

Due to thin walls and long flow paths, beer crates typically use large gates or hot runners:

• Gate location at the bottom center or side of the crate
• Larger gate size (φ4–φ8 mm) to ensure rapid filling
• Multi-point feeding to reduce flow ratio and prevent short shots

(3) Strong Cooling System

Beer crate production requires short cycles, making cooling system design critical:

• Use conformal cooling channels that follow the crate wall contour
• Cooling channel diameter φ10–φ14 mm, distance from cavity surface 15–20 mm
• Reinforced cooling required in wall and bottom rib-dense areas
• Cooling time accounts for 60%–70% of the molding cycle

(4) Strong Ejection System

Beer crates have large areas and thin walls, prone to deformation during ejection:

• Use multi-point ejector pins + ejector blocks combined ejection
• Number of ejector pins typically 30–60, evenly distributed
• Use ejector blocks at handles and corners to increase ejection area
• Use air-assisted ejection to assist demolding

3.2 Gating System Technical Characteristics

(1) Hot Runner System

• Use valve gate hot runners for sequential filling
• Number of hot nozzles determined by crate size, generally 2–4
• Precise hot runner temperature control (±2°C) to prevent material degradation
• Hot nozzle-to-cavity alignment precision ≤0.02 mm

(2) Cold Runner System

• Use balanced runners to ensure uniform filling of all cavities
• Runner cross-section uses trapezoidal or circular shape to reduce pressure loss
• Runners require polishing to Ra0.8 μm to reduce flow resistance

3.3 Cooling System Technical Characteristics

(1) Conformal Cooling Technology

• Use 3D-printed conformal cooling inserts, with cooling channels following the crate wall contour
• Cooling efficiency improved by 30%–50%
• Molding cycle shortened by 20%–30%
• Effectively reduces product warpage deformation

(2) Cooling Channel Layout

3.4 Ejection System Technical Characteristics

(1) Multi-Point Ejection

• Number of ejector pins: 30–60, determined by crate size
• Ejector pin diameter: φ6–φ12 mm
• Ejector pin distribution: Evenly distributed, denser at corners
• Ejection stroke: 50–100 mm

(2) Ejector Block Design

• Use ejector blocks at handle areas to increase ejection area
• Ejector block-to-cavity clearance ≤0.02 mm
• Ejector block surfaces require nitriding treatment to improve wear resistance

(3) Air-Assisted Ejection

• For large beer crates, use air-assisted ejection to assist demolding
• Compressed air pressure: 0.3–0.5 MPa
• Air-assisted ejection can reduce the number of ejector pins and reduce product deformation

3.5 Venting System Technical Characteristics

(1) Vent Groove Design

• Vent groove depth: 0.02–0.03 mm
• Vent groove width: 5–10 mm
• Vent groove locations: Parting surface, ejector pin clearances, insert clearances

(2) Vent Inserts

• Install vent inserts in areas prone to air entrapment
• Vent inserts use powder metallurgy materials with good permeability
• Vent inserts require regular cleaning to prevent clogging

4. Material Selection for Plastic Beer Crate Molds

4.1 Mold Steel Selection

4.2 Plastic Material Selection

Common plastic materials for beer crates:

5. Machining Process Characteristics of Plastic Beer Crate Molds

5.1 Cavity and Core Machining

Typical Process Flow:

Key Machining Points:

• Cavity and core surfaces use high-speed milling, speed 8000–20000 r/min
• Reinforcing rib areas use EDM, with copper or graphite electrodes
• Cavity surfaces polished to Ra0.4–0.8 μm
• Reinforcing rib areas require polishing to prevent product scratching during demolding

5.2 Cooling System Machining

• Straight channels machined by deep hole drilling, diameter φ10–φ14 mm
• Conformal cooling channels manufactured by 3D printing (SLM)
• Cooling channels require water flow testing, 0.5 MPa held for 30 minutes
• Channels require cleaning to remove machining residues

5.3 Ejection System Machining

• Ejector pin holes machined by slow wire EDM or
