Product Positioning

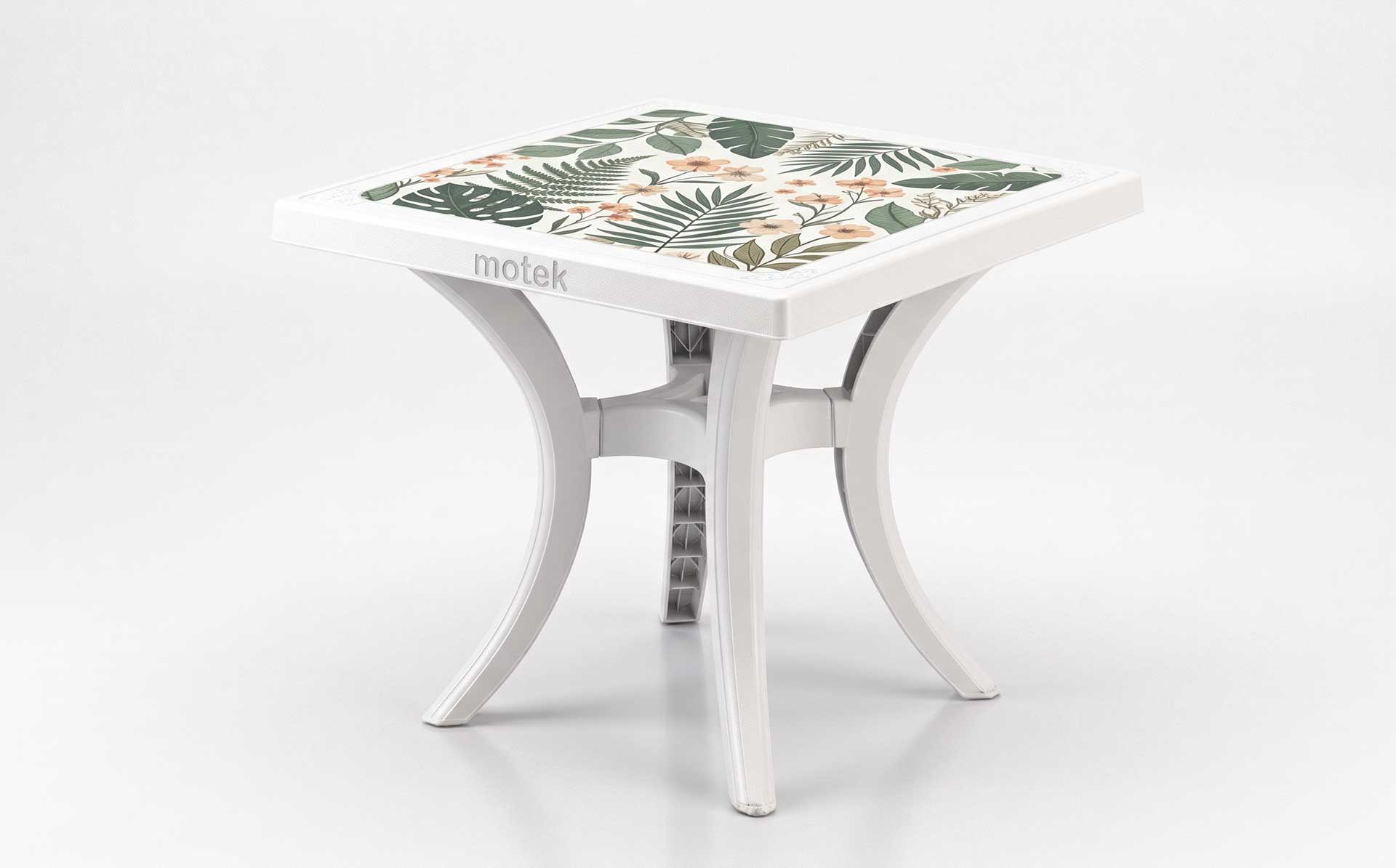

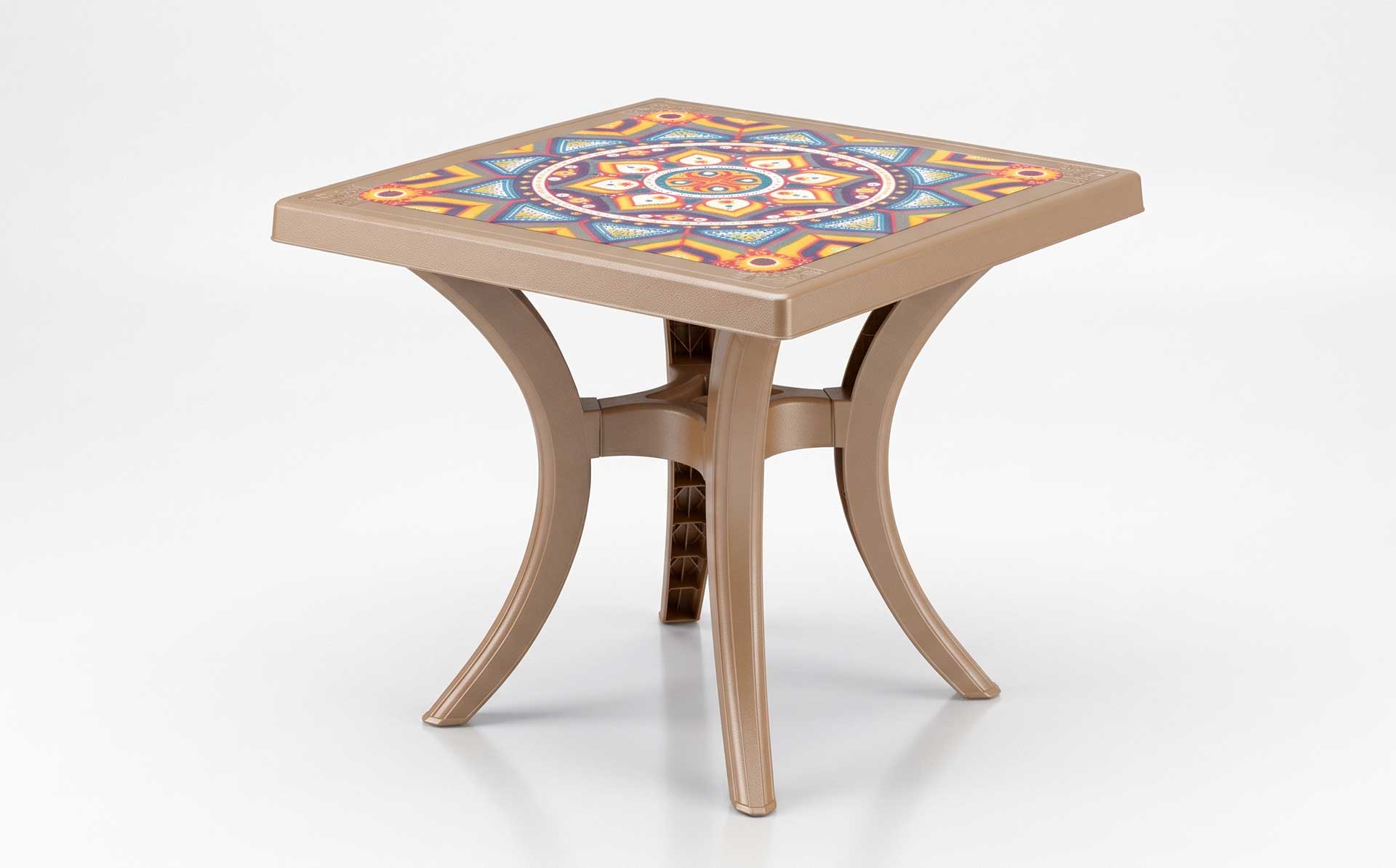

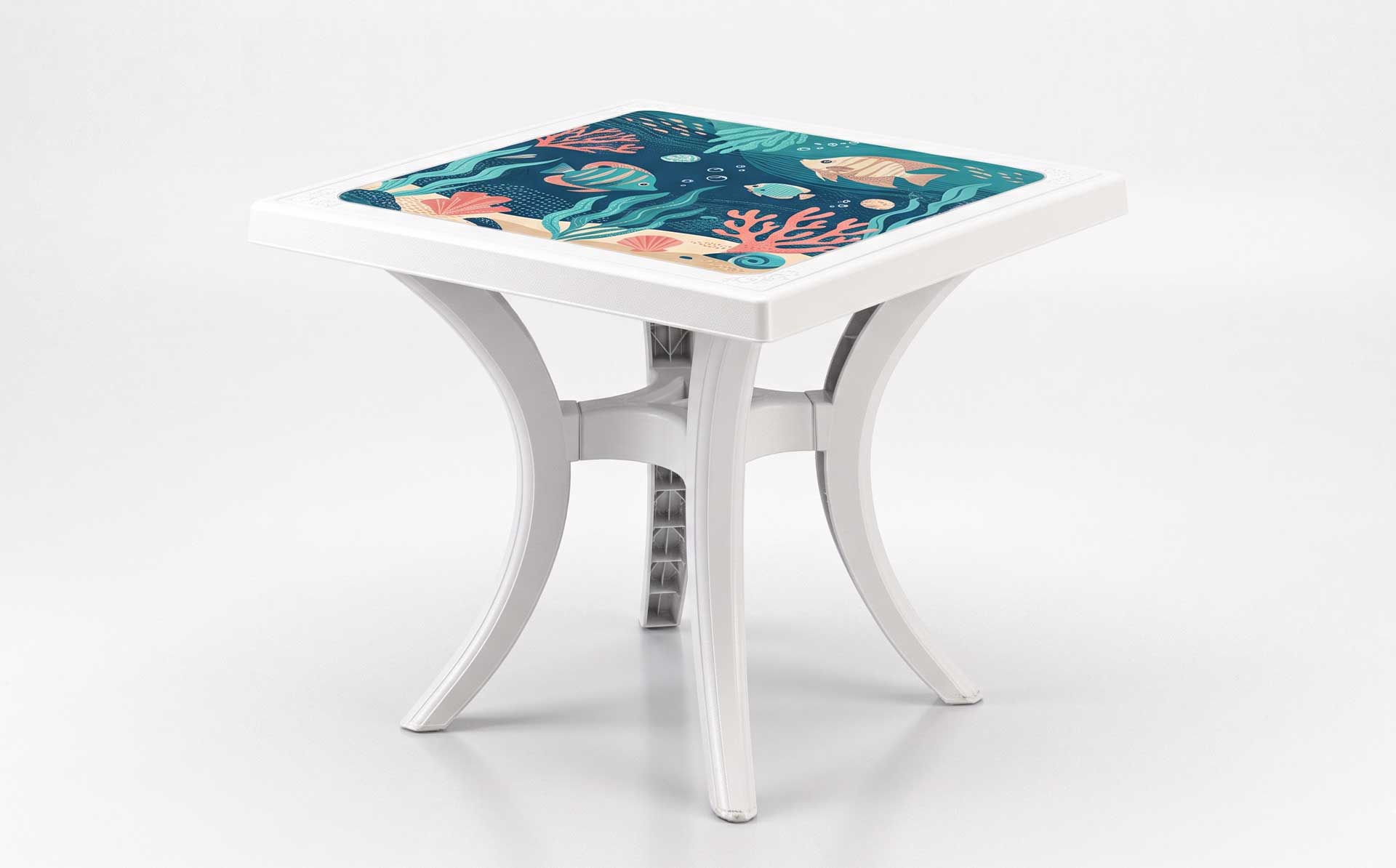

Motek introduces in-mold labeling (IML) dedicated injection molds for modular, interlocking square plastic tables. Modular square tables are typically assembled from multiple square table panels joined through edge snap-fits, interlocking slots, or connectors, with each panel requiring dimensional consistency to achieve interchangeable assembly. Under the IML process, labels are placed into the cavity before mold closing and formed integrally with the square panel. The core challenges lie in precise positioning and flat adsorption of square flat labels, dimensional consistency control of the four-edge interlocking structures, and gate positioning to protect label ink. Motek addresses these three aspects through gate optimization, vacuum adsorption, and interlocking structure forming design, helping customers achieve simultaneous decoration and forming of modular panels with stable interlocking interchangeability.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / ABS / PC (must match label material) |
| Mold Material | P20 / 718H / H13 (high-rigidity materials recommended for IML molds) |
| Number of Cavities | 1×1 / 1×2 (multi-cavity evaluable for small modular panels) |
| Mold Life | 300,000–800,000 shots (depending on label wear and maintenance) |
| Cycle Time | 50–85 seconds (including label placement and adsorption time) |
| Label Thickness | 0.1–0.2 mm (PET commonly used) |
| Gate Type | Submarine/banana gate, positioned away from label area |
| Adsorption Method | Vacuum adsorption (vacuum drawn on cavity side) |
| Interlocking Structure | Edge snap-fits/interlocking slots integrally formed, with slider cooperation |
Product Features
Precise Positioning and Vacuum Adsorption of Square Labels.
Square panel labels are quadrilateral sheets whose four-corner and four-edge positioning accuracy directly affects the labeled appearance. Motek designs vacuum adsorption circuits on the cavity surface, combined with label positioning pins or positioning steps, ensuring the label does not shift or wrinkle during mold closing and injection. Adsorption hole positions and density are distributed according to square panel dimensions and label coverage area, with appropriately increased density at the four corners to prevent corner lifting.
Gates Positioned Away from Labels to Prevent Ink Wash.
In IML injection molding, ink near the gate is susceptible to melt scouring (gate wash). Motek places gates outside the label coverage area or at sufficient distance, using submarine or banana gates to prevent melt from directly impacting the printed label surface. For solutions requiring large-area labeling on square panels, side-gate or center submarine-gate runner layouts can be evaluated, balancing filling uniformity with ink protection.
Integral Forming and Dimensional Consistency of Interlocking Edge Structures.
The core of modular square tables lies in interchangeable assembly of multiple panels. The mold forms edge snap-fits, interlocking slots, or connector mounting positions through a slider system, with slider guidance and locking designs ensuring long-term positional accuracy. Motek applies tolerance control to interlocking areas during cavity dimension design, ensuring panels from different batches and different cavities assemble smoothly with uniform gaps.
Shrinkage Correction and Interlocking Dimension Compensation.
IML products have constrained plastic substrate shrinkage due to label surface coverage, resulting in actual shrinkage rates smaller than standard injection molded parts. Motek calculates cavity dimensions using corrected shrinkage rates and applies dedicated compensation to interlocking edge areas, preventing assembly misalignment or uneven gaps caused by shrinkage differences between labeled and non-labeled areas.
Draft Angles Adapted for Label Protection, Balanced Ejection.
IML molds require larger draft angles than standard molds to prevent the hardened label surface layer from being scraped by the mold wall during ejection. Motek provides ample draft angles at panel edges and label coverage areas, with a multi-point balanced ejection system layout ensuring labels are not damaged and panel surfaces do not deform during demolding of square panels.
Surface Treatment and Unified Interlocking Appearance.
The cavity can be mirror-polished or textured. The surface texture of labeled and non-labeled areas (such as interlocking edges) must be coordinated. Motek confirms interlocking seam appearance requirements with customers during the design phase, applying matching texture treatment to non-labeled areas where necessary to ensure a unified overall appearance after assembly.
Applications
Motek IML plastic modular square table molds are suitable for:
- Interlocking modular outdoor square leisure tables
- Modular dining tables with wood-grain/stone-grain decorative labels
- Commercial modular tables with integrally formed brand logos
- Children's interlocking game tables/study desks
- Modular coffee/side tables requiring wear-resistant, scratch-resistant surfaces
- Multi-panel assembled display stands/activity tables
Service Process
After the customer provides 3D modular panel drawings, interlocking structure plans, and label design plans, Motek completes mold flow analysis (including label area filling evaluation and interlocking dimension compensation plans) and mold structure confirmation; cavity steel and vacuum adsorption systems are configured per IML requirements; during trial molding, Motek cooperates with the customer on label placement, adsorption verification, and multi-cavity interlocking interchangeability testing, providing labeled samples for confirmation. Before shipment, molds undergo anti-rust treatment and adsorption circuit testing, with water circuit diagrams, vacuum circuit diagrams, consumable parts lists, and IML operation notes provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From single round tables to modular square tables, providing integrated mold solutions for in-mold labeling decoration and interlocking forming of plastic furniture.
