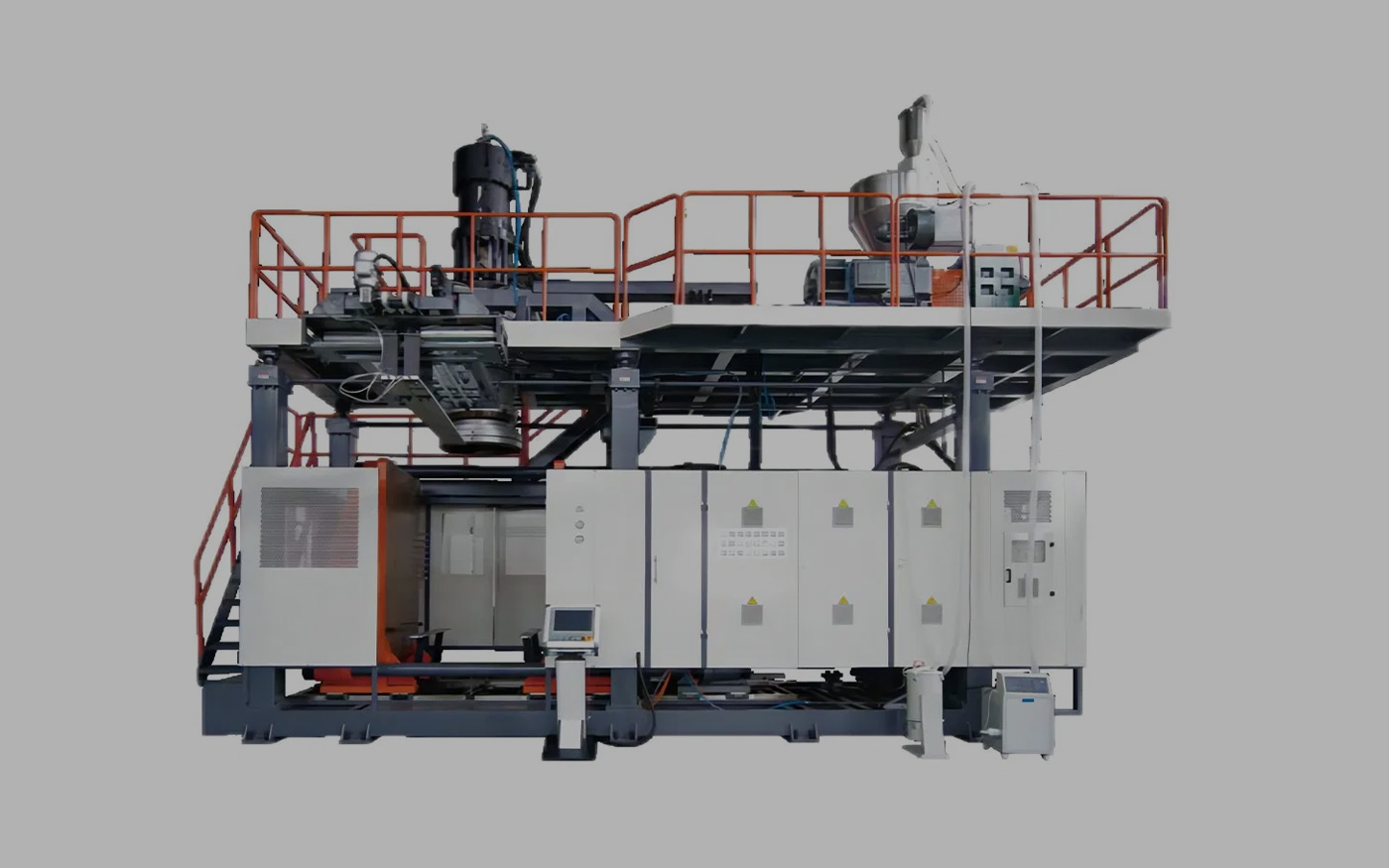

500/1000 Liter Industrial Pallet Blow Molding Machine
Product Detail Page:
Industrial Pallet Blow Molding Machine
Section 1: Headline / Core Selling Point
【Heavy Load · High Output · Zero Assembly】
Specialized Blow Molding System——Engineered for One-Piece Plastic Pallets & Logistics Platforms
Section 2: Product Overview
This machine series is purpose-built for the high-volume production of heavy-duty plastic pallets. In the logistics and warehousing industry, pallet strength and durability are non-negotiable. This system delivers one-piece, double-sided, seamless pallets with superior load-bearing capacity. Featuring a high-output extruder paired with an accumulating die head and standard hydraulic servo control, it ensures consistent quality, energy efficiency, and the structural integrity required for the most demanding material handling applications.
Section 3: Performance & Advantages (Detailed)
1. Specialized Pallet Production

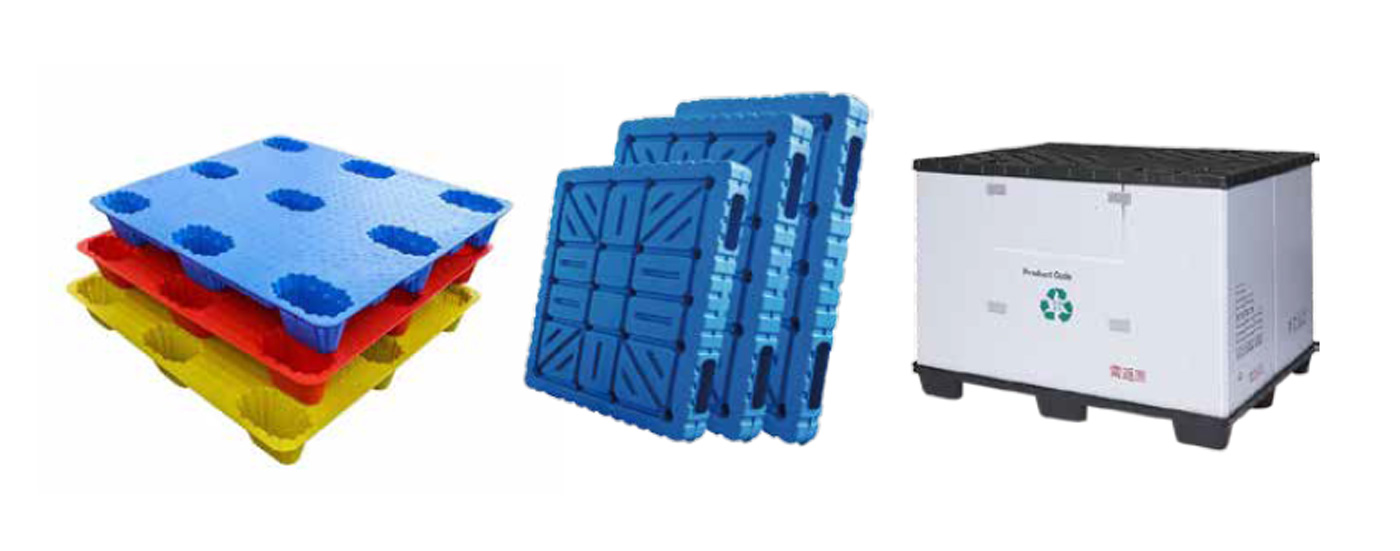

Heavy-Duty Applications: Specifically designed to manufacture various types of plastic pallets, including double-sided, single-sided, rackable, and nestable designs.
Superior Load Capacity: Produces one-piece pallets with exceptional strength-to-weight ratio, capable of supporting dynamic and static loads up to several tons without bending or cracking.
Chemical & Moisture Resistance: Unlike wood, these pallets are resistant to moisture, chemicals, and pests, making them ideal for food, pharmaceutical, and export logistics.
2. One-Piece Construction & Durability
Seamless Design: The blow molding process creates hollow, double-walled pallets with integrated reinforcement ribs, eliminating the need for assembly or metal reinforcements.
Impact Resistance: Engineered to withstand repeated impacts from forklifts and pallet jacks without splintering or breaking, ensuring long service life.
3. High-Performance Extrusion & Accumulation
High Output Extrusion System: Equipped with a powerful, high-torque extruder designed for continuous processing of high-molecular-weight polyethylene (HMWPE) and regrind materials common in pallet production.
Accumulating Die Head Technology: Utilizes a large-shot-weight accumulator head to gather material and inject it rapidly. This is critical for molding large surface area pallets with uniform wall thickness and eliminating weak spots.
4. Advanced Functional Options for Complex Designs
Core Pulling Elements (Optional): Configure with core-pulling functions to create complex features such as anti-slip surfaces, reinforced feet, forklift entry guides, or built-in RFID slots directly during the molding process.
Product Ejection System (Optional): Equip with automatic product ejection to safely remove large, heavy pallets from the mold without deformation, reducing cycle time and eliminating manual extraction.
Bottom Sealing (Optional): Ensure a clean, secure seal on double-sided pallets where both top and bottom decks are formed, guaranteeing structural integrity.
5. Precision Motion Control
Hydraulic Servo Control System (Standard): Equipped as standard with a hydraulic servo control system for significant energy savings (up to 50-70%), reduced noise levels, and ultra-precise control over mold movement speeds. This ensures smooth, repeatable operation essential for consistent pallet quality, especially when handling large, heavy molds.
