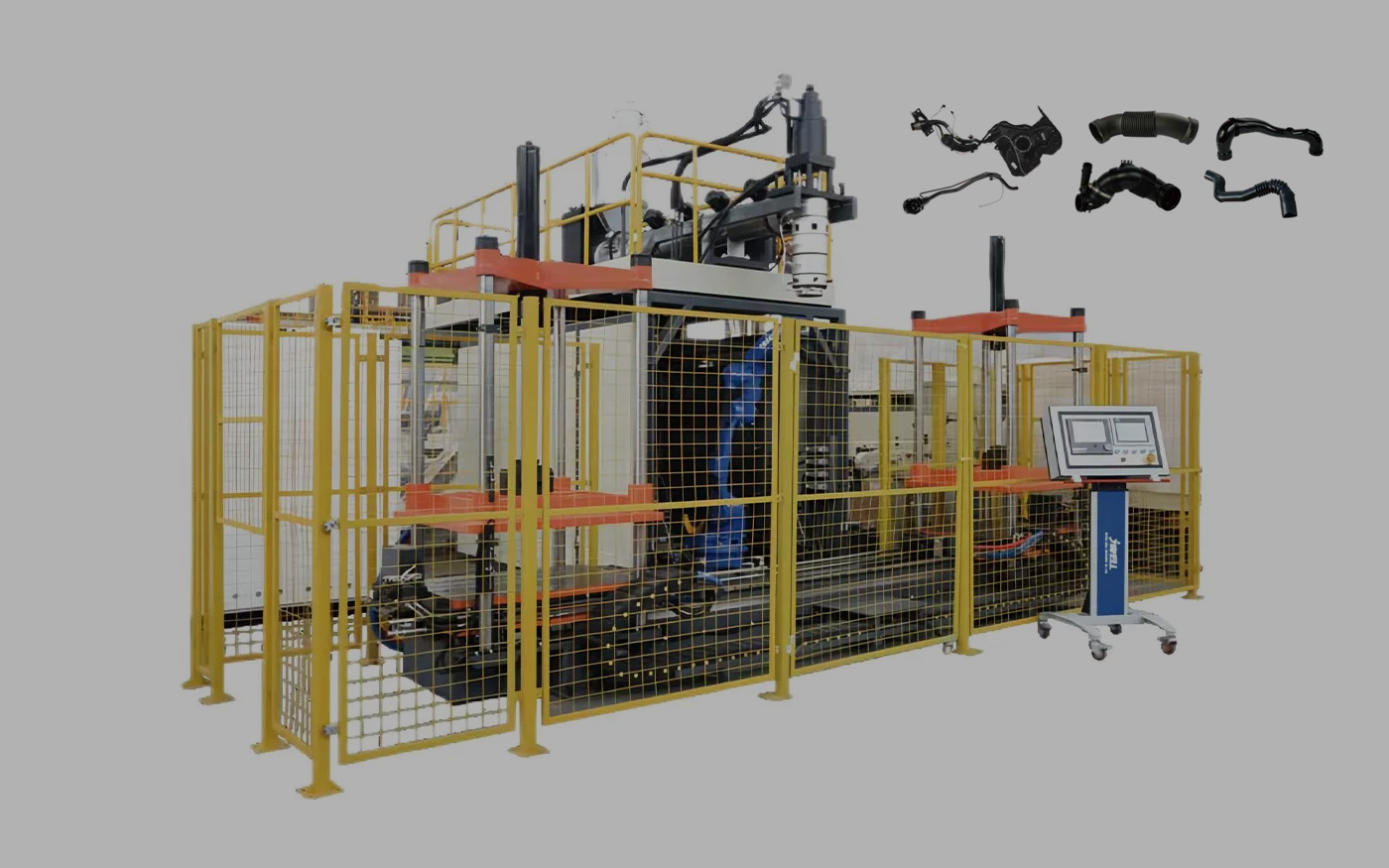

3D Automotive Pipe & Duct Blow Molding Machine

Product Detail Page:

Automotive Pipe & Duct Blow Molding Machine

Section 1: Headline / Core Selling Point

【Zero Scrap · Complex Geometry · High Strength】
Specialized Blow Molding System——Engineered for Automotive Oil Filler Pipes, Air Ducts & Shaped Tubing

Section 2: Product Overview

This machine series is precision-engineered for the automotive industry's most demanding fluid handling and air management components. Whether it is the curved geometry of an oil filler pipe or the complex branched structure of an air duct, this system delivers finished products with exceptional strength and minimal waste. Featuring a high-output extruder paired with an accumulating die head, it ensures consistent wall thickness and material integrity for critical under-hood applications.

Section 3: Performance & Advantages (Detailed)

1. Specialized Automotive Applications

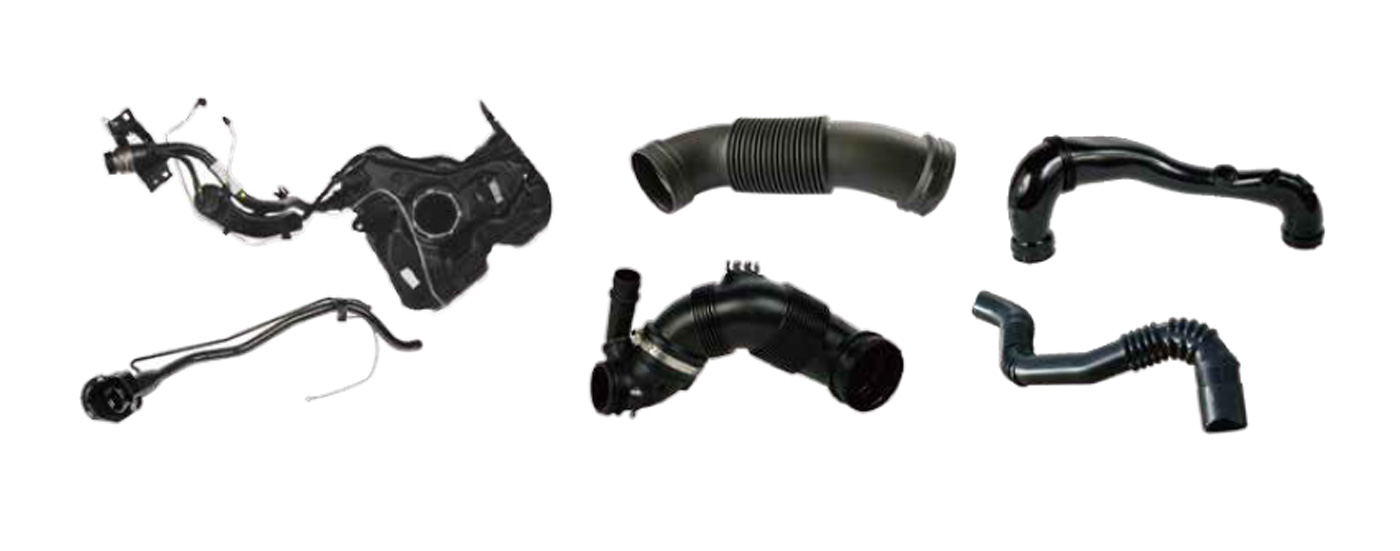

• Fluid Management: Perfect for manufacturing Automotive Oil Filler Pipes requiring precise internal diameters and leak-proof performance.

• Air Induction Systems: Ideal for complex Air Duct Pipes with multiple bends, brackets, and connecting points.

• Custom Shaped Tubing: Capable of producing various other automotive shaped pipe fittings with consistent cross-sections and dimensional accuracy.

2. Zero Scrap & Superior Strength

• Near-Net Shape Molding: Engineered to produce finished products with minimal or zero scrap, significantly reducing material costs compared to traditional manufacturing methods.

• Enhanced Structural Integrity: The blow molding process creates seamless, one-piece components with superior strength and no weak points, essential for pressure and vacuum applications.

• No Flash or Minimal Flash Design: Advanced mold and parison programming ensures parts are produced with little to no flash, eliminating secondary trimming operations.

3. High-Performance Extrusion & Accumulation

• High Output Extrusion System: Equipped with a powerful extruder designed for consistent plasticizing of engineering plastics used in automotive applications.

• Accumulating Die Head Technology: Utilizes accumulator head technology to gather material and inject it rapidly, ensuring uniform wall thickness even in long, complex pipe geometries.

4. Advanced Functional Options for Complex Parts

• Core Pulling Elements (Optional): Configure with core-pulling functions to create side branches, mounting brackets, or complex undercuts directly during the molding process.

• Upper Encapsulation (Optional): Integrate upper encapsulation technology to mold sealing rings, gaskets, or mounting features directly onto the pipe, reducing assembly costs.

• Product Ejection System (Optional): Equip with automatic product ejection to safely remove long, delicate parts without deformation, reducing cycle time and operator intervention.

5. Customized Clamping for Diverse Sizes

• Tailored Template Dimensions: Template size can be fully customized according to product size and geometry. This ensures optimal mold support and deflection control for long, asymmetric pipe shapes.

6. Precision Motion Control

• Hydraulic Servo Control System (Standard): Equipped as standard with a hydraulic servo control system for significant energy savings, reduced noise levels, and ultra-precise control over mold movement speeds. This ensures smooth, repeatable operation essential for consistent pipe quality.
