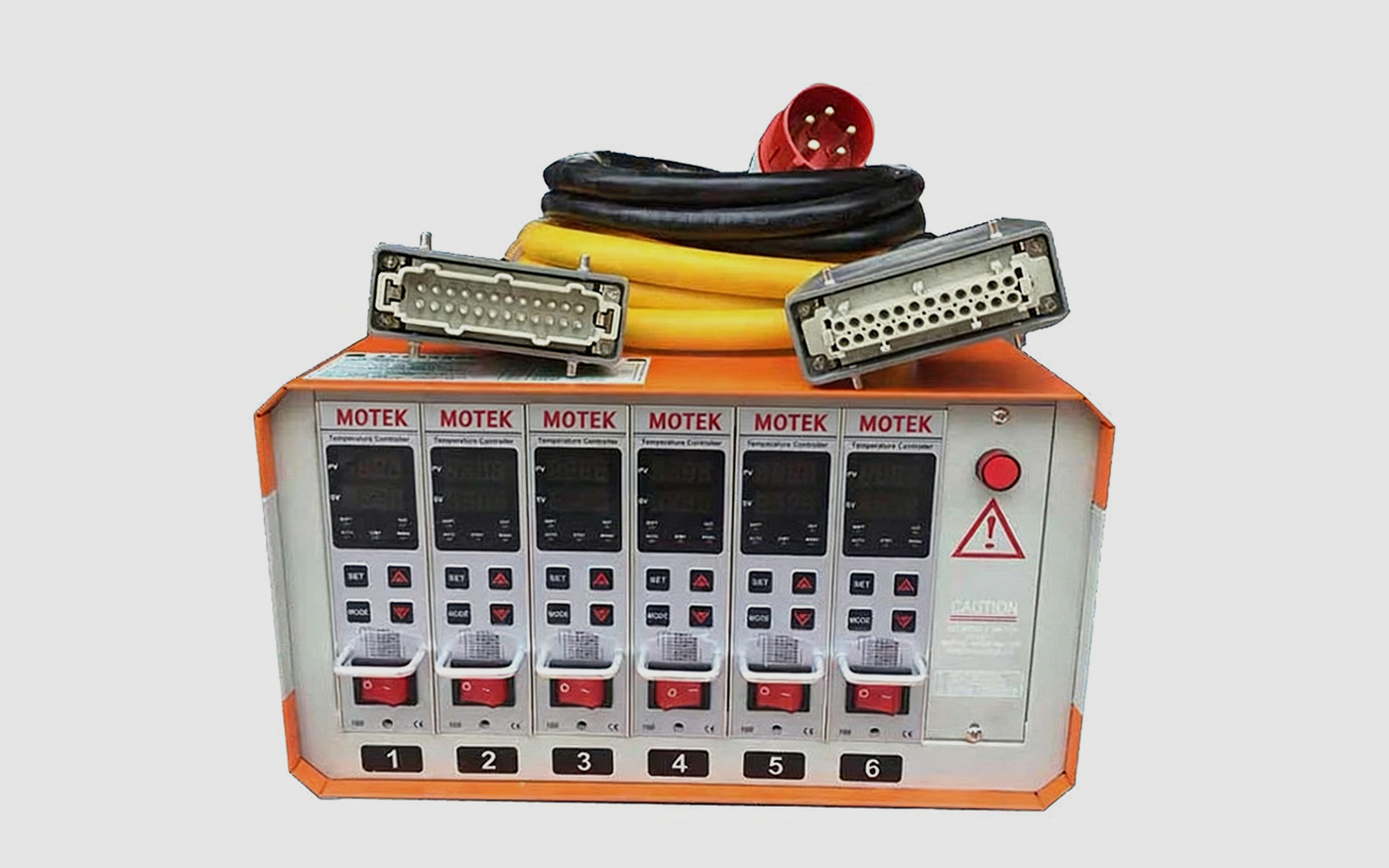

Multi-Zone Hot Runner Temperature Controller
Product Introduction: Modular Multi-Zone Hot Runner Temperature Controller
In complex hot runner mold systems, the Modular Multi-Zone Temperature Controller is the core equipment for achieving independent and precise temperature control across multiple zones. As a mold manufacturer that produces for our own use, we maintain extremely stringent standards for modular design, control accuracy, and system stability of temperature controllers. Every controller undergoes rigorous testing and burn-in operation to ensure minimal temperature fluctuation, rapid response, and reliable operation during simultaneous multi-zone operation.
Self-Produced and Self-Used, Proven in Practice
We are not only a supplier of temperature controllers but also a long-term user. In our own multi-cavity mold production, we have repeatedly validated the multi-zone coordinated control, communication stability, and hot-swap maintenance convenience of temperature controllers. Only those proven through practical application, with stable performance and flexible expandability, are approved for our supply system.
Modular Card Design, Flexible Expansion
Our temperature controllers feature an advanced modular card design, with each zone corresponding to an independent control card, supporting flexible combinations from 1 zone up to 48 zones or even more. Users can flexibly configure card slots based on the actual number of nozzles in their mold. For future mold upgrades, simply add control cards without replacing the entire unit, significantly reducing expansion costs.
Independent Precision Control, Within ±1℃
Each control card utilizes advanced PID auto-tuning algorithms paired with high-precision thermocouple signal acquisition, achieving temperature control accuracy within ±1℃. Multiple zones operate independently without interference, ensuring each nozzle or each zone maintains stable operation, meeting the molding requirements of multi-cavity precision molds.
Hot-Swap Design, Maintenance-Free Operation
Control cards support hot-swap functionality, allowing inspection or replacement without powering down the system and without affecting the normal operation of other zones. Each card operates independently; a single card failure does not cause complete system shutdown, significantly reducing production interruption time and improving overall equipment effectiveness.
Multiple Protections, Safe and Reliable
The temperature controller is equipped with multiple built-in safety protection functions:
Overheat Protection: Automatically cuts heating in case of overtemperature to prevent nozzle damage
Thermocouple Break Detection: Real-time monitoring of thermocouple status with automatic alarm on breakage
Heater Break Detection: Monitors heating coil operating status with timely alerts for abnormalities
Phase Sequence Protection: Prevents equipment damage caused by incorrect power wiring
Overcurrent Protection: Prevents current overload from damaging control components
Intelligent Communication, Centralized Monitoring
Supports industrial communication protocols such as MODBUS, PROFIBUS, and CANopen, allowing integration with injection molding machine control systems or factory MES for remote centralized monitoring and data recording. Real-time display of temperature curves, alarm records, and heating power for each zone facilitates production management and fault tracing. Optional touchscreen HMI provides more intuitive and convenient operation.
Complete Specifications, Customized Solutions
For standard specifications, we maintain regular inventory of 6-zone, 12-zone, 24-zone, 36-zone, and 48-zone modular temperature controllers to support quick dispatch. For non-standard customization, based on your mold requirements, we offer comprehensive custom services including special zone counts, specialized communication protocols, custom power specifications, customized panels, and touchscreen systems.
We Can Also Source for You
If you have requirements for hot runner temperature controllers or other mold components, whether standard or non-standard, we can leverage our production experience and supply chain resources to select and procure the most suitable parts for you. We know molds, and we know components.
Contact us today for a consultation and quotation.
