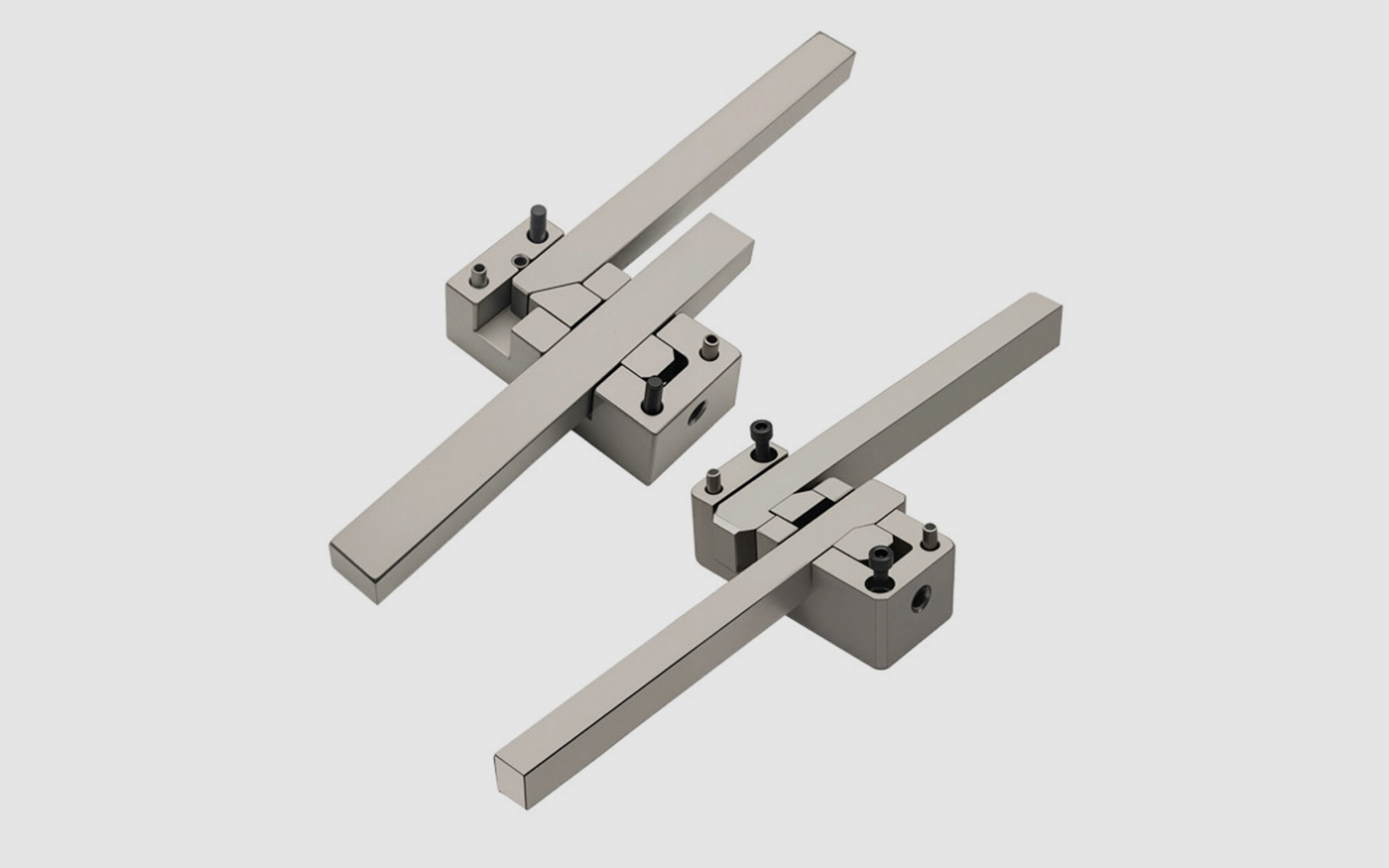

Mold Sequence Controller
Product Introduction: High-Quality Mold Sequence Controller
In injection molds and stamping molds, the Mold Sequence Controller (also known as Opening Sequence Controller or Two-Stage Opening Latch) is a critical auxiliary component that controls the opening and closing sequence of molds and limits the opening distance. It is widely used in three-plate molds, inverted molds, and complex mold structures requiring sequential opening. As a mold manufacturer that produces for our own use, we maintain extremely stringent standards for synchronization, durability, and installation convenience of sequence controllers. Every set undergoes precision machining and rigorous testing to ensure precise action, reliable synchronization, and no sticking during long-term high-frequency opening and closing cycles.
Self-Produced and Self-Used, Rigorously Selected
We are not only a supplier of mold components but also a mold producer ourselves. Through extensive practical experience in our own molds, we have repeatedly validated the material selection, heat treatment process, linkage mechanism, and lifespan performance of sequence controllers. Only those with good synchronization, strong wear resistance, and exceptional durability are approved for our supply system.
Premium Materials, Wear-Resistant and Durable
Our sequence controllers are manufactured from high-strength alloy steels such as SKD11 or SUJ2, undergoing quenching and tempering treatment. Critical friction areas achieve a hardness of HRC58-62. Excellent wear resistance and fatigue strength ensure dimensional stability and precise action during long-term high-frequency movement.
Multiple Structures, Wide Adaptability
We offer various structural types of sequence controllers to meet different mold opening sequence control requirements:
Two-Stage Opening Latch: Controls the sequential opening of the runner plate and cavity plate in three-plate molds, achieving automatic separation of sprue and product
Slider Delay Latch: Controls delayed opening or closing of sliders, suitable for applications where sliders and ejection mechanisms interact
Nylon Latch: Utilizes friction between nylon sleeve and pull rod to control opening sequence, simple structure, low cost
Mechanical Latch: Uses hook or swing hook structure to control opening and closing sequence through mechanical linkage, strong load capacity
Adjustable Latch: With adjustment mechanism for fine-tuning locking force and opening distance, adaptable to different mold requirements
Working Principle, Sequence Control
Sequence controllers use mechanical linkage or friction principles to keep the mold closed during the initial opening stage, unlocking and opening only after reaching a set stroke. This sequence control function ensures:
Runner plate opens first in three-plate molds, pulling off the sprue
Sliders delay retraction to avoid interference with ejector pins
Small parting surface opens first in inverted molds, followed by large parting surface
Synchronization Design, Reliable Action
For molds requiring multi-point synchronization control, we provide matched pairs or sets of sequence controllers, strictly controlling the action synchronization between units. Through precision machining and paired debugging, we ensure that multi-point sequence controllers open or close simultaneously, preventing mold misalignment or product defects caused by unsynchronized action.
Complete Specifications, Customized Solutions
For standard specifications, we maintain regular inventory of common sizes and load classes for quick dispatch. For non-standard customization, based on your mold structure and opening sequence requirements, we offer custom sequence controllers with special strokes, special loads, special mounting methods, and multi-point linkage configurations.
We Can Also Source for You
If you have requirements for sequence controllers or other mold components, whether standard or non-standard, we can leverage our production experience and supply chain resources to select and procure the most suitable parts for you. We know molds, and we know components.
Contact us today for samples and a quotation.
