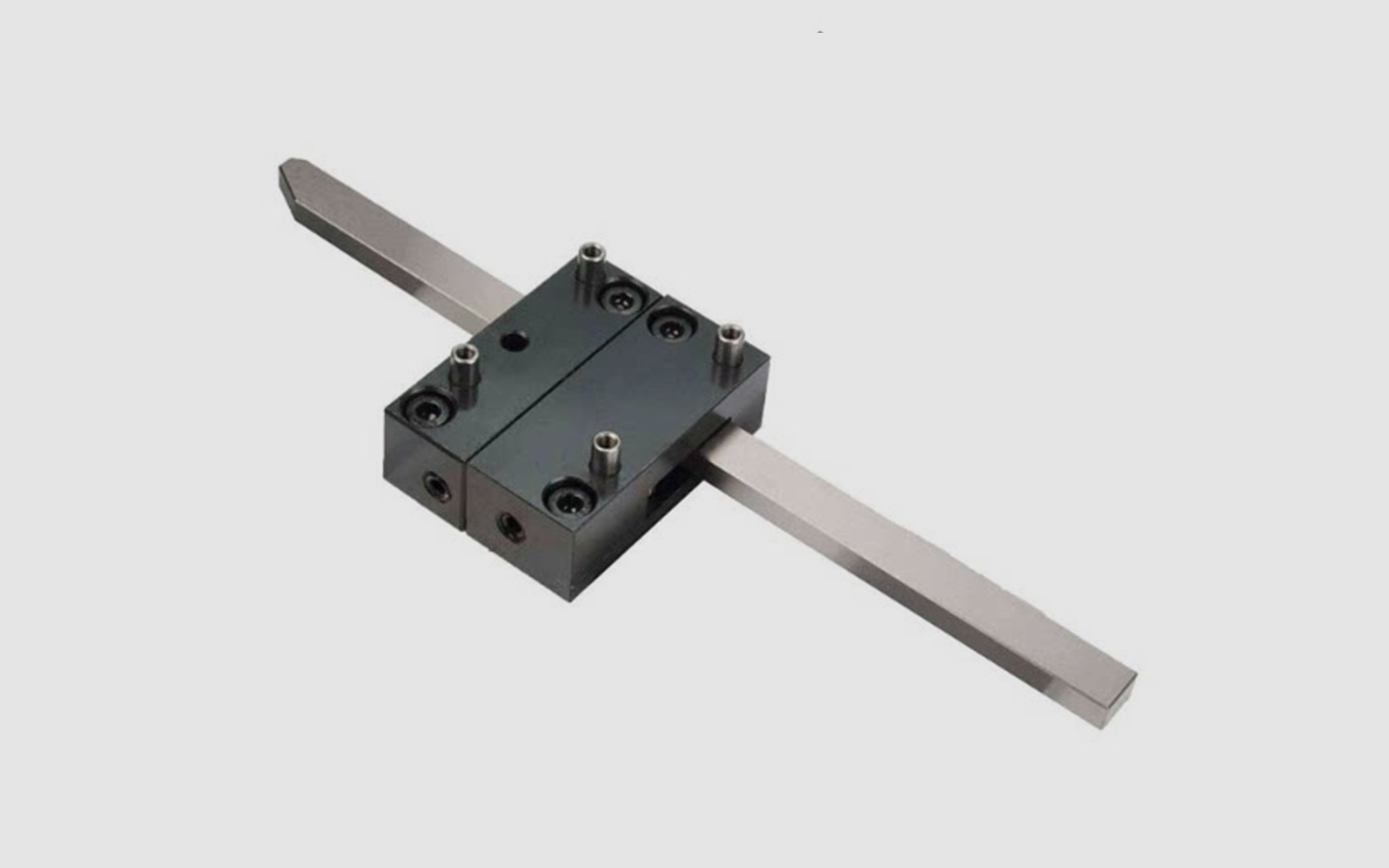

Mold Latch Lock
Product Introduction: High-Quality Mold Latch Lock (Plug-in Type Latch / Hook Latch)
In injection molds and stamping molds, the Mold Latch Lock is a critical control component used to manage the opening and closing sequence of molds, enabling two-stage opening or delayed opening. It is widely used in three-plate molds, inverted molds, and complex mold structures requiring sequential opening, ensuring that the runner plate, slider, or ejection mechanism operates in a predetermined order. As a mold manufacturer that produces for our own use, we maintain extremely stringent standards for synchronization, load capacity, and durability of latch locks. Every set undergoes precision machining and rigorous testing to ensure precise action, reliable synchronization, and no sticking during long-term high-frequency opening and closing cycles.
✅ Self-Produced and Self-Used, Rigorously Selected
We are not only a supplier of mold components but also a mold producer ourselves. Through extensive practical experience in our own molds, we have repeatedly validated the material selection, heat treatment process, linkage mechanism, and lifespan performance of latch locks. Only those with good synchronization, strong load capacity, and exceptional durability are approved for our supply system.
✅ Premium Materials, Wear-Resistant and Durable
Our latch locks are manufactured from high-strength alloy steels such as SKD11 or SUJ2, undergoing quenching and tempering treatment. Critical friction areas achieve a hardness of HRC58-62. Core components such as the latch pin, hook, and guide groove undergo precision grinding and surface strengthening, ensuring excellent wear resistance and fatigue strength for dimensional stability and precise action during long-term high-frequency movement.
✅ Working Principle, Sequence Control
The latch lock controls the mold opening sequence through mechanical linkage between the latch pin and hook. During the initial opening stage, the latch pin engages with the hook, keeping the mold closed. When the opening stroke reaches a set distance, the latch pin disengages from the hook under the guidance of the guide groove, allowing the mold to open sequentially. This mechanical control method offers high reliability and strong load capacity, particularly suitable for:
Sequential opening of three-plate mold runner plate: Runner plate opens first to pull off the sprue, followed by cavity plate opening
Delayed slider action: Controls slider delay to avoid interference with ejector pins
Sequential opening of inverted mold parting surfaces: Small parting surface opens first, followed by large parting surface
✅ Synchronization Design, Reliable Action
For molds requiring multi-point synchronization control, we provide matched pairs or sets of latch locks, strictly controlling the action synchronization between units. Through precision machining and paired debugging, we ensure that multi-point latch locks open or close simultaneously, preventing mold misalignment or product defects caused by unsynchronized action.
✅ Multiple Specifications, Strong Load Capacity
We offer latch locks in various specifications to meet different mold sizes and load requirements:
Small Latch Lock: Suitable for small molds and light-load applications
Medium Latch Lock: Suitable for medium molds and conventional loads
Large Latch Lock: Suitable for large molds and heavy-load applications
Adjustable Latch Lock: With adjustment mechanism for fine-tuning opening stroke and locking force
✅ Easy Installation, Simple Maintenance
Latch locks feature standardized mounting dimensions, requiring only the corresponding mounting holes or slots to be machined in the mold for quick installation. The modular design facilitates easy disassembly and maintenance. In case of wear, individual latch pins or hooks can be replaced separately without replacing the entire mechanism, reducing operating costs.
✅ Complete Specifications, Customized Solutions
For standard specifications, we maintain regular inventory of common sizes and load classes for quick dispatch. For non-standard customization, based on your mold structure and opening sequence requirements, we offer custom latch locks with special strokes, special loads, special mounting methods, and multi-point linkage configurations.
We Can Also Source for You
If you have requirements for latch locks or other mold components, whether standard or non-standard, we can leverage our production experience and supply chain resources to select and procure the most suitable parts for you. We know molds, and we know components.
Contact us today for samples and a quotation.
