Heavy-Duty Injection Molding Robot

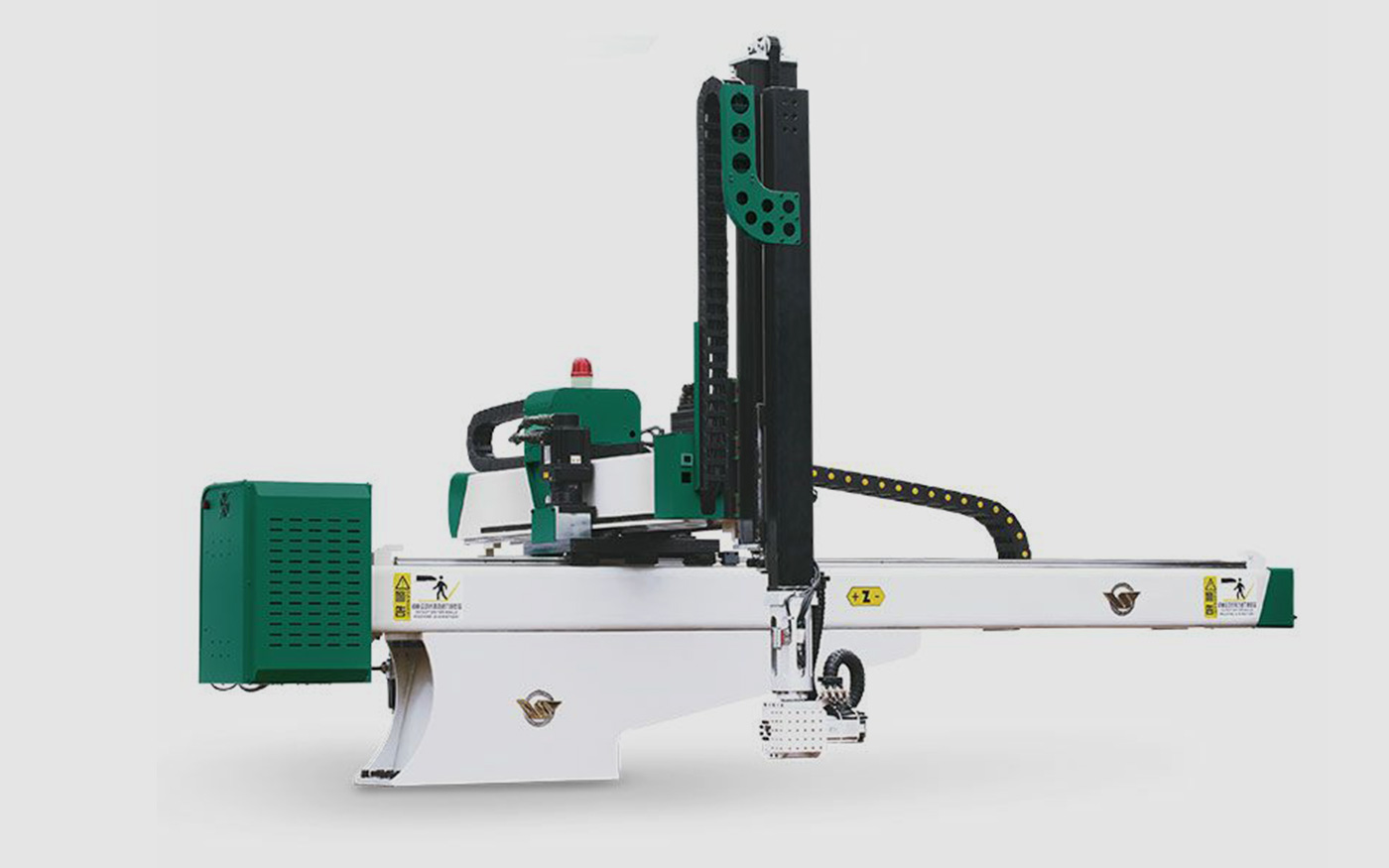

Product Introduction: H Series 3-Axis Collaborative Servo Robot Arm – Heavy-Duty Automation for Complex Injection Molding
In the injection molding industry, Servo Robot Arms are critical for automating part removal and handling in high-tonnage, complex applications. As a manufacturer with extensive experience in injection molding automation, our H Series 3-Axis Collaborative Servo Robot Arm is engineered for heavy-duty injection molding machines requiring sophisticated movements and robust performance. With a unique X-axis and Z-axis联动 design, this robot delivers exceptional stability and precision for demanding production environments.
✅ Integrated X-Axis and Z-Axis Collaborative Movement
The H Series features an innovative design where the crosswise mechanism moves in coordination with the arm while the X-axis and Z-axis remain in a fixed relative position. This means that the pull action drives the arm to move together, ensuring synchronized motion and reducing mechanical stress during high-speed operations. This collaborative movement enhances stability and precision, particularly in large-tonnage applications.
✅ 3-Axis Servo Control for Precision and Power
Equipped with three-axis servo drive technology, the H Series delivers precise positioning and smooth motion control. The servo system ensures accurate repeatability, fast response times, and energy-efficient operation, making it ideal for injection molding machines with complex cycle requirements.
✅ Designed for Heavy-Duty Injection Molding Machines
Specifically engineered for injection molding machines with relatively large tonnage and complex movement patterns. The robust construction and powerful servo drives enable the robot to handle heavier payloads and execute intricate sequences without compromising speed or accuracy.
✅ Advanced Optional Axis Configurations
To meet diverse application needs, the H Series offers two optional axis enhancements:
B+C Servo Axis (Joint Robot Configuration) : Adds articulated motion capabilities for complex part orientation and multi-axis handling requirements.
Pneumatic C-Axis (90-Degree Rotation) : Provides simple rotational functionality for applications requiring 90-degree part flipping or repositioning.
✅ Optimized for Complex Movements
The collaborative design between axes allows the robot to perform complex sequences efficiently, making it particularly suitable for:
Deep cavity part removal
Multi-step handling processes
Integration with downstream automation equipment
Applications requiring precise part placement

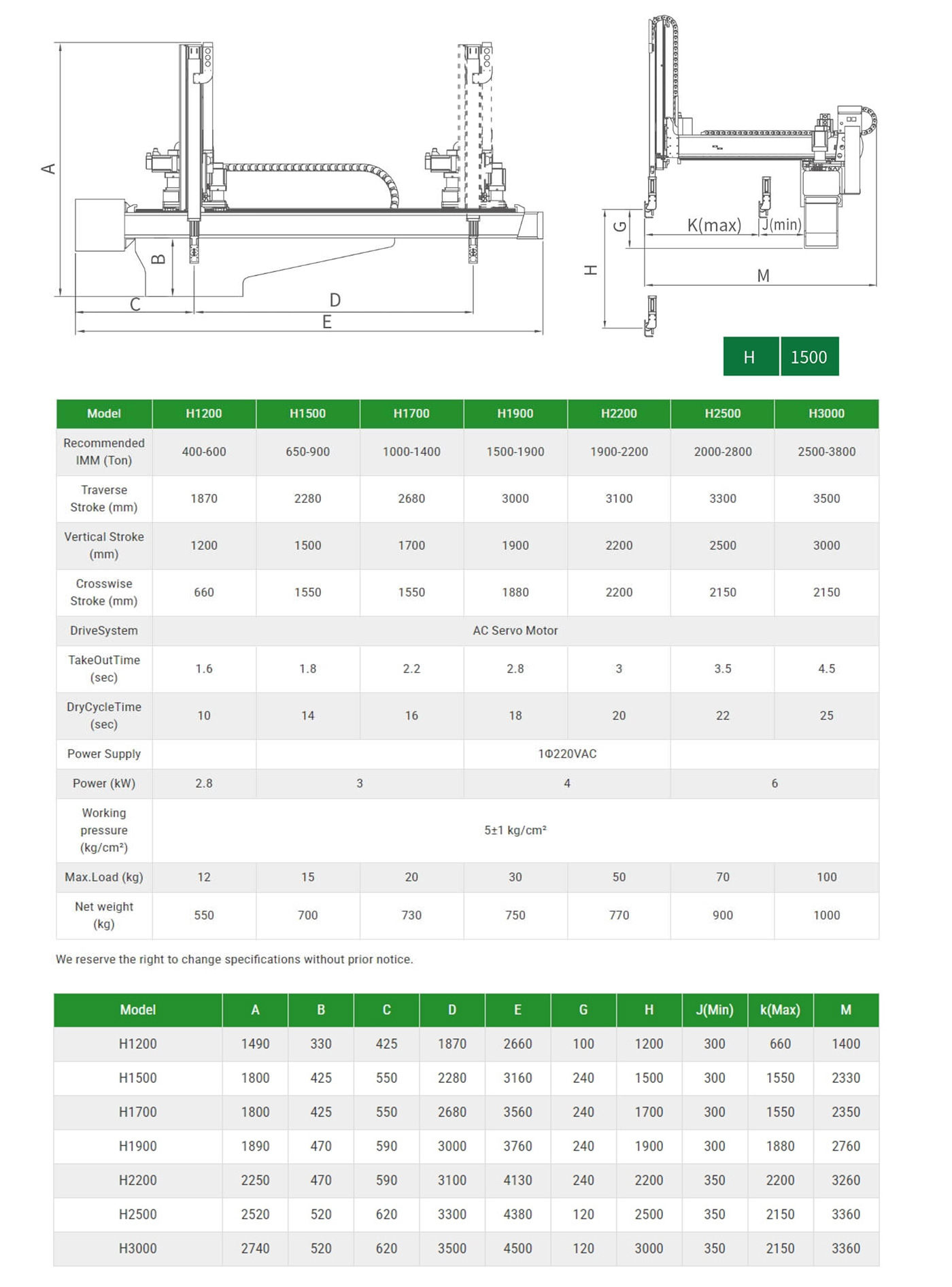

Performance Characteristics
X-axis and Z-axis maintain fixed relative position while crosswise moves with the arm
Pull action drives the arm to move together for synchronized operation
Three-axis H Series servo drive configuration
Suitable for injection molding machines with large tonnage and complex movements
Robust construction for heavy-duty industrial applications
Optional B+C servo axis for joint manipulator functionality
Optional pneumatic C-axis for 90-degree rotation requirements
Applicable Occasions
The H Series 3-Axis Collaborative Servo Robot Arm is ideal for:
Large-tonnage injection molding machines
Applications requiring complex movement sequences
Heavy-duty part removal and handling
Deep cavity mold applications
Integration with downstream automation systems
Facilities requiring high precision and repeatability
Optional Accessories
B+C Servo Axis: Converts to joint robot configuration for enhanced flexibility
Pneumatic C-Axis: Provides 90-degree rotational capability for part orientation
We Can Also Provide for You
If you have requirements for servo robot arms or other injection molding automation equipment, whether standard models or customized configurations with specific axis options, we can leverage our extensive industry experience to provide the most suitable solutions for your application. We understand injection molding processes, and we understand heavy-duty automation.
Contact us today for selection assistance, quotations, and technical solutions.
