Mold Monitor
Product Introduction: Mold Monitor – Advanced Vision-Based Injection Mold Protection System
In the injection molding industry, the Mold Monitor is a sophisticated safety device designed to prevent costly mold damage by detecting potential issues during the production process. As a manufacturer with extensive experience in injection molding automation, our Mold Monitor utilizes independently developed infrared camera processing technology combined with advanced machine vision algorithms to provide reliable, real-time mold protection with exceptional flexibility and ease of use.
Advanced Infrared Camera Processing Technology
Featuring independently developed infrared camera processing technology, the Mold Monitor delivers precise detection capabilities. The entire machine requires only two external connectors, enabling simple installation, easy replacement, and hassle-free integration with injection molding machines.
Freely Configurable Monitoring Parameters
Multiple monitoring areas can be established with freely adjustable detection zones and accuracy levels. This flexibility allows operators to optimize the system for specific mold geometries, effectively reducing false alarms while significantly improving overall detection effectiveness.
Customizable Ignore Areas
The system allows operators to set any shape of ignore area, enabling precise targeting of critical regions while excluding non-critical areas that might cause unnecessary and frequent false positives. This feature ensures the monitor focuses on truly important areas without interruption.
Simple and Intuitive Operation
The system operation is straightforward with easy teaching capabilities. The user-friendly interface ensures that worker mobility and staff changes do not affect operational consistency. New operators can quickly learn to use the system with minimal training.
Customizable Programming Options
Programs can be customized according to specific customer requirements, ensuring that the Mold Monitor meets unique application needs. Whether specialized detection algorithms, custom interface requirements, or integration with existing automation systems, our development team can tailor the solution to your exact specifications.
Working Principle

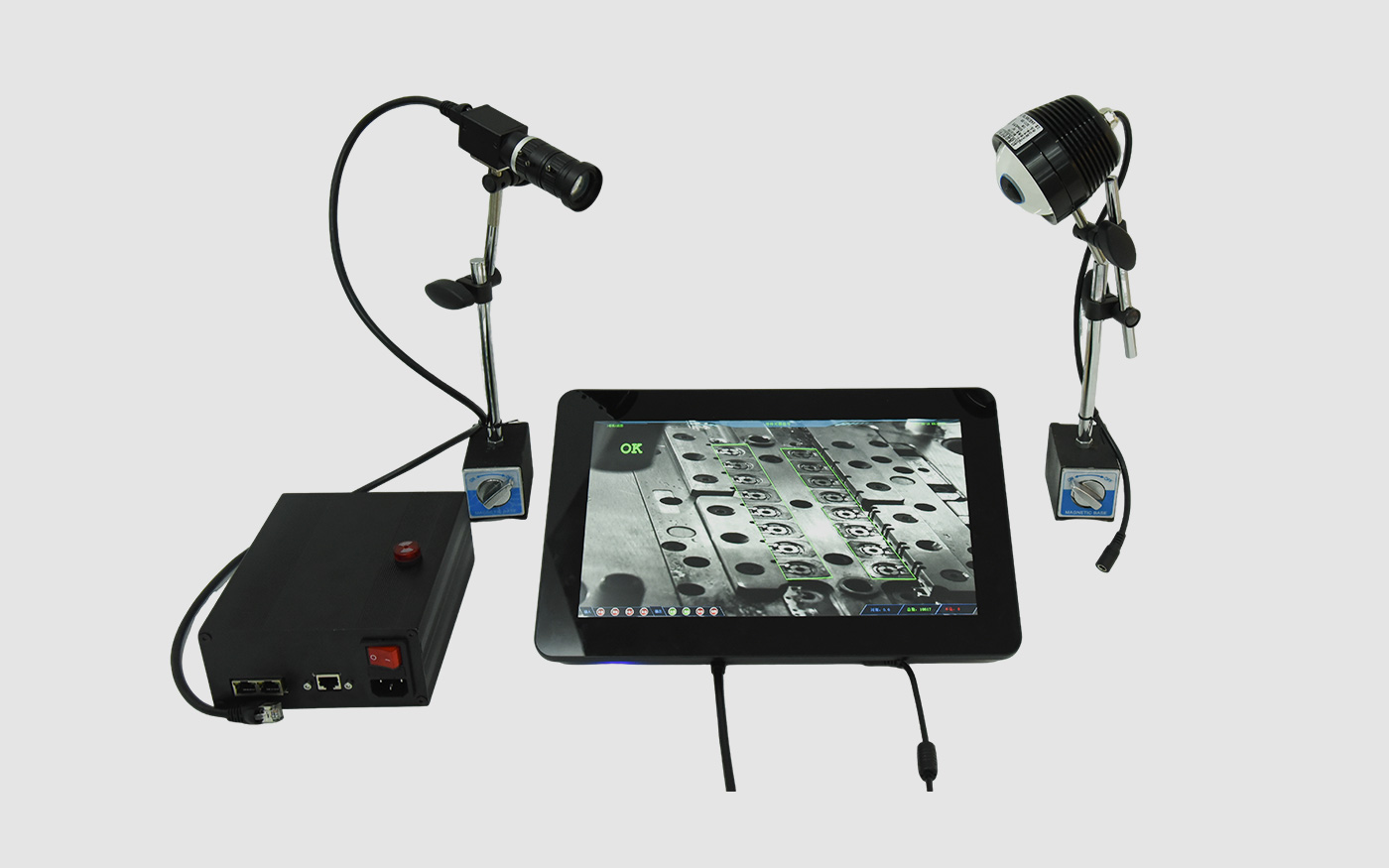

The Mold Monitor is a stable injection mold protection device composed of advanced machine vision processing algorithms, a PC, a camera, and a light source. Its primary function is to detect various potential problems encountered during the injection mold production process, including:
Products not properly detaching from the mold
Ejector pin failures or incorrect positioning
Slider misalignment or incomplete movement
Residue or foreign material remaining in the mold cavity
By identifying these issues in real-time, the Mold Monitor prevents mold crushing and damage caused by material-related problems, playing a crucial role in protecting valuable molds and ensuring production continuity.
Key Benefits
Mold Protection: Prevents costly damage from stuck parts, ejector failures, and residue
Production Continuity: Reduces unplanned downtime by catching issues before they cause damage
Cost Savings: Avoids expensive mold repairs and production losses
Flexibility: Adaptable to various mold geometries with customizable monitoring areas
Reliability: Advanced infrared and machine vision technology ensures accurate detection
Easy Integration: Simple installation with minimal connections
User-Friendly: Intuitive teaching operation accessible to all operators
Ideal Applications
The Mold Monitor is ideal for:
Injection molding machines requiring reliable mold protection
High-value molds requiring additional safety measures
Applications with frequent part sticking or ejection issues
Automated production lines needing integrated quality monitoring
Facilities seeking to reduce mold damage and production downtime
We Can Also Provide for You
If you have requirements for mold monitors or other injection molding safety equipment, whether standard models or customized solutions with specialized programming, we can leverage our extensive industry experience to provide the most suitable solution for your application. We understand injection molding processes, and we understand mold protection.
Contact us today for selection assistance, quotations, and technical solutions.
