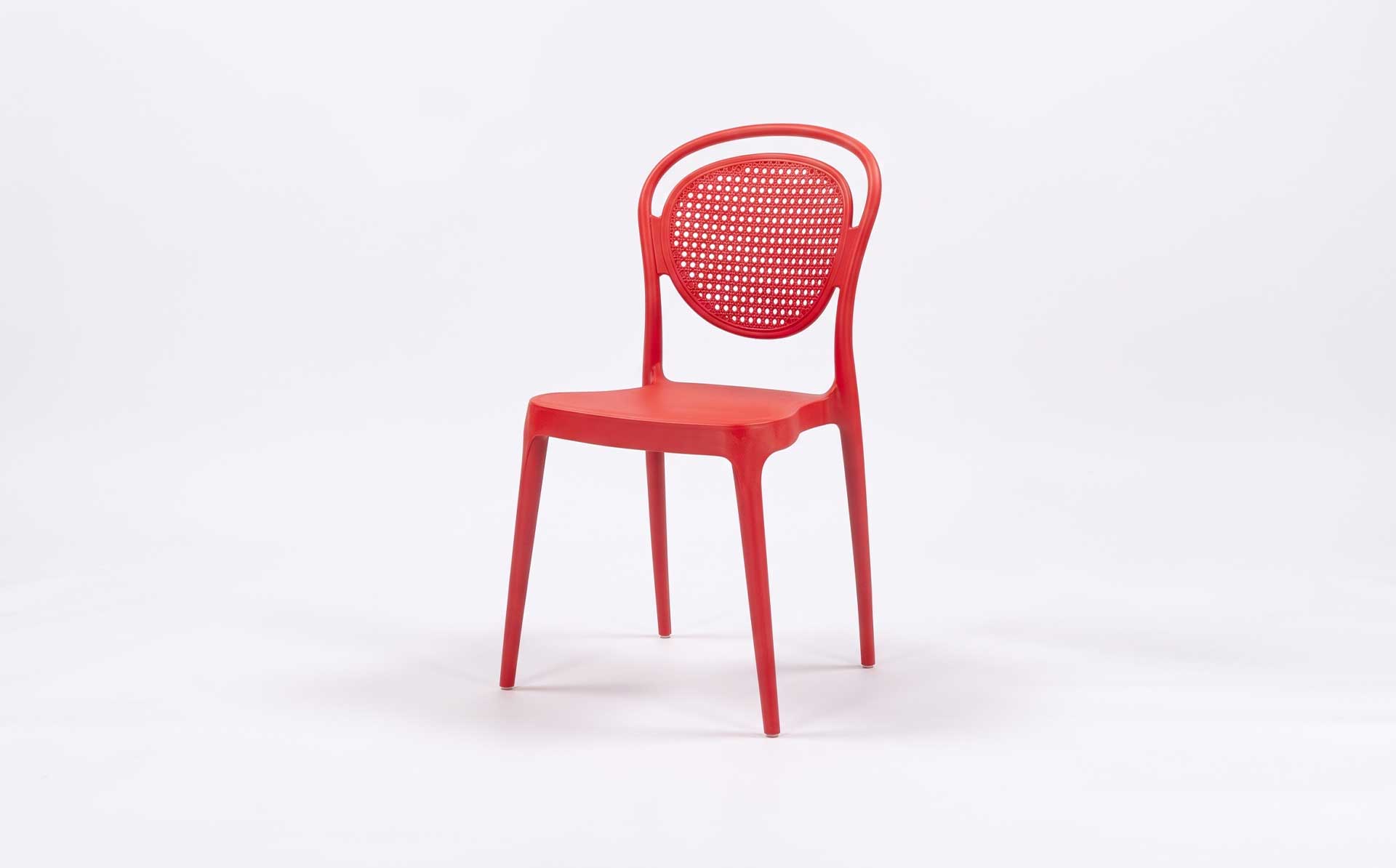

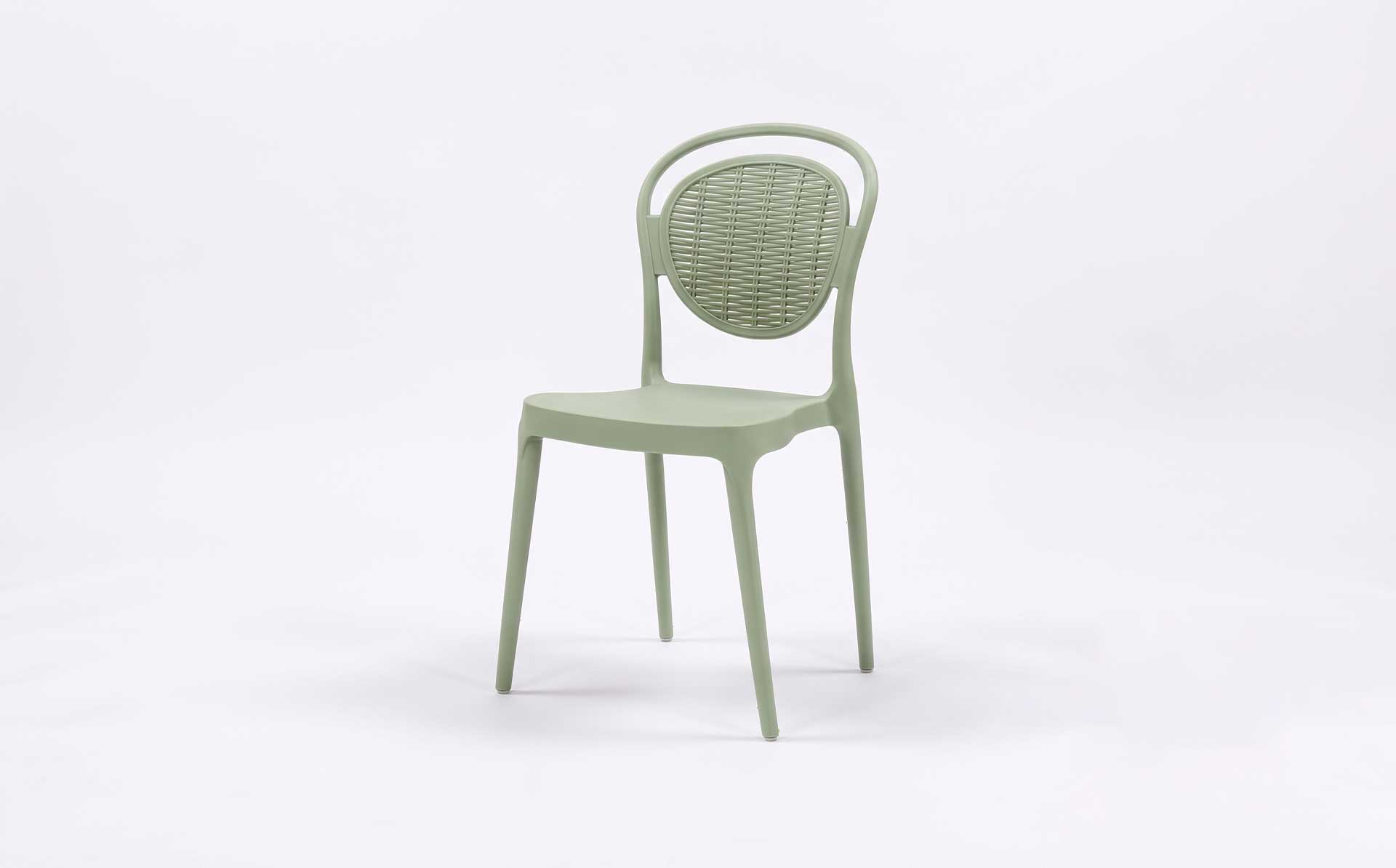

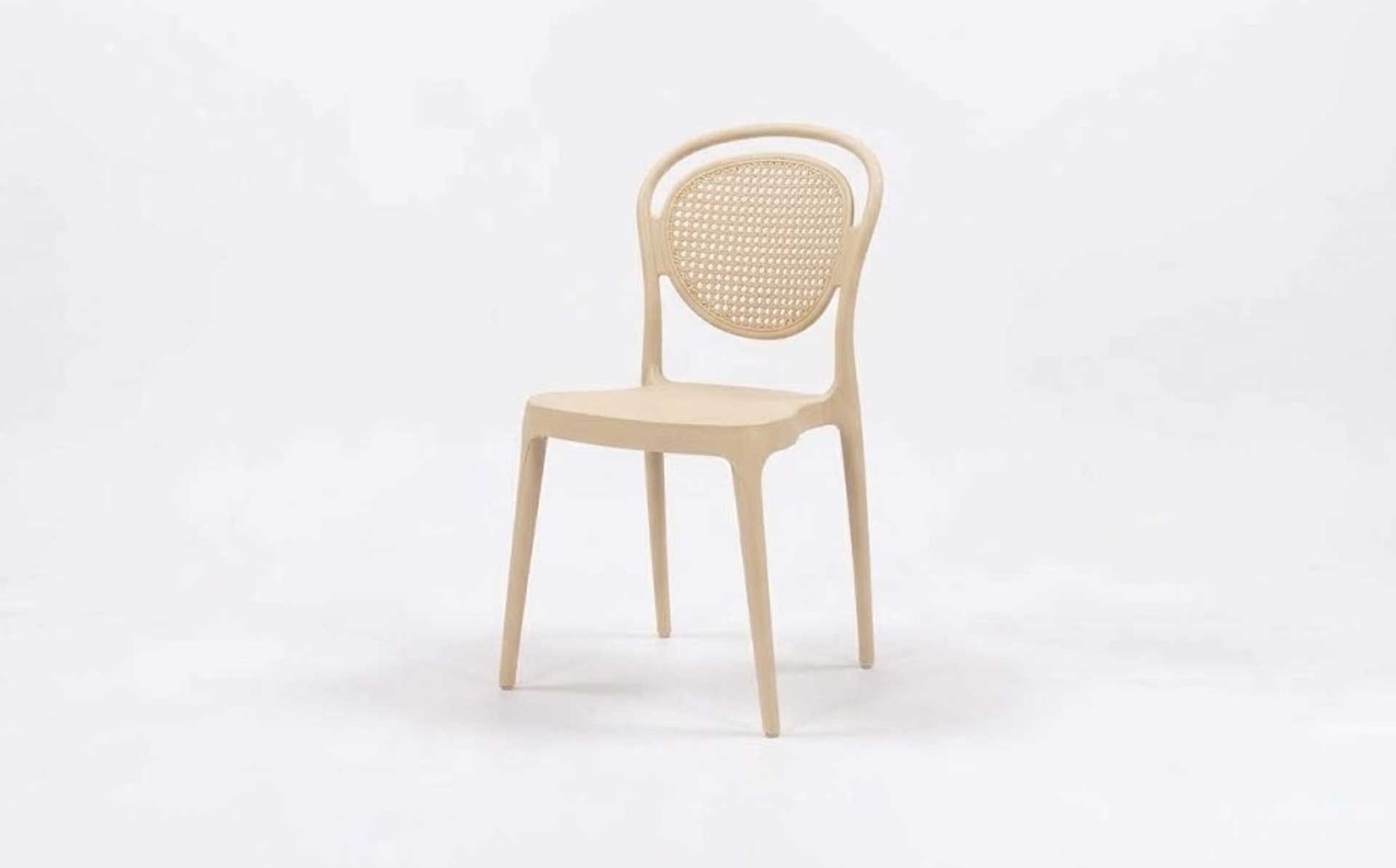

Gas-Assisted One-Piece Plastic Chair Mold — Product Introduction (Motek Furniture Mold Series · Modern Minimalist Restaurant/Outdoor Universal)

Product Positioning

Motek introduces dedicated gas-assisted injection molding (GAIM) molds for modern minimalist one-piece plastic chairs suitable for both restaurant and outdoor use. This chair category replaces traditional solid thick-wall designs with smooth tubular load-bearing structures, achieving a visually lightweight and clean appearance while providing sufficient structural rigidity and flexural elasticity—suitable for restaurant indoor use, outdoor patio seating, and courtyard leisure. The core value of gas-assisted technology lies in achieving a balance between lightweighting and high strength through hollow tubular structures, eliminating sink marks in thick-wall areas, and shortening cycle times. The key challenges in mold development lie in gas channel layout and gas penetration control, coordinated design of gate and gas injection positions, and surface quality management in thin-wall and thick-wall transition areas. Motek configures dedicated solutions around gas-assisted simulation, cooling optimization, and demolding mechanisms, helping customers achieve stable mass production of gas-assisted one-piece chairs.

Core Specifications

Product Features

Gas Channel Layout and Gas Penetration Control.

The load-bearing structure of gas-assisted one-piece chairs relies on hollow tubular gas channels. Motek simulates gas penetration paths through mold flow analysis (MoldFlow, etc.) to determine gas injection port positions and gas channel routing. Industry experience shows that gas channels should be arranged in a balanced manner, aligned with the main material flow direction, with larger fillet radii at corners to avoid forming loops; gas nozzles should be placed at areas farthest from the last filling point with larger wall thickness, maintaining sufficient distance from the gate. For seating products, gas injection ports can be set at thick-wall nodes such as leg-to-seat connections, ensuring gas effectively penetrates along load-bearing tubular structures. If gas channel control is improper, gas may break through the visual surface causing "blow-through" defects. Motek stabilizes the gas front position by adjusting short-shot size and gas delay time.

Coordinated Gate and Gas Injection Design to Protect Appearance Surfaces.

Modern minimalist style demands high purity of appearance surfaces. Motek positions gates in non-visual areas (such as seat undersides or inner leg surfaces), using submarine or pin-point gates to avoid exposed gate marks. Gas injection needle valve positions also avoid appearance surfaces, with venting completed before mold opening to prevent gas residue causing surface bulging. For restaurant and outdoor universal scenarios, appearance surfaces can receive fine-texture or matte etching treatment to enhance wear resistance and scratch resistance while concealing minor flow marks that may occur in the gas-assisted process.

Sink Mark and Warpage Control in Thick-Wall Areas.

The connection between chair legs and seat in one-piece chairs is typically a thick-wall node prone to sink marks in conventional injection molding. Gas-assisted technology replaces plastic holding pressure with gas holding pressure, forming hollow structures in thick-wall areas to effectively eliminate surface sink marks. Motek can embed high-thermal-conductivity beryllium copper inserts in deep cavity areas combined with conformal cooling channels, keeping mold surface temperature differential within a small range to reduce backrest warpage caused by uneven cooling. Industry cases show that proper cooling optimization can shorten cycle time from 52 seconds to 41 seconds while reducing scrap rates from 35% to below 5%.

Demolding Mechanism Designed for Complex One-Piece Chair Structures.

One-piece chairs typically include multiple undercut features such as outward-splayed legs, curved seats, and contoured backrests. Motek adopts a slider and lifter combination demolding solution: during mold opening, each slider first separates to release constraints, then ejection is performed. For particularly complex seating molds, industry cases have employed 7 sliders with 9 hydraulic cylinders for demolding, with multiple cylinder groups driving sliders in sequential action to solve complex cavity demolding challenges. Motek configures appropriate slider/lifter quantities and action sequences based on the undercut distribution of specific chair types, ensuring smooth product release without scratching.

Outdoor Weathering and Material Adaptability.

Restaurant outdoor universal scenarios require chairs with UV resistance and temperature tolerance. Motek confirms the UV resistance grade of PP base material with customers during the mold design phase, and considers shrinkage rate differences of modified materials in cavity dimension calculations. Gas-assisted grade PP has different flow characteristics from standard injection grades; Motek adjusts gate dimensions and cooling layout based on material supplier property data to ensure stable gas penetration and uniform tube wall thickness. Appearance surfaces (glossy or fine-texture) for outdoor use must have easy-clean properties, with cavity surface treatment balancing wear resistance and wiping convenience.

Applications

Motek gas-assisted one-piece plastic chair molds are suitable for:

• Modern minimalist restaurant dining chairs (gas-assisted one-piece forming)
• Outdoor patio/courtyard leisure chairs (gas-assisted lightweight structures)
• One-piece plastic chairs with tubular load-bearing structures
• Stackable gas-assisted chairs (stacking position structure evaluation required)
• Lightweight seating for commercial food service and outdoor universal use

Service Process

Motek — From solid injection molded chairs to gas-assisted lightweight one-piece chairs, providing reliable mold solutions for forming of modern minimalist restaurant and outdoor seating.
