Product Positioning

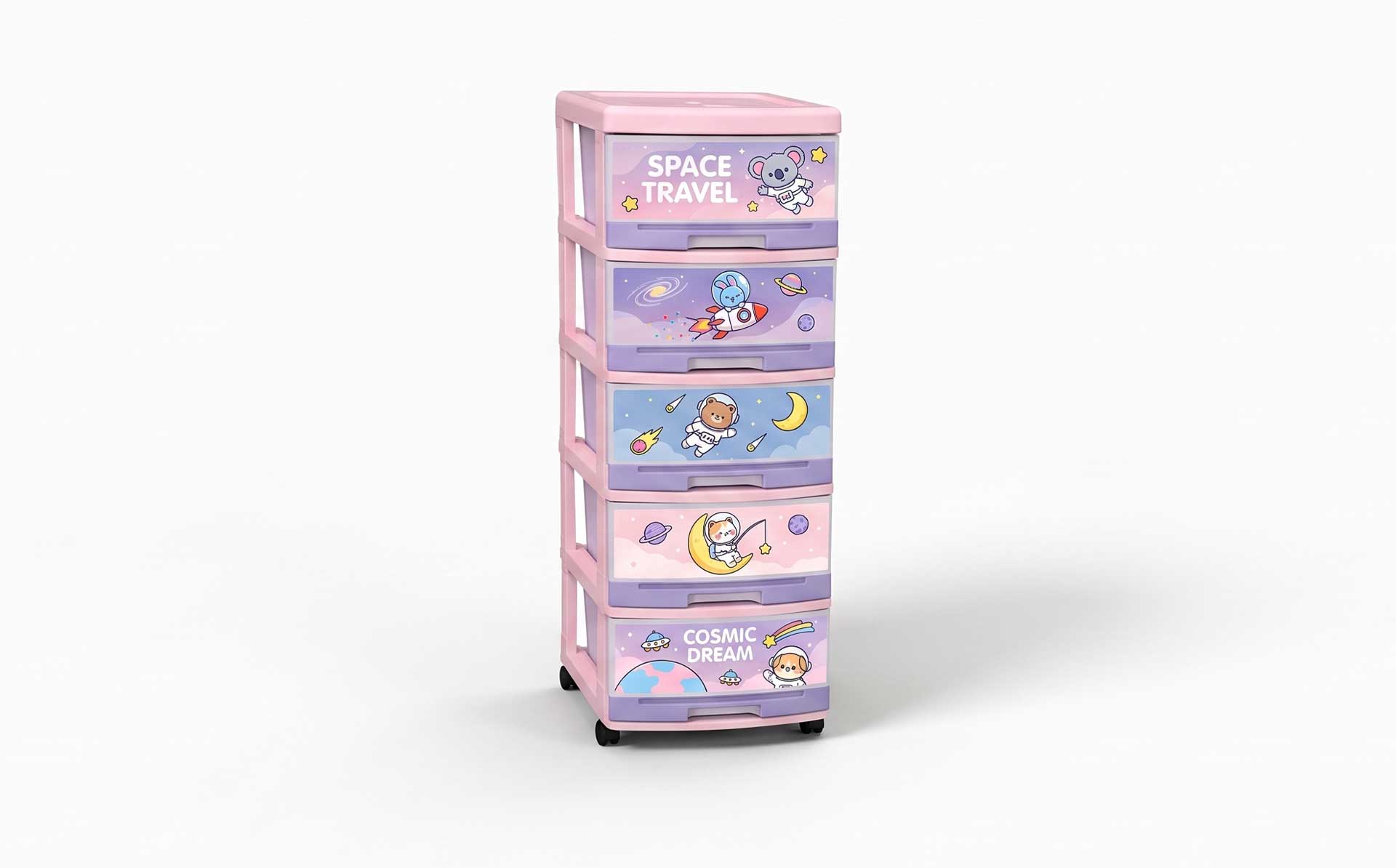

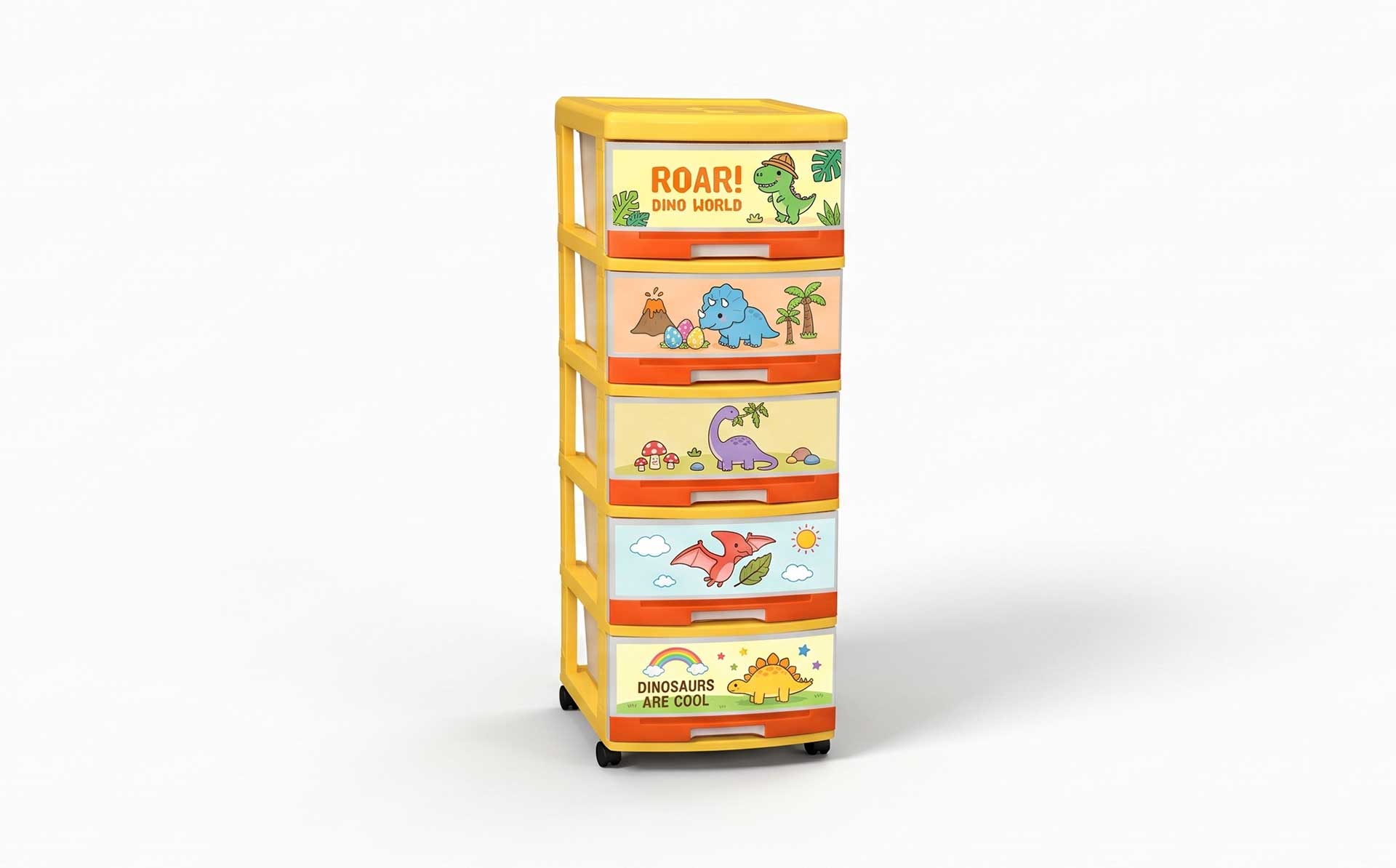

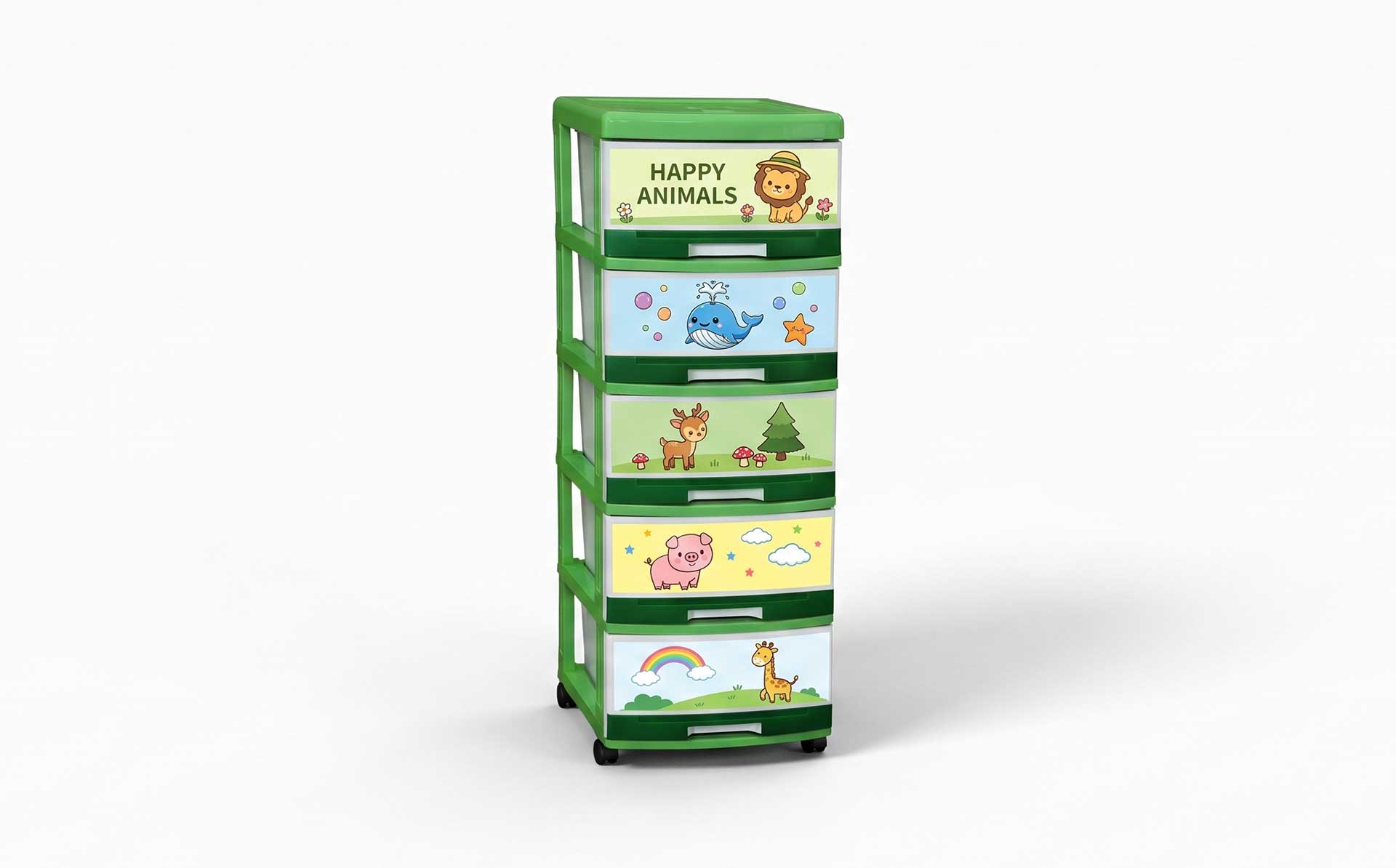

Motek introduces dedicated injection mold solutions for multi-layer plastic drawer storage cabinets used in living room snack storage scenarios. These products feature a multi-drawer structure with a cabinet frame, combining categorized storage, dust and moisture protection, and visible access—widely used for living room snack organization, children's toy sorting, bedroom clutter management, and office desktop storage. Compared with large furniture such as children's wardrobes, the core challenges of drawer storage cabinet molds lie in fit precision between drawer slides and cabinet rails, dimensional consistency across multiple drawer layers, and structural stability of the cabinet frame under load. Motek configures dedicated solutions around slide forming, multi-cavity consistency control, and cooling systems, helping customers achieve stable mass production of storage cabinet modules.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (food-contact grade optional, preferred for snack storage) / ABS (high-gloss appearance optional) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 for sliders and inserts |
| Number of Cavities | 1×1 for cabinet frame; 1×2 or 1×4 evaluable for drawers (same-size multi-layer drawers can share molds) |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 25–50 seconds (thin-wall drawer parts can reach 25–35 seconds; cabinet frame depends on size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for deep-cavity drawers |
| Slide Structure | Drawer slides/rails integrally formed, with dedicated tolerance control |
Product Features
Fit Precision Control Between Drawer Slides and Cabinet Rails.
The core function of drawer storage cabinets lies in smooth drawer push-pull operation without jamming or detachment. Motek integrally forms drawer slides and cabinet rails in the mold, applying dedicated tolerance control to slide cross-section dimensions, rail spacing, and limit structures. The fit clearance between drawer and cabinet must balance "smooth push-pull" against "no wobbling"—excessive clearance causes drawer shaking, while insufficient clearance makes push-pull difficult. Motek reserves reasonable fit allowances in cavity design based on material shrinkage characteristics and drawer dimensions, cooperating with customers on actual push-pull verification during trial molding.
Dimensional Consistency Control Across Multiple Drawer Layers.
The same cabinet typically accommodates multiple same-size drawers that must be interchangeable. Motek produces same-size drawers using multi-cavity molds or shared mold base solutions, optimizing runner balance across cavities through mold flow analysis to ensure consistent length, width, height, and slide dimensions across all cavity positions. For drawers of different depths (such as shallow snack drawers and deep storage drawers), interchangeable insert solutions can be adopted, sharing the mold base to reduce mold investment.
Load-Bearing Structural Reinforcement for the Cabinet Frame.
The cabinet frame must bear the weight of multiple fully loaded drawers, with side panels and shelf support positions being critical load-bearing areas. Motek forms shelf support ribs and reinforcement rib networks on the inner side of cabinet side panels, with rib thickness controlled at 50%–60% of main wall thickness to enhance rigidity while avoiding sink marks on appearance surfaces. Wall thickness transitions are optimized at the cabinet base and four corners to avoid stress concentration cracking under full load. Mold flow analysis evaluates filling completeness at support position areas, preventing weak points caused by trapped gas.
Dust/Moisture Protection and Visible Access Design.
Living room snack storage has certain dust and moisture protection requirements. Motek forms dust lips or labyrinth sealing structures at the cabinet-drawer interface to reduce dust ingress; drawer fronts can be designed with transparent window positions (coordinated with transparent PC/PMMA inserts or dual-color injection) for easy identification of snack types. Ventilation holes can be formed as required, balancing moisture protection with insect prevention.
Appearance Surface Quality and Surface Treatment.
As visible living room furniture, storage cabinets require clean, mark-free appearance surfaces. Motek positions gates at the cabinet bottom or drawer reverse side—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models) or fine-texture etching (matte/scratch-resistant models) according to product positioning, with texture uniformity subject to consistency control.
Demolding Mechanism Optimized for Deep-Cavity Drawers.
Drawers are deep-cavity thin-wall structures prone to deformation or scratching from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located in non-appearance areas of the drawer bottom, ensuring uniform ejection force distribution. For deep-cavity drawers, air-blow assistance can be coordinated to release vacuum adhesion, preventing drawer side walls from being scratched.
Applications
Motek plastic drawer storage cabinet / living room snack storage cabinet molds are suitable for:
- Living room snack storage multi-layer drawer cabinets
- Children's toy sorting drawer cabinets
- Bedroom clutter management drawer cabinets
- Office desktop file/stationery storage cabinets
- Bathroom moisture-proof storage drawer cabinets
Service Process
After the customer provides 3D product drawings, layer specifications, drawer size series, and appearance requirements, Motek completes mold flow analysis (including slide fit evaluation, multi-layer drawer consistency verification, and cabinet load-bearing structural analysis) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying drawer push-pull smoothness, multi-layer drawer interchangeability, cabinet load-bearing stability, and appearance surface quality, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From children's wardrobes to drawer storage cabinets, providing reliable mold solutions for injection molding of household storage plastic products.
