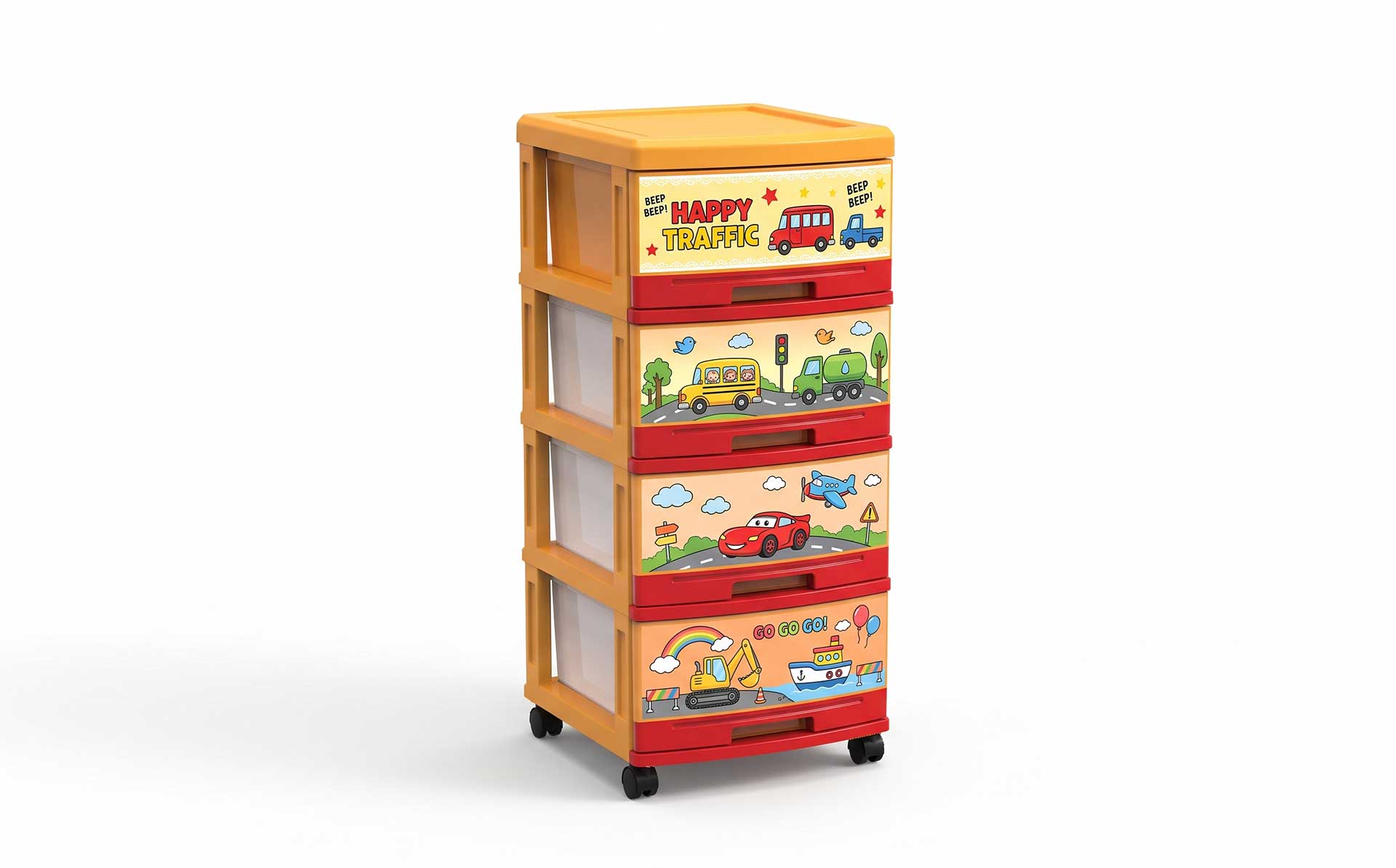

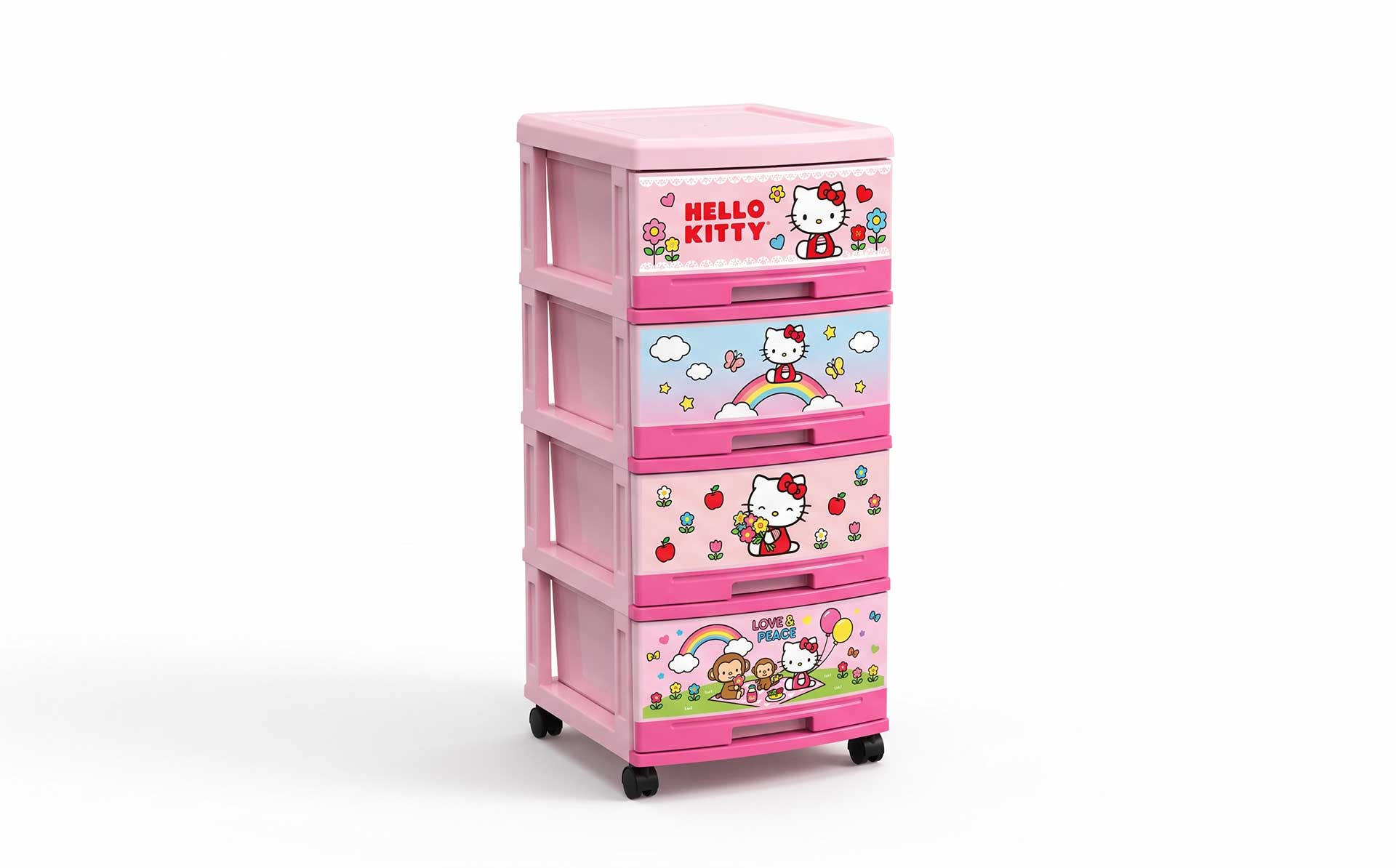

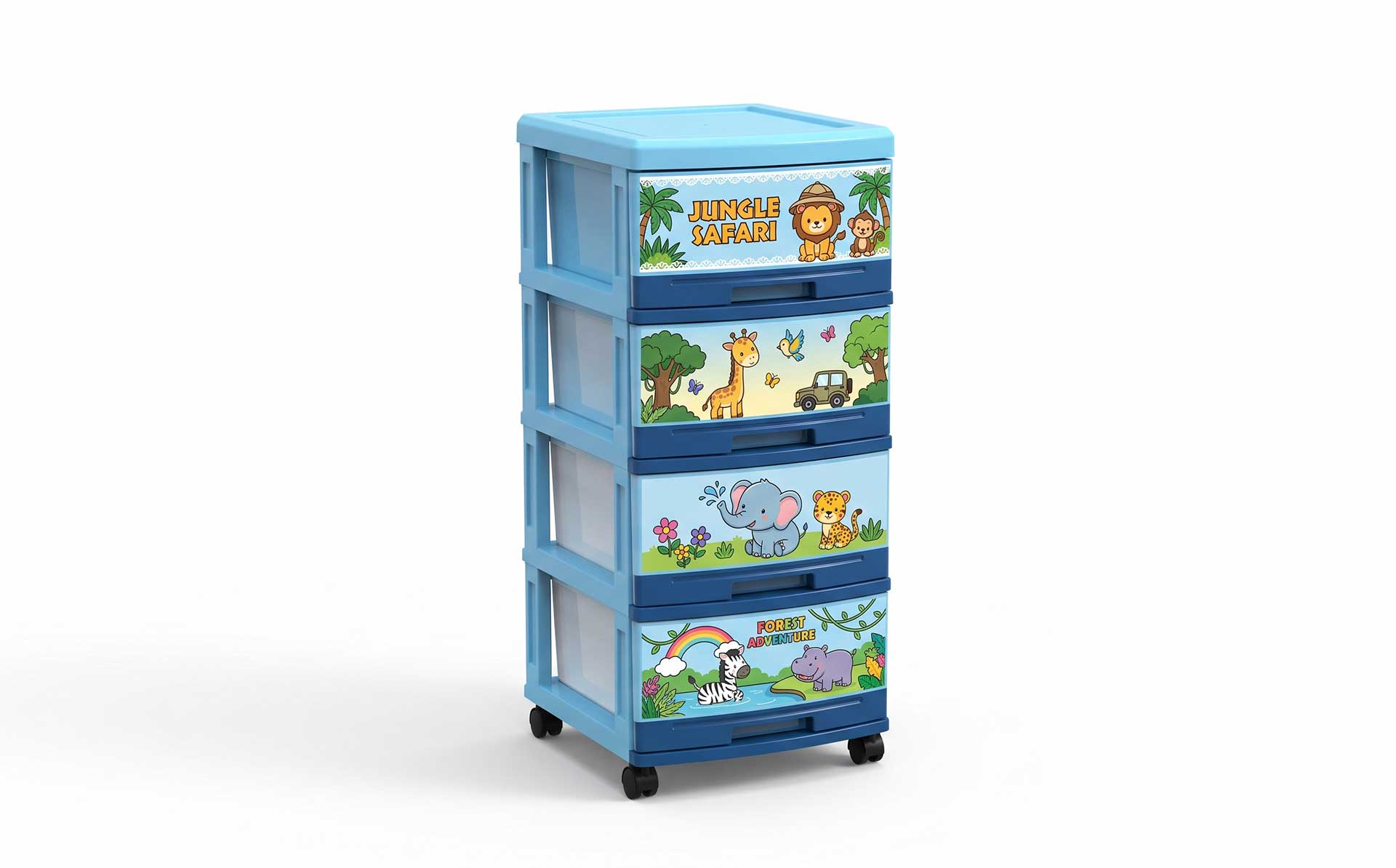

Household Plastic Storage Cabinet / Shelving Cabinet / Children's Cabinet / Baby Wardrobe Mold — Product Introduction (Motek Furniture Mold Series)

Product Positioning

Motek introduces a series of injection mold solutions for household plastic storage cabinets, shelving cabinets, children's cabinets, and baby wardrobes. This product range covers open shelving units, cabinets with doors, multi-layer drawer cabinets, children's toy storage cabinets, and baby clothing wardrobes. The core commonalities lie in safety and eco-friendliness (rounded corners, no sharp edges, food-grade/toy-grade materials), modular assembly (easy for household transport and self-installation), lightweight yet reliable load-bearing structures, and appearance coordinated with home environments. The core challenges in mold development lie in warpage control of large thin-wall panels, dimensional interchangeability of inter-module assembly interfaces, precision forming of child-safety features, and flexible production solutions for multi-category shared molds/interchangeable inserts. Motek configures dedicated solutions around modular mold layout, safety radius forming, cooling systems, and demolding mechanisms, helping customers achieve stable mass production of household storage cabinet series.

Core Specifications

Product Features

Child-Safe and General-Safe Radiused Edge Forming.

All exposed edges, corners, and opening areas of children's cabinets, baby wardrobes, and household storage cabinets require rounded or chamfered treatment. Motek forms fully radiused edges directly in the cavity, with radii set according to child-safety standards and general household furniture specifications. Draft angles and parting line placement are coordinated to ensure no flash or sharp parting line residue at rounded edges. Cabinet door/drawer closing clearances receive dedicated tolerance control to prevent finger pinching; ventilation hole edges are chamfered, balancing ventilation with finger-insertion prevention.

Dimensional Interchangeability Control of Modular Assembly Interfaces.

Storage cabinets, shelving units, and children's cabinets typically use snap-fit, slot-in, or screw-connected detachable structures. Motek applies dedicated tolerance control to side panel slots, shelf support positions, back panel slots, and connector mounting holes, ensuring smooth assembly, uniform clearances, and stable interchangeability across different batches and cavity positions. For different size/functional variants within the same series (such as open shelving units and cabinets with doors), shared mold base + interchangeable insert solutions can be adopted, reducing mold investment for multi-category production.

Warpage Control for Large Thin-Wall Panels.

Side panels, top panels, and shelves are large-area thin-wall parts prone to warpage from uneven cooling, affecting assembly precision and cabinet stability. Motek evaluates shrinkage distribution across panel regions through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts symmetrically balanced cooling channels to equalize cooling rates across panels. Reinforcement ribs can be arranged on panel reverse sides to enhance rigidity, with rib thickness controlled at 50%–60% of main wall thickness to avoid sink marks on front appearance surfaces. For ultra-thin shelves, beryllium copper inserts can accelerate heat dissipation in thick-wall areas.

Load-Bearing Structure and Anti-Tip Design.

Storage cabinets must bear loads of clothing, toys, and miscellaneous items, while children's cabinets also require anti-tip capability. Motek forms shelf support ribs and reinforcement rib networks on the inner side of cabinet side panels, with wall thickness transitions optimized at the cabinet base and four corners to avoid stress concentration cracking under full load. For anti-tip protection, the mold can form widened base support structures and wall-mounting holes/snap-fit positions, ensuring mounting position dimensional accuracy meets fixing component assembly requirements.

Appearance Surface Quality and Surface Treatment.

As visible household furniture, storage cabinets require clean, mark-free appearance surfaces. Motek positions gates at the cabinet bottom, back panel interior, or drawer reverse side—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning, with texture uniformity subject to consistency control. For children's cabinets, cartoon patterns or geometric textures can be added through etching to enhance product appeal.

Demolding Mechanism Optimized for Deep-Cavity and Thin-Wall Structures.

Cabinet side panels, deep drawers, and other deep-cavity thin-wall parts are prone to deformation or scratching from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located in non-appearance areas, ensuring uniform ejection force distribution. For deep-cavity structures, air-blow assistance can be coordinated to release vacuum adhesion. Slider and lifter mechanisms are designed for assembly undercuts, shelf slots, and other features, releasing constraints before ejection to prevent product damage.

Applications

Motek household plastic storage cabinet / shelving cabinet / children's cabinet / baby wardrobe molds are suitable for:

• Living room open shelving units, cabinets with doors
• Children's toy storage cabinets, picture book racks
• Baby clothing wardrobes, infant supply storage cabinets
• Bedroom multi-layer drawer storage cabinets
• Bathroom moisture-proof shelving cabinets
• Study file/stationery storage cabinets
• Balcony miscellaneous item storage cabinets

Service Process

Motek — From children's wardrobes to household storage cabinet series, providing reliable mold solutions for modular injection molding of household storage plastic products.
