Product Positioning

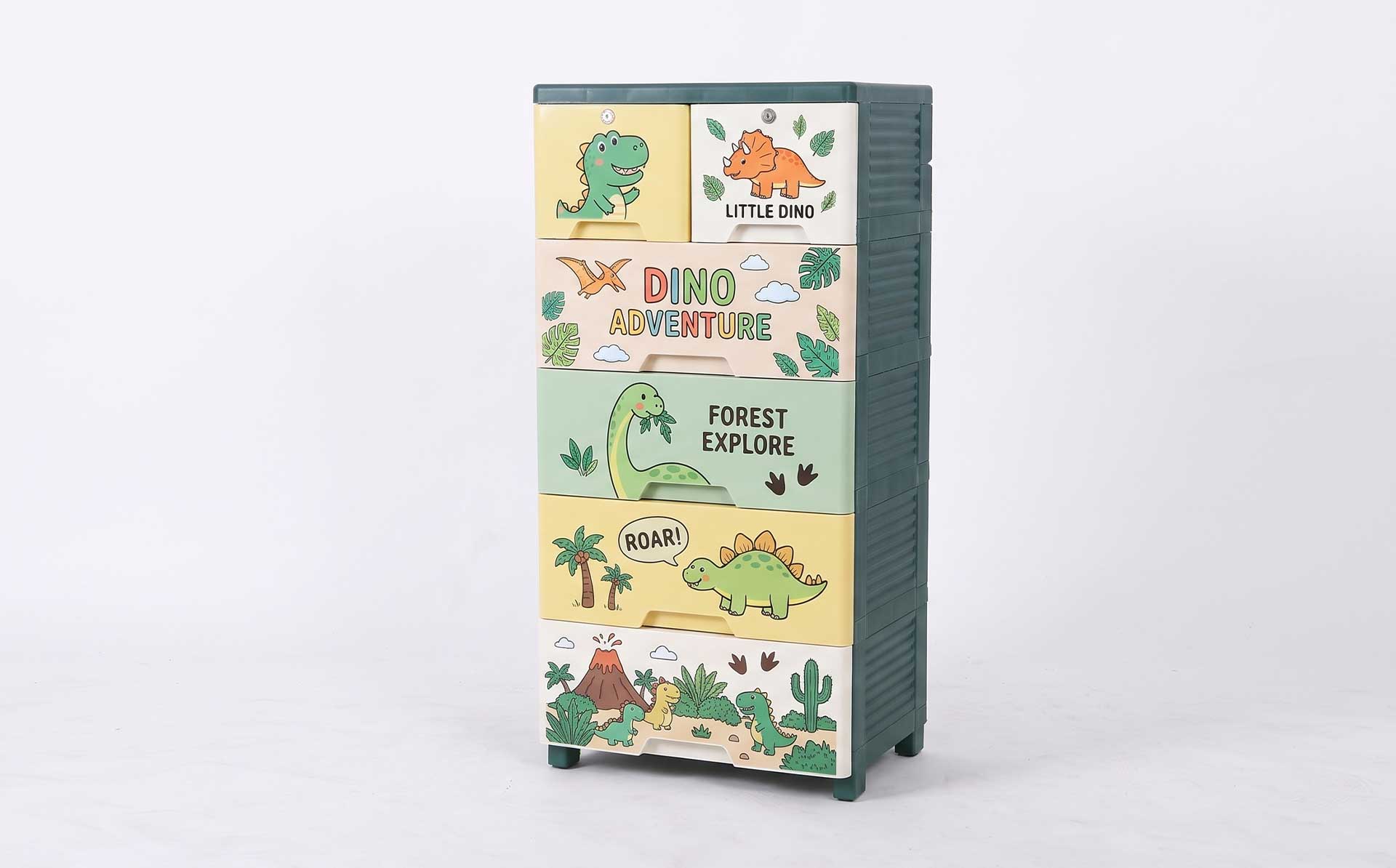

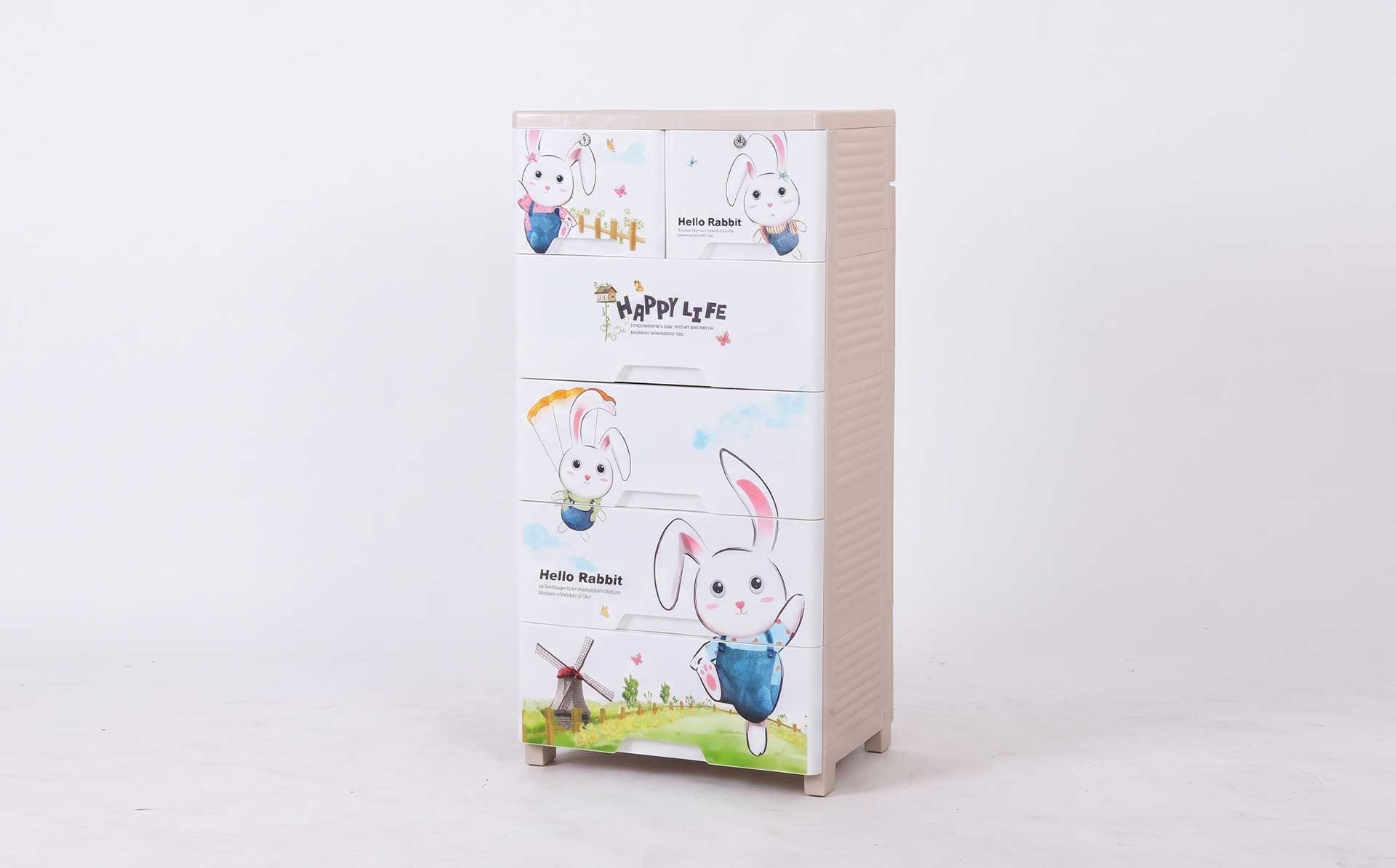

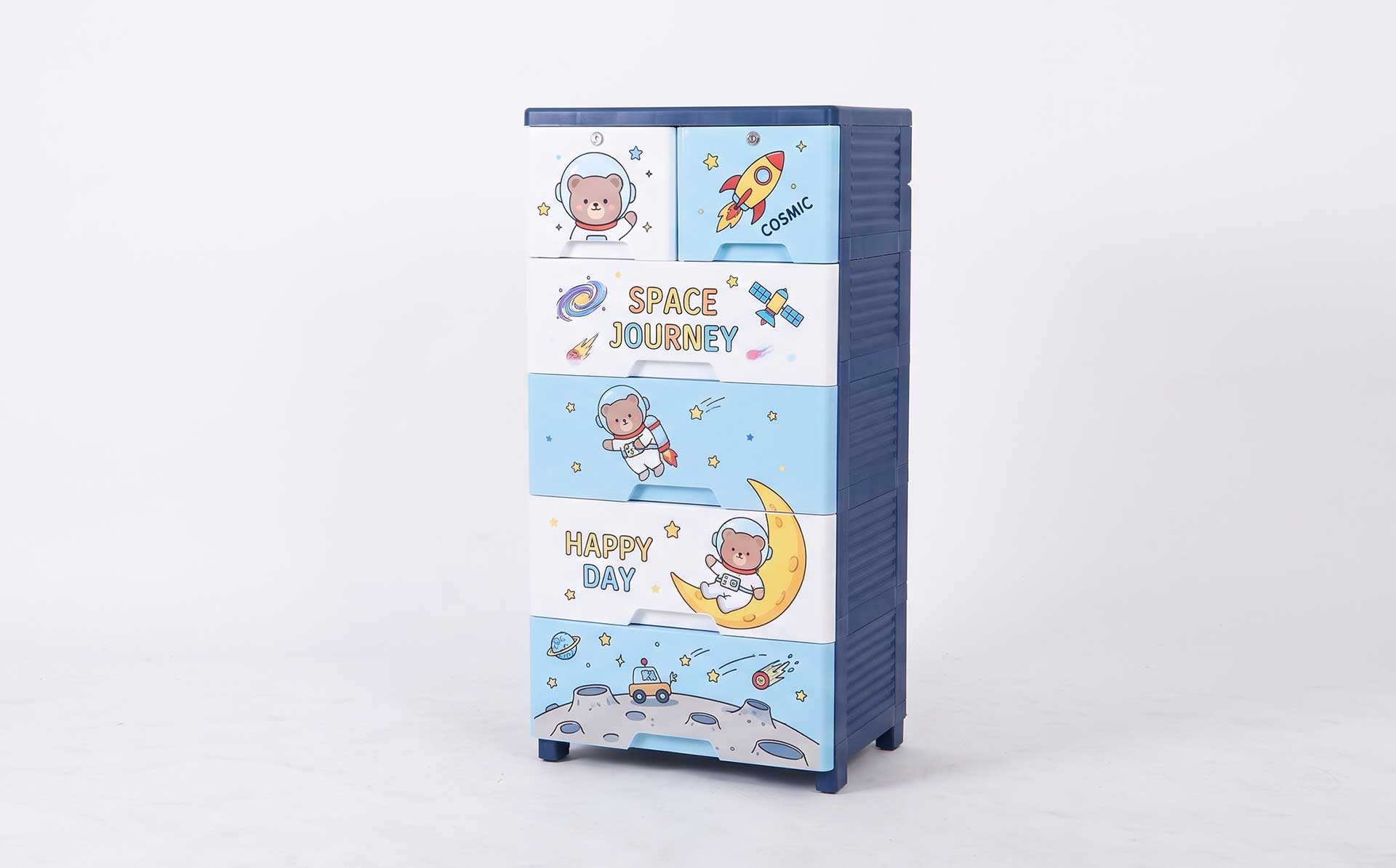

Motek introduces dedicated injection mold solutions for household five-drawer plastic storage wardrobes (five-tier drawer-type storage cabinets). These products feature five independent drawers stacked vertically, combining categorized clothing storage, dust protection, and easy access—widely used in bedrooms, children's rooms, walk-in closets, and rental apartments. Compared with three-door wardrobes or open shelving units, the core challenges of five-drawer wardrobe molds lie in dimensional consistency and slide fit precision across multiple drawer layers, load-bearing stability of the cabinet frame under full load, and appearance quality of drawer panels plus anti-pinch safety design. Motek configures dedicated solutions around slide forming, multi-cavity consistency control, and cooling systems, helping customers achieve stable mass production of five-drawer wardrobes.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (food-grade/low-odor optional) / HDPE (high rigidity) / ABS (high-gloss appearance optional) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 for sliders and inserts |
| Number of Cavities | 1×1 for cabinet frame; 1×2 or 1×4 evaluable for drawers (five same-size drawers can share one mold) |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 25–50 seconds (thin-wall drawer parts can reach 25–35 seconds; cabinet frame depends on size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for deep-cavity drawers |
| Slide Structure | Drawer slides/rails integrally formed, with dedicated tolerance control |
Product Features
Dimensional Consistency and Interchangeability Control of Five Drawer Layers.
The same-size drawers of a five-drawer wardrobe must be interchangeable, and their fit clearances with cabinet slides must be uniform. Motek produces same-size drawers using multi-cavity molds or shared mold base + interchangeable insert solutions, optimizing runner balance across cavities through mold flow analysis to ensure consistent length, width, height, and slide dimensions across all cavity positions. Drawer-to-cabinet fit clearances receive dedicated tolerance control, balancing "smooth push-pull" against "no wobbling."
Fit Precision Between Drawer Slides and Cabinet Rails.
The core function of five-drawer wardrobes lies in smooth drawer push-pull operation without jamming or detachment. Motek integrally forms drawer slides and cabinet rails in the mold, applying dedicated tolerance control to slide cross-section dimensions, rail spacing, and limit structures. Slide area steel requires sufficient wear resistance; sliders and inserts are recommended in 718H or 2316 with nitriding treatment, ensuring stable slide fit precision over long-term use.
Load-Bearing Structural Reinforcement for the Cabinet Frame.
Five-drawer wardrobes must bear the weight of five fully loaded drawers, with side panels and shelf support positions being critical load-bearing areas. Motek forms shelf support ribs and reinforcement rib networks on the inner side of cabinet side panels, with rib thickness controlled at 50%–60% of main wall thickness to enhance rigidity while avoiding sink marks on appearance surfaces. Wall thickness transitions are optimized at the cabinet base and four corners to avoid stress concentration cracking under full load. Mold flow analysis evaluates filling completeness at support position areas, preventing weak points caused by trapped gas.
Child Safety and Anti-Pinch Design.
Five-drawer wardrobes are often used in children's rooms, requiring rounded or chamfered treatment on drawer closing gaps and handle edges. Motek forms fully radiused handle edges in the cavity, with drawer closing clearances receiving dedicated tolerance control to prevent finger pinching. Anti-tip mounting holes can be formed at the cabinet base to enhance child safety.
Appearance Surface Quality and Surface Treatment.
As visible bedroom furniture, five-drawer wardrobes require clean, mark-free drawer panels and cabinet side panels. Motek positions gates at the drawer reverse side, cabinet bottom, or back panel interior—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning, with texture uniformity subject to consistency control.
Demolding Mechanism Optimized for Deep-Cavity Drawers and Cabinet Bodies.
Drawers are deep-cavity thin-wall structures prone to deformation or scratching from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located in non-appearance areas of the drawer bottom, ensuring uniform ejection force distribution. For deep-cavity drawers, air-blow assistance can be coordinated to release vacuum adhesion, preventing drawer side walls from being scratched. Cabinet frame assembly undercuts and slide snap-fit features are released through sliders or lifters before ejection.
Applications
Motek household plastic five-drawer storage wardrobe molds are suitable for:
- Bedroom five-drawer clothing storage cabinets
- Children's room five-drawer toy/clothing storage cabinets
- Walk-in closet multi-layer drawer storage cabinets
- Rental apartment/small-unit five-drawer plastic wardrobes
- Bathroom moisture-proof five-drawer storage cabinets
Service Process
After the customer provides 3D product drawings, drawer layer quantity and dimensions, cabinet specifications, and appearance requirements, Motek completes mold flow analysis (including multi-layer drawer consistency verification, slide fit evaluation, and cabinet load-bearing structural analysis) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying drawer push-pull smoothness, five-layer drawer interchangeability, cabinet load-bearing stability, and appearance surface quality, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From five-drawer wardrobes to three-door storage cabinets, providing reliable mold solutions for injection molding of household storage plastic products.
