Product Positioning

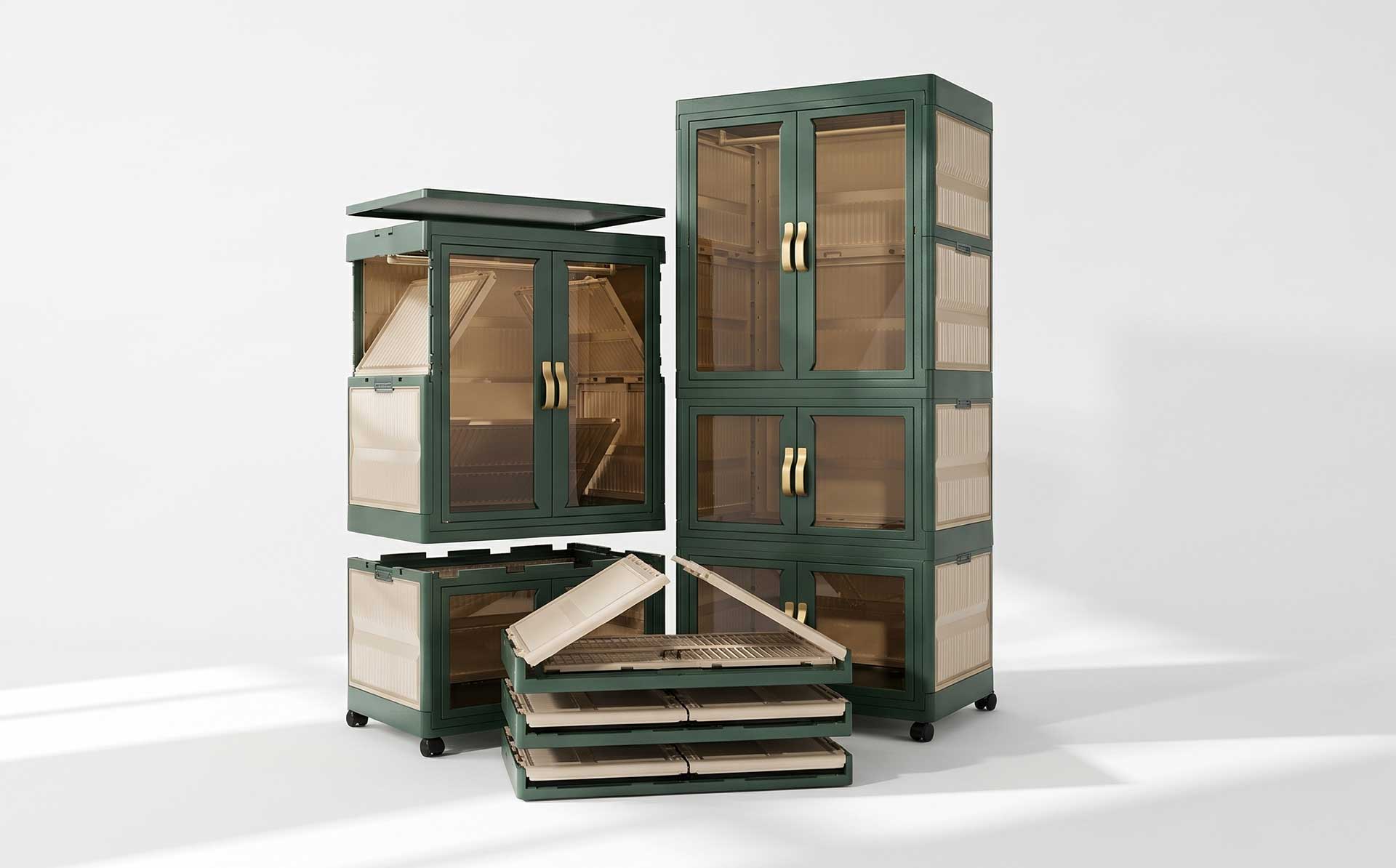

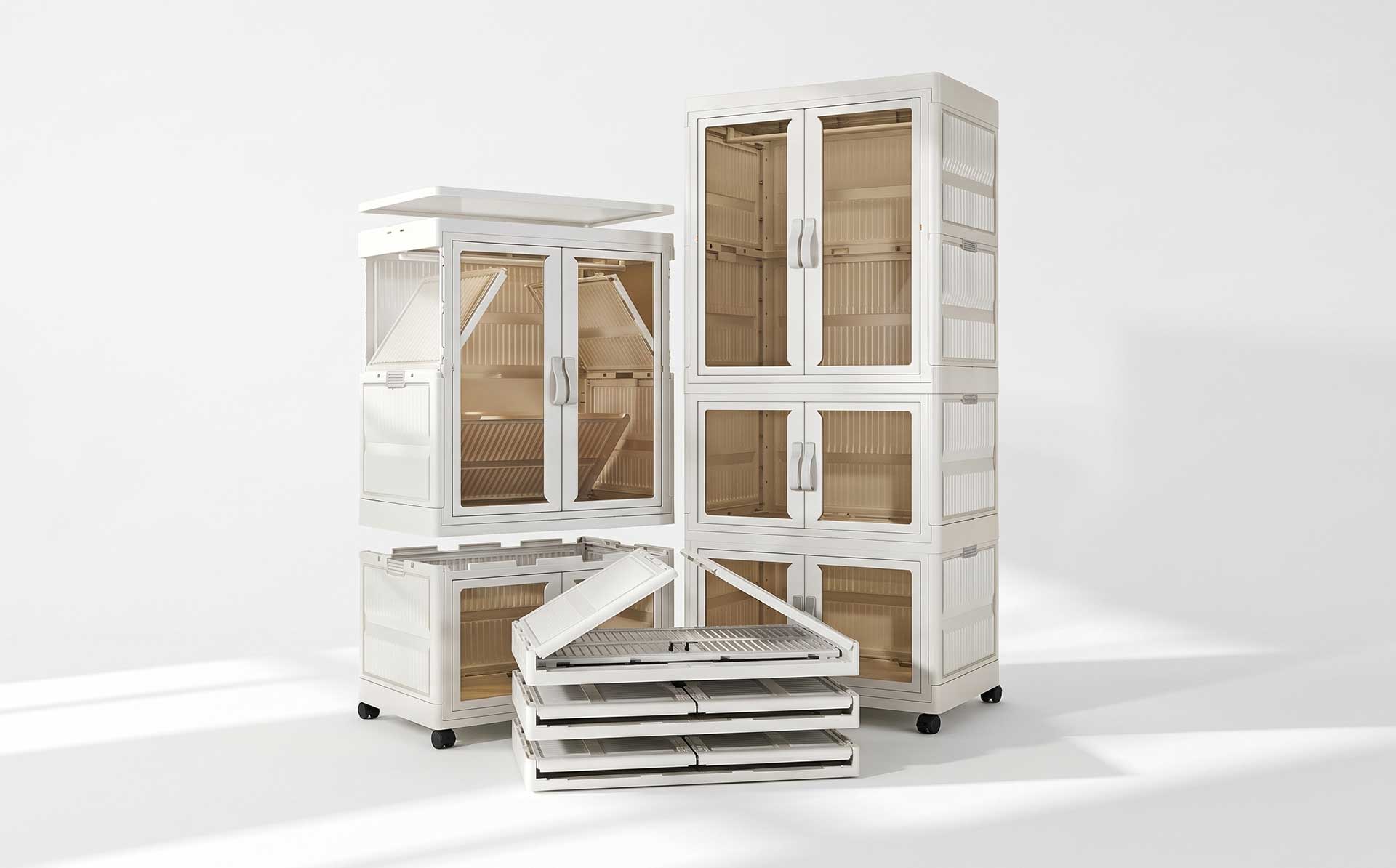

Motek introduces dedicated injection mold solutions for household living room no-assembly foldable storage cabinets. These products feature an integrally molded foldable structure as their core characteristic—users simply unfold the cabinet out of the box without tools, and it folds flat for packaging, transport, and idle storage. Compared with modular storage cabinets requiring on-site assembly, the core challenges of foldable storage cabinet molds lie in fatigue life assurance of folding hinges, reliability of the unfolded locking structure, and panel fit precision in the folded state. Motek configures dedicated solutions around hinge forming processes, locking structure design, and cooling systems, helping customers achieve stable mass production of no-assembly foldable storage cabinets.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (copolymer polypropylene, good toughness, folding fatigue resistant) / HDPE (high rigidity) / ABS (high-gloss appearance optional) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 with nitriding recommended for hinge area inserts |
| Number of Cavities | 1×1 for one-piece cabinet bodies; 1×2 evaluable for small foldable cabinets |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 30–60 seconds (depending on cabinet size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for deep-cavity areas |
| Folding Structure | Integrally formed thin-film hinge/hinge bridge, unfolded locking snap-fits integrally formed |
Product Features
Fatigue Life Assurance of Folding Hinges.
The core function of no-assembly foldable cabinets lies in the hinges, which must withstand repeated unfolding/folding without cracking. Motek integrally forms thin-film hinge or hinge bridge structures in the mold, using gradual wall thickness design and localized thinning at hinge areas to distribute folding stress. Industry experience shows that PP copolymer is the preferred material for folding hinges due to its excellent folding fatigue resistance; hinge cross-section dimensions must be confirmed with customers based on folding cycle requirements and material characteristics. Hinge area steel uses tough 718H or 2316 with nitriding treatment, balancing forming precision, wear resistance, and demolding smoothness.
Reliability Design of the Unfolded Locking Structure.
Foldable cabinets require locking via snap-fits, slot-in features, or support structures after unfolding to maintain square and stable cabinet bodies. Motek integrally forms locking snap-fits and support positioning structures in the mold, applying dedicated tolerance control to snap-fit dimensions, slot-in depth, and locking angles, ensuring secure locking without loosening after unfolding while maintaining smooth unlocking operation during folding. Locking structures are verified through repeated open-close cycles to prevent locking force degradation from wear.
Panel Fit Precision in the Folded State.
After folding, all panels must lie parallel and compact for packaging and transport. Motek applies tolerance control to folding positioning structures and panel edge contours, ensuring uniform fit clearances without interference after folding. For multi-panel folding structures, slider and insert action sequences are designed with linkage to ensure synchronous forming and smooth demolding of all folding faces.
Load-Bearing and Stability After Unfolding.
Foldable cabinets must bear loads of clothing and miscellaneous items after unfolding. Motek optimizes wall thickness transitions and reinforcement rib layout at cabinet side panels, bottom panels, and shelf support positions to avoid stress concentration. The folding hinge transition area, as a weak point in the load path, requires localized thickening or reinforcement ribs to ensure hinges do not collapse after long-term use. Mold flow analysis evaluates filling completeness at hinge and locking areas, preventing weak points caused by trapped gas.
No-Assembly Design for Packaging and Transport Adaptation.
Foldable cabinets are significantly reduced in volume after folding, facilitating e-commerce logistics and household handling. Motek coordinates with customers' product folding plans in mold design, controlling overall folded dimensions to ensure compatibility with standard packaging boxes and logistics transport requirements. Stacking stability in the folded state is also design-verified to prevent damage from improper stacking during transport.
Appearance Surface Quality and Surface Treatment.
As visible living room furniture, foldable cabinets require clean, mark-free appearance surfaces. Motek positions gates at the cabinet bottom, back panel interior, or folding face interior—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning, with texture uniformity subject to consistency control.
Applications
Motek foldable storage cabinet — household living room no-assembly storage cabinet molds are suitable for:
- Living room no-assembly foldable storage cabinets
- Bedroom foldable clothing/miscellaneous item storage cabinets
- Children's room foldable toy storage cabinets
- Rental apartment/small-unit portable foldable cabinets
- E-commerce logistics foldable packaging storage cabinets
Service Process
After the customer provides 3D product drawings, folding structure plans, unfolded dimensions, and folded dimension requirements, Motek completes mold flow analysis (including hinge area filling evaluation, folding dimension compensation, and locking structure verification) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying hinge forming quality, folding/unfolding action smoothness, locking structure reliability, and cabinet load-bearing stability, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and hinge maintenance notes provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From no-assembly foldable cabinets to modular storage cabinets, providing reliable mold solutions for folding formation and stable mass production of household storage plastic products.
