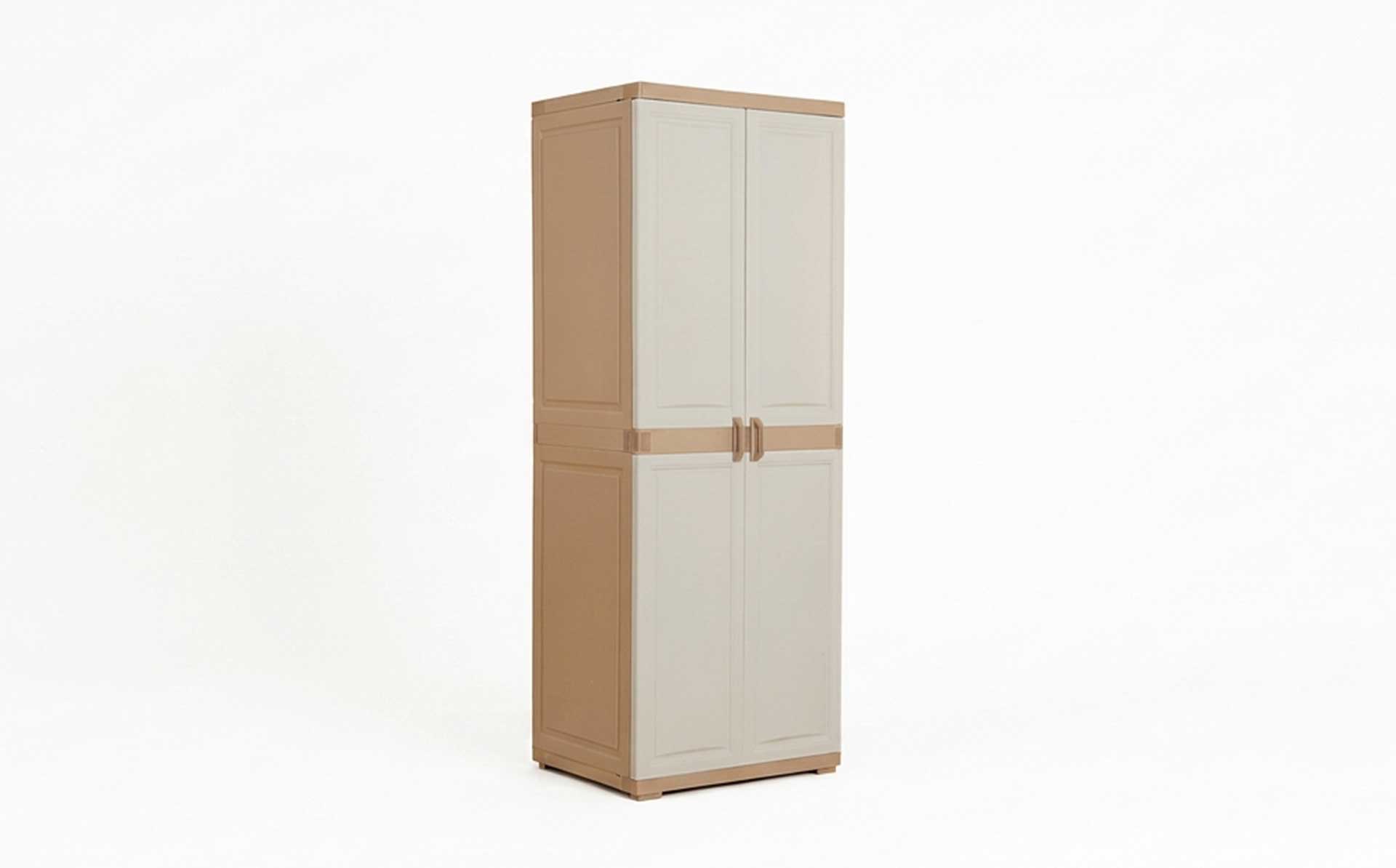

Multi-Functional Enlarged Hanging-Clothes Open-Door Wardrobe Mold — Product Introduction (Motek Furniture Mold Series)
Multi-Functional Enlarged Hanging-Clothes Open-Door Wardrobe Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for multi-functional enlarged hanging-clothes open-door wardrobes. These products feature a widened cabinet body, long-coat/garment hanging capability, and openable cabinet doors—combining large-capacity clothing storage, dust protection, and space utilization, suitable for bedrooms, walk-in closets, rental apartments, and condos. Compared with standard single-door or foldable cabinets, the core challenges of enlarged hanging-clothes wardrobe molds lie in dimensional consistency and warpage control of large door panels, load-bearing stability of the cabinet body under hanging loads, and precision forming of door hinge and opening structures. Motek configures dedicated solutions around large door panel forming, cabinet load-bearing structure design, and cooling systems, helping customers achieve stable mass production of multi-functional enlarged wardrobes.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (food-grade/low-odor optional, good toughness) / HDPE (high rigidity) / ABS (high-gloss appearance optional) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 with nitriding recommended for door hinge inserts |
| Number of Cavities | 1×1 for cabinet frame; 1×2 evaluable for door panels (left and right doors sharing one mold) or 1×1 with interchangeable inserts |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 35–65 seconds (depending on cabinet size and cooling design; thickened door panels can reach 40–60 seconds) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for deep-cavity cabinet bodies |
| Door Structure | Hinge positions/snap-fits/magnetic catch mounting positions integrally formed, with dedicated tolerance control |
| Hanging Structure | Hanging rod mounting positions/support seats integrally formed, with dedicated load-bearing verification |
Product Features
Dimensional Consistency and Warpage Control of Large Door Panels.
Enlarged wardrobe door panels have large surface areas prone to warpage from uneven cooling, affecting door closure and appearance. Motek evaluates shrinkage distribution across door panel regions through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts symmetrically balanced cooling channels to equalize cooling rates across panels. Reinforcement ribs can be arranged on door panel reverse sides to enhance rigidity, with rib thickness controlled at 50%–60% of main wall thickness to avoid sink marks on front appearance surfaces. For left-right double door panels, multi-cavity molds or shared mold base solutions ensure dimensional consistency and stable interchangeability between the two doors.
Load-Bearing Stability of the Cabinet Body Under Hanging Loads.
Enlarged wardrobes must bear the weight of hanging garments, with hanging rod mounting positions and cabinet side panels being critical load-bearing areas. Motek forms thickened support seats and reinforcement rib networks at the hanging rod mounting area on cabinet side panels, ensuring the hanging rod does not bend or detach under fully loaded garments. Hanging rod mounting position dimensions receive dedicated tolerance control to accommodate standard hanging rod diameters. Wall thickness transitions are optimized at the cabinet base and four corners to avoid stress concentration cracking under full load. Mold flow analysis evaluates filling completeness at hanging rod support areas, preventing weak points caused by trapped gas.
Precision Forming of Door Hinge and Opening Structures.
Cabinet doors of enlarged wardrobes are typically connected to the cabinet body via hinge shafts, snap-fits, or slot-in structures. Motek integrally forms hinge mounting positions, shaft holes, and limit structures in the mold, ensuring flexible door rotation, smooth opening/closing, and accurate positioning upon closing after assembly. For doors with magnetic catch closure designs, the mold reserves magnetic catch mounting positions and controls dimensional accuracy to meet magnetic catch assembly requirements. Hinge area steel requires sufficient wear resistance; sliders and inserts are recommended in 718H or 2316 with nitriding treatment.
Cabinet Assembly Squareness and Structural Stability.
Enlarged cabinet bodies must remain square and undistorted in assembled state. Motek applies dedicated tolerance control to the assembly interfaces of cabinet side panels, top panels, and bottom panels, ensuring cabinet diagonal deviation is controlled within a reasonable range after assembly. For models requiring wall mounting, the mold can form wall-mounting holes or snap-fit positions to enhance safety.
Internal Structure Adaptation for Multi-Functional Storage.
Enlarged wardrobes typically combine hanging and folded storage functions, requiring shelf support positions and drawer mounting positions inside. Motek forms shelf support ribs and drawer slide mounting positions on the inner side of cabinet side panels, with support position spacing design-verified to accommodate clothing and storage boxes of varying heights. Drawer slide mounting positions receive tolerance control to ensure smooth drawer push-pull operation.
Appearance Surface Quality and Surface Treatment.
As visible bedroom/walk-in closet furniture, enlarged wardrobes require clean, mark-free appearance surfaces. Motek positions gates at the cabinet bottom, back panel interior, or door panel reverse side—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning, with texture uniformity subject to consistency control.
Applications
Motek multi-functional enlarged hanging-clothes open-door wardrobe molds are suitable for:
- Bedroom enlarged hanging-clothes open-door wardrobes
- Walk-in closet multi-functional hanging storage cabinets
- Rental apartment/condo enlarged wardrobes
- Children's room enlarged hanging-clothes storage cabinets
- Balcony/utility room multi-functional open-door cabinets
Service Process
After the customer provides 3D product drawings, cabinet dimensions, door panel quantity and opening method, hanging rod configuration, and appearance requirements, Motek completes mold flow analysis (including large door panel warpage prediction, hanging rod support load-bearing analysis, and cabinet assembly precision evaluation) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying door panel interchangeability, hinge opening/closing smoothness, hanging rod support load-bearing, and cabinet assembly squareness, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From enlarged hanging-clothes wardrobes to multi-functional storage cabinets, providing reliable mold solutions for injection molding of large household storage plastic products.
