Product Positioning

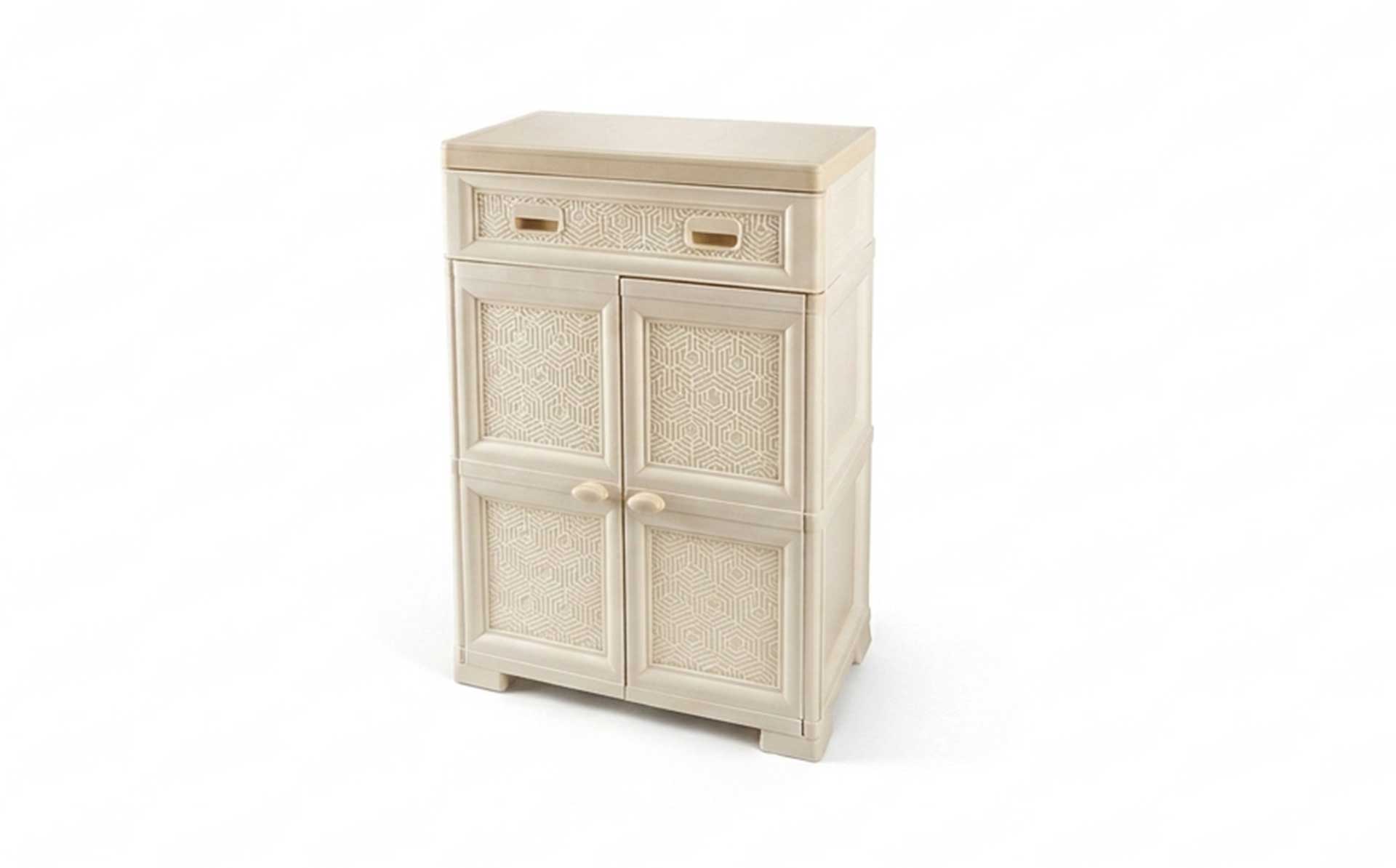

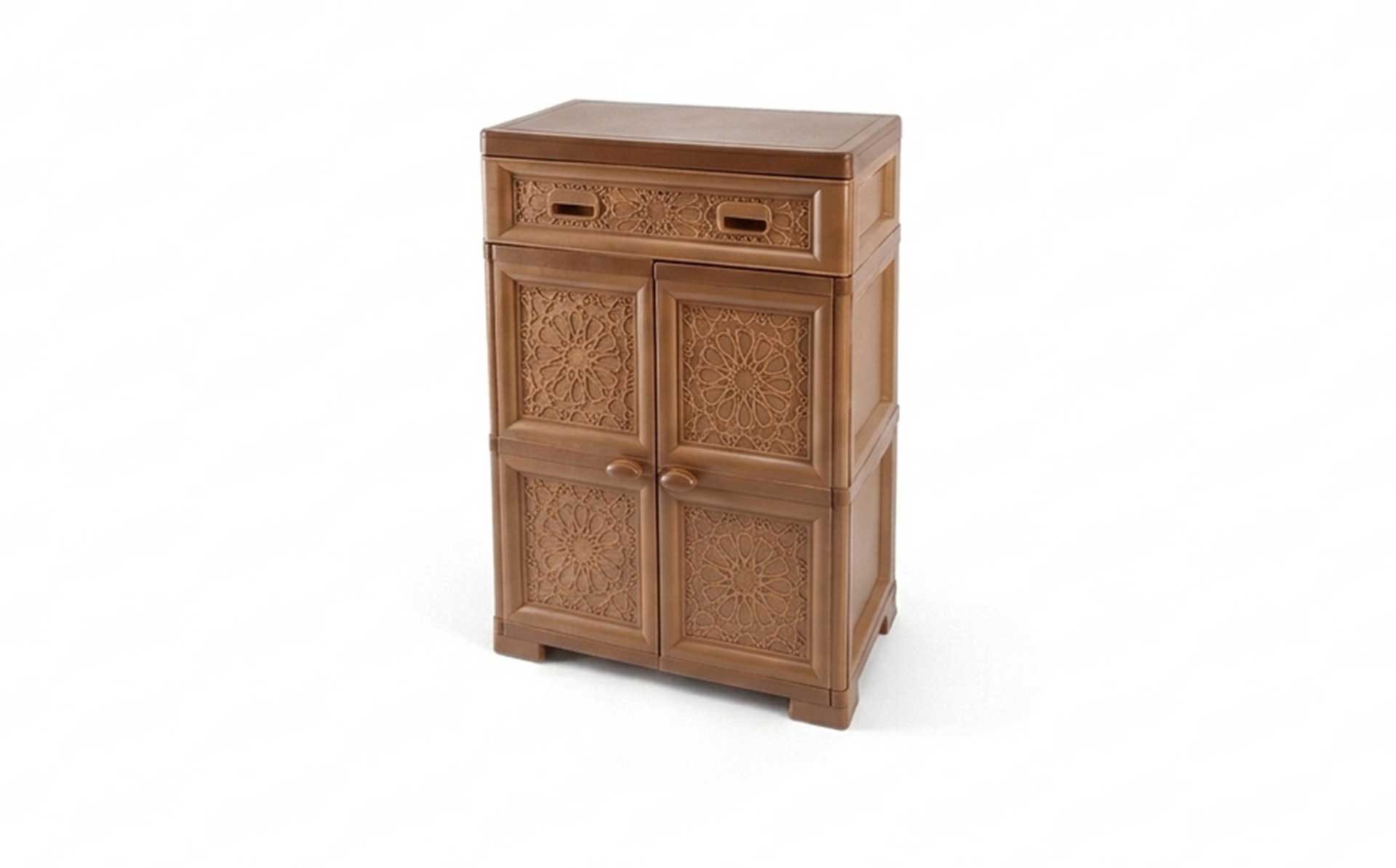

Motek introduces dedicated injection mold solutions for plastic injection simple storage cabinets / small wardrobes. These products feature compact, lightweight, easy-to-assemble designs—typically consisting of side panels, top/bottom panels, shelves, and simple doors or open compartments—targeting budget-friendly storage for bedrooms, dormitories, rental apartments, and small living spaces. Compared with large multi-door wardrobes, the core challenges of simple storage cabinet/small wardrobe molds lie in dimensional consistency and interchangeability of modular panels, warpage control of thin-wall panels, and secure fit of snap-fit assembly interfaces. Motek configures dedicated solutions around modular mold layout, cooling systems, and demolding mechanisms, helping customers achieve stable mass production of simple storage cabinets and small wardrobes.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (food-grade/low-odor optional, impact-resistant) / HDPE (high rigidity) / ABS (high-gloss appearance optional) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 for sliders and inserts |
| Number of Cavities | 1×1 for large panels (side/top/bottom); 1×2 or 1×4 evaluable for shelves and small connectors |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 25–50 seconds (thin-wall shelves can reach 25–35 seconds; large panels depend on size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for deep-cavity panels |
| Assembly Structure | Snap-fits, slot-in interfaces, and connector mounting positions integrally formed |
Product Features
Dimensional Consistency and Interchangeability of Modular Panels.
Simple storage cabinets and small wardrobes are assembled from multiple panels—side panels, top/bottom panels, shelves, and doors—that must fit together securely. Motek forms snap-fits, slot-in interfaces, and connector mounting positions with tight dimensional tolerance, ensuring panels from different batches and cavity positions assemble smoothly with uniform clearances and stable interchangeability. For same-series variants, shared mold base + interchangeable inserts solutions can be adopted to reduce mold investment.
Warpage Control for Thin-Wall Panels.
Side panels, top panels, and shelves are large-area thin-wall parts prone to warpage from uneven cooling, affecting assembly precision and cabinet stability. Motek evaluates shrinkage distribution across panels through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts symmetrically balanced cooling channels to equalize cooling rates. Reinforcement ribs can be arranged on panel reverse sides to enhance rigidity, with rib thickness controlled at 50%–60% of main wall thickness to avoid sink marks on appearance surfaces.
Secure Fit of Snap-Fit Assembly Interfaces.
Simple storage cabinets rely on snap-fit and slot-in connections for tool-free assembly. Motek forms these interfaces with optimized interference and retention features, ensuring panels lock securely without loosening while remaining easy to assemble and disassemble. Snap-fit geometry is verified through repeated assembly testing to prevent fatigue failure.
Structural Stability Under Load.
Small wardrobes must bear the weight of clothing, folded items, and storage boxes. Motek reinforces shelf support positions and cabinet corner joints through optimized wall thickness and rib layout, ensuring the cabinet maintains rigidity under loaded conditions. Mold flow analysis verifies filling completeness at corner nodes and support intersections, preventing weak points from trapped gas.
Compact Design and Easy Handling.
Small wardrobes prioritize lightweight, compact designs for easy transport and placement in tight spaces. Motek optimizes wall thickness distribution to minimize weight while maintaining structural strength. Panel dimensions are controlled to ensure compact packaging and easy handling.
Appearance Surface Quality and Surface Treatment.
Simple storage cabinets are often placed in visible areas and require clean, mark-free surfaces. Motek positions gates at panel reverse sides or concealed edges—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning.
Applications
Motek plastic injection simple storage cabinet / small wardrobe molds are suitable for:
- Bedroom simple storage cabinets and small wardrobes
- Dormitory compact storage cabinets
- Rental apartment/small-unit storage wardrobes
- Children's room simple storage cabinets
- Entryway/mudroom small storage cabinets
Service Process
After the customer provides 3D product drawings, panel configuration, assembly interface plans, and appearance requirements, Motek completes mold flow analysis (including assembly fit evaluation, thin-wall warpage prediction, and load-bearing structural analysis) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying assembly interchangeability, panel flatness, structural stability, and appearance quality, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From simple storage cabinets to small wardrobes, providing reliable mold solutions for modular injection molding of compact household storage furniture.
