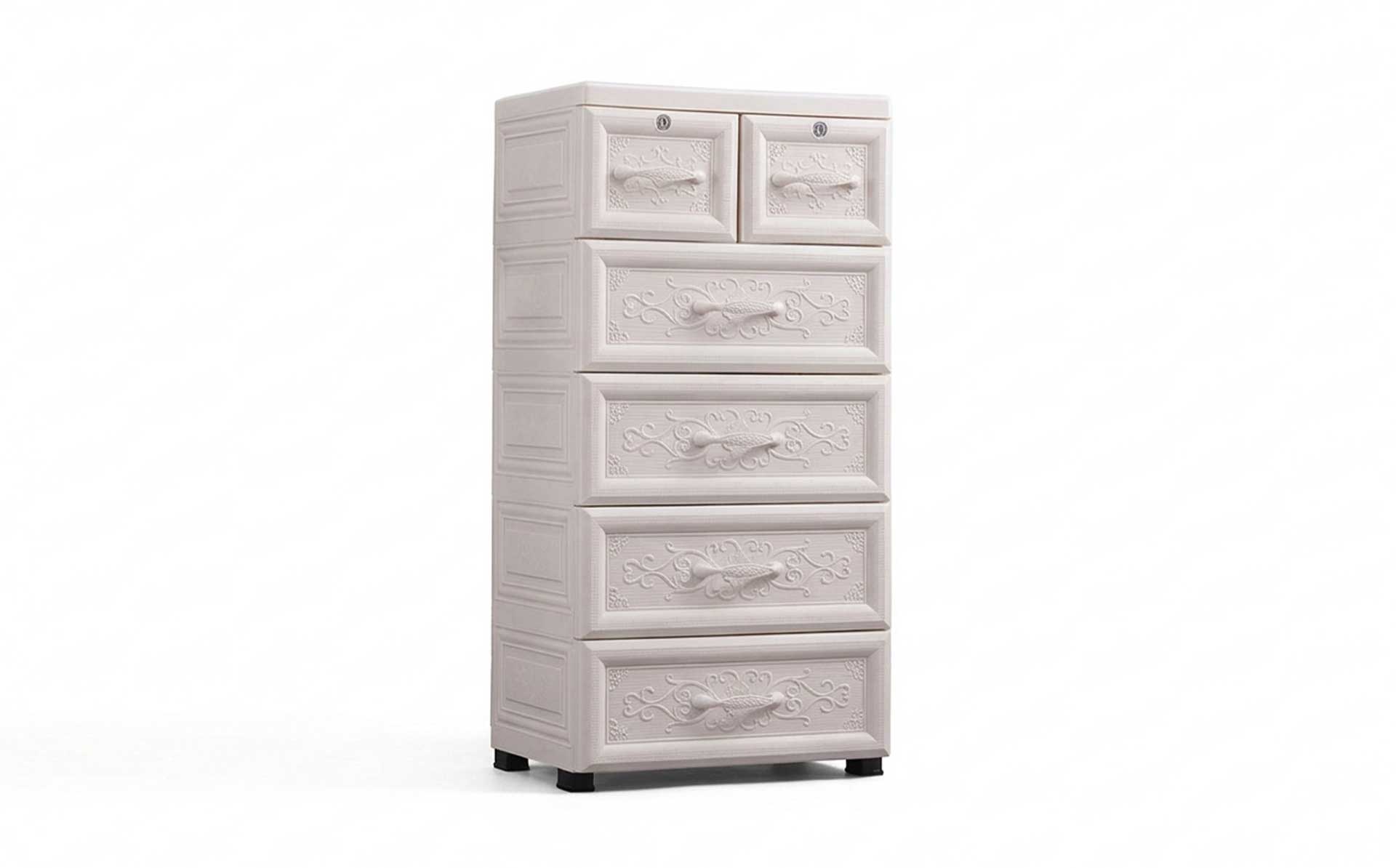

Plastic Injection Patterned Multi-Layer Storage Cabinet / Adult Wardrobe Mold — Product Introduction (Motek Furniture Mold Series)
Plastic Injection Patterned Multi-Layer Storage Cabinet / Adult Wardrobe Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for patterned multi-layer plastic storage cabinets and adult wardrobes. These products feature multi-tier shelving/drawer structures combined with decorative surface patterns—balancing adult clothing organization, dust protection, and home decor aesthetics, suitable for bedrooms, walk-in closets, rental apartments, and condos. Compared with standard smooth-surface storage cabinets, the core challenges of patterned multi-layer wardrobe molds lie in precise pattern etching replication with demolding scratch protection, dimensional consistency across multi-layer structures, and load-bearing stability of the cabinet body under fully loaded clothing conditions. Motek configures dedicated solutions around pattern etching processes, multi-layer mold layout, and cooling systems, helping customers achieve stable mass production of patterned multi-layer wardrobes.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (low-odor, good toughness) / ABS (high-gloss appearance, excellent pattern expression) / HDPE (high rigidity) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; S136 / 1.2316 corrosion-resistant steel recommended for patterned areas |
| Number of Cavities | 1×1 for cabinet frame; 1×2 or 1×4 evaluable for shelves, drawers, and door panels |
| Mold Life | 300,000–800,000 shots (patterned areas are sensitive to cavity surface wear) |
| Cycle Time | 25–50 seconds (thin-wall shelves can reach 25–35 seconds; cabinet frame depends on size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; ejection points avoid pattern appearance surfaces |
| Pattern Treatment | Etching (wood grain/fabric grain/geometric pattern/leather grain), depth customized per customer samples |
Product Features
Precise Pattern Etching Replication with Demolding Scratch Protection.
The decorative effect of patterned wardrobes depends on pattern clarity and three-dimensionality. Motek performs etching on cavity surfaces based on customer-provided pattern samples or drawings, reproducing wood grain direction, fabric weave layers, or regular geometric arrangements. S136 or 1.2316 corrosion-resistant, polishable steels are selected for patterned areas to ensure clear details and long-term rust-free service. Patterns are highly susceptible to scraping by mold walls during demolding. Motek provides ample draft angles in patterned areas and applies anti-scratch treatment to moving components such as sliders and inserts that contact patterned surfaces.
Dimensional Consistency and Interchangeability of Multi-Layer Structures.
Shelves and drawers of multi-layer storage cabinets must be interchangeable to allow flexible height adjustment. Motek produces same-size shelves and drawers using multi-cavity molds or shared mold base + interchangeable insert solutions, optimizing runner balance across cavities through mold flow analysis to ensure consistent length, width, thickness, and snap-fit dimensions across all cavity positions. Shelf support spacing is design-verified to accommodate standard shelf thickness and height adjustment requirements.
Load-Bearing Stability of the Cabinet Body Under Fully Loaded Clothing Conditions.
Adult wardrobes must bear the weight of multi-layer clothing, with side panels and shelf support positions being critical load-bearing areas. Motek forms shelf support ribs and reinforcement rib networks on the inner side of cabinet side panels, with rib thickness controlled at 50%–60% of main wall thickness to enhance rigidity while avoiding sink marks on appearance surfaces. Wall thickness transitions are optimized at the cabinet base and four corners to avoid stress concentration cracking under full load. Mold flow analysis evaluates filling completeness at support position areas, preventing weak points caused by trapped gas.
Coordinated Transition Between Patterned Areas and Structural Features.
Pattern termination at cabinet corners, shelf edges, and snap-fit openings requires coordinated treatment. Motek confirms pattern edge termination plans during the design phase, preventing pattern stretching or discontinuity at rounded corners or openings. For door panel surfaces, pattern layout direction is design-confirmed to ensure visual continuity; for shelves, the transition between patterned and non-patterned areas (such as support positions) is kept natural.
Appearance Surface Quality and Surface Treatment.
As visible bedroom/walk-in closet furniture, patterned wardrobes require clean, mark-free appearance surfaces. Motek positions gates at the cabinet bottom, back panel interior, or shelf reverse side—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Non-patterned areas can receive mirror polishing (high-gloss models) or fine-texture etching (matte models) according to product positioning, coordinating with patterned area textures.
Demolding Mechanism Optimized for Deep-Cavity Cabinet Bodies and Patterned Parts.
Cabinet frames, deep drawers, and other deep-cavity thin-wall parts are prone to deformation or scratching from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located in non-appearance areas, ensuring uniform ejection force distribution. For deep-cavity cabinet bodies, air-blow assistance can be coordinated to release vacuum adhesion. Sliders and lifters in patterned areas release constraints before ejection, preventing pattern damage.
Applications
Motek plastic injection patterned multi-layer storage cabinet / adult wardrobe molds are suitable for:
- Bedroom patterned multi-layer adult wardrobes
- Walk-in closet pattern-decorated storage cabinets
- Rental apartment/condo patterned combination wardrobes
- Living room pattern-decorated shelving cabinets
- Commercial display pattern-decorated storage cabinets
Service Process
After the customer provides 3D product drawings, pattern samples or reference images, shelf/drawer configuration, and appearance requirements, Motek completes pattern etching plan confirmation, mold flow analysis (including multi-layer consistency verification, patterned area filling evaluation, and load-bearing structural analysis), and mold structure design; cavity steel is selected per pattern requirements, with pattern samples provided for customer confirmation before etching; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying pattern clarity, shelf/drawer interchangeability, cabinet load-bearing stability, and appearance quality, with samples provided for final sign-off. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and pattern maintenance notes provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From smooth-surface storage cabinets to patterned multi-layer wardrobes, providing reliable mold solutions for decorative texture forming and stable mass production of household storage plastic products.
