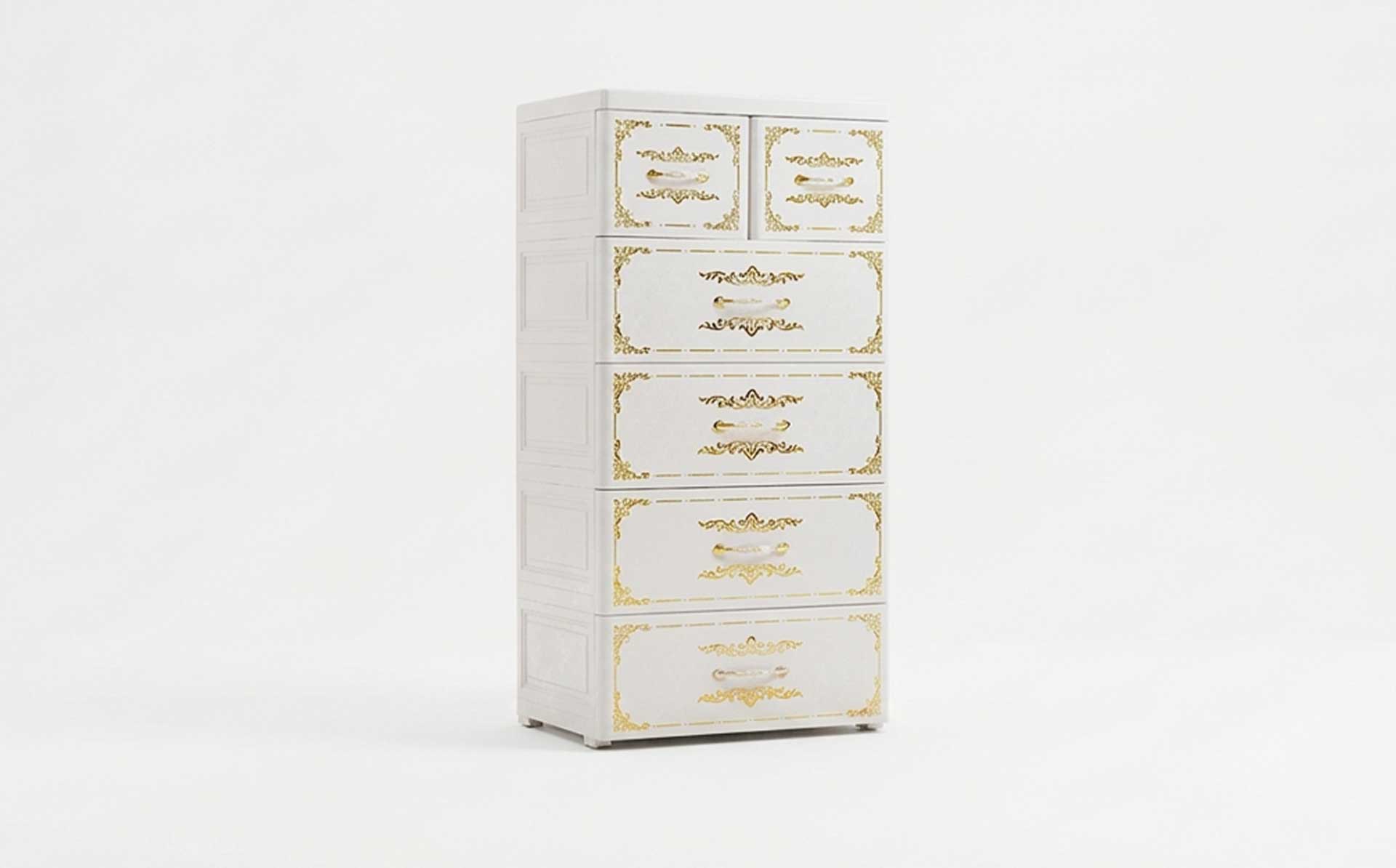

Plastic Storage Cabinet Multi-Layer Hot-Stamping Shelving Cabinet Mold — Product Introduction (Motek Furniture Mold Series)
Plastic Storage Cabinet Multi-Layer Hot-Stamping Shelving Cabinet Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for multi-layer plastic storage cabinets with hot-stamping decorative finishes. These products combine the functional storage of multi-tier shelving with the premium visual effect of hot-stamped metallic accents—typically applied to shelf edges, frame trim, or drawer fronts to create a reflective gold, silver, or colored metallic appearance. Hot-stamping is a post-molding decoration process in which a heated die presses metallic foil onto the plastic surface, requiring the molded part to have smooth, dimensionally stable surfaces with consistent flatness for reliable foil transfer. The core challenges in mold development lie in hot-stamping surface flatness and texture control, dimensional stability of multi-layer components, and compatibility between the molding and post-decoration processes. Motek addresses these through cavity surface optimization, warpage control, and tolerance management, helping customers achieve stable mass production of hot-stamped storage cabinets.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / ABS / PS (grades compatible with hot-stamping foil adhesion) |
| Mold Material | P20 / 718H / NAK80 (cavity and core), polished cavities for hot-stamping surfaces |
| Number of Cavities | 1×1 for large panels/frames; 1×2 or 1×4 evaluable for shelves and small components |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 25–50 seconds (depending on component size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Hot-Stamping Surface | High-polish cavity finish for foil adhesion; flatness tolerance ±0.05mm |
| Demolding Method | Ejector pins + stripper plate composite ejection |
Product Features
Hot-Stamping Surface Flatness and Texture Control.
Hot-stamping foil transfer requires a smooth, flat plastic surface for reliable adhesion and uniform metallic appearance. Motek polishes cavity surfaces designated for hot-stamping to a high finish, eliminating machining marks and surface irregularities that could cause foil blistering or incomplete transfer. Flatness tolerance on hot-stamping surfaces is controlled to ±0.05mm, ensuring consistent foil contact pressure across the decorated area.
Dimensional Stability of Multi-Layer Components.
Multi-layer shelving cabinets consist of multiple shelves, side panels, and frame components that must align precisely when assembled. Motek evaluates shrinkage distribution through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts balanced cooling channels to equalize cooling rates across all components. Shelf dimensions and slot positions are controlled with tight tolerance to ensure consistent layer spacing and assembly fit.
Compatibility Between Molding and Post-Decoration.
Hot-stamping is performed after demolding, so the molded part must be dimensionally stable and free from residual stress that could cause distortion during the heated stamping process. Motek optimizes cooling to minimize internal stress and ensures ejection is balanced to prevent warpage. Gate positions are located away from hot-stamping surfaces to avoid flow marks or gate blush that would affect foil adhesion.
Structural Rigidity for Multi-Layer Loading.
Multi-layer storage cabinets must support the weight of items on each shelf tier. Motek reinforces shelf support positions, side panel connections, and corner joints through optimized wall thickness and rib layout. Mold flow analysis verifies filling completeness at support intersections and corner nodes.
Modular Assembly and Interchangeability.
Shelving cabinets feature modular construction with shelves, side panels, and frame components that snap or slot together. Motek forms snap-fits, slot-in interfaces, and connector mounting positions with tight tolerance control, ensuring modules from different batches assemble smoothly with uniform clearances.
Appearance Coordination Between Stamped and Non-Stamped Areas.
Hot-stamped metallic accents must coordinate with the surrounding plastic surface. Motek controls surface texture on non-stamped areas—fine matte or textured finish—to provide visual contrast with the reflective stamped areas. Parting lines are positioned along concealed edges to maintain clean appearance.
Applications
Motek plastic storage cabinet multi-layer hot-stamping shelving cabinet molds are suitable for:
- Living room multi-layer hot-stamped display shelving
- Bedroom hot-stamped storage cabinets
- Children's room decorative hot-stamped shelving
- Retail display hot-stamped storage units
- Office hot-stamped document storage cabinets
Service Process
After the customer provides 3D product drawings, hot-stamping area specifications, layer configuration, and appearance requirements, Motek completes mold flow analysis (including flatness prediction, warpage compensation, and assembly fit verification) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying hot-stamping surface flatness, dimensional stability, assembly interchangeability, and surface quality, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From standard storage cabinets to hot-stamped decorative shelving, providing reliable mold solutions for injection molding of premium household storage products.
