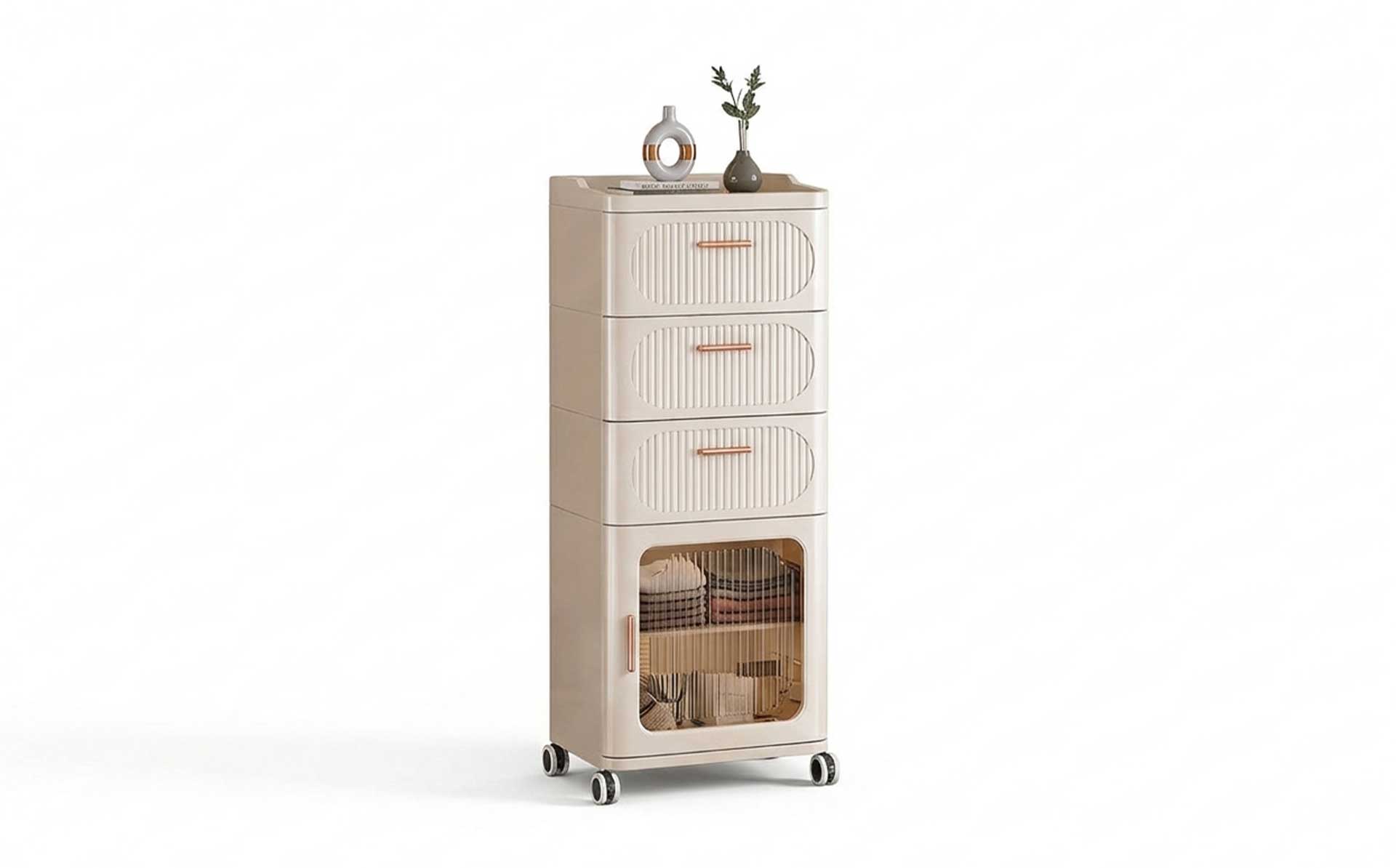

Plastic Injection Cosmetic Cabinet Mold — Product Introduction (Motek Furniture Mold Series)
Plastic Injection Cosmetic Cabinet Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for plastic injection cosmetic cabinets. These products feature multi-layer drawers, flip-top mirror consoles, or multi-compartment organizers—balancing cosmetic categorization, dust protection, and desktop space utilization, widely used in bedroom vanities, bathroom washstands, and rental apartment small-unit scenarios. Compared with standard storage cabinets, the core challenges of cosmetic cabinet molds lie in dimensional consistency of small multi-cavity components, precision forming of drawer slides and bottle compartments, and durability assurance of flip-top mirror hinges. Motek configures dedicated solutions around multi-cavity mold layout, slide forming, and hinge structure design, helping customers achieve stable mass production of cosmetic cabinets.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (food-grade/low-odor optional, good toughness) / ABS (high-gloss appearance, preferred for mirror console panels) / PS (transparent compartments optional) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 for sliders and inserts |
| Number of Cavities | 1×1 for cabinet body; 1×2 or 1×4 evaluable for drawers, compartments, and flip-tops |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 20–45 seconds (small drawers/compartments can reach 20–30 seconds; cabinet body depends on size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for transparent compartments |
| Slide Structure | Drawer slides/rails integrally formed, with dedicated tolerance control |
Product Features
Dimensional Consistency Control of Small Multi-Cavity Components.
Cosmetic cabinets typically include multiple small drawers, bottle compartments, and flip-top components that must be interchangeable. Motek produces same-size components using multi-cavity molds or shared mold base + interchangeable insert solutions, optimizing runner balance across cavities through mold flow analysis to ensure consistent length, width, depth, and snap-fit dimensions across all cavity positions. Compartment dimensions are design-verified to accommodate standard cosmetic bottle storage requirements.
Precision Forming of Drawer Slides and Bottle Compartments.
Cosmetic cabinet drawers must slide smoothly without jamming, and compartments must be neat without burrs. Motek integrally forms drawer slides and compartment dividers in the mold, applying dedicated tolerance control to slide cross-section dimensions, rail spacing, and divider wall thickness. Compartment edges are rounded to prevent scratching bottle surfaces during cosmetic retrieval. Slide area steel requires sufficient wear resistance; sliders and inserts are recommended in 718H or 2316 with nitriding treatment.
Durability Assurance of Flip-Top Mirror Hinges.
Cosmetic cabinets with mirror consoles typically use flip-top mirror structures, with hinges that must withstand frequent opening and closing without loosening. Motek integrally forms hinge mounting positions, shaft holes, and limit structures in the mold, with hinge areas using gradual wall thickness design to distribute opening/closing stress. Hinge cross-section dimensions are confirmed with customers based on opening cycle requirements and material characteristics. Hinge area steel uses tough 718H or 2316 with nitriding treatment, balancing forming precision and wear resistance.
Load-Bearing and Stability of the Cabinet Structure.
Cosmetic cabinets must bear the weight of cosmetic bottles and containers, with shelf and drawer support positions being critical load-bearing areas. Motek forms shelf support ribs and reinforcement rib networks on the inner side of cabinet side panels, with rib thickness controlled at 50%–60% of main wall thickness to enhance rigidity while avoiding sink marks on appearance surfaces. Wall thickness transitions are optimized at the cabinet base and four corners to avoid stress concentration cracking under full load.
Appearance Surface Quality and Surface Treatment.
As visible bedroom/bathroom furniture, cosmetic cabinets require clean, mark-free appearance surfaces. Motek positions gates at the cabinet bottom, drawer reverse side, or compartment interior—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning, with texture uniformity subject to consistency control. Mirror console panels can receive high-gloss treatment to enhance reflective effect.
Demolding Mechanism Optimized for Small Multi-Cavity Parts.
Small drawers, compartments, and other thin-wall components are prone to deformation from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located in non-appearance areas. For transparent compartment parts, air-blow assistance can be coordinated to release vacuum adhesion, preventing compartment side walls from being scratched.
Applications
Motek plastic injection cosmetic cabinet molds are suitable for:
- Bedroom vanity cosmetic cabinets
- Bathroom washstand cosmetic storage cabinets
- Rental apartment/small-unit cosmetic storage cabinets
- Multi-layer cosmetic cabinets with flip-top mirror consoles
- Desktop cosmetic compartment organizer boxes
Service Process
After the customer provides 3D product drawings, drawer/compartment configuration, mirror flip-top plans, and appearance requirements, Motek completes mold flow analysis (including multi-cavity consistency verification, slide fit evaluation, and hinge structure analysis) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying drawer push-pull smoothness, compartment dimensional accuracy, hinge opening/closing durability, and appearance surface quality, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From storage cabinets to cosmetic cabinets, providing reliable mold solutions for multi-cavity precision injection molding of household plastic products.
