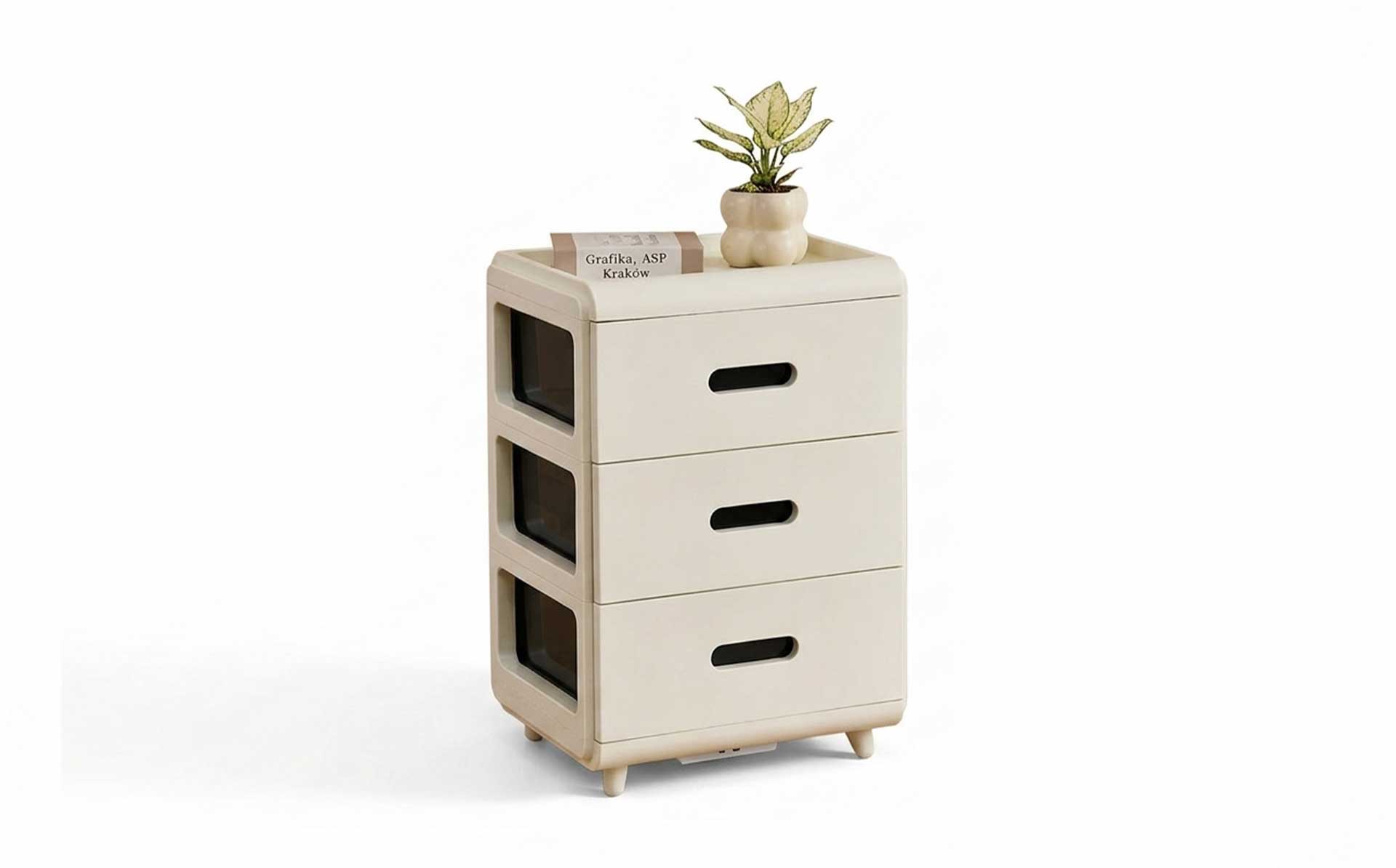

Bedroom Plastic Bedside Storage Cabinet Mold — Product Introduction (Motek Furniture Mold Series)
Bedroom Plastic Bedside Storage Cabinet Mold — Product Introduction (Motek Furniture Mold Series)
Product Positioning
Motek introduces dedicated injection mold solutions for plastic bedside storage cabinets for bedroom use. These products feature compact dimensions with multi-layer drawers or open compartments, balancing bedside item organization (phones, glasses, books, medications) with compact bedside space utilization—widely used in bedrooms, rental apartments, student dormitories, and hotel guest rooms. Compared with living room storage cabinets or large wardrobes, the core challenges of bedside storage cabinet molds lie in slide fit precision of small-size drawers, cabinet stability in narrow bedside spaces, and appearance coordination with bedroom furniture styles. Motek configures dedicated solutions around small-part multi-cavity mold layout, slide forming, and cooling systems, helping customers achieve stable mass production of bedside storage cabinets.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP (low-odor, good toughness) / ABS (high-gloss appearance, coordinated with bedroom furniture styles) / HDPE (high rigidity) |
| Mold Material | P20 / 718H / NAK80 for cavity and core; 718H / 2316 for sliders and inserts |
| Number of Cavities | 1×1 for cabinet body; 1×2 or 1×4 evaluable for drawers and compartments |
| Mold Life | 300,000–800,000 shots (depending on steel selection and maintenance) |
| Cycle Time | 20–45 seconds (small drawers can reach 20–30 seconds; cabinet body depends on size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and stress) / Cold runner optional |
| Ejection Method | Ejector pins + stripper plate composite ejection; air-blow assistance for deep-cavity drawers |
| Slide Structure | Drawer slides/rails integrally formed, with dedicated tolerance control |
Product Features
Slide Fit Precision Control for Small-Size Drawers.
Bedside cabinet drawers are small in size, and slide fit precision directly affects push-pull feel and service life. Motek integrally forms drawer slides and cabinet rails in the mold, applying dedicated tolerance control to slide cross-section dimensions, rail spacing, and limit structures. The fit clearance of small drawers must balance "smooth push-pull" against "no wobbling"—excessive clearance causes drawer shaking, while insufficient clearance makes push-pull difficult. Slide area steel requires sufficient wear resistance; sliders and inserts are recommended in 718H or 2316 with nitriding treatment.
Cabinet Stability in Narrow Bedside Spaces.
Bedside cabinets are typically placed in narrow spaces beside the bed and must have good stability to prevent tipping from collision or item retrieval. Motek forms widened base support structures or anti-slip foot pad mounting positions at the cabinet base, ensuring stable placement on floors or bedside platforms. Cabinet depth-to-height ratios are design-verified to maintain a stable center of gravity within compact dimensions. For models requiring wall mounting, the mold can form wall-mounting holes or snap-fit positions.
Dimensional Consistency of Multi-Layer Drawers and Compartments.
Bedside cabinets typically contain 2–3 drawers or open compartments, with all components requiring interchangeability. Motek produces same-size components using multi-cavity molds or shared mold base + interchangeable insert solutions, optimizing runner balance across cavities through mold flow analysis to ensure consistent length, width, depth, and snap-fit dimensions across all cavity positions. Compartment heights are design-verified to accommodate books, tablets, and other common bedside items.
Load-Bearing and Moisture-Proof Design of the Cabinet Structure.
Bedside cabinets must bear the weight of books, water cups, and other items, with shelf support positions being critical load-bearing areas. Motek forms shelf support ribs and reinforcement rib networks on the inner side of cabinet side panels, with rib thickness controlled at 50%–60% of main wall thickness to enhance rigidity while avoiding sink marks on appearance surfaces. Wall thickness transitions are optimized at the cabinet base and four corners to avoid stress concentration cracking under full load. For humid bedroom environments, moisture-proof foot pad mounting positions can be designed at the cabinet base to reduce the impact of floor moisture.
Appearance Surface Quality and Surface Treatment.
As visible bedroom furniture, bedside cabinets require clean, mark-free appearance surfaces coordinated with bed frames, wardrobes, and other bedroom furniture styles. Motek positions gates at the cabinet bottom, drawer reverse side, or back panel interior—non-appearance areas—using hot runners or submarine gates to conceal gate marks. Cavity surfaces can receive mirror polishing (high-gloss models), fine-texture etching (matte/scratch-resistant models), or leather-grain treatment (fabric-grain/wood-grain imitation) according to product positioning, with texture uniformity subject to consistency control.
Demolding Mechanism Optimized for Small Deep-Cavity Parts.
Small drawers are deep-cavity thin-wall structures prone to deformation from vacuum adhesion during demolding. Motek adopts a stripper plate with ejector pin composite ejection solution, with ejection points preferentially located in non-appearance areas of the drawer bottom. For deep-cavity drawers, air-blow assistance can be coordinated to release vacuum adhesion, preventing drawer side walls from being scratched.
Applications
Motek bedroom plastic bedside storage cabinet molds are suitable for:
- Bedroom bedside multi-layer drawer storage cabinets
- Rental apartment/small-unit bedside storage cabinets
- Student dormitory bedside storage cabinets
- Hotel guest room bedside storage cabinets
- Children's room bedside compartment storage cabinets
Service Process
After the customer provides 3D product drawings, drawer/compartment configuration, bedside space dimensions, and appearance requirements, Motek completes mold flow analysis (including multi-cavity consistency verification, slide fit evaluation, and cabinet stability analysis) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying drawer push-pull smoothness, multi-layer component interchangeability, cabinet placement stability, and appearance surface quality, with samples provided for confirmation. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, hot runner wiring diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From bedside storage cabinets to cosmetic cabinets, providing reliable mold solutions for multi-cavity precision injection molding of small bedroom plastic furniture.
