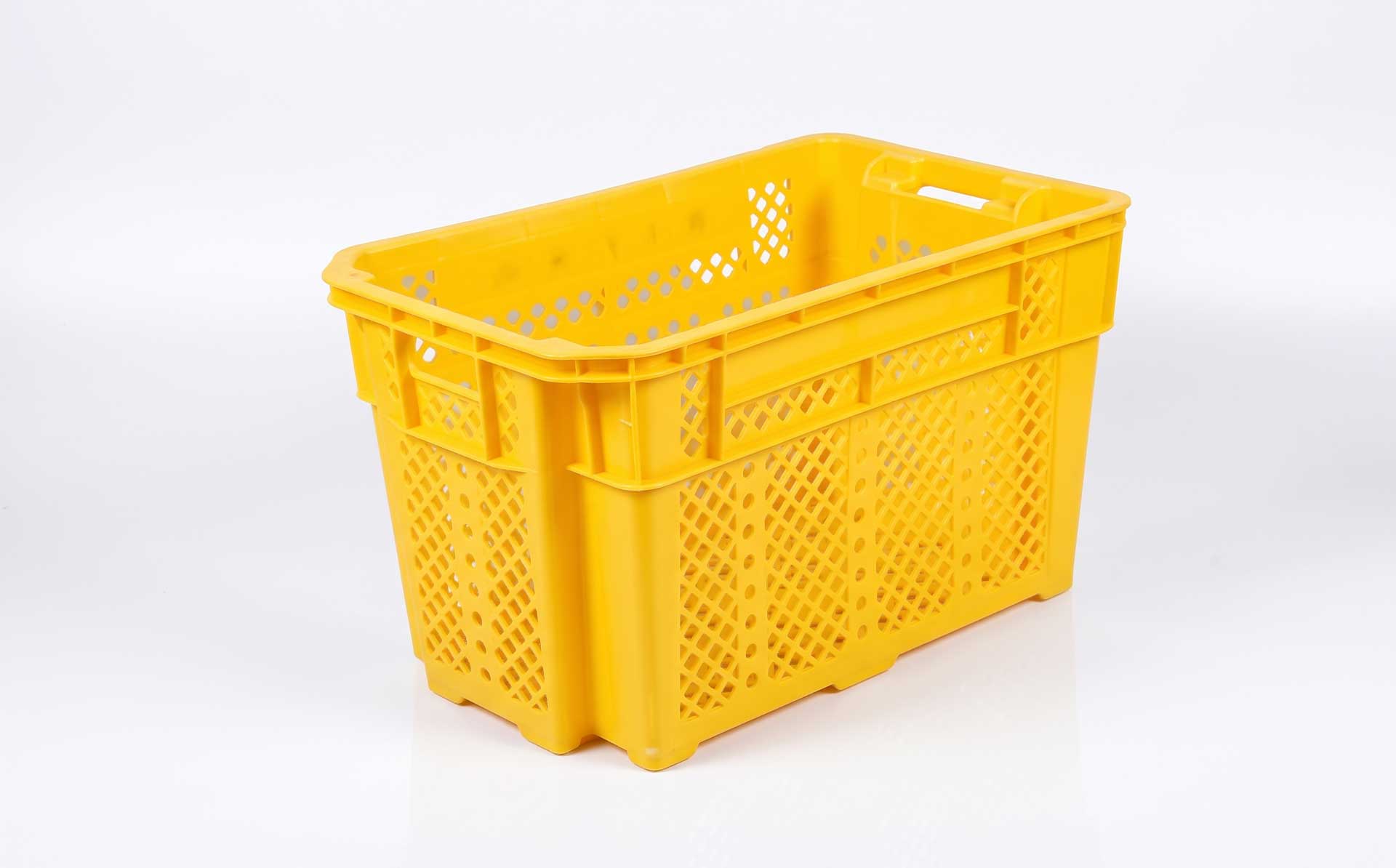

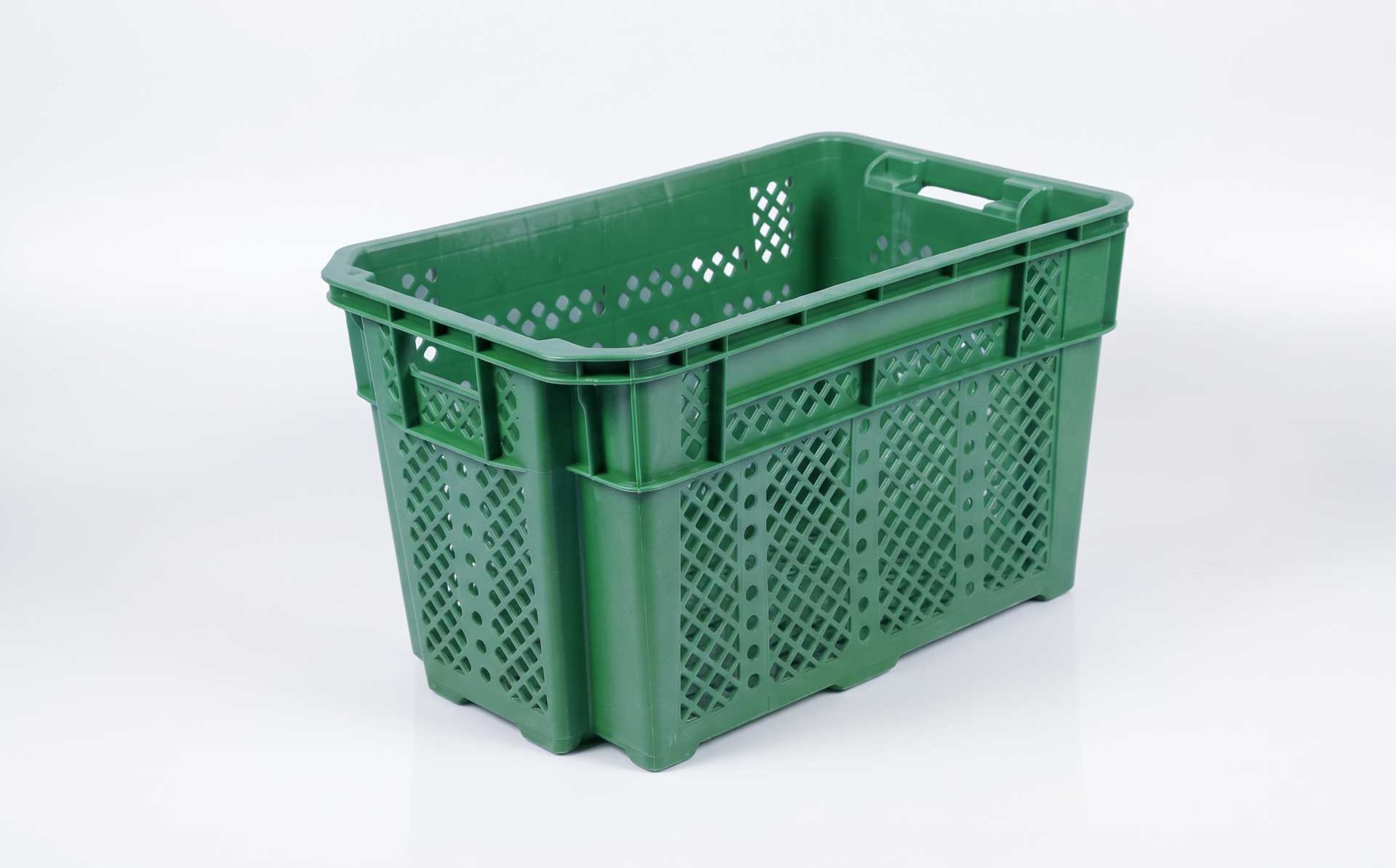

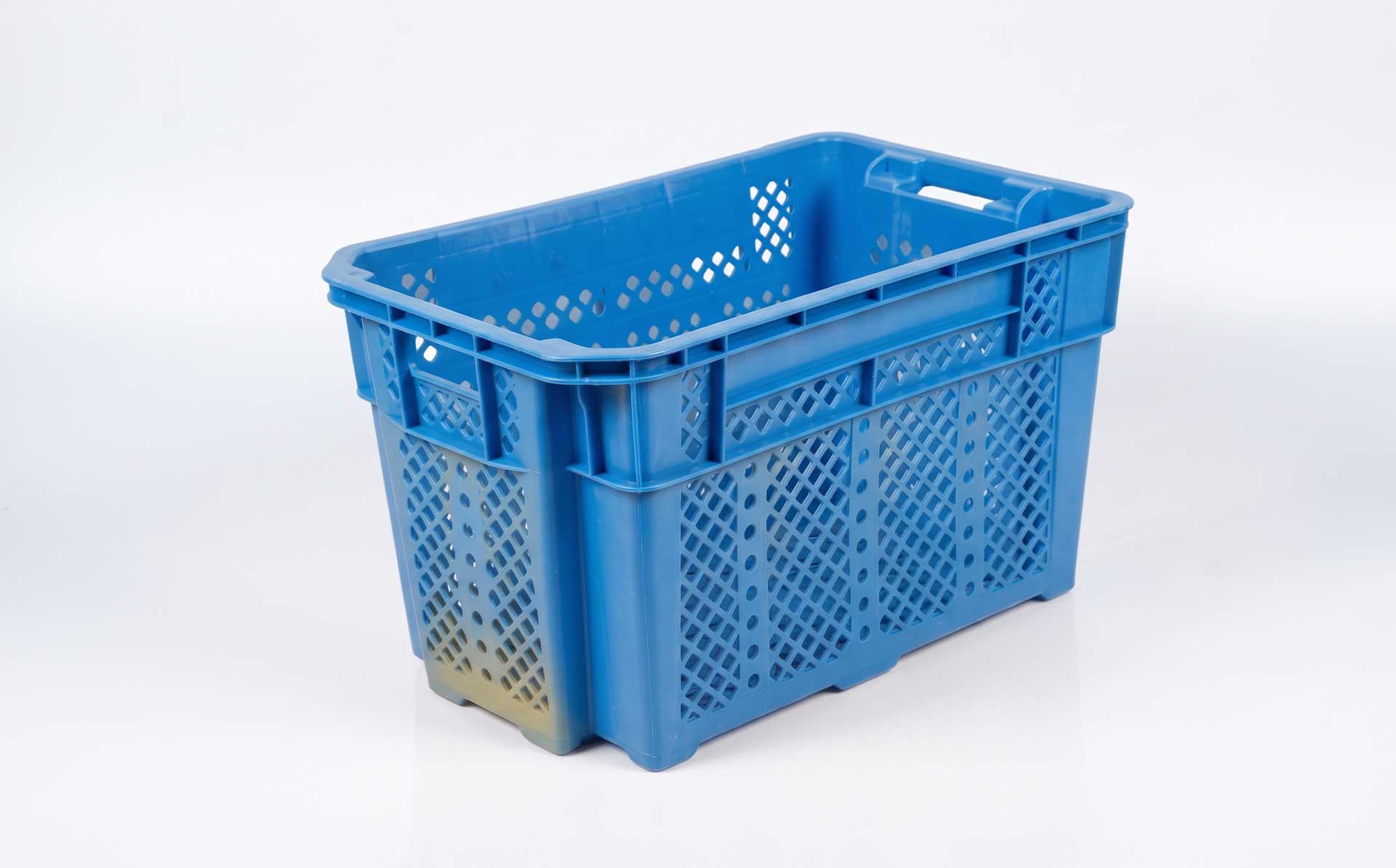

Large Logistics Stackable Tote Box Mold | Heavy-Duty Plastic Storage Crate for Distribution & Moving
Heavy-Duty Stackable Orchard & Vegetable Garden Universal Logistics Storage Crate Mold — Product Introduction (Motek Turnover Box Mold Series)
Product Positioning
Motek introduces dedicated injection molds for heavy-duty stackable logistics storage crates designed for universal use in orchards and vegetable gardens. This product category must handle the rigorous demands of agricultural harvesting and transport: heavy loads of fresh produce, rough field handling, exposure to soil and moisture, and multi-layer stacking during storage and distribution. The crates are used across both fruit and vegetable operations, requiring a versatile design that accommodates varying produce types while maintaining structural integrity under heavy loads. The core challenges in mold development lie in structural reinforcement for heavy-duty load-bearing, ventilation and drainage design for produce preservation, and stacking stability under multi-layer compression. Motek addresses these through cavity layout, cooling design, and demolding mechanisms, helping customers achieve stable mass production of heavy-duty agricultural crates.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | HDPE / PP (food-contact grade, impact-resistant, UV-stabilized for outdoor use) |
| Mold Material | P20 / 718H / 2738 (cavity and core), H13 optional for slider inserts |
| Number of Cavities | 1×1 / 1×2 (multi-cavity evaluable based on output requirements) |
| Mold Life | 500,000–1,000,000 shots |
| Cycle Time | 40–60 seconds (depending on crate size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and cycle time) / Cold runner optional |
| Ventilation Design | Slotted side walls and base integrally formed, with dedicated venting inserts |
| Stacking Design | Stacking shoulders and interlocking features integrally formed, with tolerance control |
Product Features
Structural Reinforcement for Heavy-Duty Load-Bearing.
Orchard and vegetable garden crates must withstand heavy loads of fresh produce during harvesting, transport, and storage. Motek reinforces corner posts, base runners, and side wall ribs through optimized wall thickness and rib layout, ensuring the crate maintains rigidity under stacked loads. Mold flow analysis verifies filling completeness at corner nodes where wall sections converge, preventing weak points from trapped gas or incomplete filling.
Ventilation and Drainage Design for Produce Preservation.
Fresh produce requires ventilation for respiratory heat dissipation and drainage for washing and condensation. Motek forms ventilation slots and drainage holes directly in the cavity, ensuring clean edges without flash or sharp burrs that could damage produce. Slot dimensions and spacing are designed to balance airflow efficiency with structural rigidity—critical for heavy-duty crates where open area must not compromise load-bearing capacity.
Stacking Stability Under Multi-Layer Compression.
Agricultural crates are stacked several layers high during harvest, storage, and distribution. Motek forms stacking shoulders and interlocking features with tight tolerance control, ensuring secure vertical stacking and resistance to lateral movement during vibration and handling. Stacking shoulder dimensions are verified for compatibility with standard pallets and agricultural logistics systems.
Interior Surface Quality to Protect Produce.
Fresh produce is susceptible to bruising and scratching. Motek polishes cavity interior surfaces to ensure smoothness; all corners, rib roots, and slot edges are rounded to eliminate sharp edges. Ejection points are preferentially located in non-contact areas, preventing ejection marks from forming protrusions that could damage produce.
UV Stabilization and Outdoor Durability.
Orchard and garden crates are often exposed to sunlight during field use. Motek coordinates with customers on UV-stabilized HDPE/PP grades and adjusts cavity dimensions to account for the shrinkage characteristics of modified materials. Wall thickness at impact-prone areas (corners, base edges) is appropriately increased to enhance durability.
Universal Design for Orchard and Vegetable Applications.
The crate design accommodates both fruit and vegetable operations, with compartment layouts and ventilation patterns suitable for varying produce types. Motek verifies dimensional compatibility with standard produce packaging and handling equipment during the design phase.
Applications
Motek heavy-duty stackable orchard & vegetable garden universal logistics storage crate molds are suitable for:
- Orchard harvesting and transport crates
- Vegetable garden harvesting and transport crates
- Mixed produce logistics crates
- Cold storage and distribution crates
- Washable agricultural storage and display crates
Service Process
After the customer provides 3D product drawings, load-bearing requirements, ventilation specifications, and UV exposure conditions, Motek completes mold flow analysis (including slot-forming evaluation, warpage compensation, and corner strength verification) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying structural strength, ventilation slot quality, stacking stability, and load-bearing performance, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From standard turnover boxes to heavy-duty agricultural crates, providing reliable mold solutions for orchard and vegetable logistics packaging.
