Why Should You Request Mold Structure Drawings from the Mold Maker in Addition to Product Drawings?

In mold procurement, a very common practice is this: the buyer sends the product drawings to the mold maker, agrees on the price and delivery date, and then simply waits for the mold to be completed, samples to be submitted, and acceptance to be carried out. Throughout the entire process, the buyer holds only one set of product drawings, and how the mold maker designs and manufactures the mold internally seems to be none of the buyer's business.

This approach may work for small molds, simple products, and long-standing cooperative relationships. But as long as the product is slightly more complex, or the mold value is somewhat higher, starting mold production with only product drawings is almost equivalent to leaving all the risk to yourself. Product drawings answer "what kind of part do I want to make," while mold structure drawings answer "how does this mold plan to make it, can it be made, and will it be easy to use after it is made." These are two completely different things.

Requesting mold structure drawings from the mold maker is not about checking the design on the mold maker's behalf. It is about giving the buyer a chance, before the mold is cut, to clearly see several questions that only structure drawings can answer.

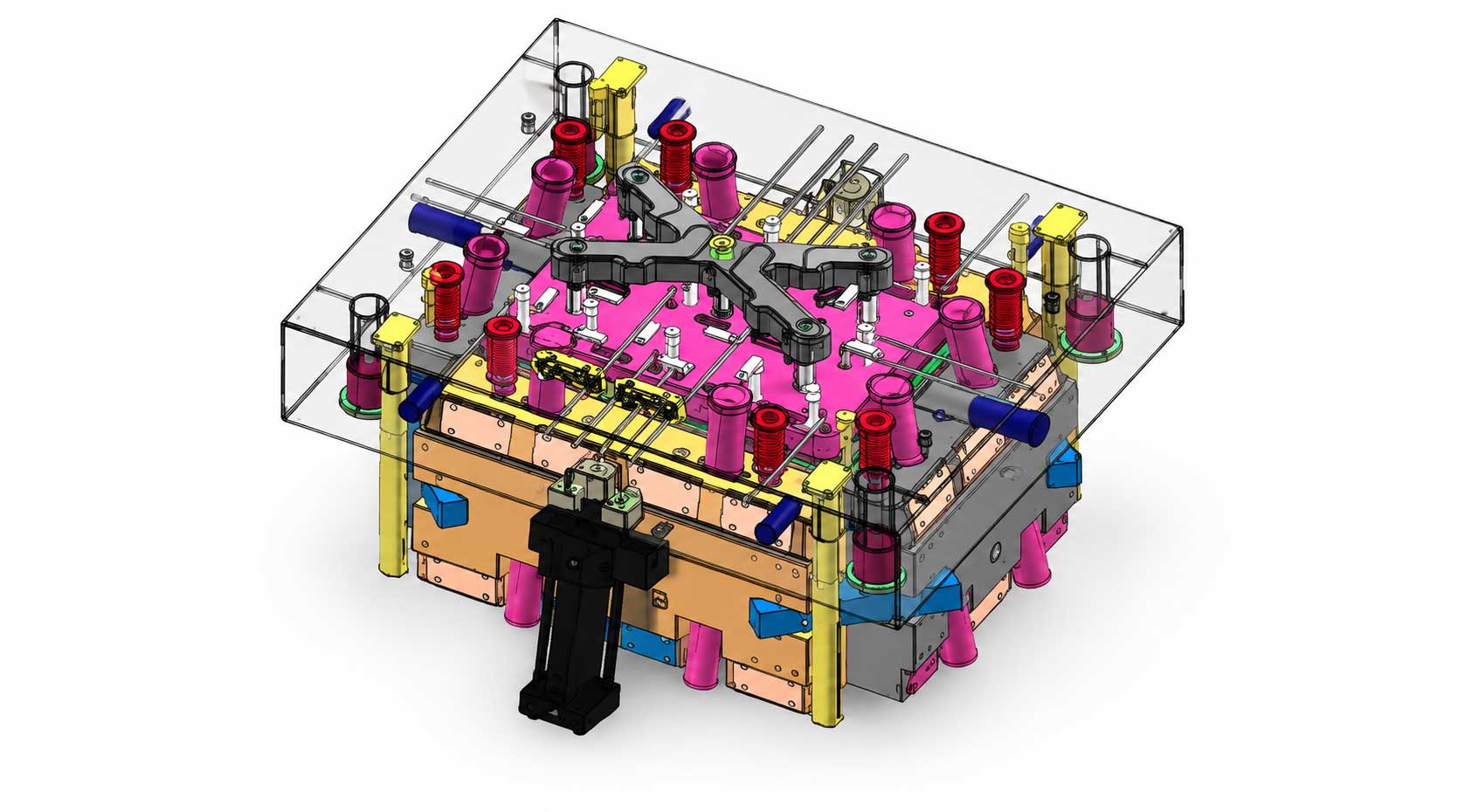

First, Product Drawings Cannot Show "How This Mold Plans to Make the Product"

Product drawings only contain the final shape, dimensions, and tolerances of the part. They do not tell you where the parting surface is placed, where the gate opens, where the ejector pins push, or how the cooling channels run. Yet these decisions are exactly the key to whether the product can be molded smoothly, whether the appearance meets requirements, and whether mass production is stable.

For the same product, different mold structure schemes can produce vastly different results. Whether the parting surface is chosen on a visible surface or a hidden surface determines whether additional trimming operations are needed later. Whether the gate opens on the front or the back determines whether there is a gate mark on the product surface. Whether the ejector pin layout is sufficient determines whether the product will be stress-whitened or deformed during demolding. None of this information appears anywhere on the product drawing—only the mold structure drawing can reflect it.

When the buyer asks for structure drawings, the essence is to confirm: what method does the supplier plan to use to realize this product, and can I accept that method?

Second, Structure Drawings Are the Basis for Judging "Is This Mold Worth the Price"

Differences in mold quotations often lie not in the product itself, but in the mold structure. For the same product, using a two-plate mold versus a three-plate mold, a standard gate versus a hot runner, a standard mold base versus a custom mold base, or P20 versus H13 can make a huge difference in cost.

If the buyer only receives a quotation sheet and a total price without structure drawings, they cannot judge what configuration that price actually corresponds to. A supplier may quote a low price because the mold base is thinner, the steel is inferior, the cooling channels are just a few random pipes, and the ejector pins are minimized wherever possible. None of this can be seen on the quotation sheet, but it is crystal clear on the structure drawing.

Requesting structure drawings is about matching the quotation with the actual configuration. The buyer does not need to be able to design molds, but they need to be able to see what materials, standard components, and structural forms this mold uses, so as to judge whether the price is reasonable.

Third, Structure Drawings Are the "Technical Manuscript" for Subsequent Acceptance and Accountability

After the mold is completed, the buyer must carry out acceptance. What is the basis for acceptance? If there are only product drawings, then only whether the product is qualified can be checked. But a qualified product does not mean a qualified mold. A mold might barely produce qualified samples, but during mass production suffer from severe flash, slow cooling, frequent ejector pin breakage, and seizing slides. These problems cannot be managed by product drawings—only mold structure drawings can serve as the basis for acceptance.

For example, if the structure drawing specifies that the mold core material is H13 with a hardness of HRC48-52, then during acceptance, it can be verified what material was actually used and whether heat treatment was performed. If the structure drawing specifies that the cooling channels use a conformal design with each channel 15 mm from the cavity, then during acceptance, the actual machining can be checked to see whether this was achieved. If the structure drawing specifies a slide stroke of 25 mm, then during acceptance, the stroke can be checked to see whether it is sufficient.

More importantly, when problems arise later, the structure drawing is the evidence for accountability. If the mold frequently flashes and the structure drawing shows that no sealing surface or back-pressure structure was designed at the parting surface, then the responsibility lies in the mold maker's design stage. If the structure drawing clearly specifies it but the actual machining did not achieve it, then the responsibility lies in the manufacturing stage. Without structure drawings, these problems cannot be clarified, and ultimately the buyer often ends up bearing the mold repair costs themselves.

Fourth, Structure Drawings Can Expose in Advance the Risk That "This Product May Not Be Makeable"

Some products look fine on the product drawing—dimensions, tolerances, and appearance requirements are all reasonable—but from a mold structure perspective, they may be impossible to make, or extremely costly with very low yield.

For example, if the product has a very deep undercut, the product drawing only marks the undercut dimensions, but only the structure drawing can show whether the slide has enough space to retract and whether the lifter angle will cause seizing. For example, if the product wall thickness is severely uneven, the product drawing shows only a few lines, but only the structure drawing can show whether the thick-wall areas will sink and whether the cooling channels can reach them. For example, if the product has high appearance requirements but the structure drawing shows that the gate can only open on a visible surface, then this appearance requirement is doomed from the start.

When the buyer requests structure drawings, they are giving themselves a chance before the mold is cut: if this structure scheme has obvious fatal flaws, there is still time to change it now. If it is discovered only after the mold is made that it cannot be produced, the loss is the mold cost and time.

Fifth, Structure Drawings Are a Tool for Internal Communication on the Buyer's Side

Mold procurement is often not decided by one person alone. The product department cares about appearance and assembly, the quality department cares about dimensions and consistency, the production department cares about molding cycle and smooth demolding, and the procurement department cares about price and delivery. If the buyer only has product drawings, internal communication can only stay at the level of "can this product be made." With mold structure drawings, the product department can see the impact of the parting surface and gate position on appearance, the quality department can see the annotations for tolerances and fit clearances, and the production department can see whether the cooling and ejection schemes are reasonable.

Structure drawings allow every role within the buyer's organization to express opinions based on the same technical document, rather than discovering problems only during trial molding. Exposing problems at the drawing stage costs the least; exposing them at the trial molding stage doubles the cost; exposing them at the mass production stage is the most expensive.

Requesting Structure Drawings Is Not About Doing the Mold Maker's Job

It should be made clear that when the buyer requests mold structure drawings, it is not about designing the mold themselves or interfering with the mold maker's technical decisions. How the mold is designed is ultimately the mold maker's professional judgment. What the buyer needs to do is understand this structure scheme and confirm whether it matches their own product requirements, production volume requirements, and cost expectations.
