Product Positioning

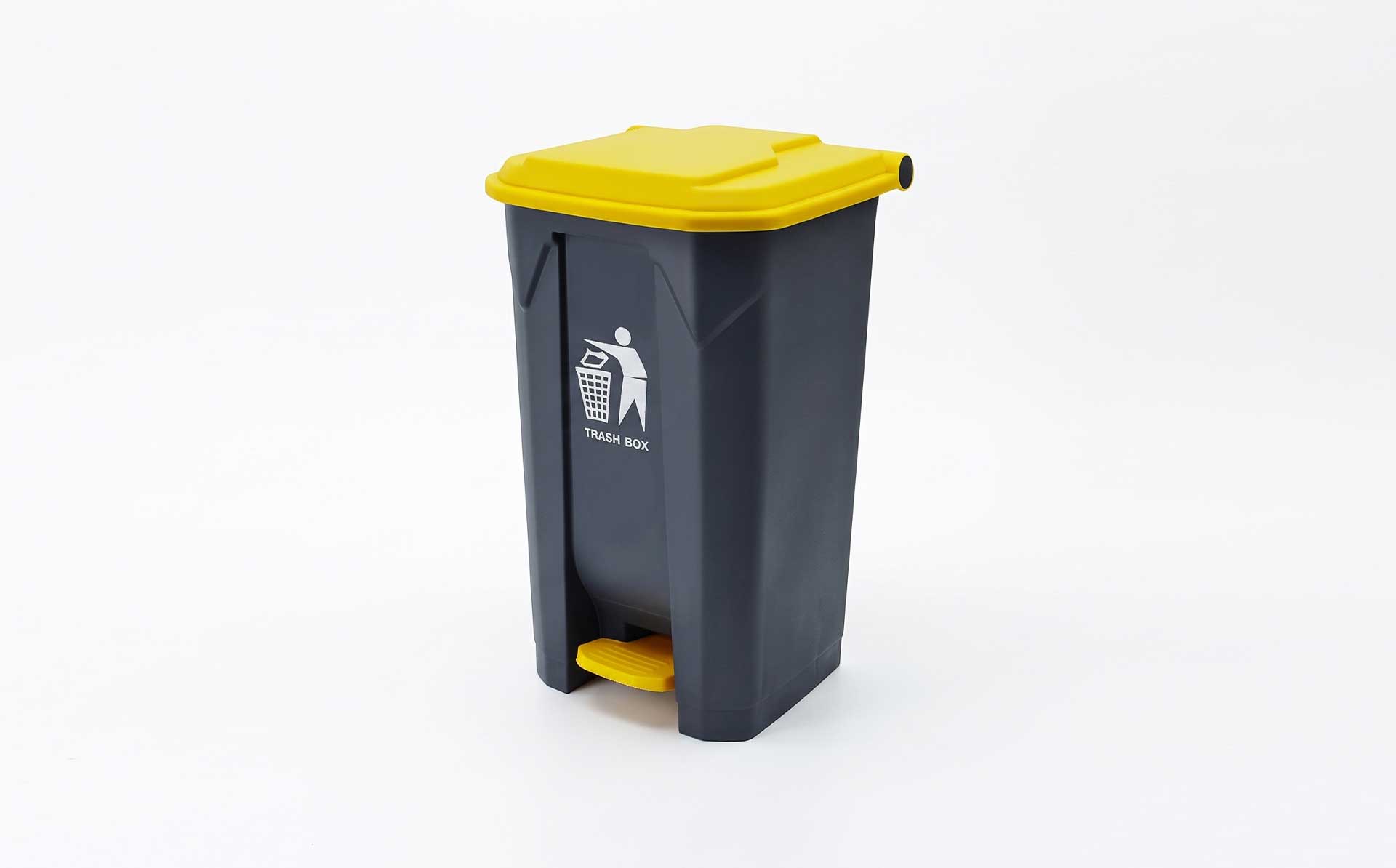

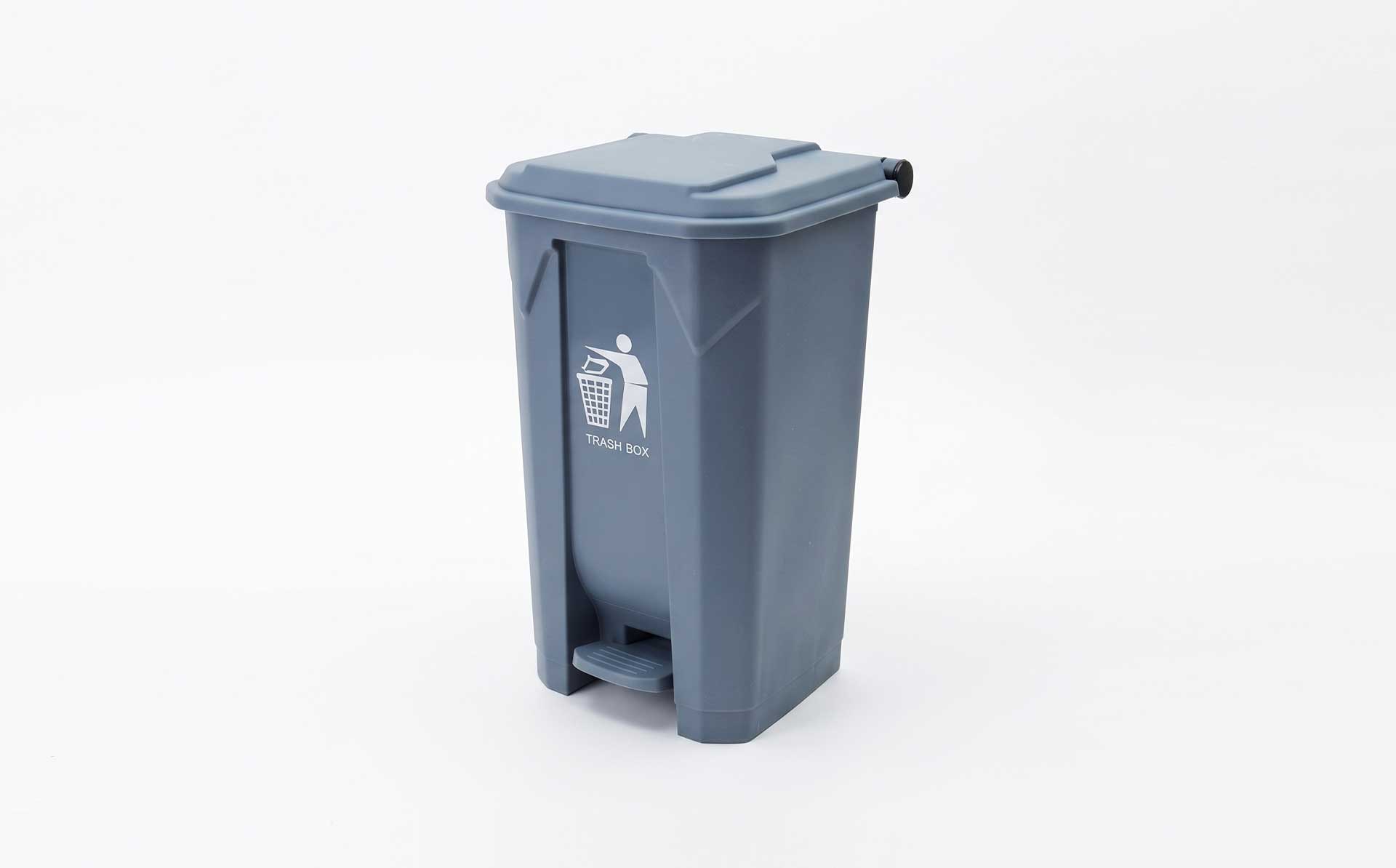

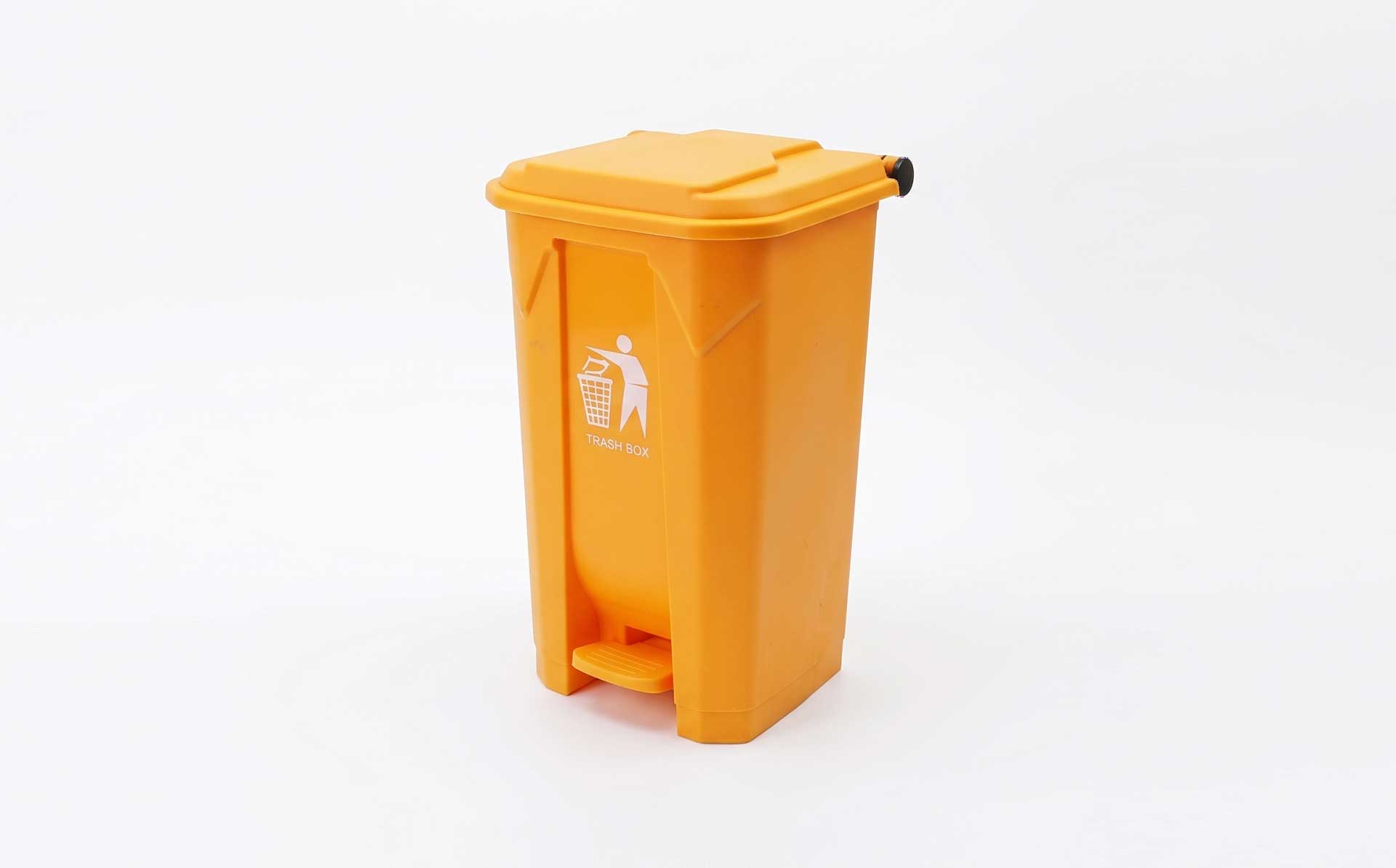

Motek introduces dedicated injection molds for 30L–60L classic public flip-top trash cans. These larger-capacity bins are designed for public spaces—parks, streets, commercial areas, schools, and transit hubs—where durability, weather resistance, and ease of maintenance are critical. The flip-top design keeps waste covered while allowing convenient disposal. Unlike household models, public bins must withstand heavy use, outdoor exposure, and frequent emptying by sanitation crews. The core challenges in mold development lie in structural reinforcement for high-capacity loads, weather-resistant material and UV-stable forming, precision fit of the flip lid for outdoor conditions, and efficient demolding of deep, large-volume bodies. Motek addresses these through cavity layout, cooling design, and demolding mechanisms, helping customers achieve stable mass production of public flip-top trash cans.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | HDPE / PP (UV-stabilized, impact-resistant, weather-resistant grades) |
| Mold Material | P20 / 718H / 2738 (cavity and core), H13 optional for slider inserts |
| Number of Cavities | 1×1 primarily (large-capacity bodies); 1×2 evaluable for smaller sizes |
| Mold Life | 500,000–1,000,000 shots |
| Cycle Time | 45–75 seconds (depending on body size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and cycle time) / Cold runner optional |
| Ejection Method | Stripper plate + ejector pins + air ejection composite ejection |
Product Features
Structural Reinforcement for High-Capacity Loads.
30L–60L public bins must withstand heavy waste loads, rough handling during emptying, and potential impact. Motek reinforces corner posts, base runners, and side wall ribs through optimized wall thickness and rib layout, ensuring the bin maintains rigidity under full-load conditions. Mold flow analysis verifies filling completeness at corner nodes where wall sections converge.
Weather Resistance and UV-Stable Forming.
Public bins are exposed to sunlight, rain, and temperature fluctuations year-round. Motek coordinates with customers on UV-stabilized HDPE/PP grades and adjusts cavity dimensions to account for the shrinkage characteristics of modified materials. Wall thickness at impact-prone areas (corners, base edges) is appropriately increased to enhance durability.
Precision Fit of Flip Lid for Outdoor Conditions.
The flip lid must open smoothly and close securely despite outdoor temperature variations and potential wind. Motek applies tight tolerance control to lid hinge positions, snap-fits, and mating surfaces, ensuring reliable operation after repeated use. For wind-prone outdoor locations, the lid design can incorporate weighted or latching features formed directly in the cavity.
Efficient Demolding of Deep, Large-Volume Bodies.
Large-capacity bins have deep cavity structures where cooling and demolding are challenging. Motek adopts conformal cooling channels focusing on the bin bottom and side wall transition areas to equalize cooling rates. The demolding system uses a stripper plate combined with ejector pins and air ejection for composite ejection, ensuring large bodies release smoothly after constraints are fully released, preventing scratching or deformation.
Ventilation and Drainage for Outdoor Use.
Public bins may be exposed to rain, and waste may contain liquids. Motek forms drainage holes and ventilation slots directly in the cavity, ensuring water drains completely and odors are minimized. Drainage channels are smooth and free of dead corners where debris could accumulate.
Easy-Empty and Maintenance-Friendly Design.
Sanitation crews frequently empty public bins. Motek forms smooth interior surfaces and rounded corners to facilitate quick emptying and cleaning. The lid mechanism is designed for easy detachment where required, and all edges are deburred to prevent injury during handling.
Applications
Motek 30L–60L classic public flip-top trash can molds are suitable for:
- Park and street flip-top trash cans
- Commercial area public waste bins
- School and campus trash cans
- Transit hub and station waste bins
- Outdoor public space litter bins
Service Process
After the customer provides 3D product drawings, capacity specifications, load-bearing requirements, and UV exposure conditions, Motek completes mold flow analysis (including deep cavity filling evaluation, warpage compensation, and lid fit verification) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying lid opening/closing reliability, body demolding quality, structural strength, and drainage performance, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From household to public-space waste bins, providing reliable mold solutions for large-capacity outdoor trash can production.
