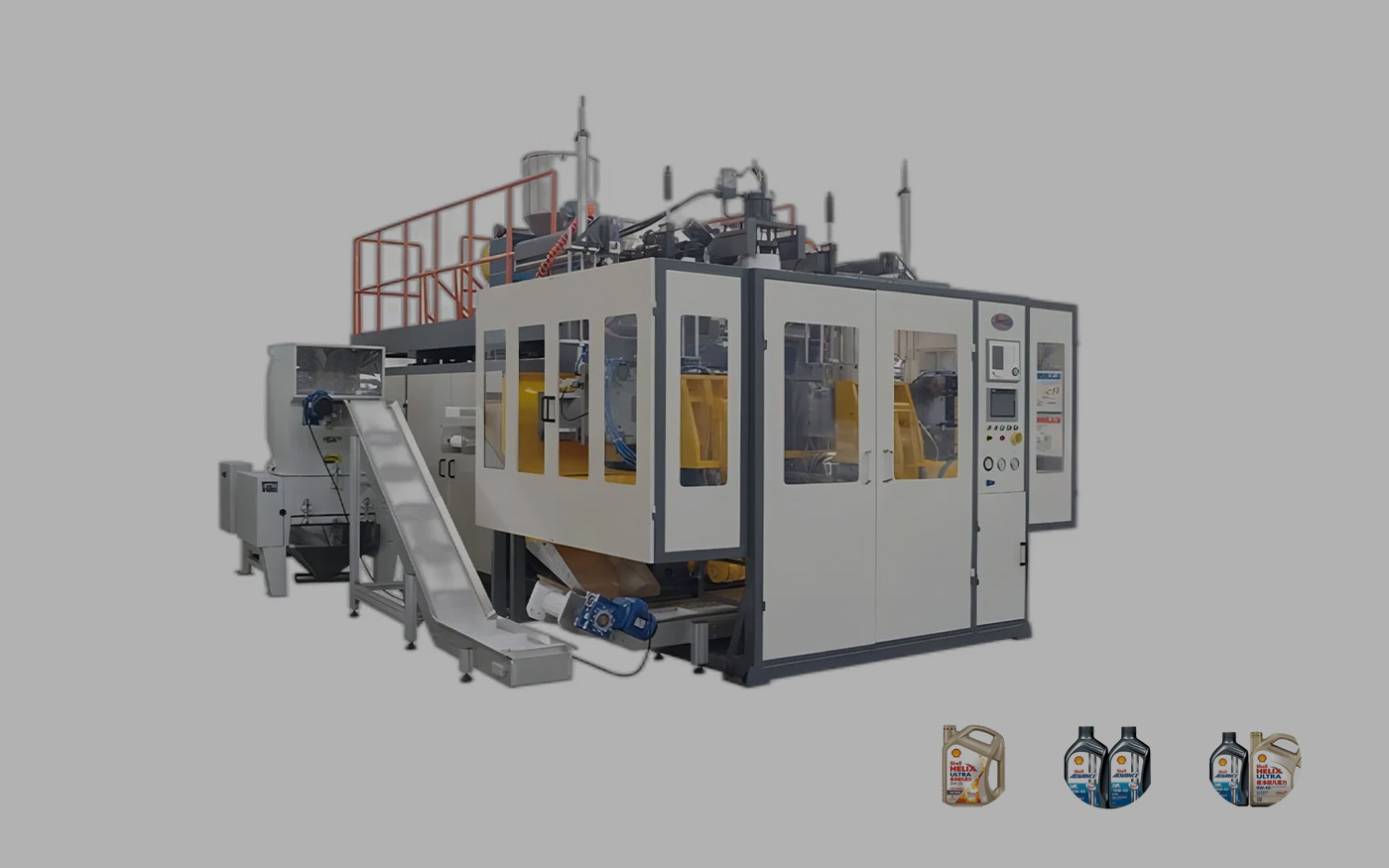

05D/12D/20D Liter High-Performance Blow Molding Machine
Product Detail Page:
1-5L High-Performance Blow Molding Machine
Section 1: Headline / Core Selling Point
【High Efficiency & Precision · Flexible Customization】
1-5L Automatic Blow Molding Line——Specialized for Gear Oil Bottles, Lube Oil Bottles, Cooling Water Tanks & More
Section 2: Product Overview
This series of machinery is specifically designed for the high-volume, high-quality production of small to medium-sized hollow containers. Whether it's high-viscosity gear oil bottles or cooling water tanks requiring a sight strip, we provide a complete turnkey solution from extrusion to finished product conveying. With modular configuration options, a single machine can efficiently meet the demands of your diverse product range.
Section 3: Performance & Advantages (Detailed)
1. Broad Product Adaptability
Wide Capacity Range: Suitable for producing various hollow products ranging from 1 liter to 5 liters.
Typical Applications: Perfect for manufacturing gear oil bottles, lubrication oil bottles, automotive cooling water expansion tanks, tool boxes, and more.
High Material Compatibility: Supports a wide variety of thermoplastics, including HDPE, PP, PVC, and PETG.
2. Flexible Production Configurations
Multi-layer Co-extrusion (Optional): Equip with a multi-layer co-extrusion die head to achieve barrier layer technology (e.g., EVOH), meeting high-barrier anti-permeation packaging needs (such as long-life motor oil).
Transparent Sight Strip System (Optional): Integrate a view strip line system to directly form a transparent liquid level window during the production of products like cooling water tanks, eliminating the need for secondary printing or labeling.
3. Modular Die Head Design
Multi-Cavity Options: Flexibly choose between single, double, or multi-cavity die heads based on product size and output requirements to maximize production efficiency.
Precise Wall Thickness Control: Achieve precise control over parison wall thickness to save raw materials and shorten cooling cycles.
4. Stable & Reliable Extrusion System
Efficient Filtration: Customize with the JW-DB Single Station Hydraulic Screen Changer System based on the material being processed (e.g., regrind or calcium carbonate-filled materials). This effectively filters impurities, ensuring continuous production without interruption and reducing downtime risks.
5. Fully Automated Post-Processing Solutions (Optional)
Understanding the challenges of rising labor costs, we offer comprehensive automation options to lay the foundation for "lights-out" manufacturing:
Online Auto-Deflashing: Products are automatically deflashed upon removal, eliminating the need for manual secondary trimming.
In-Line Scrap Conveying: Flash is automatically conveyed back to a grinder via conveyor belt for immediate recycling and reuse of scrap material.
Finished Product Conveying: Finished products are neatly transported to the packaging area via conveyor belt, facilitating easy inspection and packing.
