30/50/100/160 Liter Large Part Blow Molding Machine for Automotive Components
Product Detail Page:
Large Part Blow Molding Machine for Automotive Components
Section 1: Headline / Core Selling Point
【Heavy-Duty Precision · Large-Scale Molding】
Industrial Blow Molding System——Specialized for Automotive Bumpers, Spoilers, Ducts & Technical Parts
Section 2: Product Overview
This series represents the pinnacle of large-part blow molding technology, engineered specifically for the automotive industry. Designed to handle engineering-grade materials and massive part weights, this machine delivers the robustness required for producing everything from complex air ducts to structural bumpers. Featuring a high-output extruder paired with an accumulating die head, it ensures seamless material flow and consistent wall thickness for the most demanding technical components.
Section 3: Performance & Advantages (Detailed)

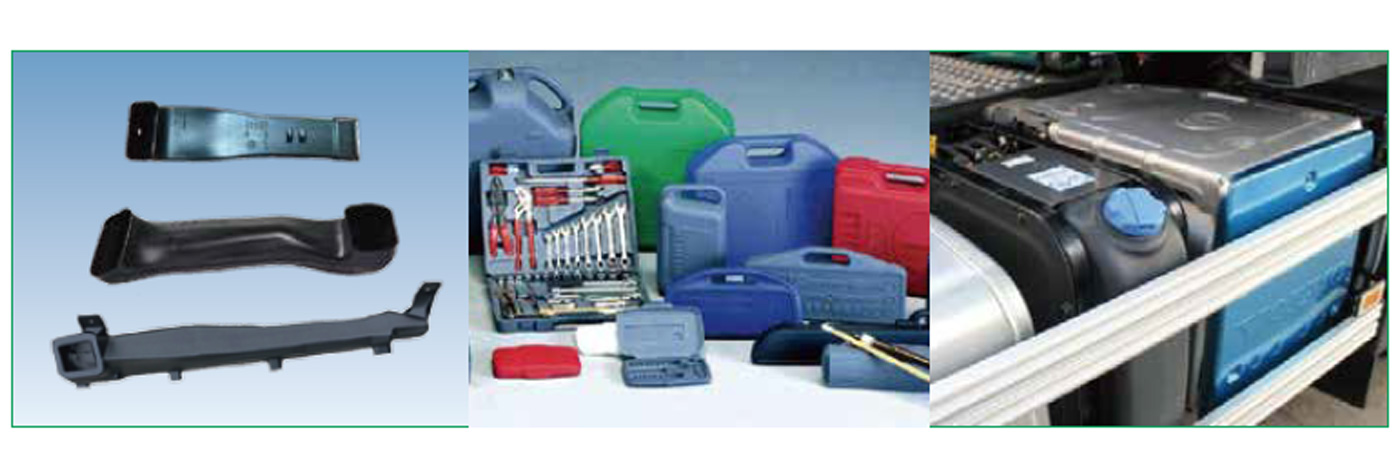

1. Broad Application in Automotive Manufacturing
Exterior Body Parts: Capable of molding large-sized components such as Car Spoilers and Bumpers with excellent surface finish and structural integrity.
Under-Hood & Functional Parts: Ideal for complex geometries including Auto Air Ducts, Flow Boards, and Automotive Seats.
Industrial & Utility: Perfect for heavy-duty items like Urea (AdBlue) Tanks and Tool Boxes, requiring chemical resistance and impact strength.
2. High-Performance Extrusion & Accumulation
High Output Extrusion System: Equipped with a powerful extruder designed for maximum plasticizing capacity, ensuring efficient processing of high-viscosity materials.
Accumulating Die Head Technology: Utilizes a large-shot-weight accumulator head to gather material and inject it rapidly. This technology is critical for molding large parts without premature freezing, ensuring uniform wall thickness and reducing stress marks.
3. Robust Material Filtration
Hydraulic Screen Changer (Optional): Configure with the JW-DB Single Station Hydraulic Screen Changer to handle contaminated materials or regrind. This ensures continuous operation by allowing quick screen changes without stopping the extruder, protecting the die head from impurities.
4. Customized Clamping Unit
Tailored Platen Design: Unlike standard machines, the platen type and size are fully customized according to product dimensions. This ensures optimal mold support, reduces deflection, and guarantees part quality regardless of the part's specific geometry.
5. Precision Motion Control
Hydraulic Servo Control System (Optional): Upgrade to a hydraulic servo control system for significant energy savings, reduced noise, and ultra-precise control over mold movement speeds. This results in faster cycles and smoother operation.
6. Fully Integrated Automation
Bottom Sealing & Take-out Robotics (Optional): Enhance production efficiency with optional automation packages:
Bottom Sealing Device: Ensures secure pinch-off for deep parts or containers.
Take-out Robot: Automatically extracts large, heavy, or hot parts from the machine, ensuring operator safety and facilitating downstream cooling or finishing processes.
