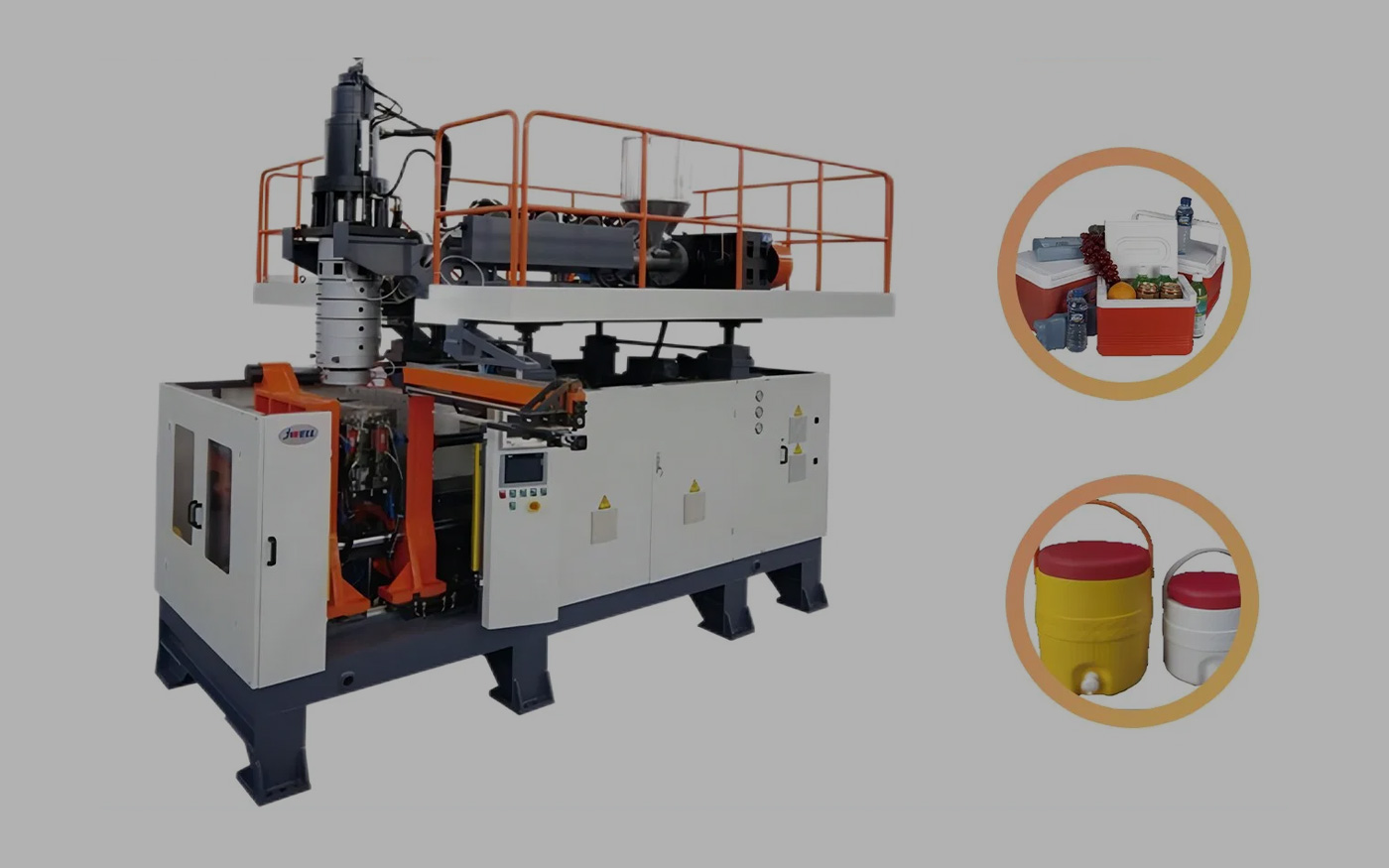

30/50/100 Liter Industrial Blow Molding Machine for Specialty & Logistics Products
Product Detail Page:
Industrial Blow Molding Machine for Specialty & Logistics Products
Section 1: Headline / Core Selling Point
【Deep Draw · Heavy Duty · High Output】
Specialized Blow Molding System——Engineered for Road Pyramids, Insulation Barrels & Industrial Hollow Parts
Section 2: Product Overview
This machine series is purpose-built for the challenges of producing deep, heavy-walled, and high-strength industrial products. Whether it is the tall, tapered geometry of a road safety pyramid or the insulated double-wall construction of a logistics barrel, this system delivers. Featuring a high-output extruder paired with an accumulating die head, it ensures the material strength and structural integrity required for demanding industrial applications.
Section 3: Performance & Advantages (Detailed)
1. Specialized Application Focus

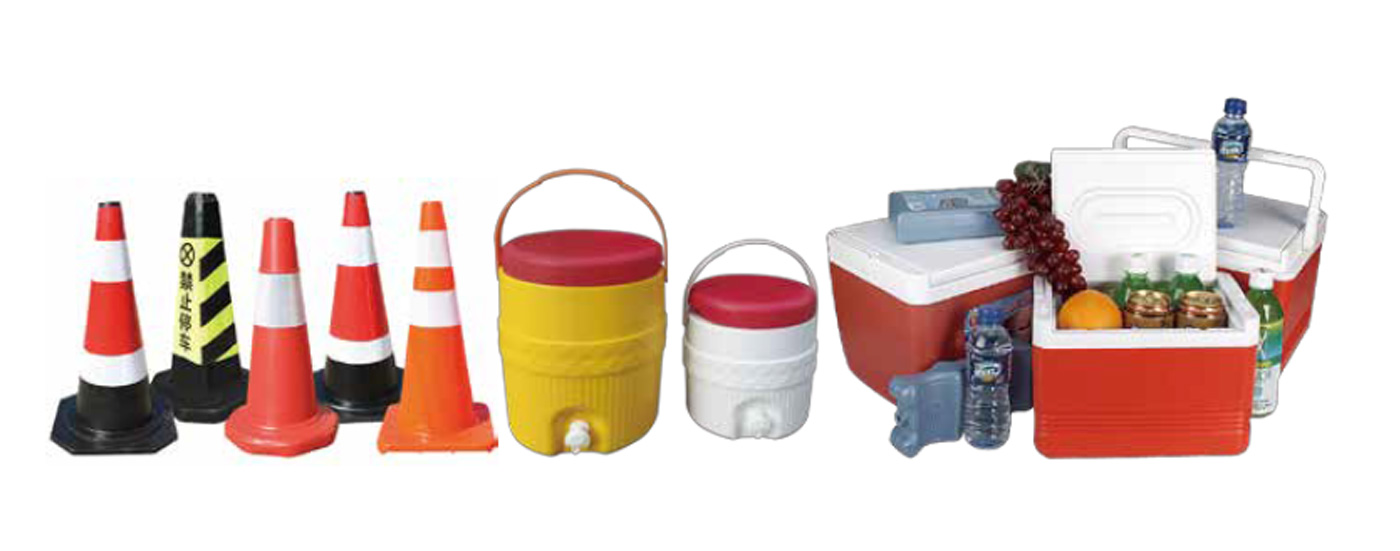

Traffic & Safety: Specifically designed to handle the deep draw and thick walls required for manufacturing durable Road Pyramids (Road Cones) .
Cold Chain & Logistics: Ideal for molding large Logistics Insulation Barrels, ensuring consistent wall thickness for thermal retention and structural rigidity during transport.
2. High-Performance Extrusion & Accumulation
High Output Extrusion System: Equipped with a powerful extruder designed for maximum plasticizing capacity, ensuring efficient processing of both virgin and regrind materials common in industrial applications.
Accumulating Die Head Technology: Utilizes a large-shot-weight accumulator head to gather material and inject it rapidly. This is critical for molding large, heavy parts without premature freezing, ensuring uniform wall thickness and eliminating weak spots.
3. Advanced Functionality for Complex Geometries
Core-Pulling Movement Elements (Optional): Configure with core-pulling functions to create complex undercuts, side holes, or threaded openings required for functional barrels or interlocking pyramid bases.
Product Ejection System (Optional): Equip with an automatic product ejection mechanism to safely remove deep, tall parts that may get stuck in the mold, reducing cycle time and operator intervention.
Bottom Sealing (Optional): Ensure a secure and airtight pinch-off for containers and barrels with the optional bottom sealing device.
4. Precision & Energy Efficiency
Hydraulic Servo Control System (Optional): Upgrade to a hydraulic servo control system for significant energy savings (up to 50-70%), reduced noise levels, and ultra-precise control over mold movement speeds. This ensures smooth operation, especially crucial when ejecting tall parts like pyramids.
