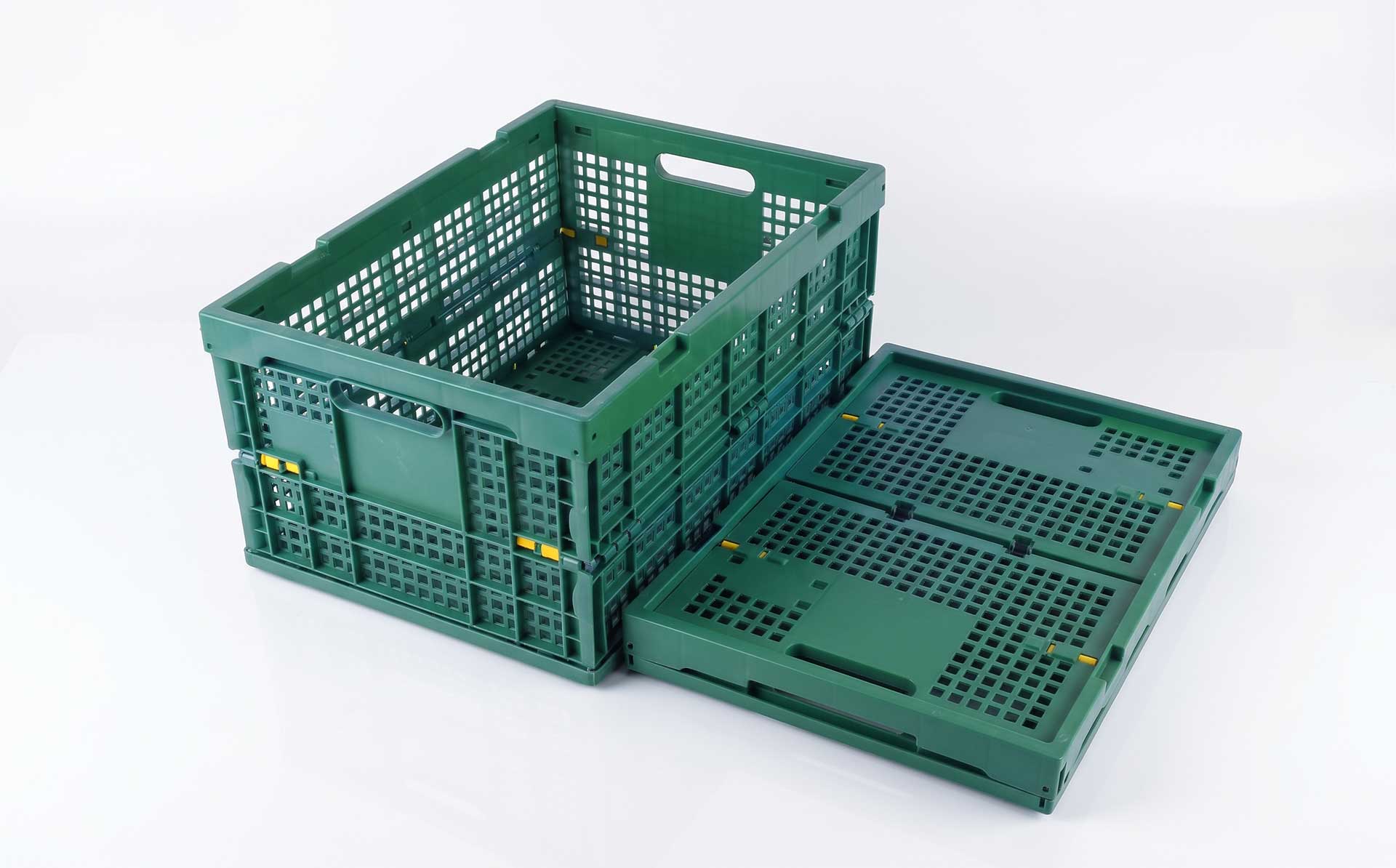

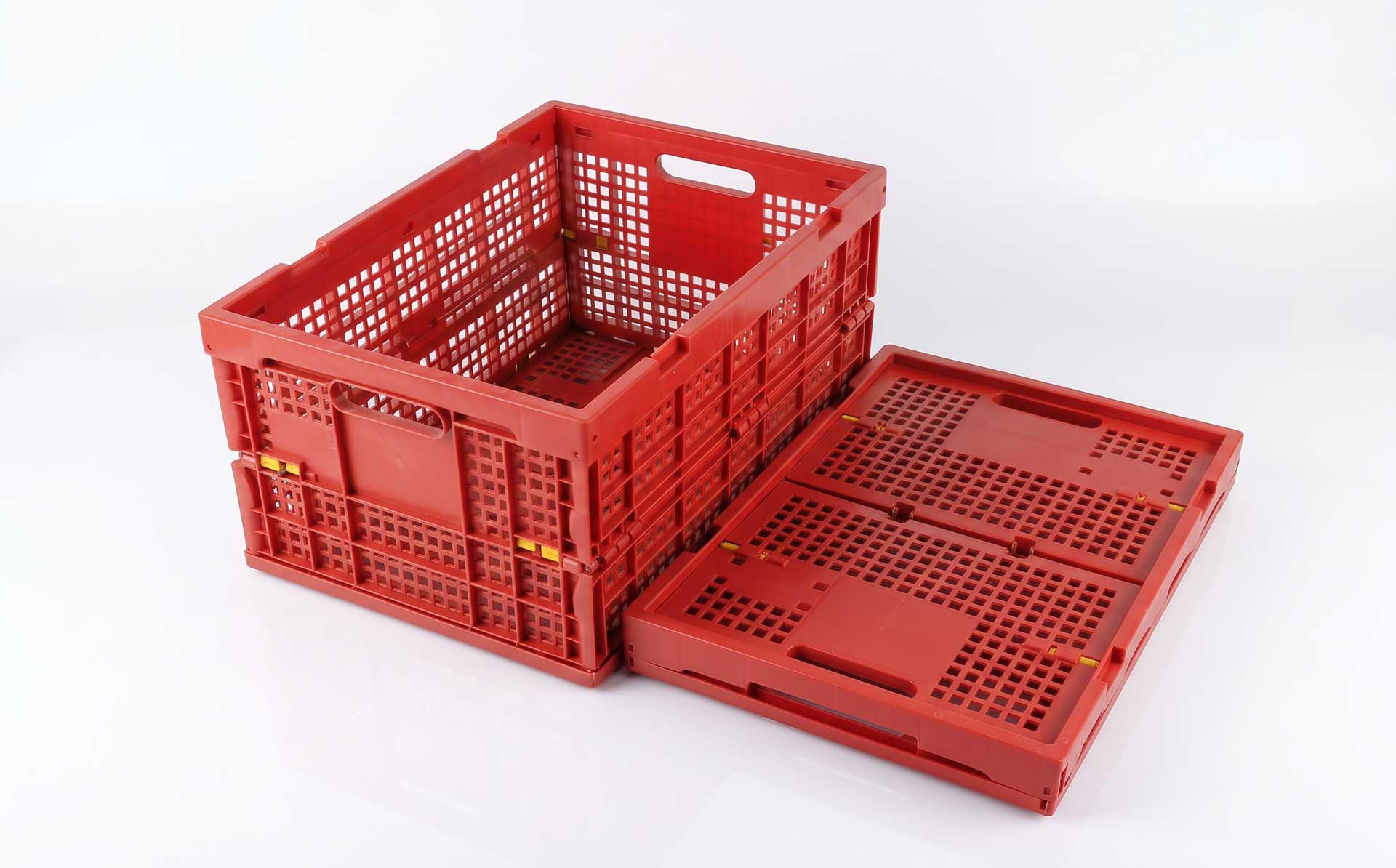

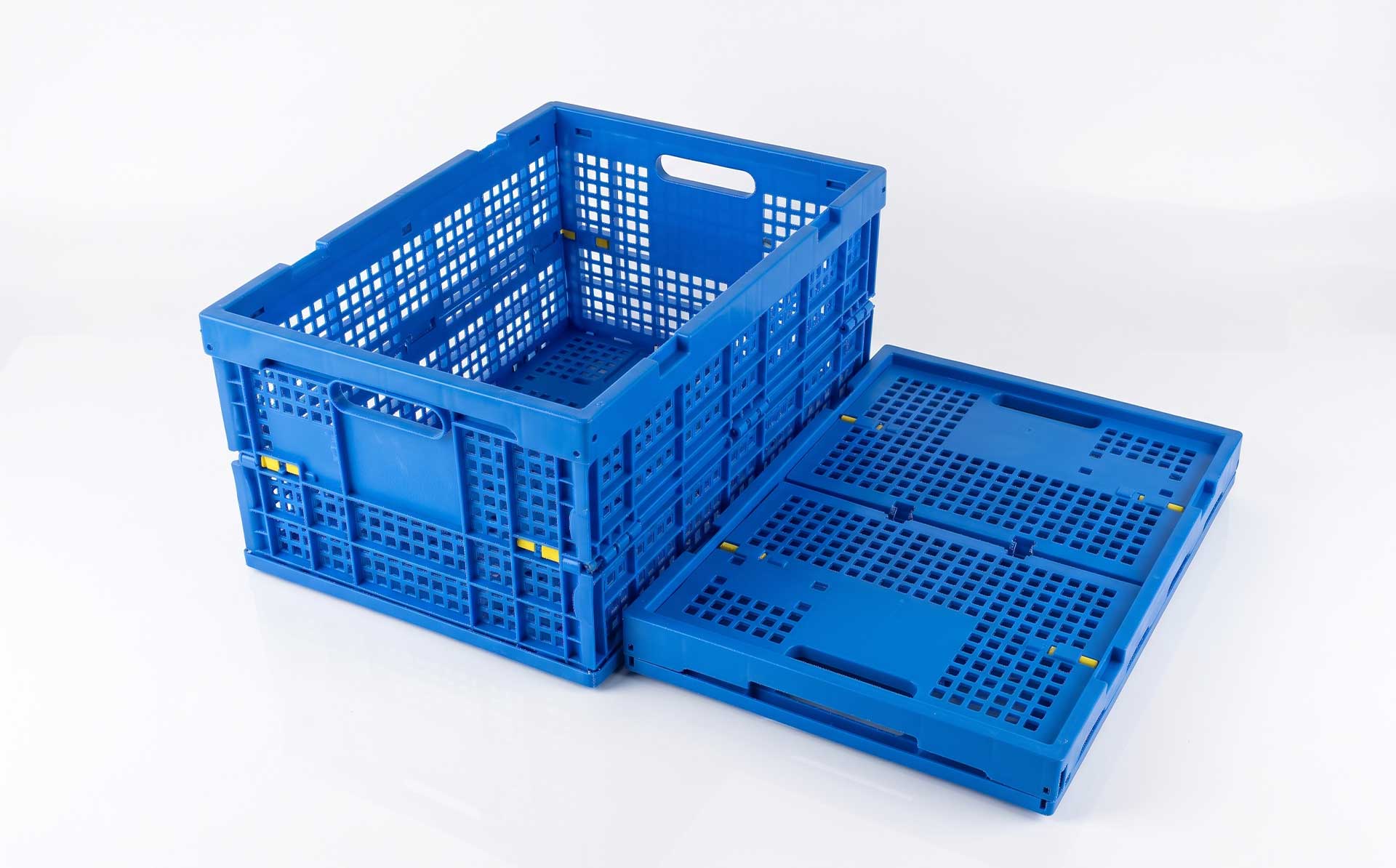

Plastic Folding Box Mold for Logistics & Storage — Product Introduction (Motek Turnover Box Mold Series)
Plastic Folding Box Mold for Logistics & Storage — Product Introduction (Motek Turnover Box Mold Series)
Product Positioning
Motek offers dedicated injection mold solutions for plastic folding boxes used in logistics and storage applications. These products combine two key functions—"space-saving folding" and "durable load-bearing"—and are commonly used in warehousing and distribution, returns processing, retail replenishment, and home or office storage. Compared with standard rigid crates, the core challenges of logistics folding box molds lie in hinge structure forming and fatigue life assurance for repeated folding, dimensional precision of interlocking and stacking features, and warpage control of large flat panels after unfolding. Motek configures dedicated solutions around hinge design, slider mechanisms, and cooling optimization, helping customers achieve stable mass production of logistics folding boxes.
Core Specifications
| Item | Specification |
|---|---|
| Applicable Plastics | PP / HDPE (impact-resistant, low-temperature resistant grades) |
| Mold Material | P20 / 718H / 1.2738 (cavity and core), H13 optional for slider inserts |
| Number of Cavities | 1×1 primarily (large folding box parts); 1×2 evaluable for small specifications |
| Mold Life | 300,000–800,000 shots |
| Cycle Time | 40–70 seconds (depending on box size and cooling design) |
| Mold Base Standard | LKM / HASCO / DME or customer-specified |
| Runner System | Hot runner recommended (reduces cold slugs and cycle time) / Cold runner optional |
| Folding Structure | Hinges integrally formed with thin walls, with sliders for side wall forming |
Product Features
Hinge Structure Forming and Fatigue Life Assurance.
The hinge area is the functional core of folding boxes and must withstand repeated folding without cracking. Motek integrally forms hinge thin-wall structures in the mold, using gradual wall thickness design to distribute stress during folding and avoid stress concentration that causes fatigue fracture. Hinge area steel requires sufficient toughness, with cavity surface treatment balancing demolding smoothness and wear resistance. For multi-segment folding structures, slider and insert action sequences are designed with linkage to ensure synchronous forming and smooth demolding of all folding faces.
Dimensional Precision of Interlocking and Stacking Features.
Folding boxes must lock securely when unfolded and stack stably when folded. Motek forms locking tabs, stacking shoulders, and alignment features with tight tolerance control, ensuring secure interlocking after unfolding without wobbling and compact, stable stacking when folded. Stacking shoulder dimensions are verified for compatibility with standard pallets and logistics systems.
Warpage Control for Large Flat Panels After Unfolding.
Folding box panels have large flat areas with high open ratios, making them prone to warpage during cooling. Motek evaluates shrinkage distribution through mold flow analysis, applies pre-deformation compensation to the cavity, and adopts balanced cooling channels to equalize cooling rates across the box body. Reinforcement ribs are integrated at corners and base edges to maintain dimensional stability while preserving foldability.
Load-Bearing Strength at Corners and Base.
Logistics folding boxes are stacked several layers high and must withstand compression without cracking. Motek reinforces corner posts and base runners through optimized wall thickness and rib layout, ensuring the box maintains rigidity under stacked loads. Mold flow analysis verifies filling completeness at corner nodes where wall sections converge.
Demolding Mechanism for Complex Folding Structures.
Folding boxes feature undercut structures at side walls and hinge areas requiring side core-pulling. Motek configures sliders and lifters based on the undercut distribution, ensuring constraints are released in sequence before ejection. Ejection points are preferentially located in non-appearance areas to avoid visible marks.
Cooling Efficiency and Cycle Time Control.
Folding boxes have uneven wall thickness distribution (thin hinge areas, thick wall areas), and uneven cooling can easily cause warpage or hinge deformation. Motek adopts zoned cooling channels, focusing on thick-wall areas and hinge transition zones to equalize cooling rates across regions, shortening cycle time while ensuring dimensional stability.
Applications
Motek plastic folding box molds for logistics and storage are suitable for:
- Warehouse and distribution folding crates
- Returns processing folding boxes
- Retail replenishment folding containers
- Home/office folding storage boxes
- Stackable folding logistics containers (hinge structure evaluation required)
Service Process
After the customer provides 3D product drawings, load-bearing requirements, and folding function requirements, Motek completes mold flow analysis (including hinge structure evaluation, warpage compensation, and stacking feature verification) and mold structure confirmation; cavity steel and hot runner systems are procured according to agreed specifications; progress and key milestones are regularly reported during processing. During trial molding, emphasis is placed on verifying folding function, hinge life, stacking stability, and load-bearing performance, with samples and inspection reports provided. Before shipment, molds undergo anti-rust treatment and action testing, with water circuit diagrams, consumable parts lists, and maintenance instructions provided. Technical support is available during the warranty period, with lifetime maintenance consultation.
Motek — From rigid crates to folding logistics boxes, providing reliable mold solutions for space-saving, load-bearing storage containers.
